- Page 1 Motorized Retractable Monitor + DB system User Manual SC15/17/22FM SC15/17/22FM-DB SEADA Technology Ltd SEADA House, Saxon Business Park, Hanbury Road Bromsgrove, Worcestershire, B60 4AD, UK Tel: +44 (0)1527 584364 Fax: +44 (0)1527 962998 www.seada.co.uk...

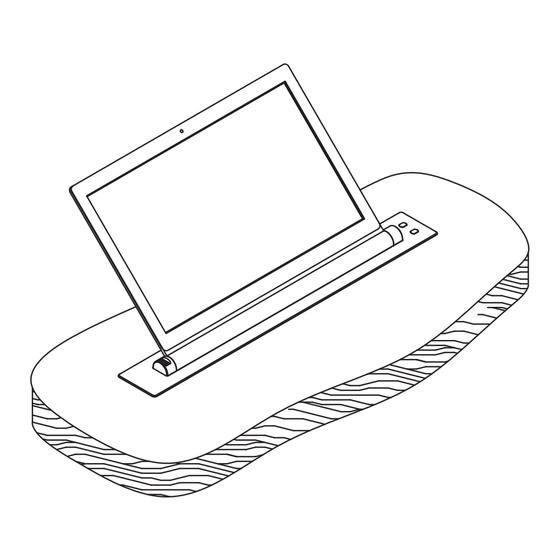

- Page 2 1. Introduction 3. Features The SEADA FM & FM-DB Series Motorized Retractable Monitors are state of the art exquisite monitors that are Ultra slim screen design made from aluminum. To ensure the finest ergonomics and the best viewing angle it has a vertical motorized Motorized retractable monitor movement that can be tilted from 0°to 45°.
- Page 3 4. Function Features 5. Product Features 1. Monitor + DB keyboard function indicate SC15FM & SC15FM-DB SC17FM & SC17FM-DB SC22FM & SC22FM-DB 15.6 inch 17.3 inch 21.5 inch Screen Size Loop signal HDMI Aspect Ratio 16:9 Resolution 1920*1080 Inputs HDMI/DVI/VGA...
- Page 4 Note: If ever the unit needs to be taken out of the table for relocation, please put the screen protection foams back before the actions. 482mm Slot SC15FM & SC15FM-DB Slot Cut Size 542mm Slot Connect all the cables and power up the unit, and then the control buttons on top plate will be lit which means the unit is ready.
- Page 5 7. Product Drawing 7. Product Drawing SC15FM dimensions SC15FM-DB dimensions...
- Page 6 7. Product Drawing 7. Product Drawing 398mm 398mm 17.3″ 17.3″ 540mm 540mm 550mm 550mm SC17FM dimensions SC17FM-DB dimensions...
- Page 7 7. Product Drawing 7. Product Drawing SC22FM dimensions SC22FM-DB dimensions...
- Page 8 8. System diagram 8. System diagram Video signal connection diagram with DB system HDMI input on the top plate (Priority over PC connection below) Third party signal source from matrix etc., HDMI Transmitter HDMI Cat6 HDMI Receiver Cat6 (Length ≤10M) HDMI DB stand alone device HDMI...
- Page 9 8. System diagram 8. System diagram Network connection diagram PC computer PC computer PC computer PC computer PC computer cable cable cable cable cable Intranet PC computer PC computer PC computer PC computer PC computer cable cable cable cable cable...
- Page 10 8. System diagram 8. System diagram RS485 connection diagram cable cable cable cable cable Central controller DB stand alone device cable cable cable cable cable...
- Page 11 8. System diagram 8. System diagram Power connection diagram Power socket Power socket Power socket Power socket Power socket Power socket to retractable monitor, single socket supports power daisy chain up to 20 units. Power socket Power socket Power socket Power socket Power socket...
- Page 12 CR= F6 + 5E + 00 + De_Add + 01 + 01 If De_Add = 00 CR = 56, so the comman line is 'F6 5E 00 00 01 01 56' SEADA retains copyright of this user manual and reserves the right to change specification without prior notice...
