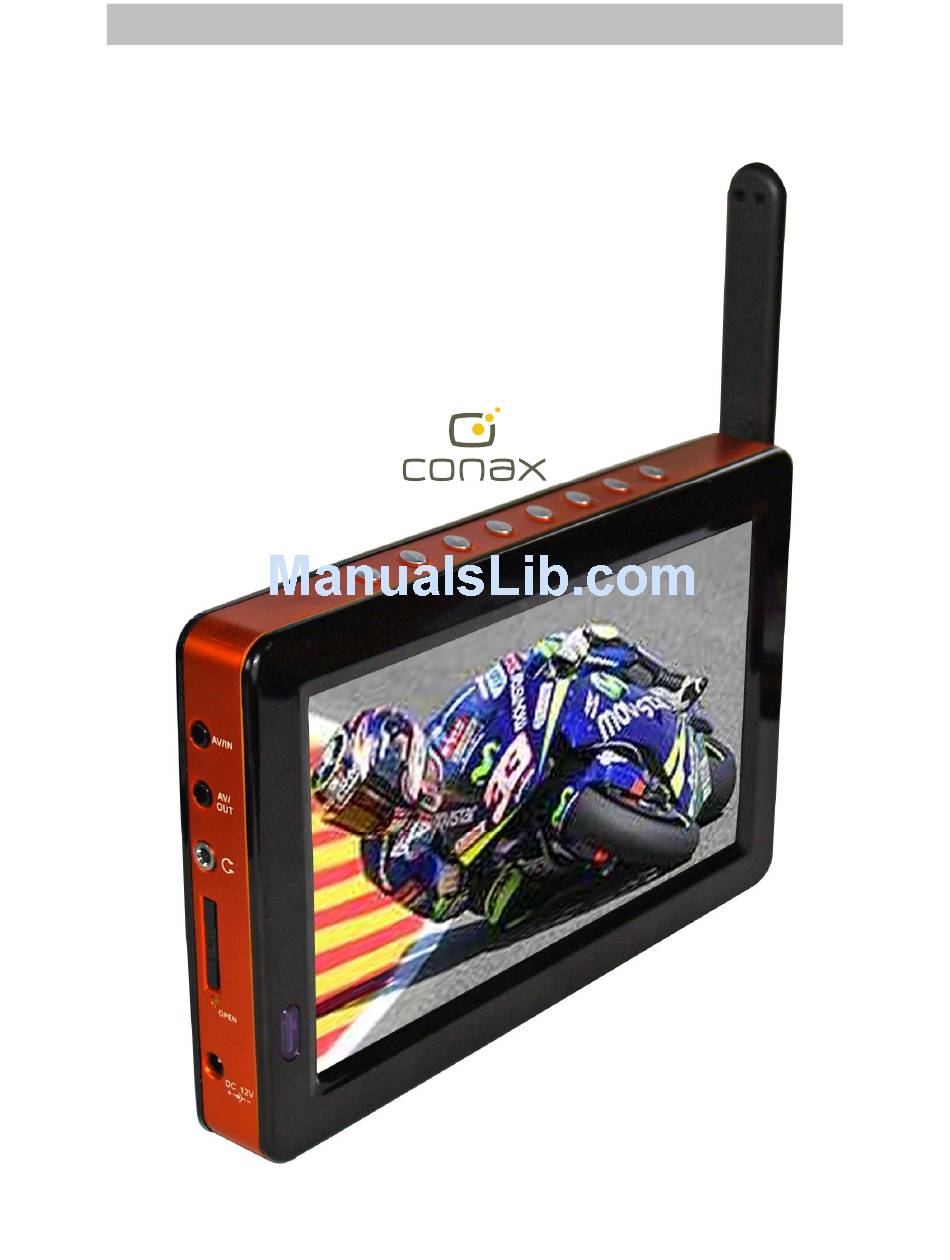

- Page 1 LENCO TFT-711 ENGLISH USER MANUAL TFT-711 WITH CONAX...
- Page 2 ENGLISH Copyright Information ©2007 LENCO. All rights reserved. This document may not in whole or in part be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, or reduced to any electronic medium or machine-readable form without prior consent, in writing, from Car Radio GmbH.
- Page 3 LENCO TFT-711 ENGLISH Dear Customer, We thank you for purchasing the TFT-711. The TFT-711 is an ultra-modern, portable Digital television that has been developed to receive digital, DVB-T standard (digital video broadcasting terrestrial) TV and radio programs. We wish you many pleasant hours of watching TV or listening to the Radio.
-
Page 4: Table Of Contents
LENCO TFT-711 ENGLISH TABLE OF CONTENTS PREPARATION BEFORE USING THE TFT-711 ............3 Unpacking and checking the contents ..............3 CONTROL REFERENCE GUIDE................4 The TFT-711 ....................... 4 The IR Remote Control..................4 INSTALLATION OF THE ACTIVE DASC ANTENNA ..........5 INSTALLATION OF ANY OTHER PASSIVE ANTENNA .......... - Page 5 LENCO TFT-711 ENGLISH Regional settings ....................15 OSD Settings ....................15 Parental Control Settings ................17 Audio/Video Settings..................17 Installation ......................18 Channel Search ....................18 Automatic Channel Search ................18 Manual Channel Search .................19 Advanced Search Settings................20 Antenna Settings ....................20 Logical Channel Number ..................21 Channel Sorting ....................21 Edit TV or Radio Main List ................22...
-
Page 6: Preparation Before Using The Tft-711
LENCO TFT-711 ENGLISH PREPARATION BEFORE USING THE TFT-711 Unpacking and checking the contents Please check if the following items and accessories are included in the received package: TFT-711 1x AC/DC Adapter 1x Remote control with 1x Audio / Video Cable... -
Page 7: Control Reference Guide
LENCO TFT-711 ENGLISH CONTROL REFERENCE GUIDE The TFT-711 INFO TV / RADIO FAVORITE LISTS AV / DVB-T MODE LCD ON/OFF VOLUME PLUS VOLUME MINUS MUTE AUDIO / VIDEO INPUT AUDIO / VIDEO OUTPUT EARPHONE OUTPUT CONDITIONAL ACCESS TRAY OPEN CA SIM TRAY... -
Page 8: Installation Of The Active Dasc Antenna
LENCO TFT-711 ENGLISH INSTALLATION OF THE ACTIVE DASC ANTENNA Thanks to its battery compartment and the DASC antenna, the TFT- 711 can be used as a television in the garden, at the bus stop, on a restaurant terrace or wherever you want without a power supply or an antenna cable. -
Page 9: Installation Of Any Other Passive Antenna
LENCO TFT-711 ENGLISH INSTALLATION OF ANY OTHER PASSIVE ANTENNA For home usage, the TFT-711 can be connected to an outside house antenna. Please note that the TV antenna coming from the roof should be connected directly to the antenna input designated ANT (IN). -
Page 10: Installation To A Tv Set And An External Av Source
LENCO TFT-711 ENGLISH INSTALLATION TO A TV SET AND AN EXTERNAL AV SOURCE The TFT-711 can be used as a digital receiver / settop box (STB). Either connect the DASC antenna to the antenna input ANT (IN) or connect the TFT-711 to the external house antenna. -
Page 11: Installation Of Ac/Dc Adapter And Batteries
LENCO TFT-711 ENGLISH INSTALLATION OF AC/DC ADAPTER AND BATTERIES Connect the AC/DC adapter to a mains source of 100~240VAC / 50~60Hz Connect the small connector of the AC/DC adapter to the DC 12V connection on the left side of the TFT-711. Do not force or bend the plug, this might damage the connector. -
Page 12: Basic Operations Remote Control
LENCO TFT-711 ENGLISH BASIC OPERATIONS REMOTE CONTROL Power button on TFT-711 Slide the switch to the ON position to power ON the TFT-711. To fully switch off the power, slide the power button to the OFF position. Stand-by key on IR Remote The “Stand-by”... -
Page 13: Fav Or ◄ Or
LENCO TFT-711 ENGLISH FAV or ◄ or ► Press these keys to call the TV Main List and Favorite List 1-4 and allow a fast navigation through the TV or Radio programs stored. Scroll to your desired selection with the ▲ or ▼... -
Page 14: Basic Operation Tft-711
LENCO TFT-711 ENGLISH BASIC OPERATION TFT-711 Power button on TFT-711 Slide the switch to the ON position to power ON the TFT-711. To fully switch off the power, slide the power button to the OFF position. Note: When the unit is switched ON, it takes 1-2 seconds for the boot-up procedure and during this time the LCD will remain black. -
Page 15: Menu / Setup Description
LENCO TFT-711 ENGLISH MENU / SETUP DESCRIPTION First Time Setup The First time Installation Menu is displayed on the first start-up of the TFT-711 or after a full reset - re-installation and the first boot procedure. This screen only appears once, but can be modified in the Regional Settings menu. -
Page 16: Main Menu Navigation Key Usage
LENCO TFT-711 ENGLISH Once the automatic channel search mode is started, the following screen will display information on the progress of the search and the programs that has been found. The reception parameters frequency and bandwidth, the signal strength of the channel, the number of TV and Radio programs, as well as the names of the programs are displayed. -
Page 17: Main Menu
LENCO TFT-711 ENGLISH Main Menu Press the MENU key to enter the main menu. The Main Menu is the starting point for to change all possible settings. The list of menus and sub-menus, as well as the interaction between the menus are given in more detail throughout this manual. -
Page 18: Regional Settings
LENCO TFT-711 ENGLISH Regional settings In this sub-menu the language of choice can be set for the menu, audio and DVB-T subtitles. Changing the Language will change immediately the menu items in the corresponding language. Select the Audio Language of your choice, if this language is available in the audio stream it will be language you will hear with the TV image. - Page 19 LENCO TFT-711 ENGLISH In this sub-menu the setting can be set for the On-Screen-Display information. Select at Info Display Time the seconds (3, 5 0r 10 seconds) a menu item will appear on screen after which it will disappear automatically.
-
Page 20: Parental Control Settings
LENCO TFT-711 ENGLISH Parental Control Settings The TFT-711 is delivered with a Parental Control function. This function is set to OFF by default. The secret code (PIN) is default 00000. We advise you to change this code. When the Power-on Lock is set to ON and the TFT-711 is switched OFF, the next time the TFT-711 is switched ON you will be prompted to enter the PIN code. -
Page 21: Installation
LENCO TFT-711 ENGLISH Installation The Installation sub-menu enables repeating the automatic or manual search mode, sorting the channels, resetting the settings to factory default or a full system reset (re-installation). Press the YELLOW or EXIT key to return one level in the sub-menu or press the BLUE key to return to the TV image. -
Page 22: Manual Channel Search
LENCO TFT-711 ENGLISH Manual Channel Search It is possible to set channels that do not fit to the standard RF channel raster implemented for the different countries. Highlight Frequency and press OK. Channel frequency can set manually using the number keys “0 ... 9” e.g. 578000. If a wrong frequency is entered, the last entered frequency or a default frequency will be used for scanning. -
Page 23: Advanced Search Settings
LENCO TFT-711 ENGLISH Advanced Search Settings In this sub-menu, it is possible to select special functions in the search mode. The selection can be made using the ARROW keys. *FTA = Free - To - Air channels. Mode Selection 1... -
Page 24: Logical Channel Number
LENCO TFT-711 ENGLISH Logical Channel Number When there is a Logical Channel Number present in the DVB-T signal and LCN is switched ON and LCN sorting is switched selected, then the channels will be sorted and placed according their LCN number. The channels will be displayed in the TV Main List as follows (LCN mode is on and LCN sorting is on): →... -
Page 25: Edit Tv Or Radio Main List
LENCO TFT-711 ENGLISH Edit TV or Radio Main List Highlight Edit TV Main List and press OK In this sub-menu the channels can be placed in a preferred order. Highlight the channel of your choice and press OK Now move the selected channel to the preferred order with the ▼or ▲ arrow and press OK The selected channel is now moved to the desired channel number. -
Page 26: Edit Tv Or Radio Favorite List
LENCO TFT-711 ENGLISH Edit TV or Radio Favorite list Highlight Edit TV Favorite list and press OK There are four favorite lists available in which TV channels can be stored. This is particularly handy when in regions for the same TV channel different frequencies are used. For example TV1 is on frequency 474Mhz in region 1 and on 578Mhz in region 2. -
Page 27: Reset Settings
LENCO TFT-711 ENGLISH Highlight a channel in the TV Favorite List and press the RED key to delete the channel from the channel list. Please be aware that when the channel is deleted and you want to have it in the list again, a new channel search must be performed. -
Page 28: Re-Installation
LENCO TFT-711 ENGLISH Re-Installation In the installation menu, select Re-Installation and press OK. The following screen will be displayed. Press the GREEN key to reset all settings to the factory default setting. All scanned and stored channels will remain in memory. Press the RED key to cancel this operation. -
Page 29: System Information
LENCO TFT-711 ENGLISH System Information Select this sub-menu form the main menu to see the system information of the TFT-711. A screen will be displayed like the one below. Note: the information displayed on your unit might be different as what is displayed in this image. -
Page 30: Info Banner
LENCO TFT-711 ENGLISH Info Banner With any channel change, an information banner automatically appears and displays the Now & Next TV program information and provides added information about the program selected: 1) Current time 2) Teletext availability 3) Availability of multiple Audio Channels... -
Page 31: Electronic Program Guide (Epg)
LENCO TFT-711 ENGLISH In case the program information is long and exceeds the available size of the page, it is displayed in two or even more pages. Use the ▼ and ▲ keys to switch to the next page. Press the GREEN key again to see the next program information. - Page 32 LENCO TFT-711 ENGLISH Press the GREEN key to access the events covering the next (seven) days (only if transmitted by the TV station or the operator). Hereunder an example is seen of Next Day events. Press the GREEN key in sequence to view the events of the day selected. Press the RED key to go to the previous day.
-
Page 33: Teletext Operation
LENCO TFT-711 ENGLISH Teletext Operation The TFT-711 supports Teletext up to L2.5 decoding with VBI data service re-insertion. Note: The TFT-711 does not support Interactive Text (MHEG5) as commonly used in the United Kingdom. Press the yellow TEXT key while watching a TV channel and the Teletext pages will be loaded. -
Page 34: Channel Information
LENCO TFT-711 ENGLISH Press the FAV key to activate the transparent mode of the Teletext display. Teletext is now displayed together with the TV signal. In certain Teletext pages (like puzzle pages) information is hidden. This information can be revealed by pressing the INFO / ? key. -
Page 35: Radio Mode
LENCO TFT-711 ENGLISH If there is no interaction for a few seconds or when the OK key is pressed again, normal TV viewing will resume. When in the OSD Settings menu Signal Bar is set to ON, the above information will be seen every time a channel is changed. -
Page 36: Abbreviations And Glossary (Informative)
LENCO TFT-711 ENGLISH ABBREVIATIONS AND GLOSSARY (INFORMATIVE) Channels that are only broadcasted at certain hours of the day. Depending network provider, 24 Hour Channels the channel information is available in the DVB-T stream and the TFT-711 receiver is programmed to list these channels in the TV or Radio list after an Automatic or Manual Scan. - Page 37 LENCO TFT-711 ENGLISH A physical device which is capable of inserting data into and extracting data from an MPEG-2 Multiplexer (Mux) transport stream. A Scandinavian organization specifying a common platform for Digital Television to be used NorDig within the Nordic region (Denmark, Finland, Iceland, Norway and Sweden). The NorDig test specifications (NorDig Unified 1.0.2) are regarded as one of the most strict in the world and...
-
Page 38: Technical Specifications
LENCO TFT-711 ENGLISH TECHNICAL SPECIFICATIONS TFT-711 Enjoy watching Digital Terrestrial TV or listen to DVB-T Radio This Ultra Slim Line and Modern designed Pocket TV is your ideal travel companion and is suitable for reception of Digital Terrestrial Television and Radio channels at the Office, at Home, outside at a Picknick or wherever you are. Operate the unit on NiMH AA batteries (not included) or on 12Vdc with the AC/DC adapter and enjoy watching your favorite TV channels or listen to your favorite Radio music, anywhere, anytime. - Page 39 LENCO TFT-711 ENGLISH Digital Terrestrial Tuner: Mini Tuner • BAND III, IV and V (174~860 MHz Frequency Range - VHF/UHF) • Band 6MHZ, 7MHZ or 8MHZ • Input Level: -85 ~ -12dBm • Input Impedance: 75 Ohm • (TFT-711 only) Active 5Vdc IEC connection (protected) •...
-
Page 40: Dvb-T Reception Tips
LENCO TFT-711 ENGLISH DVB-T RECEPTION TIPS DVB-T reception is subjected to reception areas. Every country that has setup a DVB-T network, has set it up differently form other countries. In fact most countries has set up their network for reception of the DVB-T signals with outside antenna’s. - Page 41 LENCO TFT-711 ENGLISH In several DVB-T area’s the DVB-T signals are transmitted in a horizontal polarization. Although the DASC antenna is omni directional, in some cases you can receive better signals when you place the antenna horizontally. Using the extension coax...
-
Page 42: Conax Smart Card Operation
LENCO TFT-711 ENGLISH CONAX SMART CARD OPERATION The TFT-711 is equipped with a Smartcard reader (sim type format) and has embedded Conax Conditional Access (CA) software to decrypt scrambled Pay TV channels. For watching Pay TV channels, a subscription from a Digital TV or Radio provider is needed and a CA Smartcard. - Page 43 LENCO TFT-711 ENGLISH Take the tray fully out of the TFT-711. Now place the small Smartcard with the gold contact points upward into the tray. NOTE: Do not place a Mobile Phone Sim card into the tray and the unit. This may damage the unit and/or the Sim card.
-
Page 44: Pay Tv Settings
LENCO TFT-711 ENGLISH Pay TV Settings Press MENU on the remote and enter the Settings → Pay TV Settings menu and the Pay TV Settings menu will be displayed as below: Note: Product Ordering is not a selectable menu item. -
Page 45: Event Status
LENCO TFT-711 ENGLISH Event Status Select Event Status with the ▼or ▲ arrow and press OK, the following menu screen will be displayed where the current status of an event is shown. Information displayed is depending the subscription provider and availability of events. -
Page 46: Activate Or Deactivate The Pin Code Of The Smartcard
LENCO TFT-711 ENGLISH Key in the original (currently existing) PIN number. Mostly this PIN number is 1234. It is advisable to change this standard provided PIN number. After the PIN is keyed in, key in the NEW PIN as in below menu: After the NEW PIN is keyed in, a confirmation of the NEW PIN is needed. - Page 47 LENCO TFT-711 ENGLISH The PIN code needs to be keyed in, in order to view the Maturity rating menu. Key in the standard PIN code 1234 if this PIN code has not been changed into a personal PIN code as described above.
-
Page 48: About Conax Ca
LENCO TFT-711 ENGLISH About Conax CA Select About Conax CA with the ▼or ▲ arrow and press OK, the following menu screen will be displayed where the current Interface Version, Subscription Smartcard number, Number of Sessions, Country Indicator and CA System ID is displayed. Information displayed is depending the subscription provider. -
Page 49: Maturity Channel Selection
LENCO TFT-711 ENGLISH Maturity Channel Selection In case a channel is selected that is rated as a Maturity channel X and Maturity rate is set to G, PG or A, a screen will be displayed as following: Key in the CA PIN code provided or the newly created CA PIN code and press on the Green button on the Remote to enter the Maturity rated channel. -
Page 50: Help Desk Service
8) Zorg dat u uw volledig ingevulde garantiebewijs + aankoopbon bij de hand heeft. 9) Zorg ervoor dat het model nummer van uw Lenco-apparaat bekend is. Deze staat vermeld op het apparaat en op de verpakking. 10) Zorg er voor dat het apparaat bedrijfsklaar is zodat het advies van onze helpdesk meteen kan worden toegepast. - Page 51 LENCO TFT-711 ENGLISH Note: Page 48 of 48 pages...
- Page 52 LENCO TFT-711 ENGLISH Page 49 of 48 pages...
