AudioCodes Kramer KAC-CAM-70 PTZ AI Camera
Welcome
Congratulations on purchasing your AudioCodes Kramer KAC-CAM-70 PTZ camera!
In this Manual, the following marketing names are interchangeable:
KAC-CAM-70
Checking Package Contents
Before installing your KAC-CAM-70, make sure these items are included in your shipped box:
Power Supply
USB cable (A-C) 2m
Wall Mount Bracket
Power Adaptor
Remote Control (RC)
Ethernet cable
Quick Guide
RXVCam70
P a g e
| 1
1
PN 2900-30178 REV
Advertisement
Related Manuals for AudioCodes Kramer KAC-CAM-70
Summary of Contents for AudioCodes Kramer KAC-CAM-70

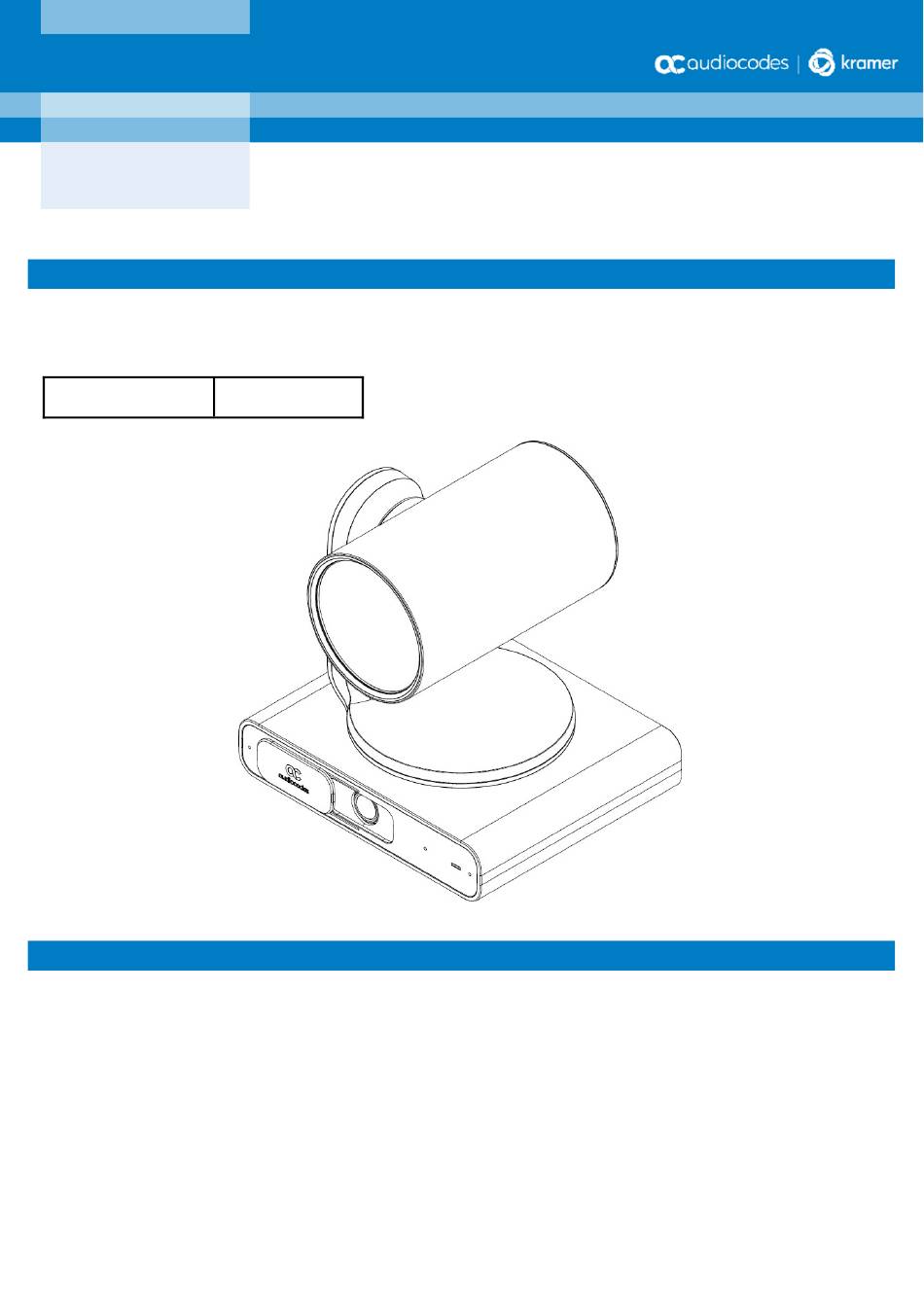

- Page 1 AudioCodes Kramer KAC-CAM-70 PTZ AI Camera Quick Guide Welcome Congratulations on purchasing your AudioCodes Kramer KAC-CAM-70 PTZ camera! In this Manual, the following marketing names are interchangeable: KAC-CAM-70 RXVCam70 Checking Package Contents Before installing your KAC-CAM-70, make sure these items are included in your shipped box: Power Supply ...
- Page 2 Getting Acquainted The figure below shows the front view of the KAC-CAM-70. Use the table as reference to the preceding figure. Description PTZ Optical Zoom camera Microphone array Privacy cover Room view wide-angle camera LED indicator light P a g e...
- Page 3 The figure below shows the back view of the KAC-CAM-70. Use the table as reference to the preceding figure. Description Safety lock hole Audio In port USB 3.0 port RJ-45 network port (PoE+) DC 12V port P a g e...
- Page 4 Installation The recommended installation height is 1.5m-1.8m above ground level. Screw specifications: 1 round head Phillips machine screw 1/4"-20UNC10) 4 cross-slotted round head screws with self-tapping threads (PWM3*8) Use the figures below as reference. P a g e...
- Page 5 The preceding figure shows the AudioCodes Kramer KAC-SPK-40 Speakerphone (under the two TVs together with KAC-CAM-70) to illustrate the setup’s audio device. Alternatively, other audio devices can be used, such as AudioCodes’ KAC-SPK-15 Speakerphone | Huddle Room Speaker (placed on the table together with KAC-TCH-10).
- Page 6 Determining Camera Processes from Light Indicators Use the table below as reference. Light Indicator Status Steady red light Standby Orange Boot process Steady white light Camera On Flashing blue light Upgrade process Flash once Remote control Camera Tracking Mode From KAC-TCH-10’s ‘Camera Settings’, select one of the following KAC-CAM-70 camera Tracking Modes: Manual ...
- Page 7 Choosing a Tracking Mode Use the table below as reference when choosing a Tracking Mode. Automatically identifies 1-8 people Automatically lays out the display When a person moves, the camera automatically tracks them and keeps them centered Switching from one person to another is accompanied by dynamic effects of Smart Gallery ...
- Page 8 Select this option to manually adjust the Zoom, Tilt or Pan. In KAC-TCH-10’s ‘Camera Settings’ page, use the sliders to set Zoom, Tilt or Pan. Using the RC, after selecting an area to display, zoom in | out, move up | ...
- Page 9 Getting Acquainted with the Remote Control (RC) Use the table following the figure below as reference. Use the table as reference to the preceding figure. Item Description Standby Press to put the camera in standby mode. Number keys Set or call presets. Use in combination with other buttons.
- Page 10 Item Description PRESET Set presets: Set preset + number (0-9). Preset 0 can be set as the default. Confirm the selected menu or press to return the pan/tilt to the center position. Back Press to return to the previous level in the OSD (on-screen display) menu.
- Page 11 Websi https://www.kramerav.com/ ©2023 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights and AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
