Summary of Contents for AGD AGD932
- Page 1 AGD932 Target Simulator PRODUCT MANUAL AGD932 Target Simulator AGD-SYSTEMS.COM...
-
Page 2: Table Of Contents
Pulse/Transmit or Continuous mode Low battery warning TECHNICAL SPECIFICATIONS Shutting the unit down Information display 350 Product specification Pulse/Transmit mode Continuous mode CERTIFICATION 22-23 Tracked target mode Queue mode IMPORTANT SAFETY INFORMATION Free flow mode Safety precautions DISCLAIMER Warranty AGD932 | TARGET SIMULATOR... -
Page 3: Key Features

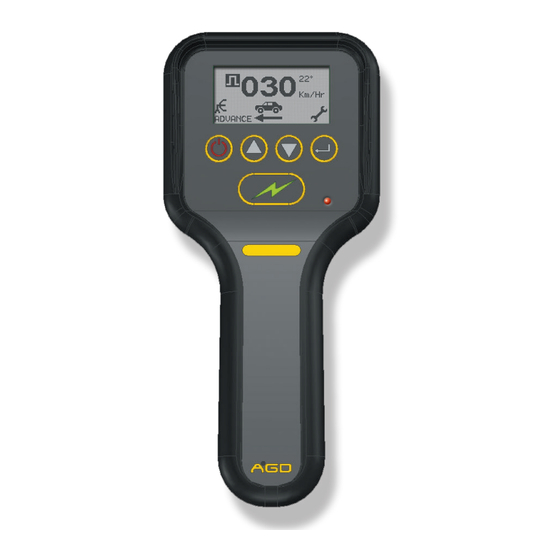

AGD932 INTRODUCTION Target Simulator PRODUCT OVERVIEW AND TECHNOLOGY TThe AGD932 is a compact purpose designed portable radar target simulator that can be used to test radars on site for correct operation and speed reporting. A number of special features have been... -
Page 4: Typical Applications
Up / Down Select highlighted option / Scroll through options. accept change Inverse highlighted item identifies the currently selected parameter Activate Test 96mm Audible confirmation given 200mm Battery compartment cover - takes 2x AA batteries Compartment for 2 x AA Batteries AGD932 | TARGET SIMULATOR... -
Page 5: Display / Configuration
SELECT RANGE (if relevant to model) SET SPEED UNITS SET VEHICLE TYPE SET DIRECTION SAVE SETTINGS SET MODE (Pulse or Continuous)* *The 350 radar has extra SELECT CUSTOM SPEED (if required) modes available, please refer to relevant section in this manual AGD932 | TARGET SIMULATOR... -
Page 6: Information Display 342
Press return to select and move to next screen. Please note that the orientation of the unit varies with radar type due to the e field polarisation - horizontal or vertical. AGD932 | TARGET SIMULATOR... -
Page 7: Setting The Target Speed Values
NOTE: certain radars may only support certain speed values. USER SELECTABLE SPEED VALUES You can highlight the individual numbers, i.e. hundreds, tens and units to set your own speed measurement. Toggle through each unit then press return to set. AGD932 | TARGET SIMULATOR... -
Page 8: Setting The Radar Mounting Angle
The radar range can be set from a minimum of zero metres to a maximum of 96 metres. The value increments will depend on the radar type. NOTE: This function is only available on certain radar types. AGD932 | TARGET SIMULATOR... -
Page 9: Setting Speed Measurement - Kph/Mph
The next setting allows you to toggle between kph and mph. SETTING THE TARGET TYPE There are 3 options for target type, Car, Van and Lorry. Simple cycle through the options and press return to select. AGD932 | TARGET SIMULATOR... -
Page 10: Set To Recede Or Advance
There is a simple toggle button to select either recede or advance. Press return to select. SAVE SETTINGS Arrow forward to the save settings button bottom right and press return. TRANSMIT & CONTINUOUS MODE This option allows you to decide between transmit or continuous mode. AGD932 | TARGET SIMULATOR... -
Page 11: Low Battery Warning
SHUTTING THE UNIT DOWN Holding the power on button for more than one second will shut the unit down. We would advise removing the batteries if the unit is not going to be used for long period. AGD932 | TARGET SIMULATOR... -
Page 12: Information Display 350
Radar range radar type Speed units Vehicle type Save settings Channel frequency FREE FLOW MODE Radar type Cosine (radar mounting angle) If relevant to Radar range radar type Speed units Vehicle type Save settings Channel frequency AGD932 | TARGET SIMULATOR... -
Page 13: Screen Modes
Press return to select and move to next screen. Please note that the orientation of the unit varies with radar type due to the e field polarisation - horizontal or vertical. AGD932 | TARGET SIMULATOR... -
Page 14: Setting The Target Speed Values
NOTE: certain radars may only support certain speed values. USER SELECTABLE SPEED VALUES You can highlight the individual numbers, i.e. hundreds, tens and units to set your own speed measurement. Toggle through each unit then press return to set. AGD932 | TARGET SIMULATOR... -
Page 15: Setting The Radar Mounting Angle
The radar range can be set from a minimum of zero metres to a maximum of 85.2 metres. The value increments will depend on the radar type. NOTE: This function is only available on certain radar types. AGD932 | TARGET SIMULATOR... -
Page 16: Setting Speed Measurement - Kph/Mph
The next setting allows you to toggle between kph and mph. SETTING THE TARGET TYPE There are 3 options for target type, Car, Van and Lorry. Simply cycle through the options and press return to select. AGD932 | TARGET SIMULATOR... -
Page 17: Set To Recede Or Advance
This mode is selected by highlighting the mode of operation icon. Selecting this mode will then give a continously repeated target which has a one second off period before re-transmitting. There are no adjustable parameters associated with this mode. AGD932 | TARGET SIMULATOR... -
Page 18: Modes Of Operation (Tracked)
50mph, pulsed as such to release the queue generated using the above queue function when using the queue detection function in the 350 radar. Both speed and direction may be adjusted when using this parameter. AGD932 | TARGET SIMULATOR... -
Page 19: Channel Frequency
SHUTTING THE UNIT DOWN Holding the power on button for more than one second will shut the unit down. We would advise removing the batteries if the unit is not going to be used for long period. AGD932 | TARGET SIMULATOR... -
Page 20: Configuration
20kph (12mph) and 320kph (200mph) can be set (4 - 262kph for 350 radar). NOTE: standard operating distance is between 1 and 2 metres from detector face. Use outside of this recommended operating distance may result in data errors. AGD932 | TARGET SIMULATOR... -
Page 21: Technical Specifications
Standard operating distance is between 1 and 2 metres from detector face. Use outside of this recommended operating distance may result in data errors. Owing to the Company’s policy of continuous improvement, AGD Systems Limited reserves the right to change their specification or design without notice. AGD products should be installed by a competent person. -
Page 22: Certification
AGD932 CERTIFICATION Target Simulator AGD932 | TARGET SIMULATOR... - Page 23 AGD932 CERTIFICATION Target Simulator AGD932 | TARGET SIMULATOR...
-
Page 24: Safety Precautions
Under no circumstances should a product suspected of damage be powered on. Internal damage may be suggested by unusual behaviour, an unusual odour or damage to the outer casing. Please contact AGD for further advice. This device complies with part 15 of the FCC Rules. -
Page 25: Disclaimer
Warranty All AGD products are covered by a 12 month return to factory warranty. Products falling outside this period may be returned to AGD Systems for: evaluation, repair, update or re-calibration, any of which may be chargeable.
