Summary of Contents for AGD 932

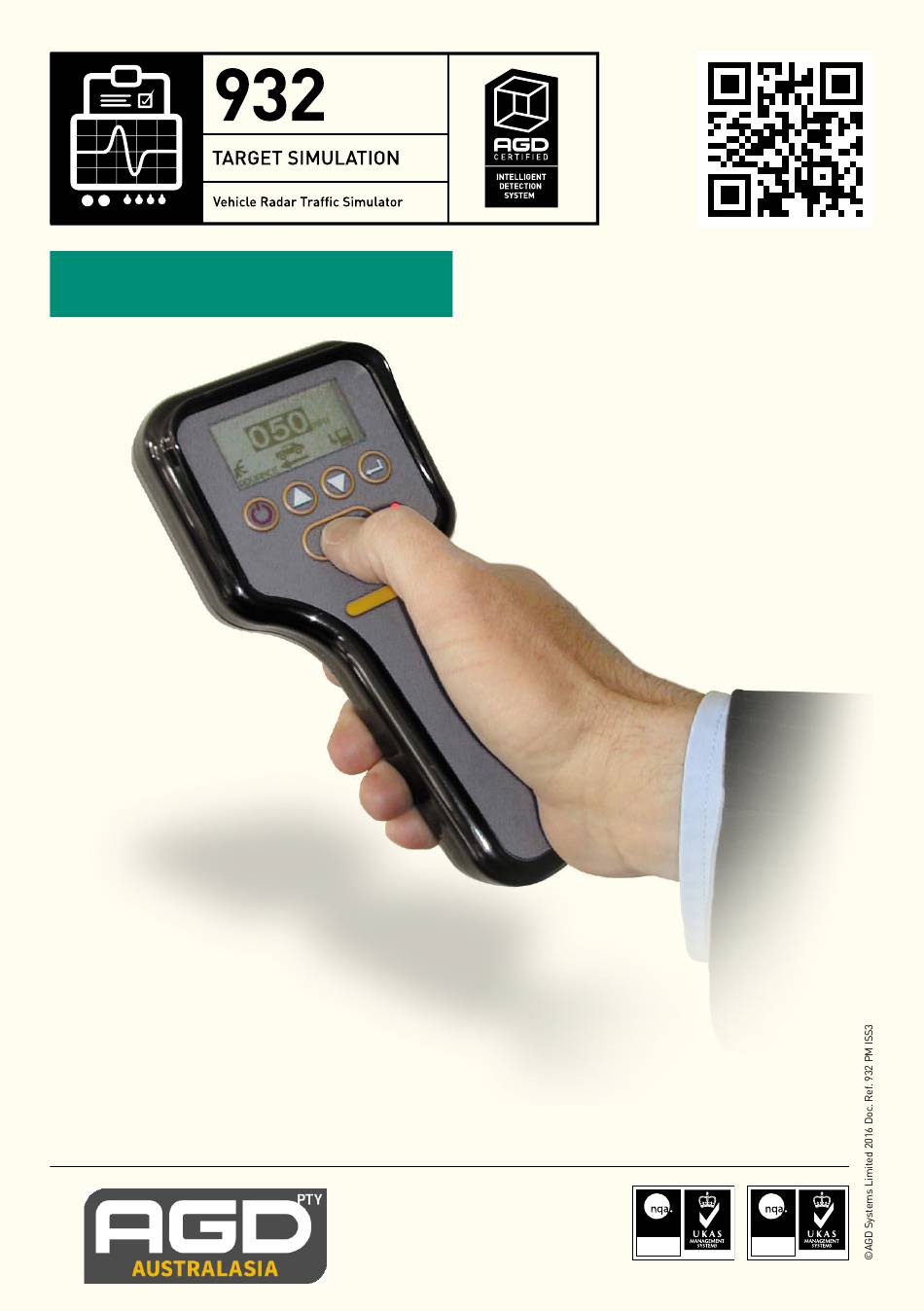

- Page 1 PRODUCT MANUAL ISO 9001 ISO 14001 Registered Registered Quality Environmental Management Management...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Product & technology Key features Typical applications Product overview DISPLAY / CONFIGURATION Screen mode operation Information display 342 Pulse/Transmit mode Continuous mode Screen modes Start up screen Select radar type Setting the target speed values User selectable speed values Setting the radar mounting angle Setting the radar range Setting speed measurement - kph/mph... -
Page 3: Introduction

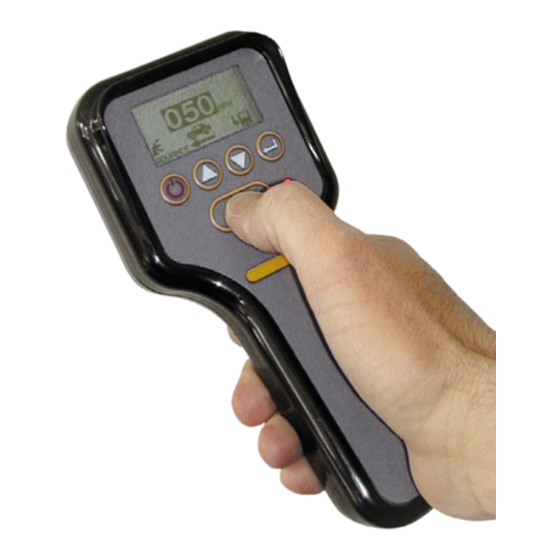

KEY FEATURES Lightweight ergonomic profile • State-of-the-art radar technology • • Ease of set up in road side environment • Intuitive user Interface • User selectable pre-set speed values • User definable specific speed values • Battery powered (2x AA) agd-systems.com.au... -
Page 4: Typical Applications
Up / Down Select highlighted option Scroll through / accept change options. Inverse highlighted item identifies the currently selected Activate Test 96mm parameter Audible confirmation given 200mm Battery compartment cover - takes 2x AA batteries agd-systems.com.au Compartment for 2 x AA Batteries... -
Page 5: Display / Configuration
SCREEN MODE OPERATION The 932 menu system works on a basic principal whereby the screen will cycle through the menu options as shown below. The return button allows you to enter a menu and the up/down arrows allow you to adjust settings, pressing the return button will cycle you to the next menu option. -
Page 6: Information Display 342
Save settings SCREEN MODES Start up screen On powering up the 932 will display a splash screen. The current software version is shown on the bottom left, along with the detector model the 932 has been calibrated for. Select radar type The screen will switch to “Select Radar”... -
Page 7: Setting The Target Speed Values
NOTE: certain radars may only support certain speed values. USER SELECTABLE SPEED VALUES You can highlight the individual numbers, i.e. hundreds, tens and units to set your own speed measurement. Toggle through each unit then press return to set. agd-systems.com.au... -
Page 8: Setting The Radar Mounting Angle
SETTING THE RADAR RANGE The radar range can be set from a minimum of zero metres to a maximum of 96 metres. The value increments will depend on the radar type. NOTE: This function is only available on certain radar types. agd-systems.com.au... -
Page 9: Setting Speed Measurement - Kph/Mph
SETTING MEASUREMENT - KPH/MPH The next setting allows you to toggle between kph and mph. SETTING THE TARGET TYPE There are 3 options for target type, Car, Van and Lorry. Simple cycle through the options and press return to select. agd-systems.com.au... -
Page 10: Set To Recede Or Advance
DISPLAY / CONFIGURATION SET TO RECEDE OR ADVANCE There is a simple toggle button to select either recede or advance. Press return to select. SAVE SETTINGS Arrow forward to the save settings button bottom right and press return. TRANSMIT & CONTINUOUS MODE This option allows you to decide between transmit or continuous mode. -
Page 11: Low Battery Warning
AA and restart to continue. SHUTTING THE UNIT DOWN Holding the power on button for more than one second will shut the unit down. We would advise removing the batteries if the unit is not going to be used for long period. agd-systems.com.au... -
Page 12: Information Display 350
If relevant to Radar range radar type Speed units Vehicle type Save settings Channel frequency FREE FLOW MODE Radar type Cosine (radar mounting angle) If relevant to Radar range radar type Speed units Vehicle type Save settings agd-systems.com.au Channel frequency... -
Page 13: Screen Modes
DISPLAY / CONFIGURATION 350 RADAR SCREEN MODES Start up screen On powering up the 932 will display a splash screen. The current software version is shown on the bottom left, along with the detector model the 932 has been calibrated for. -
Page 14: Setting The Target Speed Values
NOTE: certain radars may only support certain speed values. USER SELECTABLE SPEED VALUES You can highlight the individual numbers, i.e. hundreds, tens and units to set your own speed measurement. Toggle through each unit then press return to set. agd-systems.com.au... -
Page 15: Setting The Radar Mounting Angle
SETTING THE RADAR RANGE The radar range can be set from a minimum of zero metres to a maximum of 85.2 metres. The value increments will depend on the radar type. NOTE: This function is only available on certain radar types. agd-systems.com.au... -
Page 16: Setting Speed Measurement - Kph/Mph
SETTING MEASUREMENT - KPH/MPH The next setting allows you to toggle between kph and mph. SETTING THE TARGET TYPE There are 3 options for target type, Car, Van and Lorry. Simply cycle through the options and press return to select. agd-systems.com.au... -
Page 17: Set To Recede Or Advance
This mode is selected by highlighting the mode of operation icon. Selecting this mode will then give a continously repeated target which has a one second off period before re-transmitting. There are no adjustable parameters associated with this mode. agd-systems.com.au... -
Page 18: Modes Of Operation (Tracked)
50mph, pulsed as such to release the queue generated using the above queue function when using the queue detection function in the 350 radar. Both speed and agd-systems.com.au direction may be adjusted when using this parameter. -
Page 19: Channel Frequency
AA and restart to continue. SHUTTING THE UNIT DOWN Holding the power on button for more than one second will shut the unit down. We would advise removing the batteries if the unit is not going to be used for long period. agd-systems.com.au... -
Page 20: Configuration
20kph (12mph) and 320kph (200mph) can be set (4 - 262kph for 350 radar). NOTE: standard operating distance is between 1 and 2 metres from detector face. Use outside of this recommended operating distance may result in data errors. agd-systems.com.au... -
Page 21: Technical Specifications
Approved to: BS EN 50293 EN 301-489 RoHS ETSI EN 300-440 AS/NZ 4268:2003 COMPLIANT Restriction on Hazardous Substances Owing to the Company’s policy of continuous improvement, AGD Systems Limited reserves the right to change their specification or design without notice. agd-systems.com.au... -
Page 22: Certification
CERTIFICATION agd-systems.com.au... - Page 23 CERTIFICATION agd-systems.com.au...
-
Page 24: Important Safety Information
20cm of the body. • The transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • Changes or modifications not expressly approved by AGD Systems Ltd could void the user’s authority to operate the equipment. agd-systems.com.au... - Page 25 NOTES agd-systems.com.au...
- Page 26 NOTES agd-systems.com.au...
- Page 27 NOTES agd-systems.com.au...
-
Page 28: Disclaimer
DISCLAIMER While we (AGD Systems) endeavour to keep the information in this manual correct at the time of print, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the information, products, services, or related graphics contained herein for any purpose.
