LENCO MDV-5 Instruction Manual

Home cinema set
Hide thumbs Also See for MDV-5:
Table of Contents

Advertisement

Quick Links

Download this manual
MDV-5 DVD
HOME CINEMA SET
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for LENCO MDV-5

Summary of Contents for LENCO MDV-5

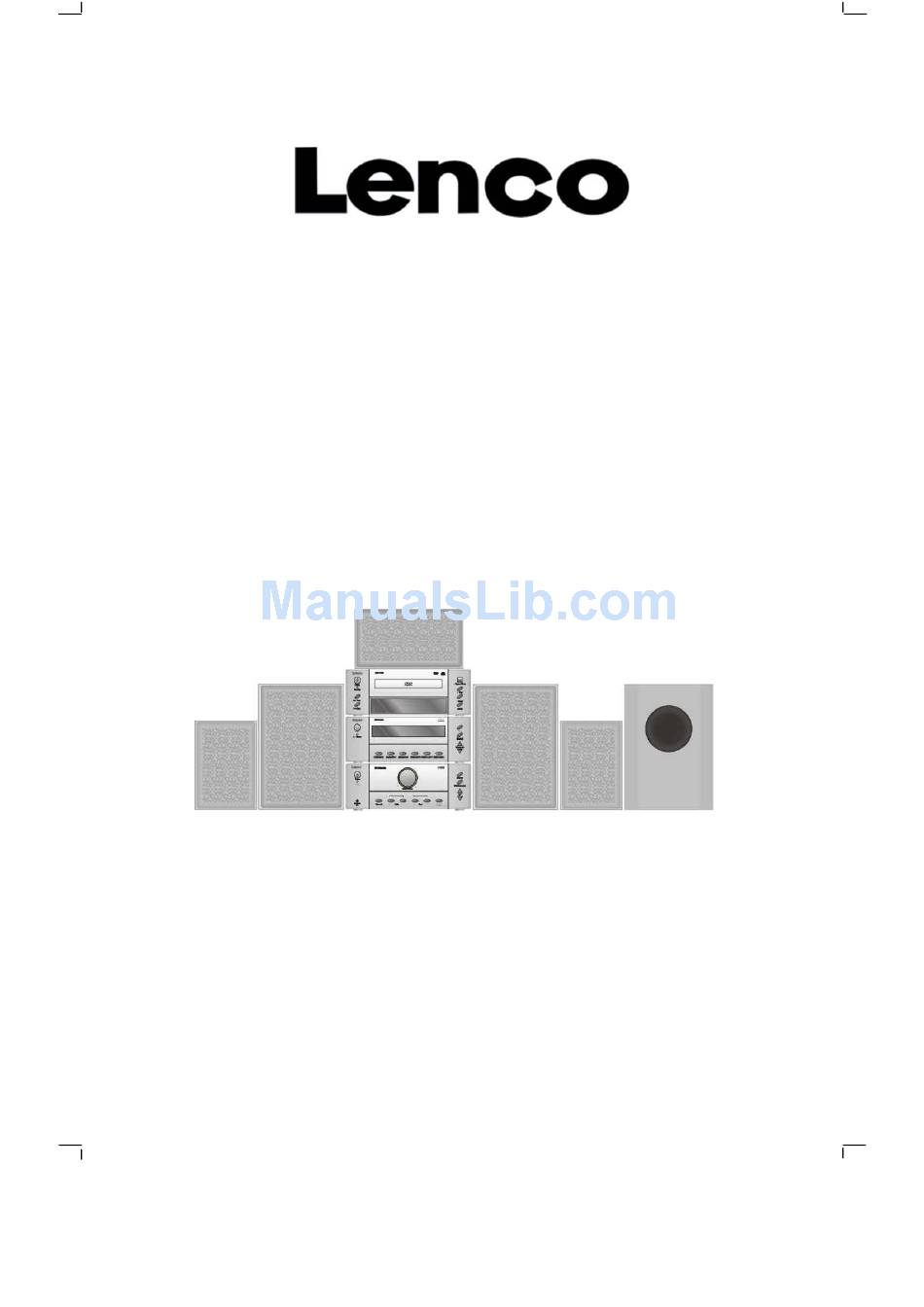

  • Page 1 MDV-5 DVD HOME CINEMA SET Instruction Manual...

  • Page 2: Table Of Contents

    DIRECTORY 1. Introduction ....................1 1.1 Pack Contents ...................1 1.2 Disc Types ..................2 1.3 DVD Features ..................2 1.4 DVD region code ................2 1.5 Glossary of Disc Terms ..............2 1.6 Notes on discs ...................3 1.7 Inserting Batteries into Remote Control ..........4 2.Location of controls..................5 2.1 DVD Component................5 2.2 Stereo Tuner Component ..............6 2.3 Amplifier Component .................7...
  • Page 3 6.14 Menu Navigation (DVD only) ............29 6.15 Audio Language (DVD only) ............30 6.16 Subtitle Language (DVD only) ............30 6.17 Zoom .....................30 6.18 Angle Selection................30 6.19 Display ...................30 7.MP3/JPEG CD Operation................31 7.1 Introduction to MP3/JPEG Playback..........31 7.2 File Selection ...................31 7.3 Pre-Stop/Stop ..................31 7.4 Pause ....................32 7.5 Previous/Next ..................32...

  • Page 4: Introduction

    1. Introduction Thank you for purchasing this state of the art DVD MICRO system. This instruction manual is important to you. Please read it. In a short time it shows exactly how to connect, operate and adjust this unit for best performance. It can save you money as it shows simple things to do and check before you call for help and save the cost of unnecessary service or call out charge.

  • Page 5: Disc Types

    1. Introduction 1.2 Disc Types The following table shows the type of discs that can be used with this DVD MICRO system Type of Disc Diameter Playback time Data Format Comments 1 Layer: 120 min DVD Format Disc: 12 cm 2 Layer: 240 min Compressed Digital Audio None...

  • Page 6: Notes On Discs

    1. Introduction (cont) Chapter (DVD) A chapter is normally a section of a title. For example, on a movie DVD the main feature may be recorded as a TITLE and this title may be split into several smaller sections called CHAPTERS to allow easy navigation to a particular point of a movie.

  • Page 7: Inserting Batteries Into Remote Control

    1. Introduction (cont) Do not use solvents such as petrol based products, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. Disc installation precautions Do not install more than 1 disc on disc tray Do not place the disc on the tray up side down. Do not try to close the disc tray when the disc is not inserted properly.

  • Page 8: Location Of Controls

    2. Location of Controls 2.1 DVD Component Front Panel: 1. Power switch ( ) 6. Open/Close ( ) button 2. Standby indicator 7. Play ( ) button 3. Previous ( ) button 8. Pause ( ) button 4. Next ( ) button 9.

  • Page 9: Stereo Tuner Component

    2. Location of Controls (cont) 2.2 Stereo Tuner Component Front Panel 1. Stereo/Mono Switch 4. Band button 2. Stereo/Mono indicator 5. Memory button 3. Memory Preset buttons 6. Tuning +/- buttons Rear Panel 1. FM Aerial Socket 3. Socket to connect to amplifier 2.

  • Page 10: Amplifier Component

    2. Location of Controls (cont) 2.3 Amplifier Component Front Panel 1. Power switch 8. Increase Bass Level button 2. Standby indicator 9. Surround (DSP) button 3. Headphone socket (3.5 mm) 10. Source Select button 4. Tone Reset button 11. Volume menu button 5.

  • Page 11: Remote Control

    2. Location of Controls (cont) 2.4 Remote Control Sensor cover 1.DVD display 22.DVD Repeat 2.DVD player power (stand-by) 23.DVD open/close 3.DVD Program 24.Repeat A-B 25.DVD title 26.DVD menu 4.Numerical Keys 27.DVD step play 28.DVD angle select 5.DVD fast forward 29.DVD previous 6.DVD rewind 30.DVD next 7.CD random play...

  • Page 12: Connections

    3. Connections Before making/removing any connections ensure that you have unplugged the unit from the mains supply. 3.1 Connecting Components Connect the DVD and Tuner components to the amplifier component by using the ribbon cables. Please note: Due to the amplifier component being heavier than the rest it is recommended to place this at the bottom of the stack.

  • Page 13: Connections To Tv

    3. Connections (cont) 3.2 Connections to TV SCART CABLE For ease of use it is recommended that this DVD MICRO system is connected to the TV using a SCART cable, as shown in the diagram below: OTHER CONNECTIONS TO TV This DVD MICRO system also has Y Cr Cb (component), Video (composite) and S-Video outputs to allow connection to televisions without SCART sockets.

  • Page 14: Aerial Connections

    3. Connections 3.3 Aerial Connections FM Aerial Connect the plug on the supplied FM pigtail aerial to the centre pin of the 75-ohm socket on the rear of the tuner component. If reception is poor, use a 75 ohm coaxial cable (not supplied) to connect the system to an outdoor FM aerial. MW Aerial Connect the MW loop aerial to two MW aerial terminals on the rear of the tuner component.

  • Page 15: Speaker Connections

    3. Connections (cont) 3.5 Speaker Connections When connecting the speakers please ensure that the positive terminal on the speaker is connected to the positive terminal on the amplifier and the negative terminal on the speaker is connected to the negative terminal on the amplifier. Please use the following diagram to help connect up the speakers.

  • Page 16: Basic Setup

    4. Basic Setup 4.1 Setting up the surround sound system Positioning For the best possible surround sound all the speakers other than the subwoofer should be the same distance from the listening position ( ). However, this system allows you to place the centre speaker up to 1.6 metres closer ( ) and the rear speakers up to 4.6 metres closer ( ) to the listening position.

  • Page 17: Master Volume

    4. Basic Setup (cont) Height The best height for the front speakers is when the high frequency speakers (tweeters) are at ear height (while seated) The best height for the centre speaker is also at ear height (while seated). The rear speakers should not be positioned below ear height (while seated). See the following diagram.

  • Page 18: Mute

    4. Basic Setup (cont) When the channel required is shown use the volume +/- keys on the remote or the front panel of the amplifier component to adjust the volume of the selected channel. 4.4 Mute To mute the audio output press the MUTE ( ) button and the sound from the speakers will be turned off.

  • Page 19: Setup Menu

    5. Setup Menu To enter the setup menu press the SETUP button on the remote control. To access each submenu one of the icons along the top of the setup menu must be selected. The below diagram shows which icon represents which menu. 5.1 System Setup Language Speaker...
  • Page 20 5. Setup Menu (cont) 5.1.3 VIDEO SCART-RGB: Select this option if the DVD player is connected to the TV using a SCART cable S-VIDEO: Select this option it the DVD player is connected to the TV using an S-Video cable Interlace-YUV: Select this option if the DVD player is connected to the TV using component cables.
  • Page 21 5. Setup Menu (cont) 5.1.5 PASSWORD The password option is used in conjunction with the parental rating option (see below) and can be used so that the player is locked and will only play discs with a lower rating that the one set. First the old password must be entered (initial password: 0000) then press enter.

  • Page 22: Language Setup

    5. Setup Menu (cont) 5.2 Language Setup 5.2.1 OSD LANGUAGE This option sets the language that is used for the OSD (on screen display). DEFAULT: ENGLISH 5.2.2 AUDIO LANG This option sets the preferred language for the audio when a DVD is played. If this language is not recorded on the DVD then the default language for the DVD SUBTIT...

  • Page 23: Audio Setup

    5. Setup Menu (cont) 5.2.4 MENU LANG This option sets the preferred language for the DVD menu screens. If the selected language is not recorded on the disc then the default language recorded on the disc will be used. DEFAULT: ENGLISH 5.3 Audio Setup 5.3.1.

  • Page 24: Video Setup

    5. Setup Menu (cont) 5.4 Video Setup 5.4.1. BRIGHTNESS When highlighted use the up/down directional keys to adjust the brightness of the video output. DEFAULT: 0 5.4.2. CONTRAST When highlighted use the up/down directional keys to adjust the contrast of the video output. DEFAULT: 0 5.4.3.

  • Page 25: Speaker Setup

    5. Setup Menu (cont) 5.4.4. SATURATION When highlighted use the up/down directional keys to adjust the saturation of the video output. DEFAULT: 0 5.5 Speaker Setup 5.5.1. DOWNMIX The downmix specifies what sounds are heard from which speakers as follows: LT/RT: Choose this setting if the disc is recorded using the Dolby pro logic audio format...

  • Page 26: Digital Setup

    5. Setup Menu (cont) 5.5.3. BASS MODE Select the bass mode in accordance with the type of speakers that are used. DEFAULT: ALL LG SPK 5.5.4. CENTER DELAY Set the delay for the Centre speaker. DEFAULT: 0 ms 5.5.5. REAR DELAY Set the delay for the rear speakers.
  • Page 27 5. Setup Menu (cont) 5.6.2. DYNAMIC RANGE Dynamic Range Control is used to suppress loud sounds and enhance quiet sound for using the player at night. There are 8 steps between full compression and no compression. DEFAULT: OFF 5.6.3. DUAL MONO This option sets the L and R mono output mode.

  • Page 28: Dvd/Cd Operation

    6. CD/DVD Operation Before using the DVD player please ensure that the TV connected to the player is turned on and the AV channel is selected. Turn the power on to both the AMPLIFIER and DVD components. Using the source button on the remote control or on the front panel select DVD as the source.

  • Page 29: Play

    6. CD/DVD Operation (cont) 6.2 Play Press the PLAY/PAUSE ( ) button to begin playback of the disc when the disc is stopped. 6.3 Pre-Stop/Stop Press the STOP ( ) button on the remote or the front panel once to enter pre- stop mode.

  • Page 30: Search Forwards/Backwards

    6. CD/DVD Operation (cont) Press PREVIOUS ( ) repeatedly during playback to skip to previous chapters. PREV 6.6 Search Forwards/Backwards Press the SEARCH FORWARD ( ) repeatedly during playback to cycle through the different speeds (i.e. 2x normal speed, 4x normal speed etc) for search forward as follows: PLAY FORWARD X2...

  • Page 31: Step (Dvd Only)

    6. CD/DVD Operation (cont) 6.8 Step (DVD only) Press the STEP button repeatedly to advance playback frame by frame. STEP will appear in the top left corner of the screen. To resume normal playback STEP press the PLAY/PAUSE ( ) button 6.9 Repeat/Repeat A-B DVD: Press the REPEAT button to cycle through the available repeat modes as follows:...

  • Page 32: Random Playback

    6. CD/DVD Operation (cont) A-B repeat allows a particular section to be repeated. Press the A-B button at the beginning of the section and the press the A-B button at the end point of the section. All material between these two point will be repeated. To resume normal playback press the A-B button again.

  • Page 33: Audio Language (Dvd Only)

    6. CD/DVD Operation (cont) 6.15 Audio Language (DVD only) Press the AUDIO button repeatedly to cycle through all of the available audio languages for the disc. (Please note: The audio languages available are entirely disc dependent. Some discs may have only one language recorded) 6.16 Subtitle Language (DVD only) Press the SUBTITLE button repeatedly to cycle through all of the available subtitle languages for the disc.

  • Page 34: Mp3/Jpeg Cd Operation

    7. MP3/JPEG CD Operation 7.1 Introduction to MP3/JPEG Playback This MICRO system will play MP3 or JPEG files that are recorded onto a blank CD. After inserting the disc the system will search for MP3 or JPEG files to play. After searching it will play the MP3/JPEG files in the first directory on the disc.

  • Page 35: Pause

    7. MP3/JPEG CD Operation (cont) To completely stop the DVD disc press the STOP( ) button when in the PRE- STOP mode. STOP will be shown briefly in the top left corner of the TV screen. If the PLAY/PAUSE ( ) is pressed now, playback will commence from the beginning of the disc.

  • Page 36: Repeat/Repeat A-B

    7. MP3/JPEG CD Operation (cont) To resume normal playback press the PLAY/PAUSE ( ) button. Press the SEARCH BACKWARD ( ) repeatedly during playback to cycle through the different speeds (i.e. 2x normal speed, 4x normal speed etc) for search backwards as follows: PLAY BACKWARD X2...

  • Page 37: Rotate/Flip (Jpeg Cd Only)

    7. MP3/JPEG CD Operation (cont) 7.9 Rotate/Flip (JPEG CD ONLY) When viewing a picture, use the DIRECTIONAL button to rotate or flip the image. UP button: Flip Vertically DOWN button: Flip Horizontally LEFT button: Rotate by 90 anti-clockwise RIGHT button: Rotate by 90 clockwise 7.10 Sequential Play (JPEG CD ONLY) To display all images on the CD press the PLAY ( ) button.

  • Page 38: Tuner Operation

    8. Tuner Operation 8.1 Tuning 8.1.1 Manual Tuning Briefly press the TUNING +/- buttons repeatedly to manually tune to the required station. 8.1.2 Automatic Tuning Press and hold the TUNING +/- buttons until the system starts scan the frequencies. The tuning will automatically stop at the next receivable station. To locate the next station repeat the above operation.

  • Page 39: Listening To An External Source

    9. Listening to an External Source To listen to an external source, connect the source as shown in section 3.4. Press the source button until AUX is shown on the TUNER component display. U.S.Patent Nos.4,631,603;4,577,216; 4,819,098;4,907,093;And 6,516,132. LEGAL NOTICE: This product incorporates copyright protection technology that is protected by method claims of certain U.S.

  • Page 40: Troubleshooting

    10. Troubleshooting In the unlikely event that this DVD MICRO system should fail to work, please check the following items. Fault Possible solution No Power Are the power leads firmly plugged into the power outlets? No Picture Check that the system is connected properly The video cable is damage.
  • Page 41 10. Troubleshooting (cont) Severe hum or noise is heard Check that the speakers and components are connected securely Move the stereo/speakers away from Severe hum or noise is heard the TV (cont) Clean the disc When listening to a DVD with Check the speaker connections surround sound some sounds are This may be normal operation, on...

  • Page 42: Specifications

    11. Specification 11.1 Amplifier Section Frequency Response:- Main, Centre 20Hz-20kHz, and surround channels Frequency Response:- Subwoofer 80Hz-150Hz Signal noise ratio: > 85dB Harmonic distortion: 0.2%(1kHz/6 /25W) Power output:- Main Channel 15W + 15W Power output:- Centre Channel Power output:- Surround Channel 15W + 15W Power output:- Subwoofer Load impedance:- main, centre and...

  • Page 43: Dvd Component

    11. Specification 11.3 DVD Component Video Format MPEG2 for DVD Audio format MPEG1, MPEG2, PCM, DOLBY DIGITAL, analogue stereo, virtual surround Signal output:- Video System NTSC or PAL Signal output:- Video 1.0V p-p Signal output:- Audio 5.1 channel 0.5V p-p, mixed stereo 2V p-p Output interface SCART, RCA (composite and...
