PARTS LIST
No.
DESCRIPTION
A
TABLE TOP
B
TABLE LEG
STEP : 1
STEP : 3
Assembly Instruction

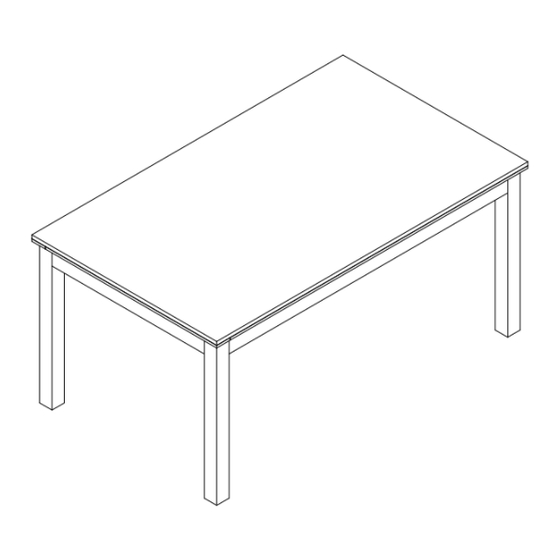

CELESTE 64" DINING TABLE
Q'TY
No.
SKETCH
1
1
4
2
3
4
D400-10
HARDWARE LIST
DESCRIPTION
ALLEN BOLT (5/16" x2-1/4")
SPRING WASHER (5/16 ")
FLAT WASHER (5/16 ")
ALLEN KEY M5
STEP : 2
Q'TY
SKETCH
8
8
8
1
MADE IN VIETNAM
