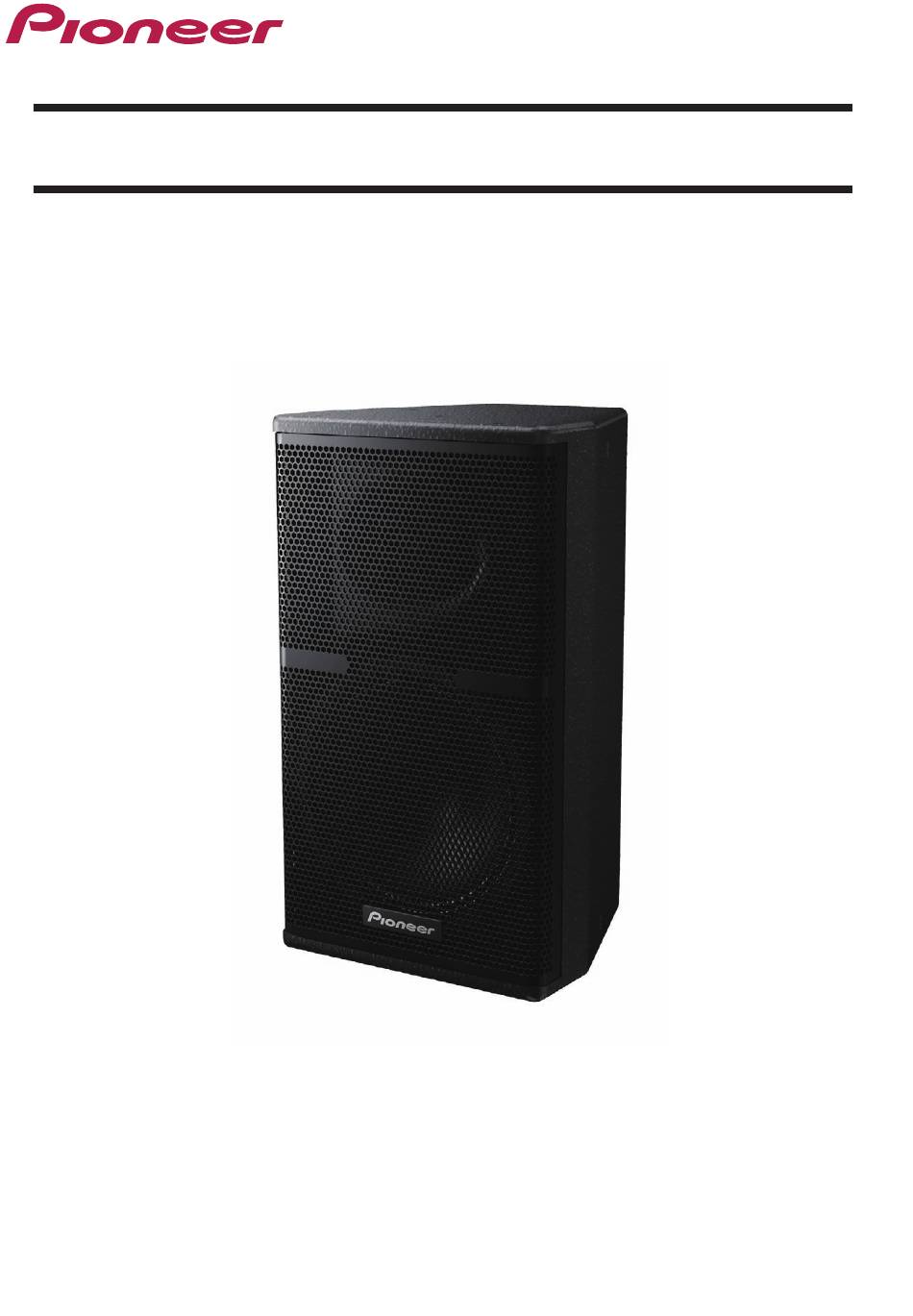

- Page 1 XY-101 XY Series 10 inch two way loudspeaker User’s Manual...
- Page 2 Contents Introduction Before you start ......................3 Installation guidelines ....................4 Features ........................4 Product overview Product overview ....................... 5 System set-up Stand mounting ......................6 Ground stacking ......................6 Cabling and amplifier selection ................6 Cabling ........................6 Speaker protection and Processor setting ............... 6 Mounting and rigging options Rigging hardware and accessories ................
- Page 3 Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.
- Page 4 ! Certain technical skills are required to install the loudspeaker. Please have the product installed by a professional. ! Pioneer is not responsible for any loss or damage that results from improper installation, insufficient strength of installation materials, misuse, modification or natural disasters.

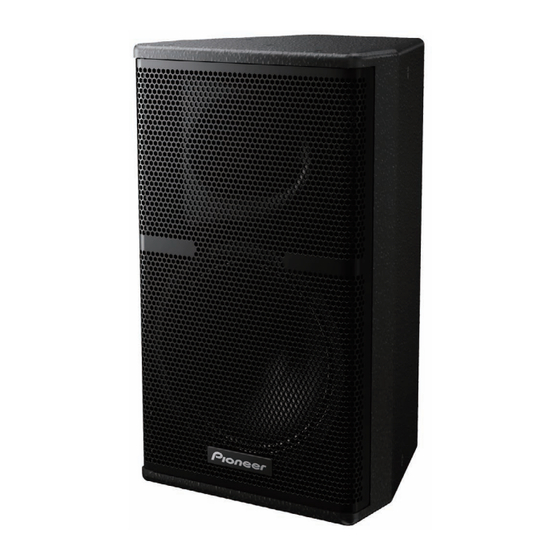

- Page 5 Product overview Product overview The XY-101 is a compact, versatile, passive loudspeaker product designed for a wide variety of compact and discreet sound reinforcement applications. It features a high- power 10 inch (250 mm) neodymium LF drive unit in a reflex enclosure, and a 1.7 inch (44 mm) diaphragm, 1 inch (25 mm) exit neodymium high frequency compression drive unit coupled to a 90 °...
- Page 6 System set-up WARNING ! Loudspeaker systems are potentially dangerous objects if used incorrectly. Please ensure that you read this section fully, and contact your local dealer should you be in any doubt over correct operation procedures. ! Professional loudspeaker systems are capable of producing damage-inducing sound pressure levels, and hence care should be taken when setting your system up, particularly when it comes to loudspeaker placement within a venue.
- Page 7 ! With any suspension method, a second anchor point should be used as a safety feature. ! Under no circumstances should the mounting points of one enclosure be used to suspend another enclosure below it. Pioneer is in no way responsible for the failure of incorrectly rigged systems.
- Page 8 Attachment of the CP-XY10HC1 Horizontal Flying Cradle Using the supplied M8 countersunk socket head bolts, align the mounting holes in the end mounts of the yoke with the mounting points on the top and the bottom of the enclosure. Tighten the bolts to ensure a solid fit. Once the desired angle of the loudspeaker is set, tighten the knobs on the cradle to lock the position in place.
- Page 9 Connections ! The INPUT and LINK connectors used are Neutrik SpeakON NL4 connectors. Internal connection diagram ™ ! Refer to the internal connection diagram and make the appropriate connections as shown. XY-101 Rear view 1 INPUT connector 2 LINK connector Neutrik NL4 Connector Engb...
- Page 10 Additional information Dimensions 292 mm (11.5 in.) 280 mm (11 in.) Engb...
- Page 11 About trademarks and registered trademarks ! Pioneer is a registered trademark of PIONEER CORPORATION. ! SpeakON is a registered trademark of Neutrik. The names of companies and products mentioned herein are the trademarks of their respective owners. Specifications Enclosure Type...
- Page 12 PIONEER GULF FZE Lob 11-017, Jebel Ali Free Zone P.O. Box 61226, Jebel Ali Dubai TEL: 971-4-8815756 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 PIONEER INTERNATIONAL LATIN AMERICA S.A.
