Delfield SSR2N-G Specification

Delfield
™
®
Specification Line®

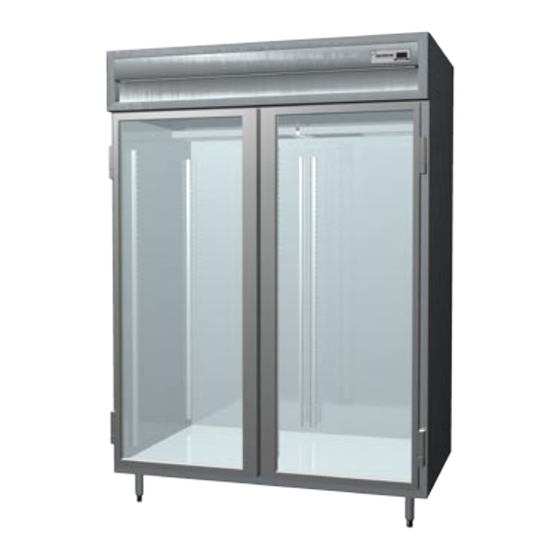

Self-Contained Glass Door Narrow Reach-In Refrigerator
Models
One section Two section
SSR1N-G SSR2N-G
SSR1N-GH SSR2N-GH
SAR1N-G SAR2N-G
SAR1N-GH SAR2N-GH
SMR1N-G SMR2N-G
SMR1N-GH SMR2N-GH
SSR2N-G

Specifications

Exterior: SS and SA models shall have corrosion resistant stainless
steel exterior cabinet sides, front and shroud. SM models shall have
corrosion resistant aluminum on exterior cabinet sides and will have
stainless front and shroud. All units shall have the upper shroud
hinged with a gas assist stay open feature to provide easy access to
the refrigeration system.
Interior: Cabinet interior shall be corrosion resistant stainless steel
(SS models) or heavy gauge aluminum (SA and SM models). Bottom
and top surfaces shall be die stamped to provide radius corners and
recessed floor. Three wire shelves are provided per section, SA/SS
standard shelves are chrome plated, SM standard shelves are epoxy
coated. Shelves rest on clips which are adjustable on 1" increments
on stainless steel pilasters affixed to the cabinet interior. Pilasters are
removable without tools for cleaning. Mounted to the interior ceiling,
the interior fluorescent light is controlled automatically through a
switch mounted in the hinge assembly to protect against breakage.
Door openings are protected with heavy gauge stainless steel
breaker strips. An air duct shall be mounted to the ceiling assuring
low velocity, even air movement throughout the cabinet interior.
Doors: Double paned tempered thermopane glass. Constructed with
a combination of extruded aluminum and PVC. Each door has two
edgemount, self-closing, cam lift style hinges. Doors can be removed
from the cabinet without the use of tools. Door handle is continuous
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Stainless exterior and interior glass full door
Stainless exterior and interior glass half door
Stainless exterior and aluminum interior glass full door
Stainless exterior and aluminum interior glass half door
Stainless front aluminum exterior and interior glass full door
Stainless front aluminum exterior and interior glass half door

Standard Features

• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Aluminum interior and exterior, stainless front
(SM)
• Built in door locks with heavy duty strikes
• Pressure relief valve is standard to prevent door
vapor lock
• Exterior digital thermometer with high/low
temperature alarm
• Easy to use electronic control
• Easy access "flip up" shroud
• Three wire shelves per section - SA/SS standard
with chrome plated shelves and SM standard
with epoxy coated shelves
• 10' attached cord and plug
• 6" adjustable stainless steel legs
• Stainless steel breaker strips
• High density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP
(Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane keeps energy
costs low
• Energy savings door heater switch
• Two year parts & labor warranty
• Five year compressor warranty
along vertical dimension of the door. Door gaskets are magnetic and
mount to the door, snapping in place and removable with out tools.
Keyed door lock is mounted to the door. Lock engages into a heavy
duty strike mounted to the cabinet face.
Refrigeration system: All components are mounted to the exterior
of the cabinet ceiling, outside the food zone and are assembled
as one piece and can be removed as one piece. Environmentally
friendly R404A refrigerant is used. The system has the capability
of maintaining between 27ºF and 40ºF in heavy use food service
operations. Refrigerant is metered using a highly responsive
thermostatic expansion valve. System is controlled using Delfield's
ACT-Advanced Control Technology electronic temperature control,
which provides improved pull down times, reduces compressor
cycling and longer compressor life with lower energy consumption.
Control system uses adaptive defrost to assure evaporator coil is free
of ice and is operating at optimum efficiency. Evaporator condensate
is eliminated using an energy efficient hot gas system.
Electrical: Standard electrical connections shall be 115V, 60 Hz single
phase. A 10' cord and plug is supplied and attached to a junction box
mounted on the exterior top of the cabinet.
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
www.delfield.com
Options &
Accessories
• Security (prison) package
• 6" polyurethane casters
• Incandescent light
• Door field rehingability
• Additional shelves
• Tray slides
• Stainless steel back
• Laminate on front, sides and back
• Bottom mount electrical
• Stainless steel banking strip
• Heat shield end
• Stainless steel kick plate
• Laminate kick plate
• 4" stainless steel utility base
• 230-50-1 electrical
• 220-60-1 electrical
