Sealey APMR1 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Serious injury or death can be caused by toppling furniture.
‰
To help prevent a tip-over, anchor this product to a wall or other suitable surface with the provided 'tip-over prevention kit'.
9
Check anchors regularly.
9
This product requires two people to assemble.
9
Assemble the unit on a solid level surface. Avoid carpet.
9
Wear protective gloves and eyewear when assembling this product.
9
This product has been tested to safely carry a load of up to 1200kg even distributed, when properly installed and maintained.
9
Heaviest items should be loaded on the lowest shelves.
9
2. INTRODUCTION
Textured powder coat steel frame with four heavy-duty powder coated steel mesh shelves. Industrial structured beams offers added
strength with 300kg capacity per level, giving a maximum capacity of 1200kg per rack. Boltless design means no tools required to
assemble. Specifically designed and sized drawer units and cupboards available to keep storage tidy, see model numbers APMB1,
APMB2, APMB3, APMB4 and APMB5 (sold separately).
3. SPECIFICATION
MODEL NO:
Capacity:
Overall Size (W x D x H):
Shelf Capacity:
4. ASSEMBLY
4.1. Unpack the unit and confirm that you have all the parts listed.
NOTE: for evenly spaced shelves (from bottom shelf): 14 free keyholes, 13 free keyholes, 13 free keyholes.
PARTS
© Jack Sealey Limited

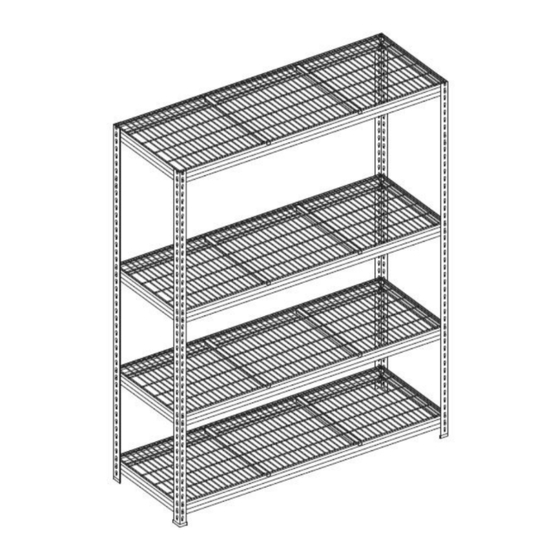

HEAVY-DUTY MODULAR RACKING UNIT WITH 4
MESH SHELVES - 300KG CAPACITY PER LEVEL
APMR1
MODEL NO:
APMR1
1200kg
1820 x 540 x 1830mm
300kg
STEP 1
Original Language Version
FIXINGS
APMR1 Issue 1 15/03/24
