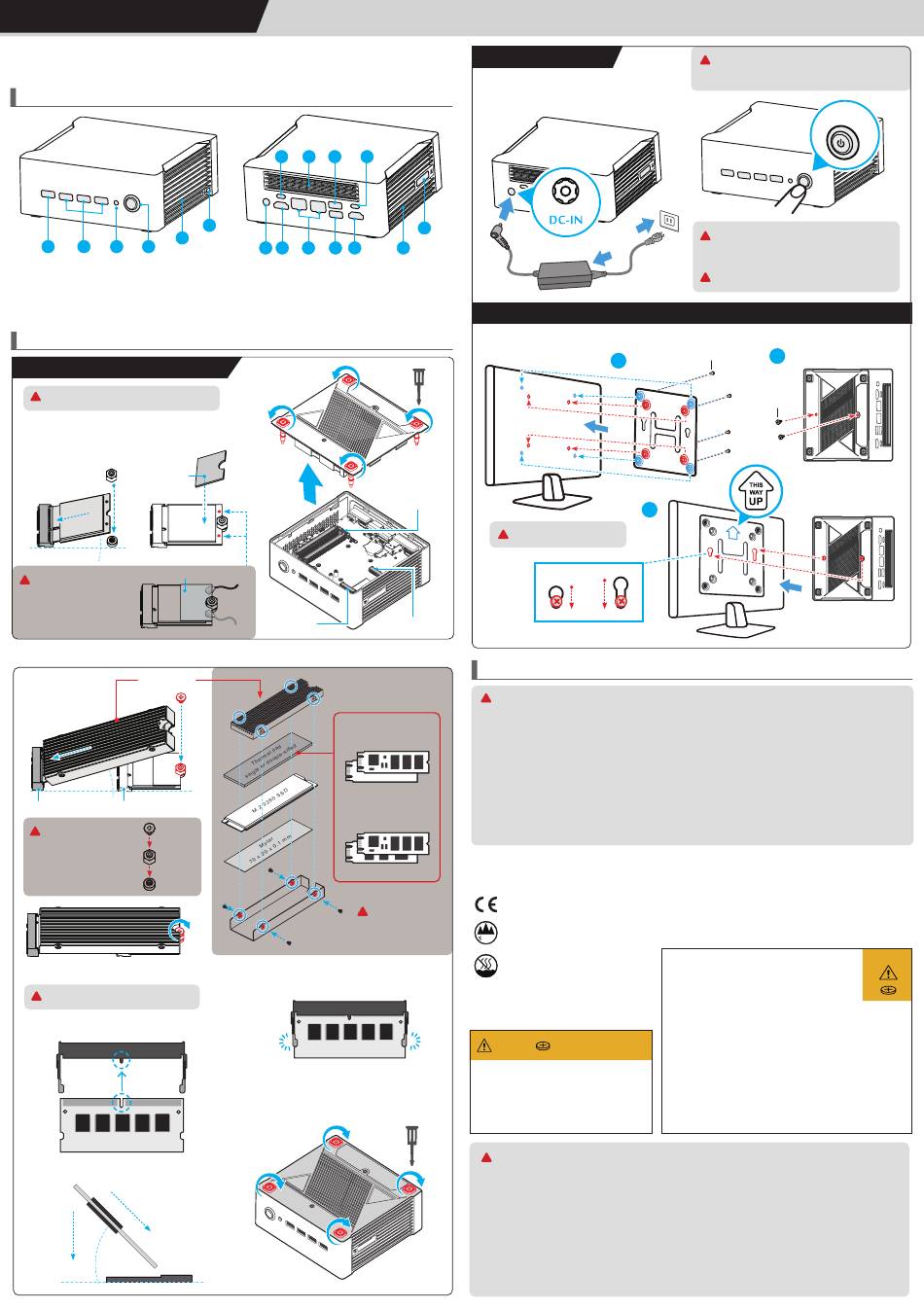

Shuttle NT10H Series Quick Manual

NT10H Series Quick Guide
More information on this product can be found at: https://bit.ly/NT10H
更多本產品資訊，請蒞臨：https://bit.ly/NT10H
Weitere Informationen zu diesem Produkt finden Sie unter: https://bit.ly/NT10H
Pour plus d'informations sur ce produit, visitez: https://bit.ly/NT10H
產品外觀 \ Produktübersicht \ Présentation du produit
Product Overview
Resumen del producto \ 製品概要 \ Обзор продукта \ 产品外观
5
1 2 3 4
1. USB 3.2 Gen2 Type-A port
power rating USB 3.2: 0.9A (always on)
2. USB 3.2 Gen2 Type-A ports
3. Headphone / Mic in jack
4. Power button / Power LED
Hardware Installation 硬體安裝 \ Hardware Installation \ Installation du matériel \ Instalación de hardware
ハードウェアのインストール \ Установка оборудования \ 硬件安装
A. M.2 Device, Memory Module Installation
For safety reasons, please ensure that the power
!
cord is disconnected before opening the case.
1. Unscrew four screws of the back cover and remove it.
2. Locate the M.2 key slots on the motherboard.
Install the M.2 device into the M.2 slot
and secure with the screw.
 M.2 2230 E-key slot
M.2
Wifi mylar
shared nut
2b
2a
Slope angle
Wifi mylar
If the M.2 2230 E-key slot
!
should be equipped with the
wifi card, please connect the two
antenna cables to (grey cable
→ Aux) and (black cable → Main)
on the wifi card and affix them
with the wifi mylar, as shown.
L The product's colour and specifications may vary from the actually shipped product.
 M.2 2280 M-key slot
SSD Heatsink Kit
a a
Slope angle
M.2 2280 M-key slot M.2 2230 E-key slot
When installing M.2 2280
M2*3 screw
!
M-key and M.2 2230 E-key
at the same time, please use
"M.2 shared nut" (see picture)
M.2
to lock M.2 2230 E-key card on
shared nut
socket, then install M.2 2280
M-key card by M2*3 screw
as the next step.
3. Locate the SO-DIMM slots on the motherboard.
This motherboard does only support 1.1 V
!
DDR5 SO-DIMM memory modules.
4. Align the notch of the memory module with the
one of the relevant memory slot.
SO-DIMM slot
Notch
Cutout
5. Gently insert the module into the slot in a 45-degree
angle.
a
b
45-degree
angle
快速安裝指南 Kurzanleitung Guide rapide Guía rápida クイックガイド Kраткое руководство 快速安装指南
Puede encontrar más información sobre este producto en: https://bit.ly/NT10H
本製品の詳細な情報については、次のURL より確認頂けます。https://bit.ly/NT10H
Для получения дополнительной информации об этом продукте перейдите
по ссылке : https://bit.ly/NT10H
更多本产品信息，请访问：https://bit.ly/NT10H
7 5 2
6
8 9 10 11 9
5. Ventilation Hole
6. Kensington ® Lock Hole 10. LAN Ports
7. USB 4.0 Type-C Ports 11. USB 2.0 Port
(with DisplayPort / Power Delivery)
12. SD Card Reader
8. Power Jack (DC IN)
2d
1b
2c
Black cable
Main
Aux
M.2 2280
M-key slot
Grey cable
SSD Heatsink Kit
with Thermal Pad (x2)
for M.2 2280 M-key SSD
b
 Thermal pad
(70 x 20 x 3 mm)
for single-sided SSD
Single-sided SSD
 TMhermal pad
(70 x 20 x 1.5 mm)
for double-sided SSD
Double-sided SSD
!
c
6. Carefully push down the memory module until
it snaps into the locking mechanism.
Latch
7. Repeat the above steps to install an
additional memory module, if required.
8. Please replace and affix the case cover with
four screws.
B. Connecting to Power
1. Follow the steps (a-c) below to connect
the AC adapter to the power jack (DC-IN).
2. Press the power button to turn on the system.
7
a
12
5
9. HDMI 2.0 Ports
Installation of VESA Mount
Follow the steps 1-3 to install the VESA mount.

1a
SO-DIMM slots
Supports 75 x 75 mm and
!
100 x 100 mm VESA standard.
M.2 2230 E-key slot
Safety Information
Incorrectly replacing the battery may damage this
!
computer. Replace only with the same or equivalent
as recommended by Shuttle. Dispose of used batteries
in accordance with the laws of your country.
更換電池方式錯誤可能會損壞本電腦以及引發爆炸、火災或
其他危險。僅能依 Shuttle的建議,以相同或同等的電池更換。
請根據您所在國家/地區的法律規定處理廢電池。
Das unkorrekte Austauschen der Batterie kann diesen
Computer beschädigen. Ersetzen Sie die Batterie nur durch
den gleichen Typ oder ein gleichwertiges, von Shuttle
empfohlenes Modell. Entsorgen Sie gebrauchte Batterien
gemäß den gesetzlichen Vorschriften in Ihrem Land.
Ne pas replacer correctement la pile peut endommager
l'ordinateur. Remplacez-la uniquement par un modèle
identique ou un équivalent comme recommandé par Shuttle.
Éliminez les piles usagées conformément à la législation en
vigueur dans votre pays.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAN ICES-003(B) / NMB-003(B)
This device meets the requirements for the EU conformity in accordance to the currently valid EU directives.
Dieses Produkt erfüllt die Anforderungen für die EU-Konformität entsprechend der aktuell geltenden EU-Richtlinien.
Pasting the supplied
Ce produit répond aux exigences de la conformité UE suivant les directives européennes actuellement en vigueur.
thermal pad on the
M.2 SSD, which can
注意: 仅适用于海拔 2000m 以下安全使用,
effectively reduce its
在海拔 2000m 以上使用时,
temperature. 2000m
可能有安全隐患。
注意: 仅适用于在非热带气候条件下安全使用,
在热带气候条件下使用时,
可能有安全隐患。
注意: 允许产品使用的最高环境温度为 40℃。
* The equipment was evaluated for use in a
maximum air ambient temperature of 40 ºC.
產品宣告最大適用環境溫度為 40 ºC。
WARNING
Latch
If swallowed, a lithium button battery can cause
severe or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been swallowed
or placed inside any part of the body, seek
immediate medical attention.
The unit can be operated at an ambient temperature of max. 40°C (104°F).
!
Do not expose it to temperatures below 0°C (32°F) or above 40°C (104°F).
本產品最高操作溫度為 40°C (104°F)。請勿在低於 0°C (32°F) 或高於 40°C (104°F) 的環境中使用本產品。
Das Gerät darf bis zu einer maximalen Umgebungstemperatur von 40°C (104°F) betrieben werden.
Setzen Sie das Gerät nicht Temperaturen von unterhalb 0°C (32°F) bzw. oberhalb 40°C (104°F) aus.
L'appareil peut être utilisé à une température ambiante maximum de 40°C (104°F).
Ne pas exposer l'appareil à une température inférieure à 0°C (32°F) ou supérieure à 40°C (104°F).
No utilice la unidad cuando la temperatura ambiente sea superior a 40°C (104°F).
No someta el equipo a temperaturas inferiores a 0°C (32°F) ni superiores a 40°C (104°F).
本機器は周辺温度 40°C (104°F) までの環境で捜査することができます。
0°C (32°F) 未満あるいは 40°C (104°F) を超える環境で使用しないでください。
Устройство может работать при температуре окружающей среды макс. 40°C (104°F).
Не подвергайте воздействию температуры ниже 0°C (32°F) или выше 40°C (104°F).
本机运行时环境温度最高不能超过 40°C (104°F)。请勿在温度低于 0°C (32°F) 或高于 40°C (104°F) 的情况下使用。
Do not use inferior extension cords as this may result in
!
damage to your NT10H. The NT10H comes with its own
AC adapter. Do not use a different adapter to power the
NT10H and other electrical devices.
c
To put your NT10H on Sleep mode, press the
!
"Power button" once. If the NT10H is frozen or slow
to respond, press and hold the "Power button" at
b least for 10 seconds to force it shutdown.
Please press the "Del" key while booting to enter
!
BIOS. Here, please load the optimised BIOS settings.
M4*L6.5
1
3
3b
安全資訊 \ Sicherheitshinweise \ Informations de sécurité \ Información de seguridad
安全に関する情報 \ Информация о безопасности \ 安全信息
La sustitución incorrecta de la batería puede dañar este equipo.
Sustituya la batería únicamente por una igual o equivalente
recomendada por Shuttle. Elimine las pilas usadas de acuerdo
con los requisitos legales de su país.
バッテリを間違ってセットすると、このコンピュータが損傷す
る原因となります。交換する際は、Shuttle が推奨するバッテリ
と同じ ものまたは同等のものだけを使用するようにしてくださ
い。使用済みのバッテリーは、お住みの国の法律に従って処分
してください。
Неправильная замена батареи может привести к
повреждению компьютера. Батарея должна соответствовать
стандарту производителя Shuttle или быть идентичной
предыдущей. Утилизируйте использованные батареи в
соответствии с законодательством вашей страны.
更换电池方式错误可能会损坏本电脑。
仅能依 Shuttle 的建议, 以相同或同等的电池更换。
请根据您所在国家/地区的法律规定处理废电池。
All bundled parts, power cord included, shall not be used without this product.
電源ケーブル等、すべての付属品は本機以外ではご使用になれません。
The product contains non-replaceable batteries
The statement "remove and immediately recycle or
dispose of used batteries according to local regulations
and keep away from children. Do NOT dispose of
batteries in household trash or incinerate."
(a) Remove and immediately recycle or dispose of used
batteries according to local regulations and keep away from children.
Do NOT dispose of batteries in household trash or incinerate.
THIS PRODUCT CONTAINS
(b) Even used batteries may cause severe injury or death.
A BUTTON BATTERY
(c) Call a local poison control center for treatment information.
(d) Indicating the compatible battery type CR2032.
(e) Indicating the nominal battery voltage.
(f) Non-rechargeable batteries are not to be recharged.
(g) Do not force discharge, recharge, disassemble, heat above
(manufacturer's specified temperature rating) or incinerate.
Doing so may result in injury due to venting, leakage or explosion
resulting in chemical burns.
Power button
2
M3
3a
WARNING
