LAN
Browser or App
wireless
trivum TouchPad 7"
(optional)
DHCP
DHCP
Network
NAS
(optional)
trivum AudioBus In
Required components for installation:
• Ethernet cable
• Network with DHCP capable router
• Browser (PC / Mac) or trivum App
• 3.5mm jack cable for analog-out or 3.5mm Mini-Toslink cable
We reserve the right to make misprints, mistakes and changes in the case of product progress, even without prior
notice. 06/2024
Power Supply
AC 100V-240V
Trigger
8x
Analog/Digital
output
trivum AudioBus-Out
MDAT
SDAT / MDAT

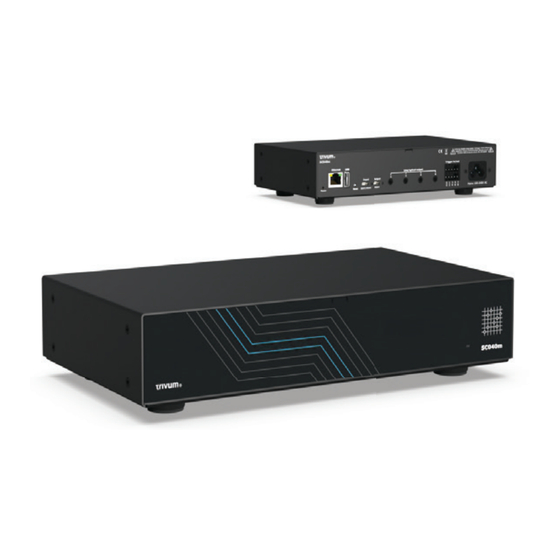

SC040m
AN: 201022
Quick Installation Guide
Technical Data
Zones
4 zones
Expandable to up to 64 zones
Sources
4x Streaming Clients
Streaming
up to 192kHz 24Bit
Music Formats
MP3, AAC, FLAC, M4A, WMA, ALAC
Connections
1x Network (RJ45 Socket)
1x USB (for service)
4x 3.5mm analog/digital output sockets
1x Trigger for 8x input/output
1x USB-C trivum AudioBus Input (SDAT/MDAT)
1x USB-C trivum AudioBus Output (MDAT)
1x Power (IEC 60320 C5)
Power Supply
AC 100V-240V (max. 10 watts)
Idle power consumption (without active zone): 5 watts
Casing
Black lacquered steel sheet, 216 mm x 50 mm x 127 mm (WxHxD)
Weight (netto)
1,26 kg
