Trivum RP341v2 Quick Installation Manual

Connection example:
LAN
Browser or App
Power Supply 2x 24V / 4A
wireless
trivum TouchPad
(optional)
DHCP
NAS
(optional)
DHCP
Connection examples with trivum Audio Extenders:
TV
Digital Out
TOSLink or HDMI (ARC)
XT:DIGITAL
CAT 5/6/7
up to 300 m
XR:LINE
Audio Extender
Power Supply 15V
Analog Line In
Left Right Left Right
Power Output 1 Output 2

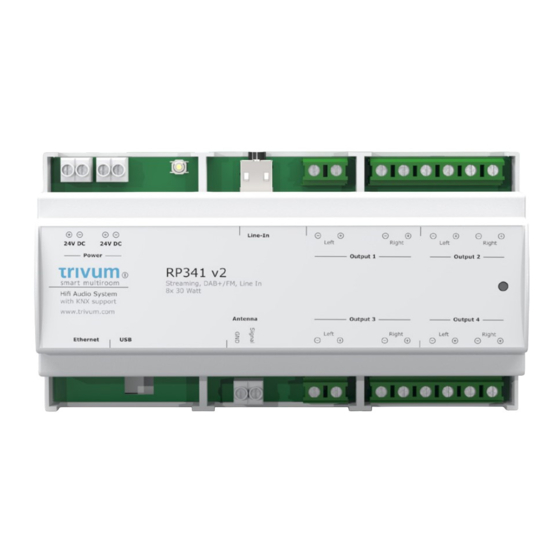

RP341 v2
Streaming, DAB+ / FM, Line In
Hifi Audio System 8x 30 Watt
with KNX support
www.trivum.com
Antenna Output 3 Output 4
Left Right Left Right
��
All trivum products are available in our online shop www.trivum.com
Article Numbers:
1. RP341v2: 301021
2. XT:DIGITAL: 500047
3. XT:LINE: 500041
4. XR:LINE: 500042
We reserve the right to make misprints, mistakes and changes in the case of product progress, even without prior
notice. 09/2021
Analog Line In
TV, CD Player, etc
PS24/100
Speakers
Left Right
Power Output 1
RP341 v2
Streaming, DAB+ / FM, Line In
8x 30 Watt
Hifi Audio System
with KNX support
www.trivum.com
Antenna Output 3
Left Right
Network DAB+/FM Speakers
Antenne
Bluetooth receiver
Analog Out
RCA
XT:LINE
CAT 5/6/7
up to 300 m
XR:LINE
Audio Extender
Power Supply 15V
Analog Line In
Left
Power
RP341 v2
Streaming, DAB+ / FM, Line In
8x 30 Watt
Hifi Audio System
with KNX support
www.trivum.com
Antenna
Left
5. REG PS 24/100 (4.2A):
6. Audio Extender PS 15V:
7. TouchPad 7":
Quick Installation Guide
Left Right
Output 2
Output 4
Left Right
Required components for installation:
• 2x 24 V DC power supply, at least 4A each
• ethernet cable
• network with DHCP capable router
• Browser (PC / Mac) or trivum App
• speakers with 4 or 8 Ohms impedance
Technical Data
Zones
Source
Streaming
Radio
External Sources
Music Formats
Connections
Right Left Right
Output 1 Output 2
Output 3 Output 4
Right Left Right
Amplifier
Power Supply
Casing
500023
Weight
500049
600013
RP341 v2
AN: 301021
(e.g. PS24/100 4.2A by trivum AN: 500023)
4 Zones
Expandable to up to 64 zones
4x Streaming
1x DAB+/FM Tuner
1 x analog Line Input
4x up to 192kHz 24Bit
DAB+/FM
1x Line In analog via 3.5 Jack
MP3, AAC, FLAC, M4A, WMA, ALAC
1x Network (RJ45 Socket)
4x Speaker Stereo (4-Pin connector)
1x Analog Line Input
1x Antenna (2-pin connector)
2x Power (2-pin connector)
Class D, 8x 30W @ 4 Ohm
24V, 8A (192 W) 2x 2-pin connector
REG 9 units (159mm)
0.313 kg
