Viking CD-90L Owner's Manual

Low grain refrigerant dehumidifier

Hide thumbs

page of 28

/ 28
Bookmarks

Quick Links

Download this manual

Model / Modelo / Modèle:

CD-90L, CD-130Li

(115V~, 60Hz)

Low Grain Refrigerant

Dehumidifier Owner's Manual

Read and save these instructions

LGR Deshumidificador

Refrigerante de Grano Bajo

Manual de Usuario

Lea y guarde estas instrucciones

LGR Déshumidificateur

Manuel d'Emploi

Lisez et gadez ces instructions

www.vikingairmovers.com | 1-(855)-855-8868

Index: NA-1-A45

Edition: 2.1.Final

Need help?

Do you have a question about the CD-90L and is the answer not in the manual?

Questions and answers

Summary of Contents for Viking CD-90L

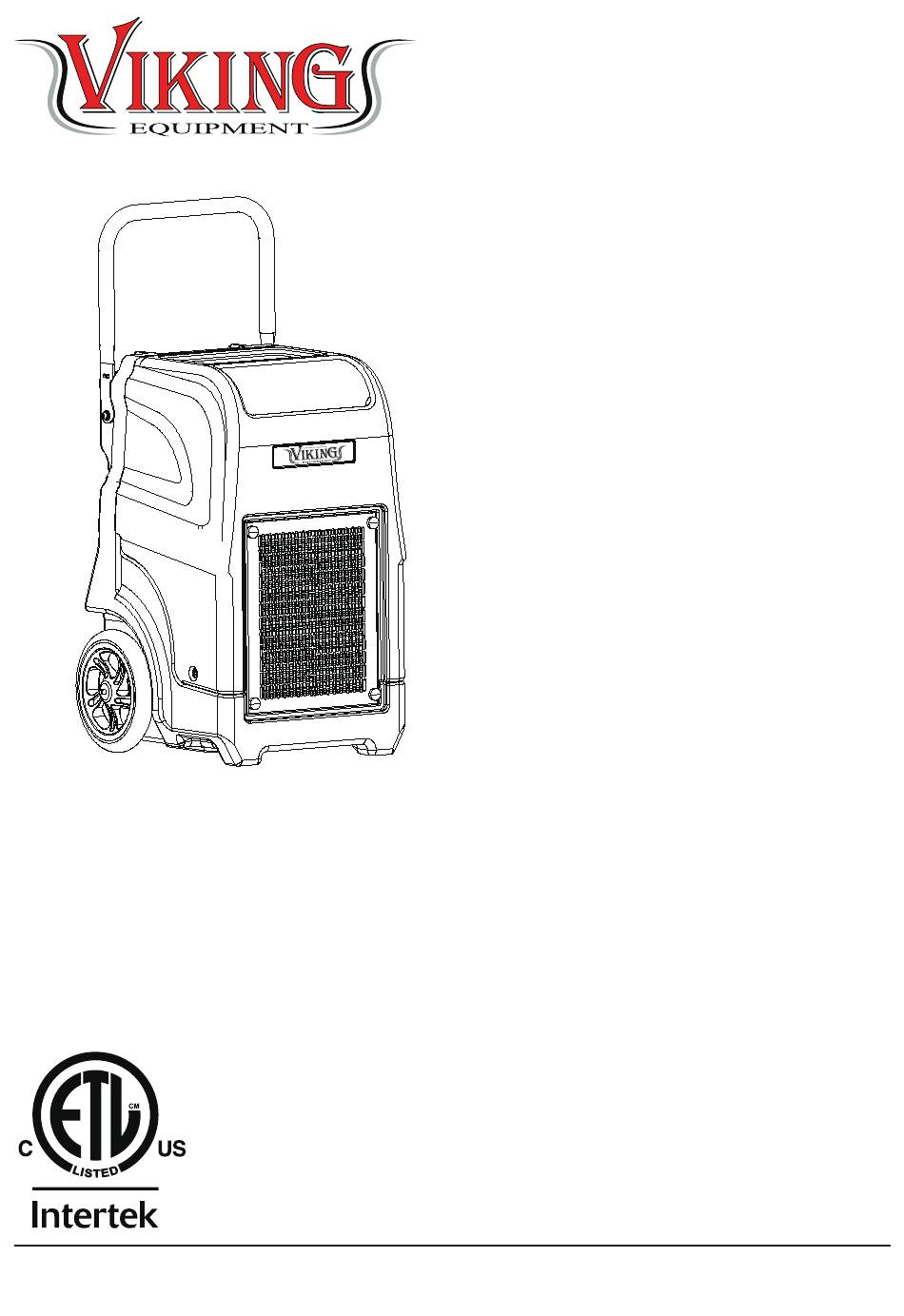

Page 1 Powered by XPOWER Model / Modelo / Modèle: CD-90L, CD-130Li (115V~, 60Hz) Low Grain Refrigerant Dehumidifier Owner's Manual Read and save these instructions LGR Deshumidificador Refrigerante de Grano Bajo Manual de Usuario Lea y guarde estas instrucciones LGR Déshumidificateur Manuel d'Emploi Lisez et gadez ces instructions www.vikingairmovers.com | 1-(855)-855-8868...
Page 2 DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact Viking. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environment, when not in use.
Page 3 • If the SUPPLY CORD is damaged, it MUST be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance is intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 4 (1.1.1) ignition is minimized. For repair to the REFRIGERATING SYSTEM. (1.1) DD.4.3 Work procedure (1.1.1) Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.
Page 5 size within which the refrigerant containing parts are installed; – the ventilation machinery and outlets are operating adequately and are not obstructed; – if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; –...
Page 6 DD.6 Repair to intrinsically safe components (1.1) Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. (1.2) Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
Page 7 DD.9 Removal and evacuation (4.1) When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, for flammable refrigerants it is important that best practice be followed, since flammability is a consideration.
Page 8 (1.1) familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. (1.2) Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commenced.
Page 9 (2.3) The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery FLAMMABLE of all appropriate refrigerants including, when applicable, REFRIGERANTS. In addition, a set of calibrated weighing scales shall be available and in good working order.
Page 10 Personnel Qualification Class Name Classification of instructions Requirements Professional Personnel, such as Hold A class A certificate Maintenance installers and maintenance issued by the competent Personnel supervisors, who are required authority, available to install, repair, and weld online. the refrigeration system for flammable refrigerant products Regular 1.
Page 11 Tooling Names Use Requirement Small Vacuum Explosion-proof vacuum pump: ensure a certain accuracy, vacuum Pump degree should be less than 10Pa. Filling Special explosion-proof charging equipment: with certain accuracy, Equipment the charging amount deviation is less than 5g. Leak Detector Regular calibration: annual leakage rate is not higher than 10g.
Page 12 (1) lt is necessary to choose the place where the inlet and outlet air of the indoor unit is even. (2) lt is necessary to avoid the places where there are other electrical products, power switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on two sides of the indoor unit, and also prevent mechanical damage from occurring.
Page 13 Commercial Dehumidifier Introduction • XPOWER Commercial Dehumidifiers are designed to maximize water extraction while combining the highest efficiency in performance and portability. • Latest technology and a high efficiency extraction process ensures peak performance in even the most challenging environments, such as extreme temperatures and low humidity environments.
Page 14 Parts Description FRONT Handle Compartment Intake (Grille) Filter Wheels REAR English - 14...
Page 15 Installation and Operation Guide Selecting a Location (Important) • Positioning: Before using the dehumidifier, place the unit UPRIGHT for at least 1 hour before use to allow the refrigerant to stabilize. If the unit was tilted on its side or UPRIGHT upside-down during transportation, set the unit for at least 4 hours before...
Page 16 Drain Hose Installation Control Panel • Attach the drain hose inlet to the drain outlet of the machine. • The machine’s outlet can be found as the graph on the left. Drain Hose • Please have a separate Press to Install/Release container to collect the water coming from the...
Page 17 Control Panel Power Control Temperature Display Fan Speed Manual Drainage Evaporator Coil/ Environment Temperature Switch °C TOTAL TIME Humidity Control Fahrenheit/Celsius Relative Humidity Total Running Time Scale Switch Display Buttons Power Control Manual Drainage Press to switch the dehumidifier ON or Press to drain manually.
Page 18 Control Panel (Continued) °C Temperature Display TOTAL TIME This will show the temperature of the evaporator or environment (See Page 7: °C Evaporator Coil/Environmental Temperature Switch). When in Celsius scale, will TOTAL TIME be illuminated. When in Fahrenheit scale, will turn off. If the temperature shown (See Page 7: is higher than 99°F, the scale will be set to Celsius automatically Fahrenheit/Celsius Scale...
Page 19 Start Your Job Turn on the dehumidifier Press the Power Control button to switch on the machine. You may see the dehumidification light is flashing. Please wait for 3 minutes (180 seconds) until the machine completes the startup. °C Write down the starting time TOTAL TIME Please remember to write down the starting time right after the machine...
Page 20 detected to be full, an error code will be displayed (See Page 8: Error Codes or Page 13: Troubleshooting Guide). Start Your Job (Continued) • When turned off, the machine will automatically process drainage for 60 seconds. Please wait until this process completes. •...
Page 21 User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. Before maintenance or storage, you should always: • Process a drainage manually. • Disconnect the machine from the power source. •...
Page 22 Store or Replace the Filters Unscrew the four ① screws. Take out filter ② grille. Slide off the filter ③ from the grille. • Clean and wash the filters with ③ water. • Store the filter ① in dry and cool area in a sealed container.
Page 23 Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTION Dehumidifier No electricity. Check for power supply. does not start The power cord is not properly Remove and reconnect the plugged in. power cord. Dehumidifier The dehumidification system is Wait for 3 minutes runs but humidity within startup process.
Page 24 PROBLEM POSSIBLE CAUSE SOLUTION Water on the floor The drain hose is loose. Tighten the connection of the drain hose. Sudden noise The machine starts drainage The water pump can create process. sounds during operation. This is a normal sound. Error Code: E2 Failure of the temperature The dehumidification can...
Page 25 Technical Specification MODEL NUMBER CD-90L CD-130Li Voltage / Frequency 115 V~, 60 Hz Amperage 5.8 A 8.2 A Operation Temperature/ 33.0 °F - 105.0 °F (0.6 °C to 40.6 °C) / Relative Humidity 20% RH or higher Requirement Rated Airflow...
Page 26 (3) Visit Viking U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.vikingairmovers.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact Viking.
Page 27 English - 27...
Page 28 Powered by XPOWER VIKING Equipment Co., Inc. 668 S. 6th Ave., City of Industry, CA 91746 USA www.vikingairmovers.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions Lea y guarde estas instrucciones Lisez et épargnez ces instructions Index: NA-1-A45 Edition: 2.1.Final...
