Viking BD-65 Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Model / Modelo / Modèle:

BD-65,

BD-90, BD-90P

BD-120P

(115V 60Hz)

Dehumidifier Owner's Manual

Read and save these instructions

Manual del propietario del

deshumidificador

Lea y guarde estas instrucciones

Manuel du propriétaire du

déshumidificateur

Lisez et gadez ces instructions

www.vikingairmovers.com | 1-(855)-855-8868

Index: NA-1-A44

Edition: 2.1.Final

Table of Contents

Need help?

Do you have a question about the BD-65 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viking BD-65

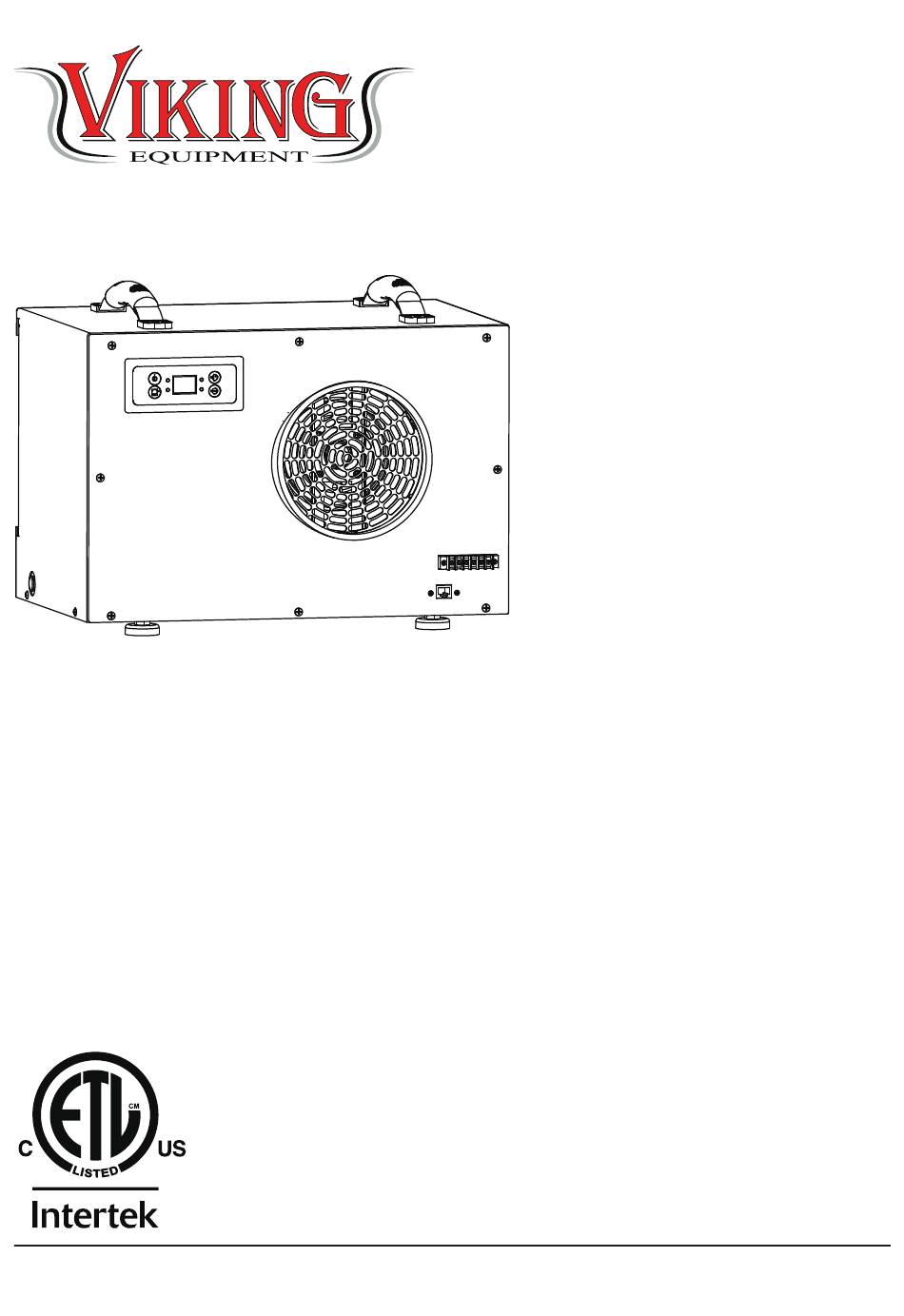

Page 1 Powered by XPOWER Model / Modelo / Modèle: BD-65, BD-90, BD-90P BD-120P (115V 60Hz) Dehumidifier Owner's Manual Read and save these instructions Manual del propietario del deshumidificador Lea y guarde estas instrucciones Manuel du propriétaire du déshumidificateur Lisez et gadez ces instructions www.vikingairmovers.com | 1-(855)-855-8868...
Page 2: Safety Instructions
DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact Viking. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environment, when not in use.
Page 3: Supply Cord
• If the SUPPLY CORD is damaged, it MUST be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance is intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 4: Refrigerating System
ignition is minimized. For repair to the REFRIGERATING SYSTEM. (2.3) DD.4.3 Work procedure (2.3.1) Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.
Page 5 size within which the refrigerant containing parts are installed; – the ventilation machinery and outlets are operating adequately and are not obstructed; – if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; –...
Page 6 DD.6 Repair to intrinsically safe components (4.1) Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. (4.2) Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
Page 7 DD.9 Removal and evacuation (7.1) When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, for flammable refrigerants it is important that best practice be followed, since flammability is a consideration.
Page 8 familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. (9.2) Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commenced.
Page 9 (11.3) The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery FLAMMABLE of all appropriate refrigerants including, when applicable, REFRIGERANTS. In addition, a set of calibrated weighing scales shall be available and in good working order.
Page 10 Personnel Qualification Class Name Classification of instructions Requirements Professional Personnel, such as Hold A class A certificate Maintenance installers and maintenance issued by the competent Personnel supervisors, who are required authority, available to install, repair, and weld online. the refrigeration system for flammable refrigerant products Regular 1.
Page 11 Tooling Names Use Requirement Small Vacuum Explosion-proof vacuum pump: ensure a certain accuracy, vacuum Pump degree should be less than 10Pa. Filling Special explosion-proof charging equipment: with certain accuracy, Equipment the charging amount deviation is less than 5g. Leak Detector Regular calibration: annual leakage rate is not higher than 10g.
Page 12 (6) lt is necessary to choose the place where the inlet and outlet air of the indoor unit is even. (7) lt is necessary to avoid the places where there are other electrical products, power switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on two sides of the indoor unit, and also prevent mechanical damage from occurring.
Page 13 English - 13...
Page 14: Items Included
Whole House Dehumidifier Introduction • Viking whole house dehumidifiers are designed to effectively remove excess moisture from the air and maintain proper humidity levels with their high performance and efficiency. • The standard environmentally friendly refrigerant and auto defrost function make it operate efficiently in temperatures as low as 33°F.
Page 15: Parts Description
Parts Description For Model BD-65 FRONT Handle Control Panel Air Outlet Auxiliary Terminals Gravity Drainage Remote Control Outlet Cable Port REAR Handle Air Inlet / Filter Pumping Drainage Outlet English - 15...
Page 16 For Model BD-90, BD-90P and BD-120P FRONT Handle Control Panel Air Outlet Compartment Auxiliary Terminals Pumping / Gravity Remote Control Drainage Outlet Cable Port REAR Handle Filter Air Inlet English - 16...
Page 17 Installation and Operation Guide Selecting a Location (Important) • Positioning: Before using the dehumidifier, place the unit UPRIGHT for at least 1 hour before use to allow the refrigerant to stabilize. If the unit was tilted on its side or UPRIGHT upside-down during transportation, set the unit for at least 4 hours before...
Page 18 Drain Hose Installation Gravity Drainage (1) Unscrew the nut at the Drain Hose Drain Hose Connection. Drain Hose (2) The Drain Hose Connection passes through the nut. For model BD-90 (3) Insert the Drain Hose into the connection. (4) Screw the nut back to the Drain Hose Connection.
Page 19 Extension Setup (Optional) Intake Ducting* Attach the ducting hose to the intake adapter. * Ducting Diameter: For BD-65: over 6.5 inch / 16.5 cm; For BD-90 series: over 10 inch / 25.0 cm; Exhaust Ducting* (Lay Flat) Attach the ducting hose to the exhaust adapter.
Page 20 Control Panel Power Control Humidity Control Manual Drainage Buttons Power Control Manual Drainage Press to drain manually. Manual drain Press to switch the dehumidifier ON or °C °C TOTAL TIME TOTAL TIME OFF. °C will last for 45 seconds. TOTAL TIME °C Humidity Control TOTAL TIME...
Page 21 °C TOTAL TIME Constant Dehumidification Defrosting Light When the compressor stops working At the humidity level setting of 36%, if humidity control button “-” is pressed, to defrost, the defrosting light turns will blink on the humidity display. red, indicating that the machine is in The machine will enter into constant automatic defrost mode.
Page 22 Start Your Job (Continued) machine will start defrosting until the temperature goes back to normal. • When the machine is defrosting, the dehumidification pauses. The dehumidification light goes off, and the defrosting light will be red. • Do not turn off the machine during defrosting process. Drainage (Important) •...
Page 23: User Maintenance Instructions
User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. Before maintenance or storage, you should always: • Process a drainage manually. • Disconnect the machine from the power source. •...
Page 24: Troubleshooting Guide
Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTION Dehumidifier No electricity. Check for power supply. does not start The power cord is not properly Remove and reconnect the plugged in. power cord. Dehumidifier The dehumidification system is Wait for 3 minutes runs but humidity within startup process.
Page 25 The dehumidification can function but will sensor. defrost for 5 minutes every half an hour. Contact Viking for more assistance. If troubleshooting does not resolve your problem, please contact Viking or other parties authorized by Viking for further instructions. English - 25...
Page 26: Technical Specification
Technical Specification MODEL NUMBER BD-65 BD-90 BD-90P BD-120P Voltage / Frequency 115 V~, 60 Hz Amperage 4.2 A 5.8 A 7.8 A Operation Temperature/ 33 °F - 105 °F (0.6 °C to 40.6 °C) / Relative Humidity 36% RH or higher...
Page 27: Year Limited Warranty
(3) Visit Viking U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.vikingairmovers.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact Viking.
Page 28 Powered by XPOWER VIKING Equipment Co., Inc. 668 S. 6th Ave., City of Industry, CA 91746 USA www.vikingairmovers.com | 1-(855)-855-8868 Read and save these instructions Lea y guarde estas instrucciones Lisez et épargnez ces instructions Index: NA-1-A44 Edition: 2.1.Final...

This manual is also suitable for:

Bd-90 Bd-90p Bd-120p
