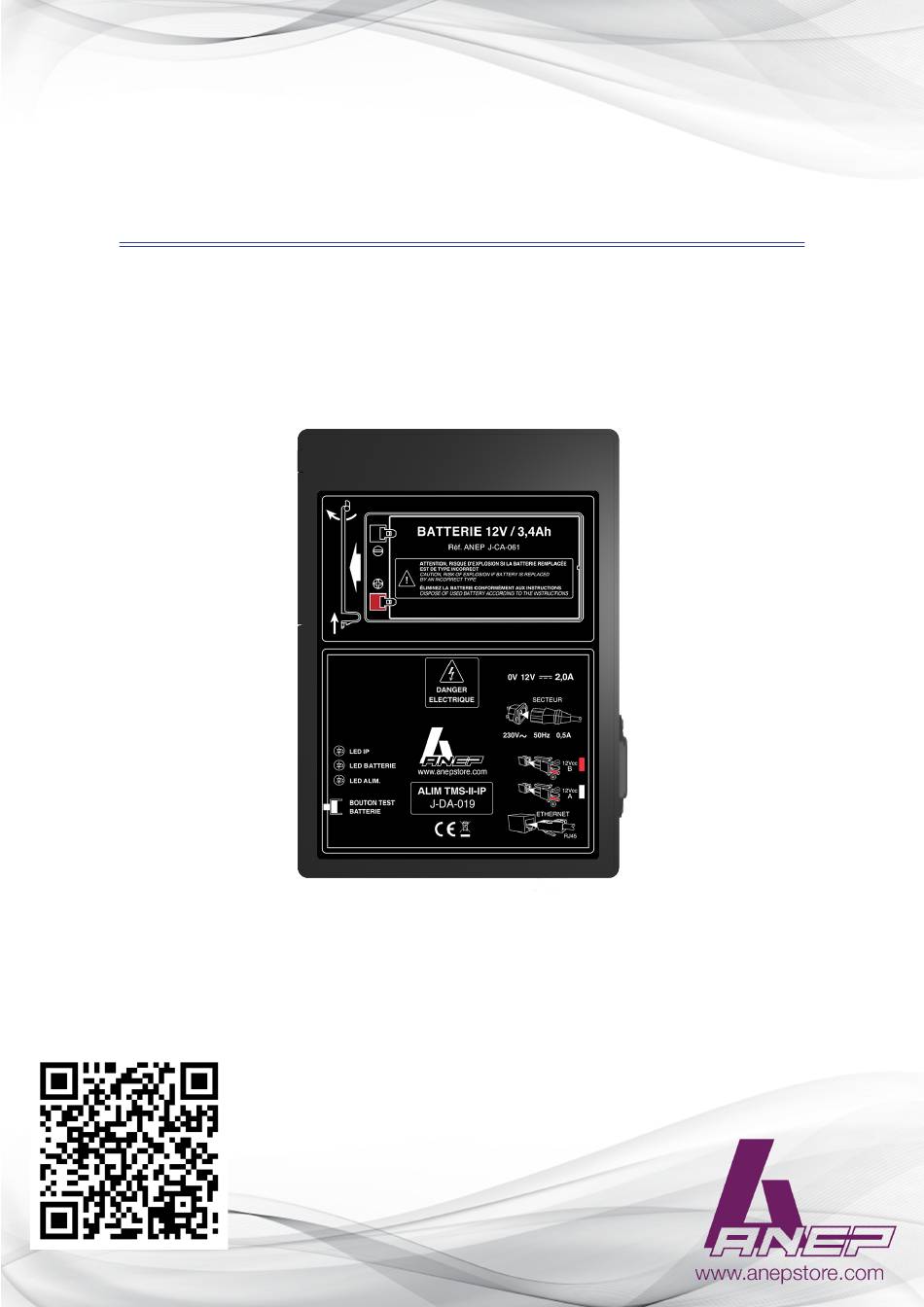

- Page 1 ALIM TMS-II-IP Ref : J-DA-019 BACKUP POWER CONNECTED NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024...
-
Page 2: General Warnings
GENERAL WARNINGS SAFETY INSTRUCTIONS Pay close attention to the warnings contained in this section as they provide important guidelines for achieving a safe installation, for correct use and maintenance of the product. • ALIM TMS II-IP is a DC backup power supply designed to be connected to the 230 Vac public distribution network. -
Page 3: Table Of Contents
SUMMARY ..............GENERAL WARNINGS Safety instructions ..............SPECIFICATIONS ................DESCRIPTION Dimensions ................... BATTERY CONNECTION BEFORE MAINS ........PROXY ....................INSTALLATION ................... Tabletop mounting ................Rack mounting ................Wall mounting ................Support Dimensions ..............CONNECTION ..................Supplied cables ................12Vdc outputs ................Ethernet .................. -
Page 4: Specifications
• Display of the result of the battery test by an indicator: Battery OK Pressing the button activates the battery test phase (flashing of the battery OK indicator). After one minute, if the indicator lights up, the battery is functional. Réf. ANEP J-CA-061 NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 5: Description
- Permanently checks the presence of 230 Vac and the state of load of the battery and communicates the information via an IP network to a serverSyslog. - Automatically retrieves the configuration from an ANEP server desired. - Complies with EN60950 – EN61000-3 – EN61000-4 – EN55014 standards. DIMENSIONS... -
Page 6: Battery Connection Before Mains
BATTERY CONNECTION BEFORE MAINS ATTENTION! Before starting any work, please disconnect the 230 Vac power cable. Open the front cover to remove the battery. Lift tab Pull tab NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 7: Proxy
Connect red cable to red terminal BE CAREFUL! not to invert the red and black (-) terminals. Store battery, close cover, connect to 230 Vac mains supply. LED status POWER" and "BATTERY OK" LEDs are steady green. If the "BATTERY OK" LED is not lit, press the TEST button; after one second it will light up green. -
Page 8: Installation
INSTALLATION TABLETOP MOUNTING Optional Rack Support (Id. ANEP : J-AA-001 NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 9: Rack Mounting
INSTALLATION RACK MOUNTING As an option, the support (Id. ANEP: J-AA-001) allows the TMS-II-IP PSU to be installed in a standard 19" inch wide computer rack, allow for a height of 2U. PATCH PANEL NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 10: Wall Mounting
INSTALLATION WALL MOUNTING As an option, the support (Id. ANEP : J-AA-001) allows wall installation NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 11: Support Dimensions
INSTALLATION SUPPORT DIMENSION (Id. ANEP : J-AA-001) CABLE BLOCK 1010 1010 Ø12 6x Ø6,5 100,5 100,5 481,1 465,1 4x Ø6,5 481,1 Profile view NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 12: Cables Supplied
CONNECTION CABLES SUPPLIED OUTPUT CABLE 12V, x3, 2M Power plug 1.50m DC type ø5.5 x 2.5mm MALE BLUE Power plug 1.50m DC type ø5.5 x 2.1mm MALE Power plug 1.50m DC type ø5.5 x 2.1mm MALE WHITE Please note that the equipment to be connected must be adapted to the following polarity ETHERNET CABLE, CAT 5e, RJ45, 2m MAINS CABLE 230V, 2m IEC C14 female connector... -
Page 13: 12Vdc Outputs
CONNECTION FUSES Before any intervention, please make sure to unplug the power cable230 Vac and the battery. Connector Connectors (x2) Battery 12 Vdc 3,4Ah 12 VDC outputs Fuse F2 (Battery) Radial 3,15A RJ45 connector -Fast- Ethernet Fuse F6 (12 VDC outputs) Radial 4A -Slow- NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... -
Page 14: Front Face
WORKING FRONT FACE RESET IP-LEDs Color State Designation Fixed Steady DHCP mode, no DHCP response Slow Flashing Long reboot, static mode, waiting for action Fixed Load config, DHCP mode, One425 Orange Fast Flashing Load config, DHCP mode, Standalone Slow Flashing Load configuration, static mode Fixed Ping serveur syslog, Transmission syslog ok... -
Page 15: Test Button / Diagram
WORKING TEST BUTTON (Diagram) Pressing the button activates the battery test phase (flashing of the LED Battery OK). After one minute if the indicator lights up fixed, the battery is functional. SETTING POWER ON (230Vac) Normal Mode Waiting Pressing test button Press TEST Press >... -
Page 16: Reset Button
WORKING RESET BUTTON a. SHORT PRESS 1 (RESTART) : • Simultaneous flashing Battery OK and Power (green LEDs) frequency 3Hz for 2s. • Attempt of DHCP Mode for the automatic detection of an ONE425 router (Otherwise Static Mode enabled, IP Address, Mask and Default Gateway) b. -
Page 17: Operating Mode
OPERATING MODE DHCP MODE WITH ONE425 ROUTER: An ONE425 router connected to the TMS-II-IP ALIM takes on the role of DHCP server and Syslog and sends the following instructions at the start of communication with power supply. • Option 2: Time offset (TimeOffset) •... -
Page 18: Stand-Alone Mode (Dhcp)
Config Syslog JSON - figure 2 - 1. On commissioning, the TMS-II-IP power supply connects to the ANEP server of provisioning to retrieve its configuration 2. Transmission of its status (power supply + battery) to the Syslog server a. DHCP The TMS-II-IP works with a dynamic IP address assigned by the server. -
Page 19: Html Administration
HTML ADMINISTRATION 2 connection possibilities ALIM TMS-II-IP - figure 3 - Direct connection of a PC RJ45 ALIM TMS-II-IP RJ45 RJ45 RJ45 COMPUTER SWITCH - figure 4 - Connecting a PC via a Switch NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024... - Page 20 HTML ADMINISTRATION HTML LOGIN Login: admin Password: admin (default) Note : To reset the default password, see chapter "Reset button" (p.14) HTML ADMIN PAGE NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024...
- Page 21 HTML ADMINISTRATION FIELD DESCRIPTIONS: IP addresses are in IPv4 format: xxx.xxx.xxx.xxx STATIC MODE If checked • Static mode activated • The IP address, Network mask and Gateway fields are active and editable If unchecked (default) • DHCP Mode Enabled • The IP address, Network mask and Gateway fields are inactive Preferred DNS: Primary DNS server •...
- Page 22 HTML ADMINISTRATION BUTTON DESCRIPTIONS : CHANGE PASSWORD Password change 1- Enter the current password 2- Entering the new password and confirming it 3- Click on SAVE: Save the new password, then return to the HTML administration page 4- Click on UNDO: Cancel the modifications, then return to the HTML administration page GET PROVISIONING Retrieving the config provided by the provisioning server...
- Page 23 ADMINISTRATION HTML FACTORY CONFIGURATION VALUES Static Mode enabled IP address : 192.168.0.20 Network mask : 255.255.255.0 Gateway : 192.168.0.254 : 8.8.8.8 Primary DNS : 1.1.1.1 Secondary DNS Syslog server enabled IP address syslog.anepanywhere.com Port 514 by default ; (0-65565) Periodicity : 10 (min) Facility local0...
-
Page 24: Ip Communication
IP-COMMUNICATION LIST OF SYSLOG ALARMS DESCRIPTION Test: TMS-II-IP test cannot be performed Test: TMS-II-IP test passed Test: TMS-II-IP test failed No 230 Vac power supply The TMS-II-IP PSU is now powered by the battery No 230 Vac power supply. The TMS-II-IP PSU is now powered by the battery but the battery level is insufficient The TMS-II-IP PSU is powered by the 230 Vac mains and the daily battery test is correct... -
Page 25: Provisioning
IP-COMMUNICATION PROVISIONING On power-up, and if a One425 router is not connected to the TMS-II POWER SUPPLY IP, it tries to connect to a provisioning server. The server recognizes the power supply by its Mac address and delivers the customer-specific configuration The provisioning server hosts the configuration desired by the customer. -
Page 26: Troubleshooting / Faq
TROUBLESHOOTING / FAQs Condition Causes Solution Green off: No power supply Press the Test button to perform a bat- LED Power 230 Vac power supply tery test to determine the battery status Management (flashing green). At the end of the test the LED should be solid green. -
Page 27: Warranty
ANEP cannot under any circumstances be held liable for any loss of data, as well as any particular damage or incident, resulting from poor implementation or non- compliant use of the product. - Page 28 NOTES NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024...
- Page 29 T HE AFTER SALES SER VIC E I S P R O V I DE D B Y 4 bis rue de Paris 94470 Boissy-Saint-Léger Tel : +33 1 45 98 34 44 Site internet : www.anepstore.com NOTICE PLAQUETTE NT_ANEP_ALIM-TMS-II-IP_EN_28-10-2024...
