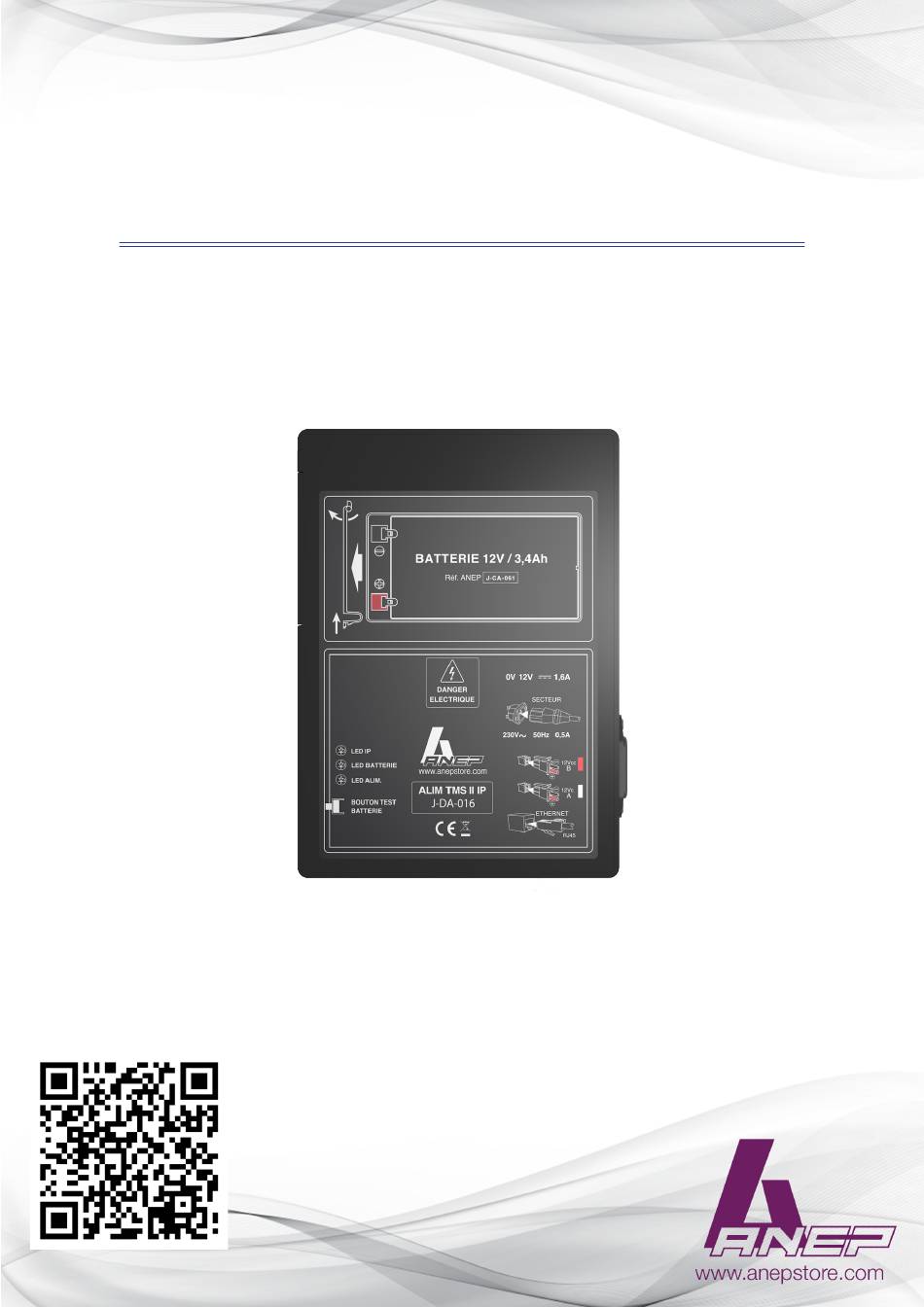

- Page 1 ALIM TMS-II-IP Ref : J-DA-016 BACKUP POWER CONNECTED NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024...
-
Page 2: General Warnings
GENERAL WARNINGS SAFETY INSTRUCTIONS Pay close attention to the warnings contained in this section as they provide important guidelines for achieving a safe installation, for correct use and maintenance of the product. • ALIM TMS II-IP is a DC backup power supply designed to be connected to the 230 Vac public distribution network. -
Page 3: Table Of Contents
SUMMARY ..............GENERAL WARNINGS Safety instructions ..............SPECIFICATIONS ................DESCRIPTION Dimensions ................... BATTERY CONNECTION BEFORE MAINS ........PROXY ....................INSTALLATION ................... Tabletop mounting ................Rack mounting ................Wall mounting ................Support Dimensions ..............CONNECTION ..................Supplied cables ................12Vdc outputs ................Ethernet .................. -
Page 4: Specifications
• Display of the result of the battery test by an indicator: Battery OK Pressing the button activates the battery test phase (flashing of the battery OK indicator). After one minute, if the indicator lights up, the battery is functional. Réf. ANEP J-CA-061 NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 5: Description
- Permanently checks the presence of 230 Vac and the state of load of the battery and communicates the information via an IP network to a serverSyslog. - Automatically retrieves the configuration from an ANEP server desired. - Complies with EN60950 – EN61000-3 – EN61000-4 – EN55014 standards. DIMENSIONS... -
Page 6: Battery Connection Before Mains
BATTERY CONNECTION BEFORE MAINS ATTENTION! Before starting any work, please disconnect the 230 Vac power cable. Open the front cover to remove the battery. Lift tab Pull tab NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 7: Proxy
If "BATTERY OK" LED is red, replace or charge battery. Note: If the ALIM TMS-II-IP is to be disconnected from the 230 Vac mains supply for a period of time (storage, maintenance, etc.), the battery (red terminal) must also be disconnected to prevent total discharge. -
Page 8: Installation
INSTALLATION TABLETOP MOUNTING Optional Rack Support (Id. ANEP : J-AA-001 NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 9: Rack Mounting
INSTALLATION RACK MOUNTING As an option, the support (Id. ANEP: J-AA-001) allows the TMS-II-IP PSU to be installed in a standard 19" inch wide computer rack, allow for a height of 2U. PATCH PANEL NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 10: Wall Mounting
INSTALLATION WALL MOUNTING As an option, the support (Id. ANEP : J-AA-001) allows wall installation NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 11: Support Dimensions
INSTALLATION SUPPORT DIMENSION (Id. ANEP : J-AA-001) CABLE BLOCK 1010 1010 Ø12 6x Ø6,5 100,5 100,5 481,1 465,1 4x Ø6,5 481,1 Profile view NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 12: Connection
CONNECTION CABLES SUPPLIED OUTPUT CABLE 12V, x3, 2M Power plug 1.50m DC type ø5.5 x 2.5mm MALE BLUE Power plug 1.50m DC type ø5.5 x 2.1mm MALE Power plug 1.50m DC type ø5.5 x 2.1mm MALE WHITE Please note that the equipment to be connected must be adapted to the following polarity ETHERNET CABLE, CAT 5e, RJ45, 2m MAINS CABLE 230V, 2m IEC C14 female connector... -
Page 13: Battery
CONNECTION BATTERY Open the door of the TMS-II-IP PSU to remove the battery. (see picture below) When connecting the battery, be careful not to invert the red terminal and black (-). Lift tab pull tab Note: If the TMS-II-IP must be disconnected from the 230 Vac mains for a certain period of time (storage, maintenance, etc.), it is also necessary to disconnect the battery to avoid total discharge. -
Page 14: 12Vdc Outputs
CONNECTION FUSES Before any intervention, please make sure to unplug the power cable230 Vac and the battery. Connector Connectors (x2) Battery 12 Vdc 3,4Ah 12 VDC outputs Fuse F2 (Battery) Radial 3,15A RJ45 connector -Fast- Ethernet Fuse F6 (12 VDC outputs) Radial 4A -Slow- NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 15: Working
WORKING FRONT FACE RESET IP-LEDs Color State Designation Fixed Steady DHCP mode, no DHCP response Slow Flashing Long reboot, static mode, waiting for action Fixed Load config, DHCP mode, One425 Orange Fast Flashing Load config, DHCP mode, Standalone Slow Flashing Load configuration, static mode Fixed Ping serveur syslog, Transmission syslog ok... -
Page 16: Test Button / Diagram
WORKING TEST BUTTON (Diagram) Pressing the button activates the battery test phase (flashing of the LED Battery OK). After one minute if the indicator lights up fixed, the battery is functional. SETTING POWER ON (230Vac) Normal Mode Waiting Pressing test button Press TEST Press >... -
Page 17: Reset Button
WORKING RESET BUTTON a. SHORT PRESS 1 (RESTART) : • Simultaneous flashing Battery OK and Power (green LEDs) frequency 3Hz for 2s. • Attempt of DHCP Mode for the automatic detection of an ONE425 router (Otherwise Static Mode enabled, IP Address, Mask and Default Gateway) b. -
Page 18: Operating Mode
Syslog and sends the following instructions at the start of communication with power supply. • Option 2: Time offset (TimeOffset) • Option 54: Server identifier (server identifier) • Option 58: Renewal interval value (renewal time value) ALIM TMS-II-IP ÉQUIPEMENT «X» ROUTEUR ONE425 12VDC CONSOLE Serveur Syslog RÉSEAU... -
Page 19: Stand-Alone Mode (Dhcp)
Config Syslog JSON - figure 2 - 1. On commissioning, the TMS-II-IP power supply connects to the ANEP server of provisioning to retrieve its configuration 2. Transmission of its status (power supply + battery) to the Syslog server a. DHCP The TMS-II-IP works with a dynamic IP address assigned by the server. -
Page 20: Html Administration
HTML ADMINISTRATION 2 connection possibilities ALIM TMS-II-IP - figure 3 - Direct connection of a PC RJ45 ALIM TMS-II-IP RJ45 RJ45 RJ45 COMPUTER SWITCH - figure 4 - Connecting a PC via a Switch NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 21: Html Login Page
HTML ADMINISTRATION HTML LOGIN Login: admin Password: admin (default) Note : To reset the default password, see chapter "Reset button" (p.14) HTML ADMIN PAGE NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024... -
Page 22: Description Of The Fields And Buttons
PROVISIONING SERVER If checked • The configuration retrieved from the provisioning server contains the URL address of the Syslog server to which the ALIM TMS-II-IP must send Syslog frames • Get Provisioning button is active • The IP address field is active and editable If unchecked (default) •... - Page 23 HTML ADMINISTRATION BUTTON DESCRIPTIONS : CHANGE PASSWORD Password change 1- Enter the current password 2- Entering the new password and confirming it 3- Click on SAVE: Save the new password, then return to the HTML administration page 4- Click on UNDO: Cancel the modifications, then return to the HTML administration page GET PROVISIONING Retrieving the config provided by the provisioning server...
-
Page 24: Values Of The Factory Configuration
ADMINISTRATION HTML FACTORY CONFIGURATION VALUES Static Mode enabled IP address : 192.168.0.20 Network mask : 255.255.255.0 Gateway : 192.168.0.254 : 8.8.8.8 Primary DNS : 1.1.1.1 Secondary DNS Syslog server enabled IP address syslog.anepanywhere.com Port 514 by default ; (0-65565) Periodicity : 10 (min) Facility local0... -
Page 25: Ip Communication
IP-COMMUNICATION LIST OF SYSLOG ALARMS DESCRIPTION Test: TMS-II-IP test cannot be performed Test: TMS-II-IP test passed Test: TMS-II-IP test failed No 230 Vac power supply The TMS-II-IP PSU is now powered by the battery No 230 Vac power supply. The TMS-II-IP PSU is now powered by the battery but the battery level is insufficient The TMS-II-IP PSU is powered by the 230 Vac mains and the daily battery test is correct... -
Page 26: Provisioning
IP-COMMUNICATION PROVISIONING On power-up, and if a One425 router is not connected to the TMS-II POWER SUPPLY IP, it tries to connect to a provisioning server. The server recognizes the power supply by its Mac address and delivers the customer-specific configuration The provisioning server hosts the configuration desired by the customer. -
Page 27: Troubleshooting / Faq
TROUBLESHOOTING / FAQs Condition Causes Solution Green off: No power supply Press the Test button to perform a bat- LED Power 230 Vac power supply tery test to determine the battery status Management (flashing green). At the end of the test the LED should be solid green. - Page 28 ANEP cannot under any circumstances be held liable for any loss of data, as well as any particular damage or incident, resulting from poor implementation or non- compliant use of the product.
- Page 29 NOTES NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024...
- Page 30 T HE AFTER SALES SER VIC E I S P R O V I DE D B Y 4 bis rue de Paris 94470 Boissy-Saint-Léger Tel : +33 1 45 98 34 44 www.anepstore.com NT_ANEP_ALIM-TMS-II-IP_EN_24-01-2024...
