Sealey LED601 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS
& CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO
DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL SAFETY
Ensure the light is fully charged before initial use.
9
DO NOT turn the light on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the light.
8
DO NOT handle or move the light whilst it is being charged.
8
DO NOT use the light if you suspect that the battery or the light casing is damaged.
8
DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open, disassemble, modify or service the battery pack.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°F).
8
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.
2. INTRODUCTION

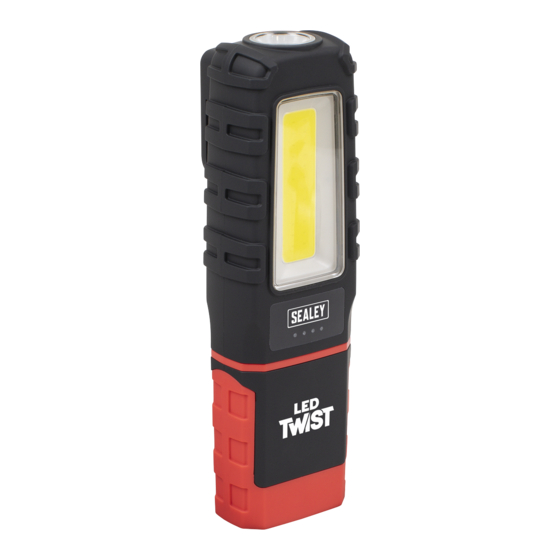

Super bright 5W COB LED light source producing 600 lumens and 1W SMD LED torch producing 100 lumens of light. Light body twists
360° and light arm tilts 180° to provide light at any angle. Features a swivel hanging hook and rubber covered magnet on the base, which
allow hands-free operation. 3.7V 2.6Ah lithium-ion battery for longer life, no memory effect and a much slower discharge than traditional
Ni-MH batteries. Long operating time of 3.5hrs at 600 lumens. Charges via a USB Type-C cable (Supplied).
3. SPECIFICATION
MODEL NO: LED601, LED601G
Battery: 3.7V 2.6Ah Li-ion
Charging Time: 4hr
IP Rating: IP52
LED Type: 5W COB + 1W SMD
Length: 180mm
Lumen Output: Side(High/Low)/Top - (600/300)/100lm
Operating Time: Side(High/Low)/Top - (3.5hr/7hr)/9hr
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a
charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this
does not cover fair wear and tear.
If the battery is not properly charged before first use, or regu larly conditioned, its capacity will
diminish. Under these circumstances we will not replace the battery regardless of whether it is
less than one year old.
NOTE: The lithium battery does not suffer from memory effect and once fully charged may be
stored for up to six months without another charge.
4. OPERATION
4.1. CHARGING
4.1.1. Connect the USB cable to the USB INPUT on the side of the light.
4.1.2. Plug the USB cable into a suitable 5V
NOTE: ensure the light is turned OFF whilst charging.
4.2. OPERATION
WARNING! Direct the lens away from your eyes before switching on the light.
‰
4.2.1. Use the ON/OFF button to cycle between the main light and torch on the end.
4.2.2. The light may be suspended by the hook on rear of the light or attached to any ferrous surface by using the magnet in the tilting base.
© Jack Sealey Limited
RECHARGEABLE INSPECTION LIGHT, 5W COB &
1W SMD LED, 600LM, WITH 180° MAGNETIC STAND
LED601, LED601G
MODEL NO:
1A outlet or mains adapter (not included).
Original Language Version
TORCH
FIG.1
LED601, LED601G Issue 1
HANGING
HOOK
ON/OFF
USB INPUT
MAGNETIC
TILTING BASE
03/06/24
