EVA Logik ZW39 Installation Manual

ZW39
Z-Wave Smart Plug
(Dimmer)
Specifications:
Power: 120VAC, 60Hz
Loading: 500W
Frequency: 908.42MHz
FCC ID: OXGZW36
IC: 10460A-ZW36
Adding Device To Z-Wave Network for QR CODE
Scan here for SmartStar inclusion
Note: DSK Code can be found on the packaging box.
Do not remove or damage them.
INTRODUCTION
The EVA LOGIK ZW39 is a Z-Wave enabled 500W
receptacle designed for most residential lighting
and applications. It's compatible with LED,
halogen, incandescent.The ZW39 fully works with
the Fibaro, Smartthings, Wink hub as well as all
other certified Z-Wave controllers.
Minimum brightness setting:
1. Quickly press the button 5 times (blue indicator flashes slowly), and the connected bulb is automatically
adjusted to the minimum brightness currently.
2. Hold the button to adjust the brightness of the connected bulb, select the appropriate brightness and set it to
the minimum brightness.
3. Quickly press the button 5 times to confirm the minimum brightness. Exit setting after the setting is complet-
ed (indicator flashes 3 times).
Maximum brightness setting:
1. Quickly press the button 10 times(blue indicator flashes slowly), and the connected bulb automatically adjusts
to the maximum brightness currently.
2. Hold the button to adjust the brightness of the connected bulb, select the appropriate brightness and set it to
the maximum brightness.
3. Quickly press the button 10 times to confirm the maximum brightness. Exit setting after the setting is
completed (the indicator flashes 3 times).
Note: If no confirm in step 3, the setting mode will be exited after 10s and the adjusted bright ness value will not
be saved.

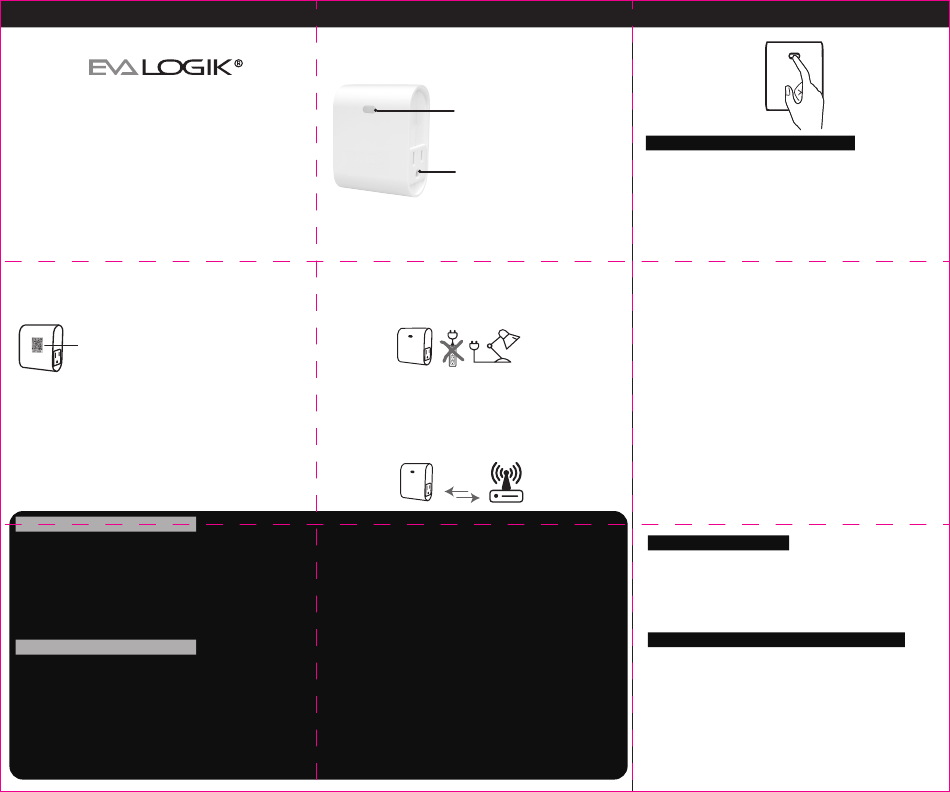

Installation Manual
Plug the light you want to control into the Z-Wave Smart
plug controlled outlet .
NOTE: Plug directly into outlet, do not use with extension
cords.
Note:
Your device may need to be within 100 feet of the controller
to be included. If so, include the device to the network
within 10 feet of the controller and relocate it to the desired
position in your home. Be sure to refresh the network if the
device is included in this manner.
Manual / Program button
Press 1x: Manual ON/OFF
Press 2x: Scene 1
Press 3x: Add mode(bule light
blinking)/Remove mode(pur-
ple light blinking).
Smart Outlet
This outlet can remotely turn
On/Off the connected device.
100 feet
Z-Wave Network Configuration
Adding Device To Z-Wave Network
1. Follow the instructions for your Z-Wave
certified controller to add a device to the
Z-Wave network.
2. Once the controller is ready to add your device,
press the manual/ program button(A) on the
smart dimmer 3 times quickly. The white LED
will blink quickly.
Auto-add mode: LED will blink within 30
seconds after first plugged in.
Now, you have complete control to turn your fixture
ON/OFF or set dim levels according to groups,
scenes, schedules and interactive automation
programmed by your controller. If your Z-Wave
certified controller features remote access, you can
control your fixture from your mobile devices.
Again:
If you have issues with pairing/including, please
move the device as close as possible to the hub
and try again--you can move to your final location
when completed.
Note:
If the manual button(A）doesn't light up after
pressed 3 times, please reset the device: click the
button 2 times quickly then hold for at least 10
seconds. This operation could be done when
manual control is functional--single press can turn
on/off the lamp.
To Remove The Device
1. Follow the instructions for your Z-Wave
certified controller to remove a device from the
Z-Wave network.
2. Once the controller is ready to remove your
device, press the manual/program button(A)
on the smart dimmer 3 times quickly.
To Return The Device To Factory Defaults:
Manual: Click the button 2 times quickly then
hold for at least 10 seconds
Host reset: Remove it from the host connection
and the device will factory reset
Association Group:
Group 1 supports 1 node ID. Group 2 Supports
up to 5 node IDs.
Association group_1: Z-Wave Plus Lifeline
Association Group 2: Send Basic Set ON/OFF
