SONARAY Hybrid SunBrite Solar SR-3080-HY Installation

www.sonarayled.com
Hybrid SunBrite Solar Installation
TECHNICAL PARAMETERS
PRODUCT
MODEL OPERATING
SR-3080-HY
NUMBER VOLTAGE
POWER EPA
75.6W
CONSUMPTION RATING
CHARGING BUG
0°C ~ +40°C / 32°F ~ +104°F
TEMP. RATING
DISCHARGING WEIGHT
-10°C ~ +60°C / 14°F ~ +140°F
TEMP.
ATTENTION
This manual instructs the important information of installation and operation. Be sure to strictly
follow the instructions before use. To ensure correct installation and operation of the product,
carefully read and understand all contents of this guide. Any mechanical or electrical modifications
to the product will void warranty and may cause dangerous hazards. To avoid potential issues
caused by high temperature, be sure no objects are on the lens while the product is switched on.
For proper operation, a qualified electrician should perform the installation. Ensure the normal
ambient temperature of the installation location is between -25°C ~ +45°C. Ensure the voltage of the
luminaire is capatable with the onsite voltage before installation. Any luminaire with damaged power
cord should not be installed.
GENERAL MAINTENANCE
The solar panel should not come in contact with any hard materials or damage may occur.
The solar panel, lens, and housing can be cleaned using a soft cloth without any corrosive material.
Regularly check the screws and mounting bracket and tighten or adjust if necessary.
INSTALLATION CONSIDERATION
1. Do not install solar modules near power lines, trees, shaded areas, or any obstructive areas.
2. Regularly check for loose mounting connections to prevent any potential accidents. Re-tighten
screws and bolts as needed.
3. When installing the solar panel, the face of the panel should be directed south at a 30 degree tilt for
maximum charge potential.
4. Make sure the fixture is tightly bolted to the pole. This will have the fixture grounded to the pole; thus,
the pole will be grounded by the base of the pole in the ground for the complete assembly.
5. Remove magnet on motion sensor housing for proper use.
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
®

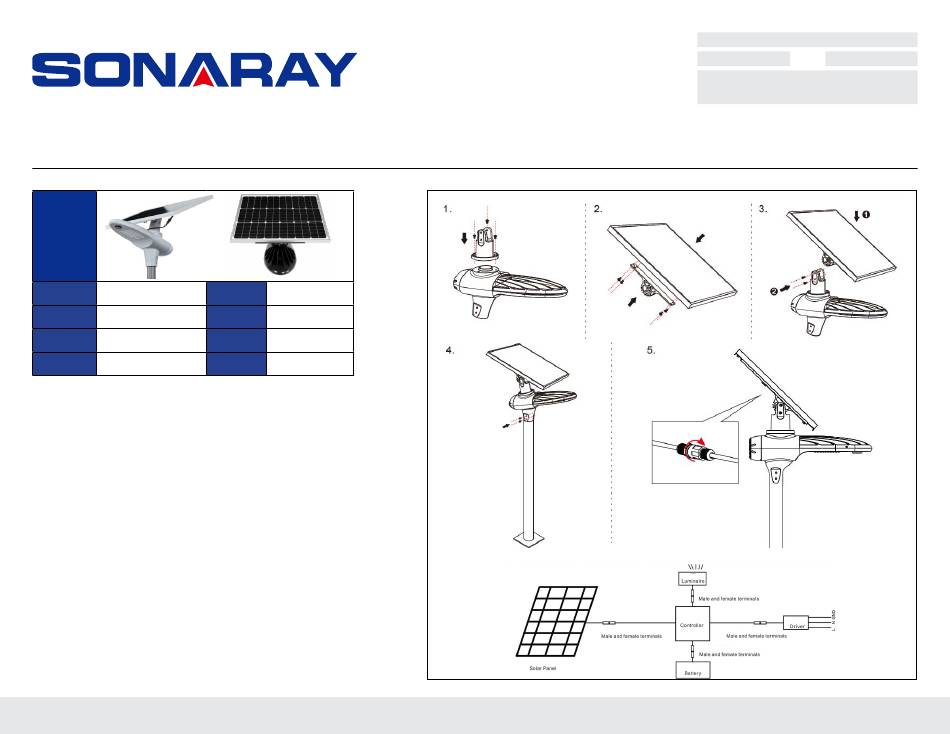

INSTALLATION DIAGRAM
12-24V or 120-277V
12.02 ft²
B3-U1-G2
42.11
Note: Be sure to first connect the lights to the controller, then connect the battery to the controller, and then connect the solar panel
to the controller, and finally connect the power supply to the controller through the wiring terminals.
PROJECT
DATE TYPE
NOTES
REV: 21 0101 0000
