SONARAY SunBrite Solar Installation Manual

www.sonarayled.com

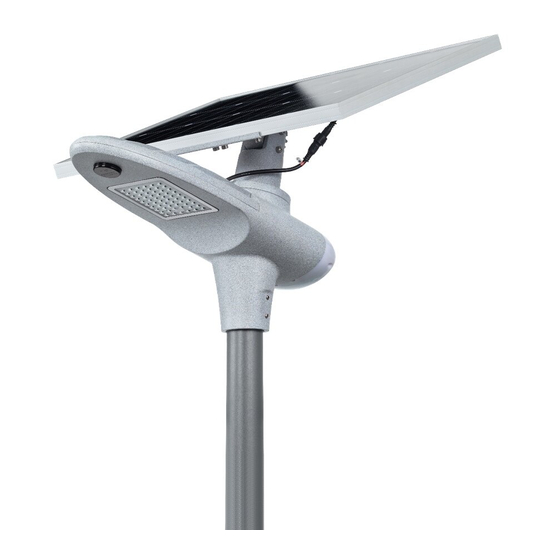

SunBrite Solar Installation Guide
TECHNICAL PARAMETERS
PRODUCT
MODEL
SR-3030
NUMBER
POWER
32.3W
CONSUMPTION
LED
60
DIODES
OPERATING
12-24V DC standard,100-277V AC ~ 50/60Hz
VOLTAGE
HOUSING
MATERIAL
OPERATING
-25°C ~ +45°C / -13°F ~ +113°F
TEMPERATURE
IP
RATING
EPA
5.24 ft²
RATING
BUG
B2-U1-G1
RATING
WEIGHT 14.99
ATTENTION
This manual instructs the important information of installation and operation. Be sure to strictly follow
the instructions before use. To ensure correct installation and operation of the product, carefully read
and understand all contents of this guide. Any mechanical or electrical modifications to the product
will void warranty and may cause dangerous hazards. To avoid potential issues caused by high
temperature, be sure no objects are on the lens while the product is switched on. For proper operation,
a qualified electrician should perform the installation. Ensure the normal ambient temperature of the
installation location is between -25°C ~ +45°C. Ensure the voltage of the luminaire is capatable with the
onsite voltage before installation. Any luminaire with damaged power cord should not be installed.
GENERAL MAINTENANCE
The solar panel should not come in contact with any hard materials or damage may occur.
The solar panel, lens, and housing can be cleaned using a soft cloth without any corrosive material.
Regularly check the screws and mounting bracket and tighten or adjust if necessary.
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
®
SR-3048 SR-3080
48.4W 75.6W
60 60
Aluminum
65
8.39 ft² 12.02 ft²
B2-U1-G1 B3-U1-G2
23.80 42.11
INSTALLATION CONSIDERATION
1. Do not install solar modules near power lines, trees, shaded areas, or any obstructive areas.
2. Regularly check for loose mounting connections to prevent any potential accidents. Re-tighten screws and bolts as needed.
3. When installing the solar panel, the face of the panel should be directed south at a 30 degree tilt for maximum charge potential.
4. Remove magnet on motion sensor housing for proper use.

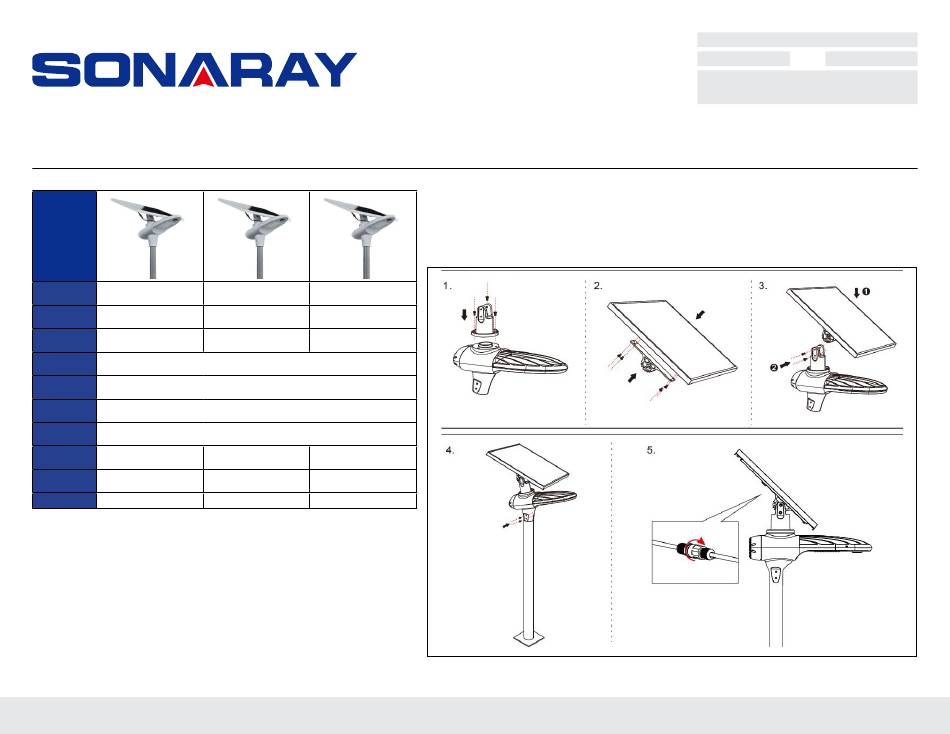

INSTALLATION DIAGRAM
PROJECT
DATE TYPE
NOTES
REV: 21 0101 0000
