HOME
Item#:
1010227075
DECORATORS
Model#:
TJ-FTV7222BLK
C O L L E C T I O N
ASSEMBLY INSTRUCTIONS

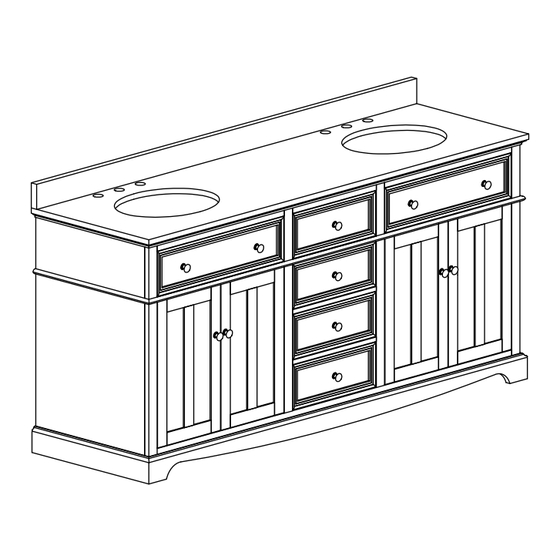

FREMONT 72 INCH VANITY
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m - 7 p.m., EST Monday- Friday, 9 a.m. 6 p.m.,EST, Saturday
1-800-986-3460
HOMEDEPOT .COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Vanity.We strive to continually
create quality products designed to anhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!
1
Advertisement
Related Manuals for Home Decorators Collection FREMONT TJ-FTV7222BLK 1010227075
Summary of Contents for Home Decorators Collection FREMONT TJ-FTV7222BLK 1010227075
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Vanity.We strive to continually create quality products designed to anhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents...........2 Assembly..............6 Safety Information..........2 1 Adjusting the leveler........6 Warranty............2 2 Adjusting the shelves........6 Limited lifetime Warranty......3 3 Removing the drawers........6 What is Covered.........3 vanity..7 4 Installing the drawers back into the What is not Covered........3 5,6,7 Installing the backsplash.......8 California and Minnesota Residents....3 8 Aligning the doors (optional).......9...
- Page 3 Simply, return the product / part to any of The Home Depot retail locations or call 1-800-986-3460 to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available for all Home Decorators Collection warranty claims. WHAT IS NOT COVERED This warranty excludes incidental/consequential damages and failures due to misuse, abuse or normal wear and tear.
- Page 4 Pre-assembly PLANNING ASSEMBLY Check the vanity for damage before installation. If any part of the vanity is missing or damaged, contact the Customer Service Team at 1-800-986-3460. Ensure that the vanity location is accessible to water supply and drain lines. It is recommended that you rough-in the water lines and drain before installing the vanity.
- Page 5 Pre-assembly ( continued) PARTS INCLUDED Description Quantily Part Left Doors Right Doors Middle drawers Adjust shelves PACKAGE CONTENTS NOTE: Hardware not shown to actual size. There are two knob sets: The brushed nickel ones are pre-installed, and the brushed gold ones are in hardware bag. Use which you prefer. Description Quantily Part...
- Page 6 Assembly Adjusting the leveler Adjust the leg levelers to ensure that the vanity is even. Adjusting the shelves Remove the shelf screws securing the shelf to the shelf pins. Remove the shelf from the floor cabinet. Insert the shelf pins info the desired holes. Ensure that all the shelf pins are level.
- Page 7 Assembly vanity Install the drawers back into the Pull out slide. Slide bearings forward. Push slide back inside. Repeat for every slide. Insert into slide slot correctly. Push the drawer into the vanity body with even force.
- Page 8 Assembly Installing the backsplash Apply silicone to the unpolished back side and bottom of the Backsplash (B). Place the backsplash (B) on the vanity (A). Be sure to align the backsplash (B) with the top of the vanity (A). Allow the silicone to dry before using the vanity. Installing the backsplash Gently remove excess glue from the connecting area.
- Page 9 Assembly Aligning the doors (optional) lf you need to adjust the doors, do so in the following manner. To adjust the door up or down, loosen screws (a) on both hinges (1), adjust door (2), and retighten screws (3). To adjust the door left or right, turn screws (b) on both hinges (1), in or out (2).
- Page 10 Assembly To adjust the door in or out, loosen screws (C) on both hinges (1), adjust door (2), and retighten screws (3). Installing the faucet (not included in the package) Make sure the thread of the faucet (L) is long enough to fix to the vanity top and connect the water system.
- Page 11 Assembly Replacing knobs (optional) Open the a door/a drawer. Use a screwdriver (not provided) to unscrew the screws of knob. Do not close drawer/door unless the new knob is installed. Replace the knob: Secure the new knob with its own screw. Repeat for the remaining doors/drawers.
- Page 12 Assembly HOMEDEPOT .COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 13 Optional-Remove Top Opening the doors Taking out the top Use a screwdriver (not provided) to unscrew/ secure these 24 screws to uninstall/reinstall the top. Screws for fixing top layout (24 Screws) Top panel...
- Page 14 Optional-Remove Top Sketch Qty Wood Screws Reinstalling the existing top Place back the top on the vanity. Tighten these screws. Sketch Qty *Note:When vanity top is preinstalled. Wood Screws HOMEDEPOT .COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 15 Optional-Remove Top Pulling the doors back its place...
- Page 16 Maintenance In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a professional to repair your furniture. Check bolts/screws periodically and tighten them if necessary. Care and Cleaning □ Rinse vanity top with clean, hot water frequently. □...
- Page 17 DECORATORS C O L L E C T I O N Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m - 7 p.m., EST Monday- Friday, 9 a.m. 6 p.m.,EST, Saturday 1-800-986-3460 HOMEDEPOT .COM/HOMEDECORATORS...
