"DMTech"Ltd. Pleven
Addressable repeater FP9000A R
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FP9000A R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMTech FP9000A R

Summary of Contents for DMTech FP9000A R

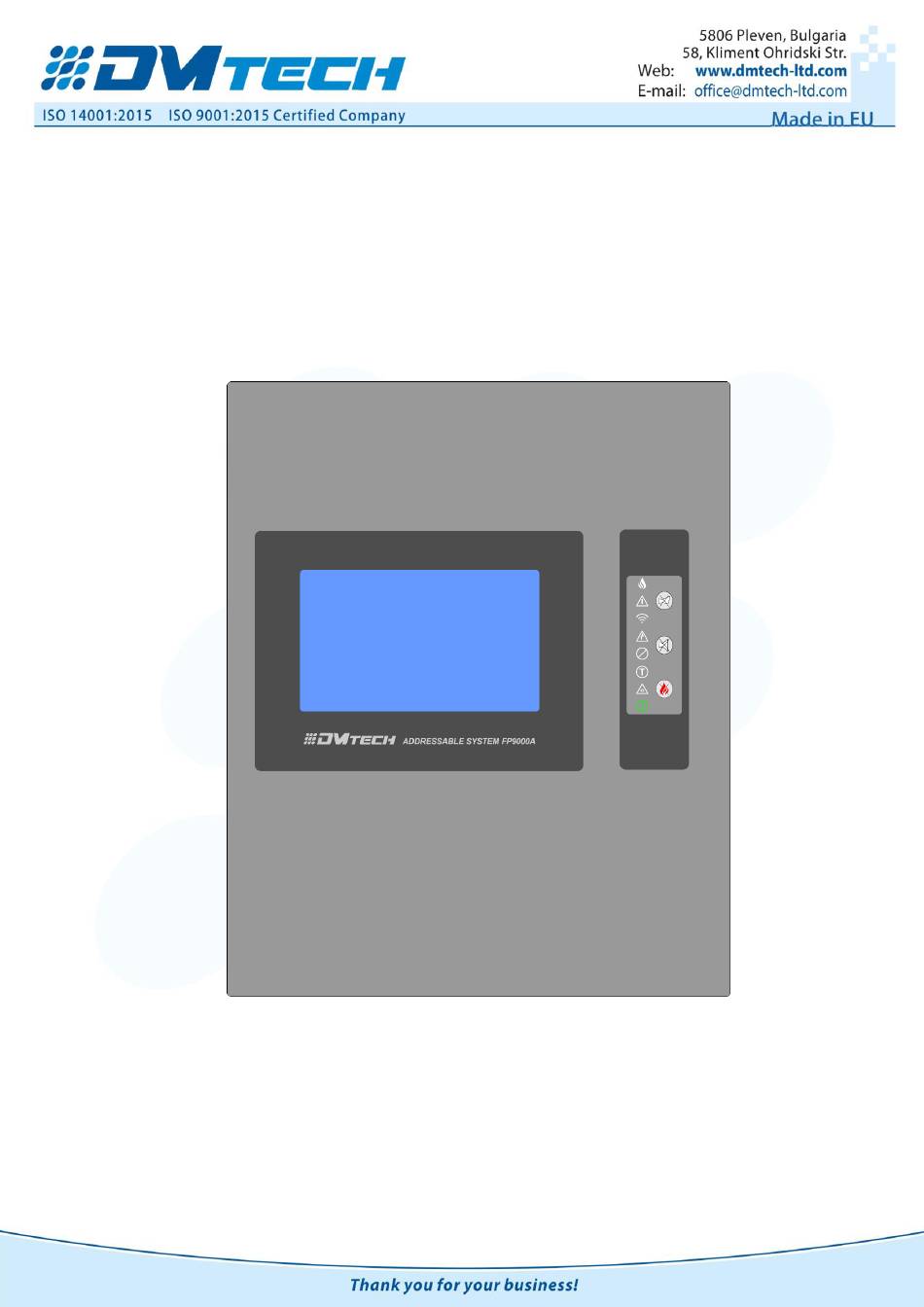

  • Page 1 “DMTech”Ltd. Pleven Addressable repeater FP9000A R Manual...
  • Page 2 1. Introduction The remote control and display panel FP9000A - R is a product that expands the capabilities of systems built on the basis of addressable panels of the FP9000A series. The product works in a network with up to 16 connected remote control units connected by a two-wire line (RS485 with a maximum length of up to 2 km).
  • Page 3 • LED indication and sound signaling in emergency and extreme situations; • User oriented test modes; • Built-in clock for astronomical time; • Interfaces for communication with remote control units FP9000A – RS485; • Interfaces for communication with PC – LAN Ethernet; 3.2Indications of registered events •...
  • Page 4 5.1.3. Access level 3 (default access password '0', recommended to be changed by the user) This is an access level for individuals who are trained and authorized to: -specific data recorded in the repeater or the exchanges connected to it; Access level 3 is accessed by entering a password.
  • Page 5 Pos. 1 – fields for reconnection of 16 exchanges. By holding down on it, the setting options of the respective remote control unit are called up accordingly. Configuring remote panel address, panel name. After activating the corresponding box, the status of each of the central units is visualized. Accordingly, with yellow for failure, red for fire and orange for lack of communication.
  • Page 6 5.3. Controls and indications Table 3 describes the main purpose of the control bodies. Table 2 LED Indication Description FIRE FIRE INDICATOR. Illuminates permanently in the event of a fire alarm event following a signal from an automatic or manual fire detector or other external device connected to the panel input.
  • Page 7 5.4. Terminal order on the panel - In fig. 4 with positions 1-8 show the main connections of the repeater with the periphery controlled by it. Fig. 4 5.4.1. Main functions of the panel - a brief description of the main positions in fig.4 - pos.
  • Page 8 6. Status Standby mode 6.1. Description The repeater is in Standby mode when it is not in any of the other six states (no faults, fires, test or prohibition status in the built system and is connected to all remote control units). 6.2.
  • Page 9 Fault Continuous signal Fatal system fault “Fault” “System fault” Interrupted signal Power fault “Fault” (1s sound, 1s pause) “Power fault” (“Stop alarm”). The local buzzer can be suppressed with a button DMTech wishes you pleasant work! Page 9 of 9...
