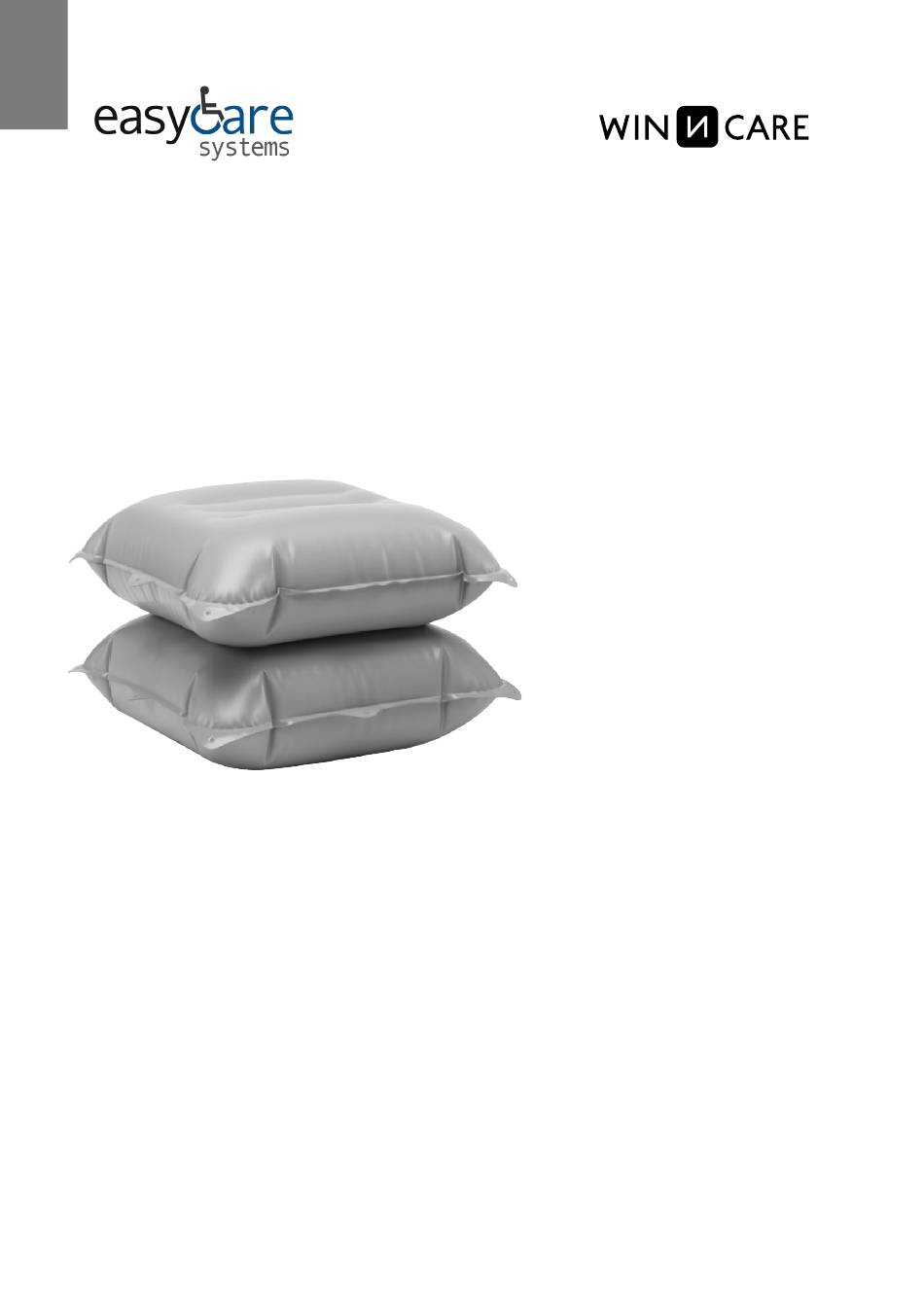

- Page 1 MANGAR RAISER LIFTING CUSHION USER INSTRUCTIONS www.easycaresystems.co.uk...
-
Page 2: Table Of Contents
Safety Information ......................3 Warnings........................3 Cautions......................... 3 Product description ....................... 4 Intended Use ......................... 4 Construction........................4 Standard Product Contents.................... 4 Installation and use ......................5 Getting Started ...................... 5 Battery Status Indicator .................... 5 Connecting ........................ 5 Operating ........................ 6 Care and Maintenance .................... 6 C leaning......................... 6 Maintenance........................ 7 Transportation/Storage....................7 Disposal/Recycling......................7 Troubleshooting ...................... 8 Specifications......................... 8... -
Page 3: Safety Information
Ensure that you read and understand this instruction manual before using this product. Failure to follow the instructions and safety precautions in this manual can result in damage and/or serious injury. Please keep these instructions in a safe location for future reference WARNINGS (Risk of possible injury or other serious adverse reactions) •... -
Page 4: Product Description
Intended Use The Raiser Lifting Cushion is intended solely for use as a lifting aid to assist a person to raise themselves from and lower themselves into an armchair. Users should have sufficient upper body strength to be able to hold the armrests for added support if required. WARNING: If The Raiser Lifting Cushion is to be used in a chair which does not have armrests, the user MUST assess their ability to maintain stability whilst the cushion is being raised and lowered. The Raiser Lifting Cushion is not intended for any other use and should never be used as a step or for lifting items. When properly maintained, the Raiser Lifting Cushion will give many years of trouble free service. Construction The Raiser Lifting Cushion is constructed from a very strong polyurethane coated nylon material which has been precision cut into panels and then joined together by high frequency welding. This produces a very strong light weight and air tight construction. The Raiser Lifting Cushion incorporates a quick exhaust valve which allows the cushion to fully deflate without the need to keep pressing the down button on the hand control. The Raiser Lifting Cushion is powered by the Mangar Airflo 12 battery powered compressor. PLEASE READ the separate Airflo 12 compressor instructions before using your Raiser Lifting Cushion. Standard Product Contents 1 x Raiser Lifting Cushion 1 x User Instructions RAISER ENGLISH www.easycaresystems.co.uk... -
Page 5: Installation And Use
Getting Started The Airflo 12 does not have an ‘on/off’ switch. To operate the compressor, press the ‘Up’ button on the Airflo or on the hand control. ‘Up’ ‘Down’ Connecting • Position the Raiser Lifting Cushion on the chair so that the air hose is at the rear. • Connect the air hose (A Fig. 1) and the hand control lead (B) to the Airflo 12. • Place the hand control within easy reach. RAISER ENGLISH www.easycaresystems.co.uk... -
Page 6: Operating
Operating - (Figs. 2 & 3) WARNING: If The Raiser Lifting Cushion is to be used in a chair which does not have armrests, the user MUST assess their ability to maintain stability whilst the cushion is being raised and lowered. • Keep your feet firmly on the floor, slightly apart and as close to the front of the armchair as possible. • With your hands on the armrests to steady yourself, lean forward and transfer your weight to the front of the seat. • To rise, press and hold the ‘Up’ button on the hand control. Release the button to stop at any height. -
Page 7: Maintenance
Disinfection • The Raiser Lifting Cushion should be fully inflated and pre-cleaned by washing with detergent and water, thoroughly rinsed and then disinfected using a 1:10 solution of household liquid bleach and water (1 part bleach to 10 parts cold water). Leave the solution on the Raiser Lifting Cushion for approximately 10 minutes before thoroughly rinsing off with clean cold water. WARNING: Never mix bleach with any other cleaning product as doing so can result in the formation of harmful acids and poisonous gases which can cause serious breathing problems. Maintenance Other than routine cleaning and disinfecting, the Raiser Lifting Cushion is maintenance free. Winncare recommends that your Lifting Cushion is inspected annually by either your supplier or other suitably qualified person. If required, Winncare can provide the above inspection within an annual service contract (UK only). Please contact our Customer Service Department for further details on Freephone 0800 2800 485. Transportation / Storage Disconnect the Airflo 12 compressor from the Raiser Lifting Cushion before transporting so as to avoid accidental inflation of the cushion. Ensure that the Raiser Lifting Cushion is clean and thoroughly dry before storing. Failure to thoroughly dry the cushion before storage may result in a build-up of mould on the surface of the product leading to a weakening of the fabric and consequential invalidation of the product warranty. Store in a dry environment. To maintain the Airflo battery when being stored for long periods, put the Airflo on charge for 16 hours every 3 months. Disposal / Recycling When the Raiser Lifting Cushion has reached the end of its working life, dispose of it at your local household waste recycling centre (civic amenity site). When the Airflo has reached the end of its working life, remove the battery for safe disposal in accordance with your local council guidelines, and dispose of the Airflo at your local household waste recycling centre (civic amenity site). RAISER ENGLISH www.easycaresystems.co.uk... -
Page 8: Troubleshooting
Trouble shooting guide Problem Remedy • Ensure that the air hose from the product • Compressor does not run when ‘up’ is being inflated is connected to the Airflo. selected. • Check that there are no kinks in the air hose. •... -
Page 9: Appendices
Spare Parts Connector Part Code: CA0446 Warranty The warranty is given against defects in material and workmanship and comprises piece, parts and labour. The warranty is not valid in the case of fair wear and tear, wilful damage, common neglect, misuse or unauthorised alteration or repair by unqualified persons. The following statements do not affect the consumer’s statutory rights. This product is sold on the understanding that in the event of any defect of manufacture or material appearing within the warranty period, the defect will be rectified free of charge providing that: (a) Reasonable evidence is provided (e.g. purchase invoice, delivery note) that the claim is being made within the warranty period. (b) The defect is not attributable to accidental damage (either in transit or otherwise), misuse or unauthorised repair. Raiser Lifting Cushion serial number: ......Date of purchase: ......Invoice/Delivery note number: ....... In the event of a warranty claim, please contact your supplier. Mangar International, trading as Winncare, reserves the right to alter product specifications and/or any of the information contained within this document without notice. RAISER ENGLISH www.easycaresystems.co.uk... - Page 10 Special Products and Service Contact Us Units 5 and 6 Lower Vicarage Road Southampton Hampshire SO19 7RJ T: 02380 420678 E: info@easycaresystems.co.uk...
