Summary of Contents for EasyCare WIN N CARE MANGAR

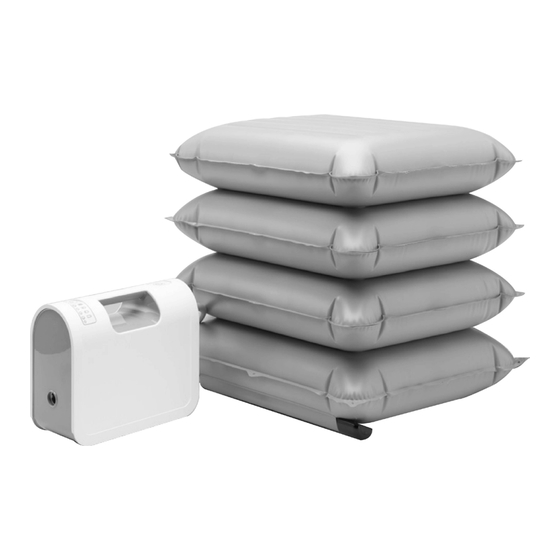

- Page 1 MANGAR ELK LIFTING CUSHION USER INSTRUCTIONS www.easycaresystems.co.uk...
-
Page 2: Table Of Contents
Table of Contents Warnings ..........................3 Intended Use ......................... 3 Standard Product Contents ....................3 Positioning the ELK ........................ 4 Transferring the patient onto the ELK .................. 5 Connecting the 4-way Hand Control and Airflo 24 .............. 6 Operating ..........................7 Routine Cleaning ........................ -
Page 3: Warnings
Ensure that you read and understand this instruction manual before using this product. Failure to follow the instructions and safety precautions in this manual can result in damage and/or serious injury. Please keep these instructions in a safe location for future reference WARNINGS •... -
Page 4: Positioning The Elk
Positioning the ELK • Place the patient in the recovery position if they are unable to transfer themselves onto the ELK. • Unroll the ELK by unclipping the flap (A fig.1) from the ends of the stability bar (B). • Remove the end cap and then the stability bar from its pocket (B fig. -
Page 5: Transferring The Patient Onto The Elk
Transferring the patient onto the ELK • Roll the patient over onto the ELK (fig. 5). • Carry on rolling until the patient is lying fully and squarely on the ELK (fig. 6). • Unfold the folded over edge of the ELK (fig.7). ENGLISH www.easycaresystems.co.uk... -
Page 6: Connecting The 4-Way Hand Control And Airflo 24
• Replace the stability bar and refit the end cap (fig. 8). Connecting the 4-Way Hand Control and Airflo 24 • Connect the four distribution hoses (A fig.9) from the 4-Way Hand Control to the four connectors on the ELK (fig.9 inset). The ends of the hoses are colour coded and numbered to match the corresponding ELK connectors (No. -
Page 7: Operating
Operating • Having positioned the ELK under the patient and connected it to the 4-Way Hand Control and Airflo 24 compressor, if possible, position a sturdy chair next to the patient for them to hold so as to provide additional stability. •... -
Page 8: Routine Cleaning
Routine Cleaning Fully inflate all sections of the ELK, sponge clean with a non abrasive proprietary liquid cleaner or disinfectant and rinse thoroughly with clean water to remove all soap deposits. Dry thoroughly by wiping or leave to air dry. Do not dry using hot air. Disinfecting The ELK should be fully inflated and pre-cleaned by washing with detergent and water, thoroughly rinsed and then disinfected using a 1:10 solution of household liquid bleach and water (1 part... -
Page 9: Troubleshooting
Trouble shooting guide Problem Remedy • Ensure that the Airflo 24 has been switched • Compressor does not run when the 4 way • Ensure the charger is disconnected from the hand control buttons are pressed. Airflo • Check that there are no kinks in the air hose. •... -
Page 10: Warranty
Special Products and Service Contact Us Units 5 and 6 Lower Vicarage Road Southampton Hampshire SO19 7RJ T: 02380 420678 E: info@easycaresystems.co.uk...
