Rocstor® Volt® C14
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Volt C14 and is the answer not in the manual?

Questions and answers

Related Manuals for Rocstor Volt C14

Summary of Contents for Rocstor Volt C14

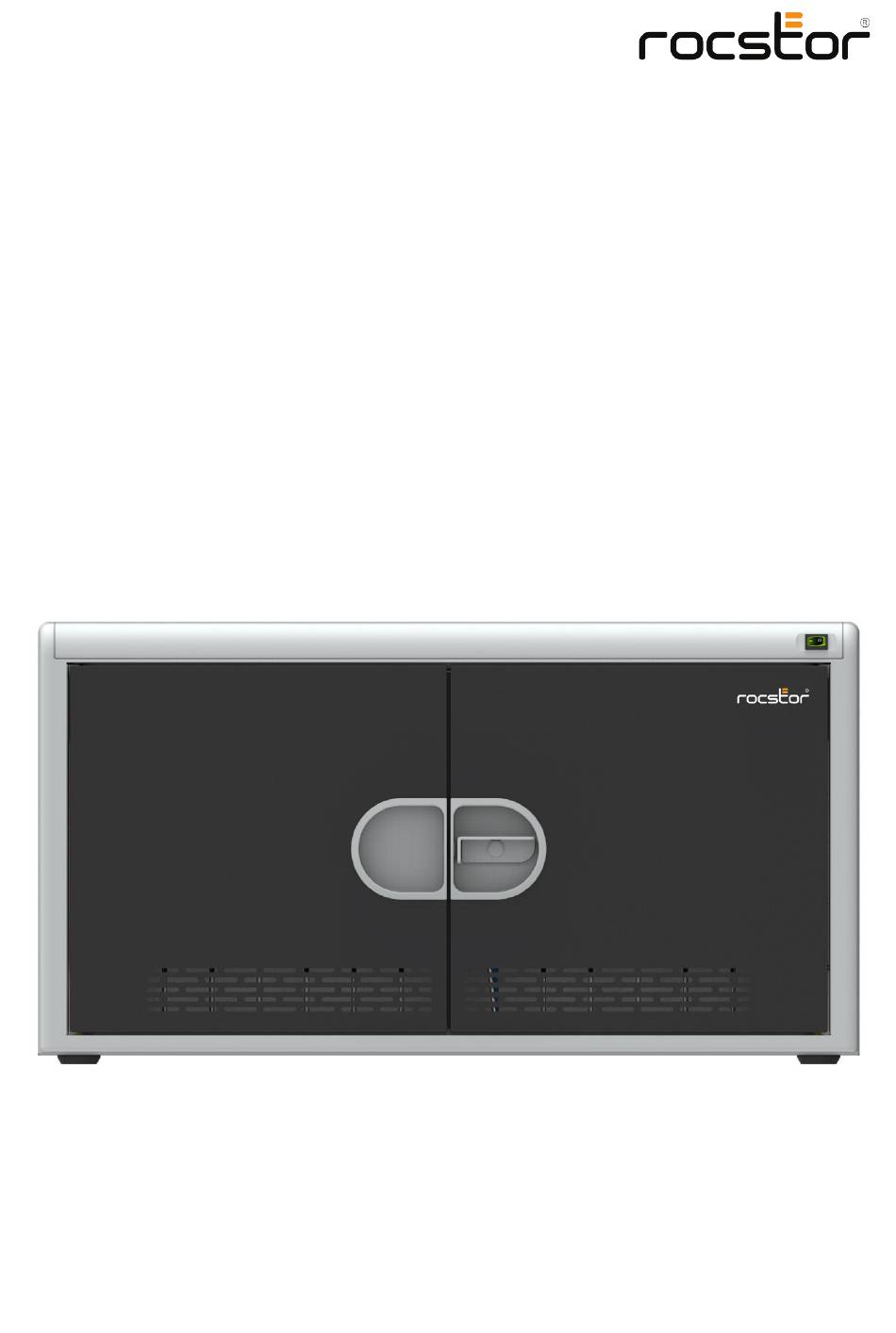

  • Page 1 Rocstor® Volt® C14 User Manual...

  • Page 2: General Use

    General Use ．The product is designed to allow you to easily store, secure, charge up to 14 devices per unit. 1. Product Specification P.02 2. Introduction P.03 Package Contents P.03 Cabinet Dimension P.03 Door Lock P.04 LED Status P.04 Interior View P.04 3.

  • Page 3: Product Speci Cation

    1. Product Speci cation Volt® C14 Cabinet Dimension 760.00 411.1 Product SPEC Volt® C14 Model Name Charging Type Power receptacle Status LED (x1): Green on Power on LED indicator Capacity 14 tablet and Charging Chromebook / Laptop / Support Device Devider Type Metal Bar Tablet up to 14"...

  • Page 4: Package Contents

    2. Introduction Package Contents Cabinet x 1 User manual x 1 Cable clips x 14 Power cord x1 When applied for IEC type power socket; power cable x 14 unit Cabinet Diagram (Front view) (Side View) (Rear View)

  • Page 5: Interior View

    Door Lock Optional LED Status Description O : Power o ON: Green Light on Devices are charging Interior View Top View with top cover o...
  • Page 6 3. Setup 1. Remove the 3 screws. 2. Slide the top cover of cabinet then open the front doors. 3. Insert the power plug of your device 4. Store the AC Adapter brick from your into the power strips located in the device in the individual adapter holder top compartment of the cabinet.

  • Page 7: Optional Feature

    4. Optional Feature Optional casters on view SEE DETAIL D DETAIL DSCALE 1:1 Wall-Mount Bracket view 580.00 250.00 250.00 24.50 4-SPOT POINT DN314VS-113 80.00 Dn314VS-112...
  • Page 8 ． Attaching the wall-mount bracket: Preparation: Screw (T., Half round, Stainless, T4 x L30mm), Anchor nut (1/4 ” x L27mm, EM35114-70, PVC). ． Wall-mounting kit only applies on wood structure wall and concrete wall. ． Make sure there is enough space on the wall with the product door open. Drill the hole and drive the anchor nuts into the wall.
  • Page 9 Rocstor www.rocstor.com...
