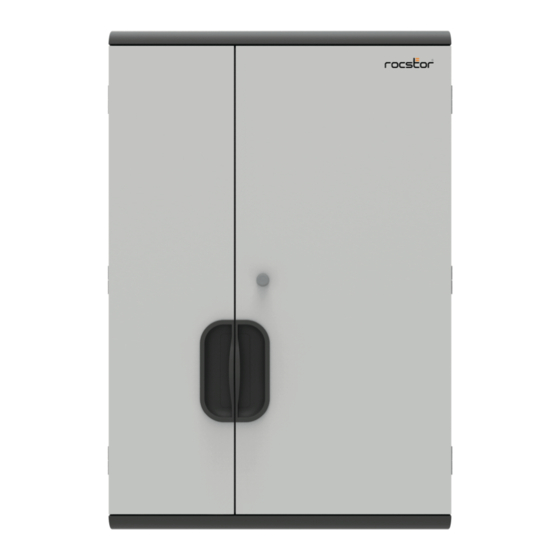

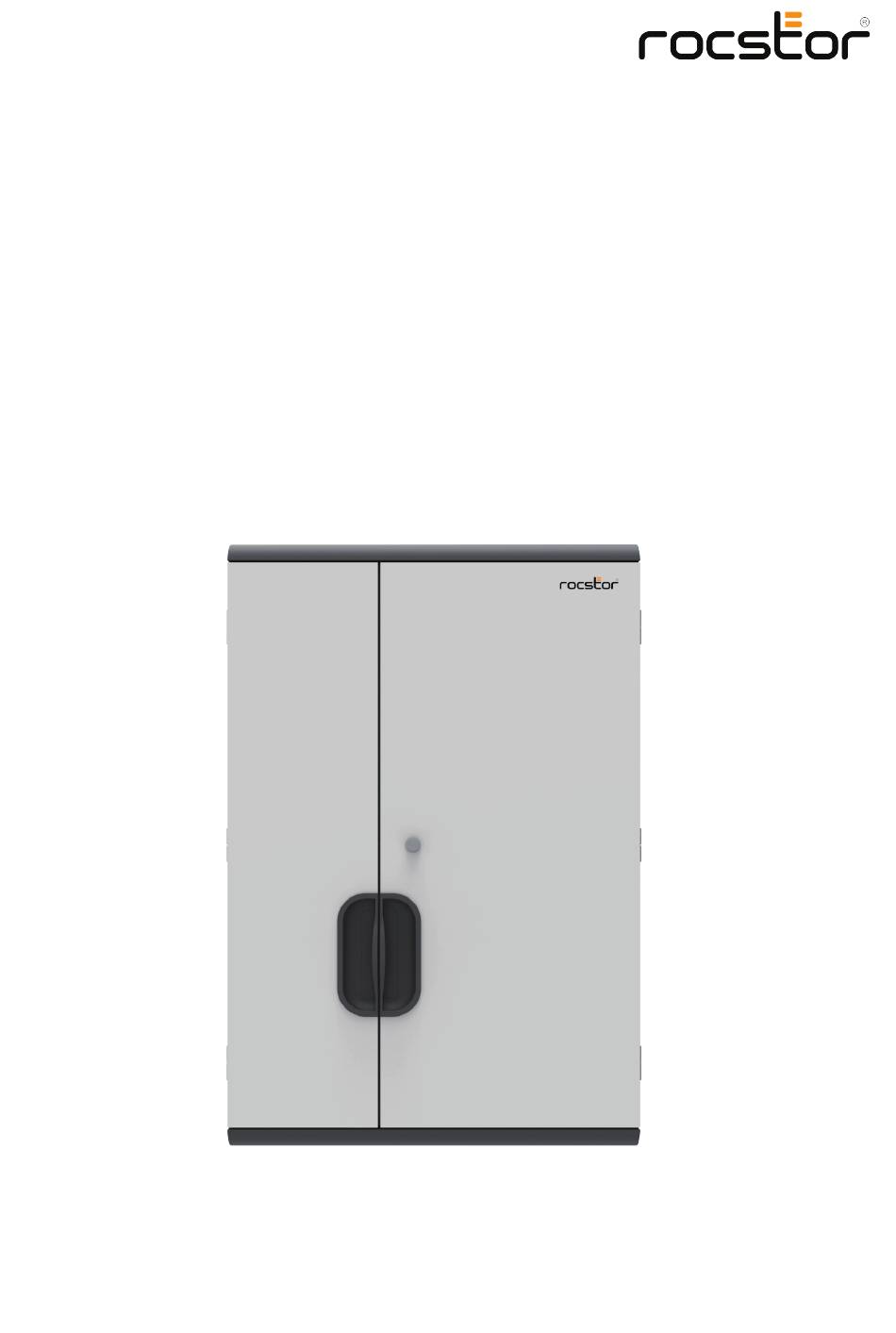

- Page 1 Rocstor Volt® CW12 Intelligent Charging Station - Wall Mount for 12 Devices User Manual...
-
Page 2: Important Safety Instructions
The product is designed to charge up to 12 Chromebook®, Notebook , Laptops or Tablets, holds up to a 13.3 inch Displays Device 1. Product speci cations ............... 2. Components ................3. Space requirement ..............4. Setup ..................4, 5, 6, 7, 8, 9 5. - Page 3 Volt® CW12 530mm 180mm 890mm 890mm Product SPEC Model Name Volt® CW12 Input: AC 100-125V, 50/60Hz, 12A Capacity 12 Devices AC 200-240V, 50/60Hz, 10A Power Speci cation W22.44 x D7.08 x H35.03” Cabinet Dim. Output: AC 100-125V, 50/60Hz, 12A (530 x 180 x 890 mm) AC 200-240V, 50/60Hz, 10A Weight 17.09 kg...
- Page 4 Ø11.3 Ø5 19mm IDØ5.5 16mm ODØ12 Washer x 5 pcs Self-tapping Screw x 5 pcs Power code holder x1 For Conctete T5 x L16mm, For Wooden Volt CW12 x1 Ground Wire 12 AWG x1 Wall Bracket x1 Power Cord x1...
-
Page 5: Space Requirement
3. Space Requirement Wall Mount Cabinet Space Requirement Wooden Wall thickness Should be more 25mm 600 (Operation Space) 530 (Cabinet Space) Five Screw holes position Wooden: directly screw Concrete :Ø 1/4” x 1 depth Cabinet Space Operation Space Operation Hand Screws M4 x L12mm Take o the screws To open the door... - Page 6 4. Set Up Tools Needed (prepare by customer) █ Mounting into Wooden wall Ø Follow the Cabinet Space Requirement Concrete Wall bracket Wood Screw x 3 pcs T5 X L16mm Screw into the Wooden Wall with T5 Screwier Hang on the bracket Wood Screw x 2 pcs T5 X L16mm...
- Page 7 █ Wall-mount to Concrete Wall This is a team step. 1. Determine the installation points for your cabinet. 2. Drill holes in the concrete wall about 3. Insert the expansion bolt into the holes. 5Ø 1/4” X 1” deep at the mounting points. Expansion bolt x5 pcs 4.
- Page 8 █ Assembly Power Cord Holder To x the power cord to Anti-Pull. 1. Tighten the Anti-Pull Holder on the power cord. Front door C13 Inlet Attach to the wall 3. Make sure the clip is facing to 2. Insert the power cord into the the wall side.
- Page 9 █ Cable Management See Detail █ Adapter Management...
- Page 10 █ Power strip movable Take of the Screws Take of the Screws Screw into new position Power Strip move to new position Take of the Screws Option Holder █ Optional Adapter holder Adapter holder for management...
-
Page 11: Daisy-Chain
█ Daisy-Chain 600 At least Setup... - Page 12 5. Safety WARNING: This product must only be used for its intended purpose in accordance with operating instructions . Failure to observe the following notices can result it re , injury , death by electric shock or equipment damage. Always turn o the power to the produce before plugging IN or OUT. ●...
- Page 13 Ver.1, Jun 2017 I.T.E. E341990 Rocstor 12979 Arroyo Street San Fernando, CA, 91340 www.rocstor.com +1 (818) 727 7000...
