DUSS PKX 7 Original Operating Instructions

Original operating instructions

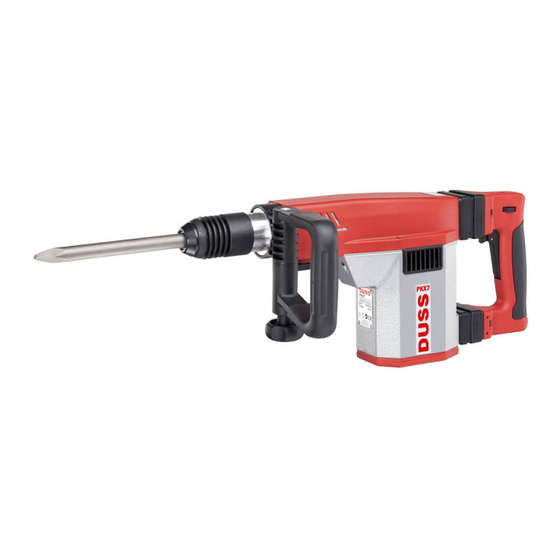

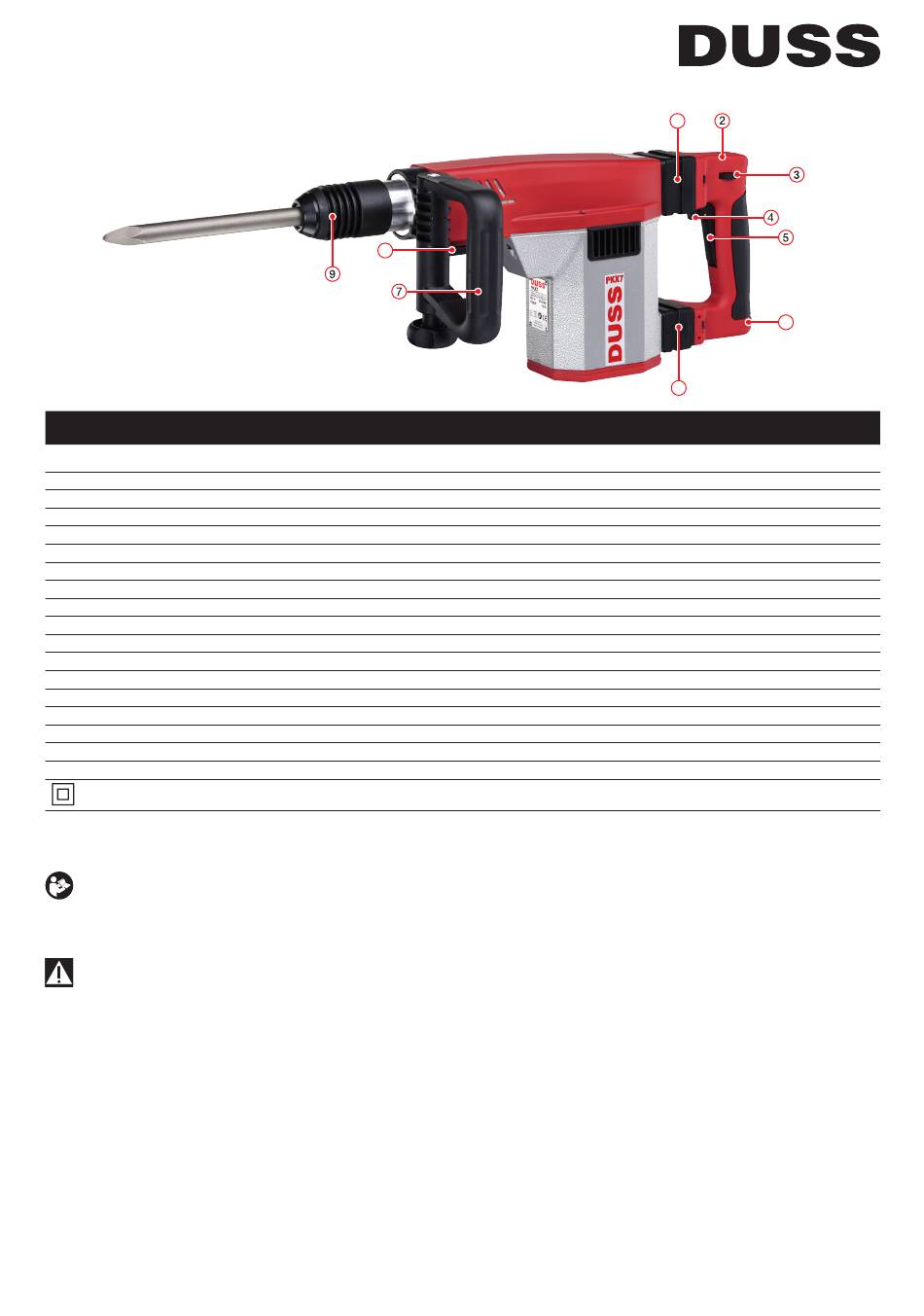

PKX 7 breaker
TECHNICAL DATA
Power input
Voltage
Current input
Frequency
Machine weight
Impact rate under load
Single impact energy
Chiselling performance in hard C45/55 concrete with pointed chisel
Chuck
Permanent lubrication
Swivelling D-handle and screw-in auxiliary handle
Push-button switch on/off with trigger lock, ensuring non-fatiguing work
Change lever for chisel positioning
Electronic for constant impact rate control, full load impact rate = no load impact rate
Impact rate and force infinitely adjustable with adjusting dial
Service indicator
Self-disengaging carbon brushes
Optional dust extraction / optional wet/dry vacuum cleaner
Class II device
Specifications subject to change
Familiarize yourself with all operating instructions, safety
information, instructions, illustrations and technical data
provided with the product before use.
SAFETY WARNINGS
WARNING Read all safety warnings and instructions.
Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury. Save all warnings and instructions
for future reference.
HAMMER SAFETY WARNINGS
Safety instructions for all operations
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can
cause personal injury.
Hold the power tool by insulated gripping surfaces, when per-
forming an operation where the cutting accessory may contact
hidden wiring or its own cord. Cutting accessory contacting a „live"
wire may make exposed metal parts of the power tool „live" and could
give the operator an electric shock.
ADDITIONAL SAFETY INSTRUCTIONS
• Use the device and accessories only when they are in perfect wor-
info@duss.de · www.duss.de
8
king order.
• Never tamper with or modify the device or accessories in any way.
• Check the device's supply cord at regular intervals. Have the cord
and the plug replaced exclusively by DUSS or a DUSS customer
service.
• Never operate the product when it is dirty or wet.
• Before beginning work, check the working area for concealed elec-
tric cables or gas and water pipes. Any cable or pipes in the area
must be disconnected.
• Secure the workpiece. A workpiece clamped with clamping devices
or in a vice is held more secure than by hand.
• Before starting make sure that the swivelling D-handle and side
handle resp. the auxiliary handle are firmly screwed in at the desired
position. Switch the device on only after it is in position at the work-
piece. Always hold the device with both hands when working and
maintain a firm stance. Work concentrated. A sudden break-through
can affect your balance!
• Do not expose power tool to splash or rain water. Stop working
immediately if water is entering the power tool and have the power
tool checked by a qualified electrician. Otherwise the life of the user
may be at risk.
• The application tool may jam during operation. Make sure you have
a stable footing and hold the device firmly with both hands.
PKX 7 original operating instructions
1
6
1
PKX 7
1150 W
230 V
5.6 A
50 - 60 Hz
7.3 kg
1500 - 2900 impacts/min
5 - 10.5 J
approx. 280 kg/h
SDS-max
Order-No. MASP / IS 35 M
1
