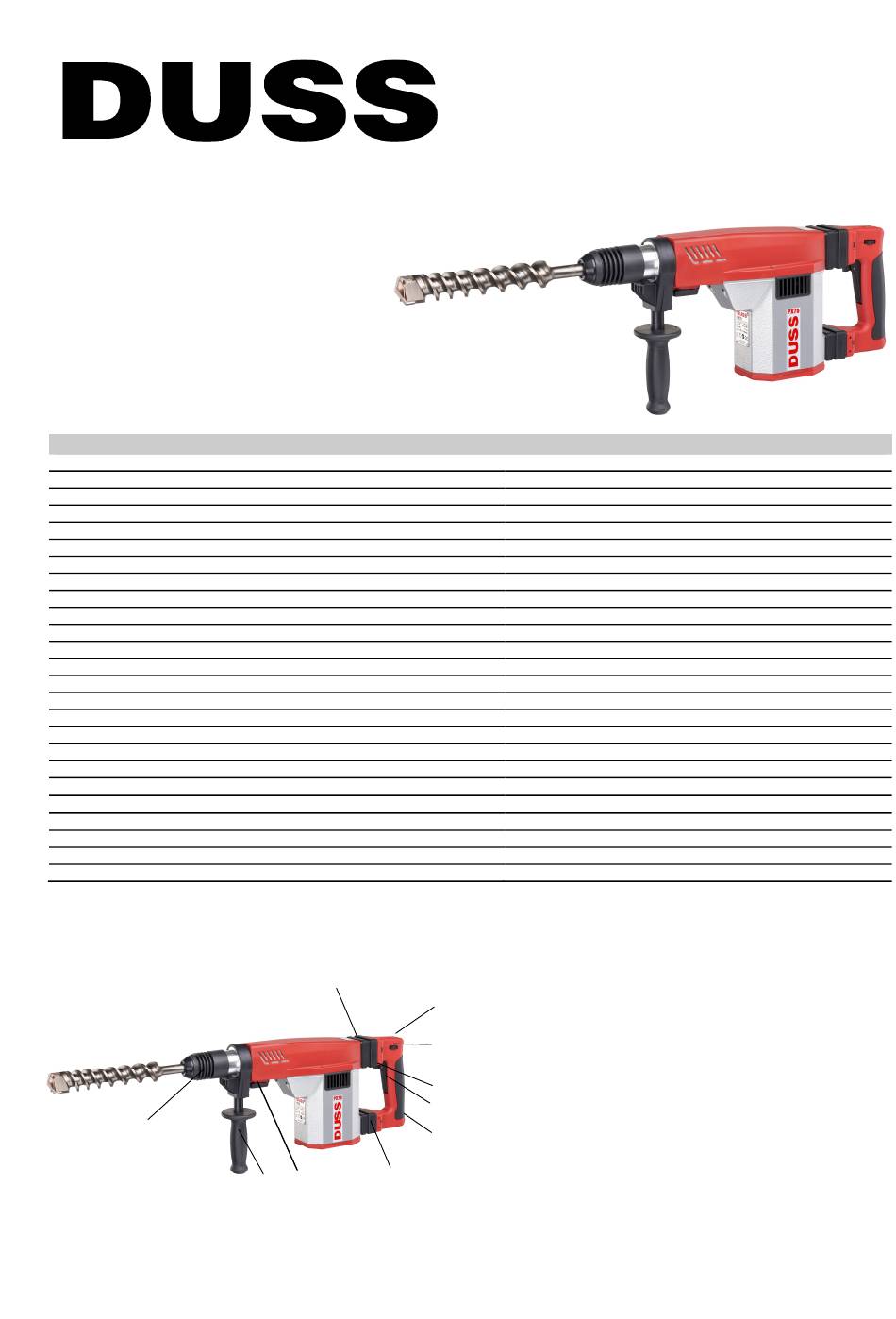

DUSS PX 78 Operating Instructions

Original operating instructions
Technical Data
Power input
Voltage
Current input
Frequency
Weight
Drilling speed under load
Hammering speed under load
Drilling Ø in concrete with SDS-max bits
SDS-max core cutter
Drilling performance Ø 35 mm dia. bit in concrete
Single impact energy
Chiselling performance in medium-grade concrete
Tool chuck
Permanent lubrication
Side handle adjustable and secondary screw-mounted handle
On/Off switch with locking button for continuous operation
Settings: "Rotary hammer drilling" / "Chiselling only"
Safety clutch
Electronic rpm and hammering power control, infinitely variable
Electronic control unit for reduction of no-load speed
Service Indicator
Automatic cut-out brushes
Double insulation, class II, as per EN 60745
Radio and TV interference suppression as per EN 55014
Right of technical modifications reserved
9
1
7
8 1
Operating Instructions
for the

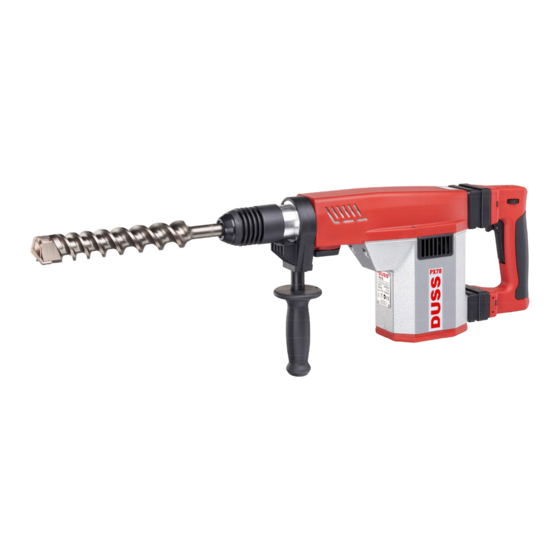

DUSS Combihammer
1 Vibration damping RVA (Recoil Vibration Absorber)
2 Fastening nut for secondary handle
2
3 Drill speed controller thumbwheel
4 Locking button for continuous operation
3
5 On/Off switch
6 Service indicator
7 Change-over switch
4
8 Swivelling side handle
5
9 Locking sleeve
6
PX 78
1500 W
230 V
7,1 A
50 - 60 Hz
7,6 kg
170 – 310 rpm
1.800 – 3.370 impacts/min
Ø 12 – 80 mm
Ø 45 – 150 mm
160 mm
4,5 – 10 J
200 kg/h
SDS-max
