SDC-210 SWITCHING MODE DC-DC POWER CONVERTER
INTRODUCTION
SDC-210 is high quality 24V-13.8V DC-DC Power Converter primarily designed for 13.8V
DC powering of automotive and marine electronic equipment. It is implemented by using
Switching Mode Power Supply technology to make it generate less heat and hence higher
efficiency. Advanced design, quality production control and sturdy construction assure
continue stability and reliability.
FEATURES
1. Overload Protection: When the output current is over the limitation, the overload
circuitry will be triggered. The output voltage and current are reduced to protect the unit.
2. Over Voltage Protection: When the output terminal appears over the voltage output limit,
the over voltage protection will be triggered and the output voltage will be cut off to protect
the unit and your equipment.
3. High RFI Stability: The unit is designed for high protection circuitry against RFI (Radio
Frequency Interference) provides a stable operation without affected by RFI.

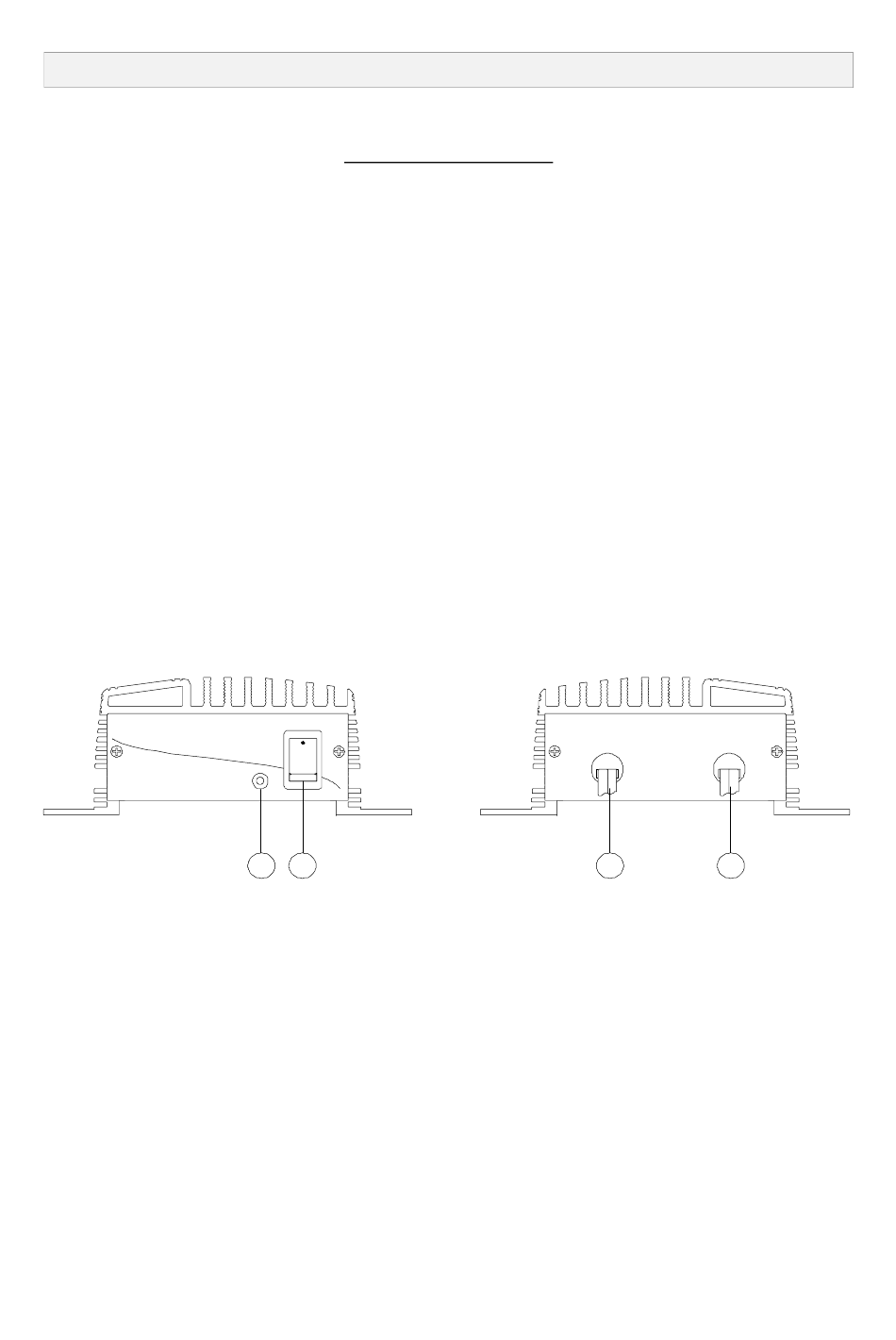

FRONT PANEL AND REAR PANEL
OUTPUT: 13.8Vdc
DC-DC CONVERTER
SDC210
1. POWER SWITCH: Switch ON/OFF the unit.
2. POWER INDICATOR: Lights up when the unit is activated.
3. INPUT CABLE.
4. OUTPUT CABLE.
CAUTION
1. DO NOT use the unit for the equipment requires current input that higher than the
designed value otherwise it may damage the unit.
2. DO NOT use the unit for charging battery.
3. DO NOT use the unit for lamps or motorized equipment that require high current input at
starting as it may damage the unit.
4. When the fuse is broken, DO NOT replace the fuse before ceasing the problem. The type
of the fuse taken in place must be the same as the original one.
5. DO NOT feed the voltage other than 22-30V DC otherwise damage the unit. The input
voltage range specified is the range of the operating voltage.
USER'S MANUAL
POWER
ON
OFF
2 1
INPUT OUTPUT
DC20~DC30V DC13.8V
3 4
