Summary of Contents for Kathy Ireland OFFICE KI70102

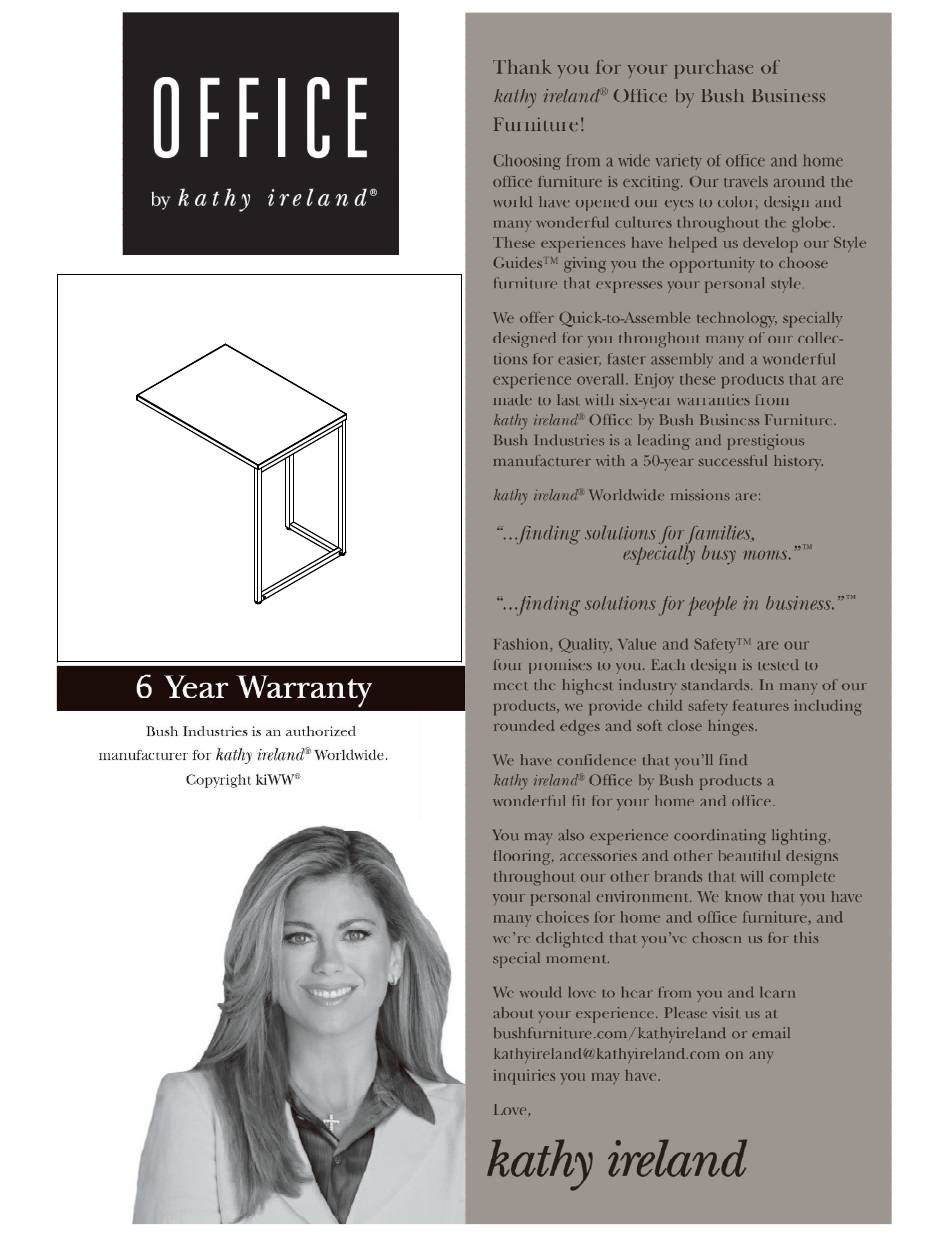

  • Page 1 KI70102, KI70202, KI70302, KI70402, KI70502 A182047A...
  • Page 3 Get Ready to Assemble A182047A...
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur.
  • Page 5 Get to know your Boards A182047A Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 6 Get to know your Fasteners A182047A Fasteners are shown actual size. [ 1 ] H195663 1/4-20 x 1-3/4" [ 14 ] H142302 #10 x 3/4" [ 3 ] H83436 #12 x 1-3/4" [ 2 ] H39922 H132139 [ 1 ] Strap 5/32"...
  • Page 7 STEP Attach Rail A182047A [ 3 ] H83436 #12 x 1-3/4" [ 4 ] H142302 #10 x 3/4" [ 2 ] H39696 Leveler Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 8 STEP Mounting Option A182047A Left mounting option Opción para montura izquierda Option gauche de montage KI70102 KI70202 KI70302 KI70402 KI70502 Go to Step 3. Proceda al paso 3. Allez à l'étape 3. Right mounting option Opción para montura derecha Option droite de montage KI70102 KI70202 KI70302...
  • Page 9 STEP Attach Rail A182047A H132139 [ 1 ] H39696 5/32" Leveler [ 1 ] H195663 [ 2 ] H142302 1/4-20 x 1-3/4" #10 x 3/4" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 STEP Attach Straps A182047A [ 2 ] [ 4 ] H39922 H142302 #10 x 3/4" Strap [ 2 ] H181980 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 STEP Install Return A182047A Team Lift [ 4 ] H142302 #10 x 3/4" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 STEP Attach Rail A182047A [ 2 ] H142302 [ 1 ] H195663 #10 x 3/4" 1/4-20 x 1-3/4" [ 1 ] H39696 H132139 Leveler 5/32" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 STEP Attach Straps A182047A [ 4 ] [ 2 ] H39922 H142302 #10 x 3/4" Strap [ 2 ] H181980 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 STEP Install Return A182047A Team Lift [ 4 ] H142302 #10 x 3/4" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 STEP Maximum Loading and Cleaning A182047A Gently clean surfaces with a damp sponge eraser. Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.7 kilogramme Congratulations! You are all done. If you have any questions or concerns, please call. Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 PARTS LIST A182047A KI70102 KI70202 A W182035 [ 1 ] A W182013 [ 1 ] B H181985 [ 1 ] B H181985 [ 1 ] C H181986 [ 1 ] C H181986 [ 1 ] KI70302 KI70402 A W192971 [ 1 ] A W192944 [ 1 ] B H181985 [ 1 ]...
