TF46 PRO PTO WOOD CHIPPER
OPERATOR'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woodland Mills PRO Series

Summary of Contents for Woodland Mills PRO Series

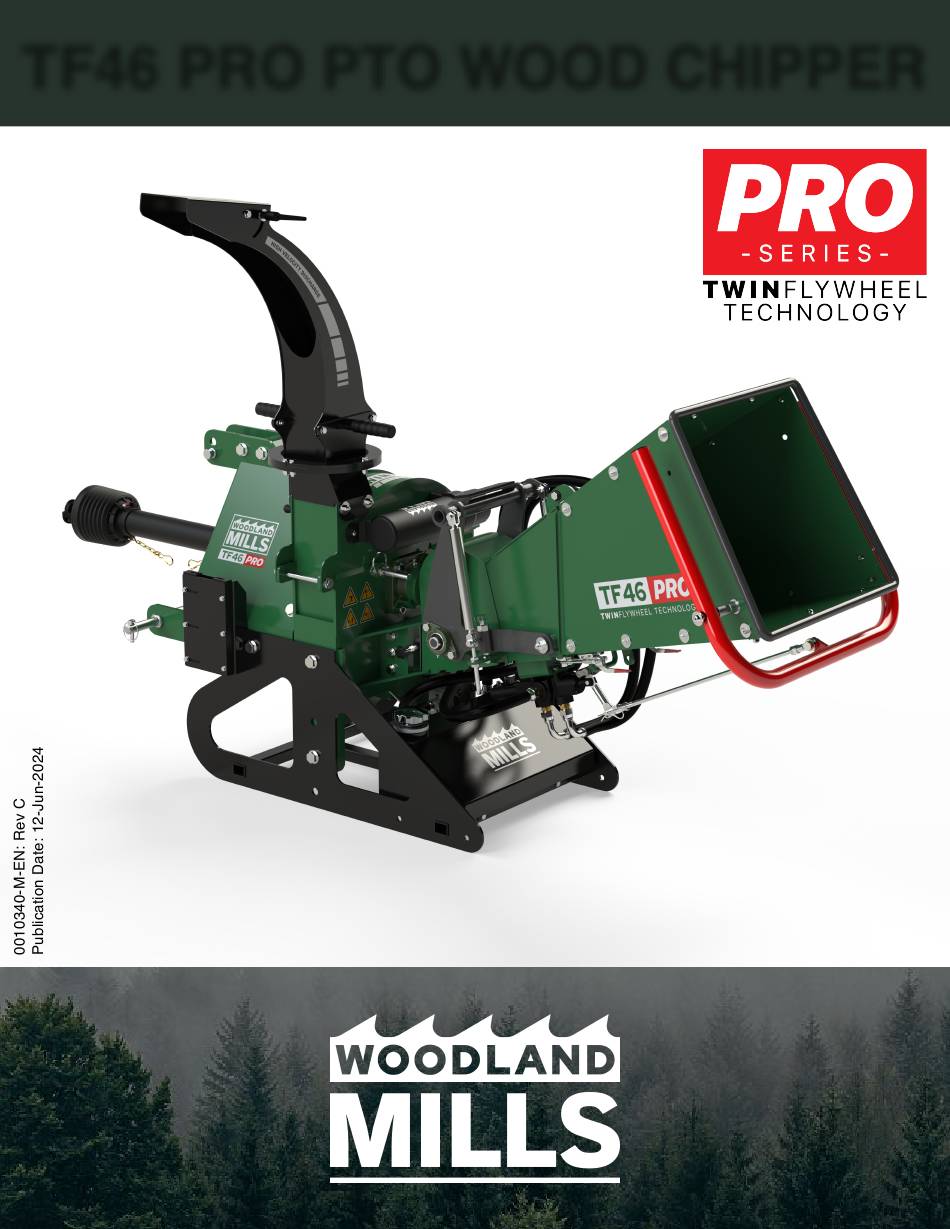

  • Page 1 TF46 PRO PTO WOOD CHIPPER OPERATOR’S MANUAL...
  • Page 2
 This page intentionally left blank.
  • Page 3 TF46 PRO Operator’s Manual TABLE OF CONTENTS TABLE OF CONTENTS __________________________________________________1 INTRODUCTION ________________________________________________________3 INTENDED USE ________________________________________________________3 SAFETY GUIDELINES ___________________________________________________4 ROTATING DRIVELINES _______________________________________________5 PERSONAL SAFETY __________________________________________________6 WORK AREA ________________________________________________________7 TOOL USE AND CARE ________________________________________________8 TECHNICAL SPECIFICATIONS ____________________________________________9 OVERALL DIMENSIONS—OPERATING STATE ________________________10 ii.
  • Page 4 TF46 PRO Operator’s Manual 4. DETERMINE IF TRIMMING IS REQUIRED ____________________________41 5. TRIM THE PTO SHAFT ____________________________________________43 6. REASSEMBLE THE PTO SHAFT ____________________________________43 OPERATION __________________________________________________________44 1. PRE-START UP CHECKLIST _______________________________________44 2. START UP ______________________________________________________45 3. INFEED ROLLER CONTROL _______________________________________46 4. DISCHARGE CHUTE ______________________________________________48 5.
  • Page 5 TF46 PRO Operator’s Manual INTRODUCTION Congratulations on your purchase and welcome to Woodland Mills! This manual gives you the necessary information about your machine so you will be able to use it properly. The entire manual must be read and understood before you start using the machine. If any questions should arise that are not covered by this manual, please contact Woodland Mills Inc.
  • Page 6 TF46 PRO Operator’s Manual SAFETY GUIDELINES **SAVE THESE INSTRUCTIONS** • Do not operate this machine until this manual has been read and fully understood; serious injury or severe machine damage could occur if these safety warnings are ignored. • Never allow more than one person to operate this machine at one time. If two people are working together it will increase the chance of your workmate engaging the machine or causing you to fall into the machine.
  • Page 7 TF46 PRO Operator’s Manual ROTATING DRIVELINES **STAY CLEAR OF ROTATING DRIVELINES** • Entanglement in rotating driveline can cause serious injury or death. • Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields spin freely. •...
  • Page 8 TF46 PRO Operator’s Manual PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or medication.
  • Page 9 TF46 PRO Operator’s Manual WORK AREA • Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. • Do not use your wood chipper where there is a risk of causing a fire or an explosion; e.g.
  • Page 10 TF46 PRO Operator’s Manual TOOL USE AND CARE • Always be sure the operator is familiar with proper safety precautions and operation techniques before using machine. • Do not force the tool. Tools do a better and safer job when used in the manner for which they are designed.
  • Page 11 TF46 PRO Operator’s Manual TECHNICAL SPECIFICATIONS Component TF46 PRO Specification Drive System PTO Transport 3-Point Hitch Minimum HP Required (at PTO) 15 hp Infeed System Hydraulic Hydraulic Oil ISO 32 / AW 32 (ISO 46 / AW 46 for warmer climates) Hydraulic Tank Volume 3.2 gal [12 L] Hydraulic Requirement (Tractor) None.
  • Page 12 TF46 PRO Operator’s Manual OVERALL DIMENSIONS—OPERATING STATE 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 13 TF46 PRO Operator’s Manual ii. OVERALL DIMENSIONS—STORED STATE The discharge chute must be rotated so that it is angled towards the left side of the chipper in order to allow room for the infeed chute to be flipped upward when the machine is in its stored state.
  • Page 14 TF46 PRO Operator’s Manual iii. 3-POINT HITCH DIMENSIONS The TF46 PRO wood chipper has a Category 1, 3-point hitch system that is designed to work with tractors rated at 15-30 PTO horsepower. Upper hitch pin is ¾” [19 mm] diameter and the lower hitch pins are ⅞”...
  • Page 15 TF46 PRO Operator’s Manual iv. QUICK-HITCH ADAPTER DIMENSIONS The TF46 PRO wood chipper includes adapters that extend the lower hitch pins’ useable length to work with quick-hitch enabled tractors. Upper hitch pin is ¾” [19 mm] diameter and the lower hitch adapter pins are 1-5/16”...
  • Page 16 TF46 PRO Operator’s Manual COMPONENT LISTS Verify all component and hardware quantities are correct prior to assembling the wood chipper. Infeed Chute Connecting Rod Bottom Panel [0006809] Assembly Round Edge Lower Hitch Pin [0001738] [0010334] Lower Hitch Control Arm [0010335] [0006832] Upper Hitch Control Arm...
  • Page 17 TF46 PRO Operator’s Manual Discharge Bed Plate Gap Chute Handle Tool with Grip [0010411] 40.64 1-5/8 Quick-Hitch Chainsaw Adapter Holder 20.32 40.64 13/16 [0007078] Assembly 1-5/8 Quick-Hitch PTO Shaft 20.32 Adapter Flange 13/16 [0010500] [0011352] TO-SCALE HARDWARE BOLTS & SCREWS Hardware graphics are printed at 1:1 scale for ease of identification.
  • Page 18 TF46 PRO Operator’s Manual HHB-MCA100FCJ M16 X 2 X 45 mm HEX BOLT HHB-MCA110FCJ M16 X 2 X 55 mm HEX BOLT HHB-MCF265PCJ M20 X 2.5 X 210 mm HEX BOLT *Note: bolt length is not 1:1 as it will not fit on the page at full scale. SNC-MBJ080FCJ M8 X 1.25 X 25 mm CARRIAGE BOLT BHS-MBJ073FCM...
  • Page 19 TF46 PRO Operator’s Manual BHS-MBM075FCM M10 X 1.5 X 20 mm BUTTON HEAD SCREW HFH-MBR095FCM M12 X 1.75 X 40 mm FLAT HEAD SCREW HHS-MBM057069AJ M10 X 1.5 X 20 mm HEX HEAD SHOULDER SCREW SCALES Ruler scales are also provided below to double-check bolt and screw lengths when necessary. 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 20 TF46 PRO Operator’s Manual WASHERS FTW-MBJ000AJ FTW-MBR000AJ M8 FLAT WASHER M12 FLAT WASHER FTW-MBR000NA SLW-MCA000AJ M12 NYLON FLAT WASHER M16 FLAT WASHER FDW-MBJ079000AJ FDW-MBM075000AJ M8 FENDER WASHER, 30 mm OD M10 FENDER WASHER, 30 mm OD SLW-MBMAJ M10 SPLIT LOCK WASHER 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 21 TF46 PRO Operator’s Manual NUTS HLN-MBJCH HLN-MBMCH M8 X 1.25 LOCK NUT M10 X 1.5 LOCK NUT HLN-MBRCH HLN-MCACH M12 X 1.75 LOCK NUT M16 X 2 LOCK NUT 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 22 TF46 PRO Operator’s Manual ASSEMBLY 1. TOOLS REQUIRED Tool Specification Wrench/Socket 13 mm (2X) Wrench/Socket 16 mm (2X) Wrench/Socket 17 mm Wrench/Socket 24 mm or Adjustable Wrench Wrench 27 mm or Adjustable Wrench Hex Key Set of Metric Hex Keys (e.g. 2-10 mm) Hacksaw* Any metal-cutting saw (Sawzall, etc.) * Only if PTO shaft requires trimming.
  • Page 23 TF46 PRO Operator’s Manual 2. UNPACKING A. UNBOXING THE CRATE Unpack the contents of the crate by first cutting the nylon strapping and then remove the cardboard top and sides. Remove the four (4) M8 hex bolts and nuts located at each bottom corner of the crate and then lift it off the skid.
  • Page 24 TF46 PRO Operator’s Manual B. LOWER HITCH 40.64 Before the chipper can be raised to its final operating height, the lower hitch arms and upper 1-5/8 hitch plates need to be installed. Use the components and hardware listed in the table below to first assemble the lower hitch arms to the chipper.
  • Page 25 TF46 PRO Operator’s Manual C. CONNECTING ROD **If using a tractor quick-hitch attachment, skip this page and proceed to the next page.** Using the components listed in the table below, assemble the connecting rod between the lower hitch arms. Connecting Linch Pin Lower Hitch Pin Position the connecting rod between the two (2) lower hitch arms and then thread one (1) lower...
  • Page 26 TF46 PRO Operator’s Manual **Quick-hitch attachment user assembly instructions only.** Using the components listed in the table below, assemble the connecting rod between the lower hitch arms for a setup that accommodates quick-hitches. M20 X 210 mm Quick-Hitch Hex Bolt Adapter 40.64 1-5/8...
  • Page 27 20.32 13/16 TF46 PRO Operator’s Manual D. UPPER HITCH Using the hardware and components listed in the table below, assemble the upper hitch plates to the belt guard. M16 X 45 mm Upper Hitch Hex Bolt Plate M16 Flat Upper Hitch Pin Washer Upper Hitch Linch Pin...
  • Page 28 20.32 13/16 40.64 TF46 PRO Operator’s Manual 1-5/8 E. SETTING THE MOUNTING BASE 20.32 With the hardware listed in the table below, connect the lower hitch arms to the base after lifting 13/16 the chassis. M16 X 50 mm M16 Lock Nut Hex Bolt M16 Flat Washer...
  • Page 29 TF46 PRO Operator’s Manual With the holes aligned, reinstall the four (4) M16 X 40 mm hex bolts and M16 flat washers. Then install four (4) M16 X 50 mm hex bolts, eight (8) M16 flat washers, and four (4) M16 lock nuts to secure the lower hitch arms to the base.
  • Page 30 TF46 PRO Operator’s Manual Connect the hydraulic line to the tank that originates from the pump beneath the lower flywheel housing and securely tighten the fitting. Connect hydraulic line after moving base down With the base secure and hydraulic line connected, slide the crate skid out from under the wood chipper and discard it.
  • Page 31 TF46 PRO Operator’s Manual 3. INFEED CHUTE A. TOP PANEL Assemble the infeed chute top panel to the lower flywheel housing using the components and hardware listed in the table below. Note that the infeed chute top panel and hinge bracket come pre-assembled.
  • Page 32 TF46 PRO Operator’s Manual 40.64 1-5/8 B. SIDE PANELS AND BOTTOM PANEL 20.32 With the top panel bolted to the hinge, assemble each side panel to the sides of the top panel 13/16 using the M8 X 18 mm button head screws, M8 lock nuts, and M8 fender washers. Use a hex 40.64 key for the screws and a socket/wrench for the lock nuts.
  • Page 33 TF46 PRO Operator’s Manual C. EDGE BAR Assemble the round edge bar to the infeed chute using the hardware listed below. M8 X 18 mm M8 X 30 mm Button Head Fender Washer Screw Infeed Chute 20.32 M8 Lock Nut Round Edge 13/16 The round edge bar is designed to add additional strength to the infeed panels as well as act as...
  • Page 34 TF46 PRO Operator’s Manual With the edge bar in place, assemble the panels to the edge bar. Use a hex key for the button head screws and a socket/wrench for the lock nuts. Install the remaining eleven (11) M8 X 18 mm button head screws, M8 lock nuts, and M8 X 30 mm fender washers as shown below to secure the panels and edge bar in place.
  • Page 35 TF46 PRO Operator’s Manual D. CONTROL ARM The large red infeed control arm is attached to the infeed chute using the hardware below. M10 X 20 mm Control Arm Button Head Spacer Screw M10 X 30 mm 20.32 Control Arm Fender Washer 13/16 Insert the control arm spacers into the holes in the control arm and secure each with one (1)
  • Page 36 TF46 PRO Operator’s Manual While holding the control arm by the spacers, slide it down over the top of the infeed chute until the spacers are aligned with the holes in the side panels (below left). USE 1 M10 X 30 FENDER WASHER BETWEEN THE SPACER AND CHUTE HOLD INNER SCREW WITH HEX KEY AND TURN SPACER WITH WRENCH...
  • Page 37 TF46 PRO Operator’s Manual E. CONTROL ARM LINKAGE With the control arm fastened to the infeed chute, the linkage assembly can now be connected between it and the hydraulic directional control valve. Control Arm M10 X 35 mm Linkage Hex Bolt Assembly 20.32 10 mm Clevis...
  • Page 38 TF46 PRO Operator’s Manual On the opposite end of the linkage, secure the clevis rod end to the the hydraulic directional control valve actuator using the clevis pin and hairpin cotter pin. Once the linkage has been assembled, ensure both M10 jam nuts are tight. Ensure both linkage M10 jam nuts are tight 0010340-M-EN: Rev C...
  • Page 39 1-5/8 TF46 PRO Operator’s Manual 20.32 13/16 4. DISCHARGE CHUTE The discharge chute comes partially assembled. With the components and hardware listed 42.67 42.67 1-11/16 below, assemble the discharge chute to the upper flywheel housing. 1-11/16 20.32 13/16 M8 X 25 mm M8 X 30 mm 20.32 Carriage Bolt...
  • Page 40 TF46 PRO Operator’s Manual Set the discharge chute into the recess in the top of the nozzle. Secure the chute to the nozzle using the two (2) retainers with six (6) M8 X 35 mm hex bolts, twelve (12) M8 flat washers, and six (6) M8 lock nuts.
  • Page 41 TF46 PRO Operator’s Manual 5. CHAINSAW HOLDER Mount the chainsaw holder assembly to the side of the chipper base using the hardware and components listed in the table below. M10 X 50 mm M10 Split Lock 20.32 Hex Bolt Washer 13/16 40.64 1-5/8...
  • Page 42 1 at the lowest and 1 at the highest 3-point hitch position.** HORIZONTAL Hold the wood chipper at whichever position yields the shortest distance. WARNING! Remove the tractor’s draw bar—if equipped—before installing any Woodland Mills implement (Wood Chipper or Stump Grinder). 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 43 TF46 PRO Operator’s Manual 2. SEPARATE PTO HALVES Pull the PTO shaft apart until it is two separate halves: inner and outer. Guard Tube End Locking Pin Outer Half Inner Half Shroud Collar 3. ATTACH THE PTO SHAFT Attach the shear bolt end to the wood chipper and the outer half to the tractor as separate pieces.
...
  • Page 44 TF46 PRO Operator’s Manual Scenario 2. If the distance between the shroud collar and the guard tube end is between 0 and 1 in [25 mm], the PTO shaft requires a 1 in [25 mm] trim. Proceed to Step 5 using 1 in [25 mm] as the “Trim Length”.
  • Page 45 TF46 PRO Operator’s Manual 5. TRIM THE PTO SHAFT Remove both halves of the PTO shaft from the tractor and wood chipper. Trim both outer plastic guards and both inner triangular steel shafts by the “Trim Length”. Trim the plastic guards first, taking care not to cut into the triangular shafts inside.
  • Page 46 TF46 PRO Operator’s Manual OPERATION 1. PRE-START UP CHECKLIST Fill the hydraulic tank with hydraulic oil per the table below:

 Capacity Model Hydraulic Oil Gallons (gal) Litres (L) WC46 WC68 18.9 WC88 18.9 ISO 32, ISO 46,
 AW 32, AW 46 TF46 PRO TF68 PRO 18.9...
  • Page 47 TF46 PRO Operator’s Manual 2. START UP The following steps in the sub-section below (a. through i.) are a summarization of the steps necessary to safely and properly operate the wood chipper. Please follow the references to other sections that provide further detail into the step being performed. a.
  • Page 48 TF46 PRO Operator’s Manual 3. INFEED ROLLER CONTROL The valve that controls the wood chipper’s infeed roller speed is located to the right of the infeed chute. Rotating the valve arm as shown in the pictures below will increase or decrease the roller speed without load and will create a pulsating action once loaded with a branch.
  • Page 49 TF46 PRO Operator’s Manual The infeed roller can be set to three (3) different rotation settings—forward, neutral and reverse —by pushing or pulling the red control arm. The forward position pulls branches into the wood chipper; neutral stops the roller from rotating; and reverse pushes the branches back out the wood chipper towards the operator.
  • Page 50 TF46 PRO Operator’s Manual 4. DISCHARGE CHUTE To rotate the discharge chute, push down on the spring-loaded locking pin all the way and twist it 90° to temporarily lock it in the open position. The discharge chute is now free to rotate a full 360°.
  • Page 51 TF46 PRO Operator’s Manual 5. CHIPPING Keep your face and body away from the feed opening. Do not over reach. Keep proper balance and footing at all times. The wood chipper is designed to chip a variety of materials into a more readily decomposing or handled condition.
  • Page 52 TF46 PRO Operator’s Manual MAINTENANCE REPLACING BLADES Follow these steps when replacing blades. The TF46 PRO wood chipper uses four (4) reversible hardened steel blades. Each blade is 5.71 X 2.72 X 5/16” [145 X 69 X 8 mm] in size. 1.
  • Page 53 TF46 PRO Operator’s Manual 4. Remove the three (3) M10 X 16 mm hex head bolts that fasten the blade to the flywheel using a socket/wrench. Take care not to drop the hardware into the lower flywheel housing. However, should this occur, a telescoping pen magnet can be used to retrieve them.
  • Page 54 TF46 PRO Operator’s Manual BLADE SHARPENING The wood chipper blades will dull, making chipping difficult and cause your tractor to labour. It is recommended to sharpen the blades every 25-50 hours of operation. The TF46 PRO wood chipper uses four (4) hardened steel blades. The blades are reversible and can be sharpened on both sides.
  • Page 55 TF46 PRO Operator’s Manual SETTING THE BED PLATE GAP The bed plate (also known as the anvil plate) is located on the left side of the flywheel housing (when facing the infeed chute). For ideal chipping performance, use the bed plate gap tool to set the gap between the bed plate and the blades.
  • Page 56 TF46 PRO Operator’s Manual 3. Remove the two (2) M8 X 10 mm hex bolts securing the bed plate inspection door located on the right-side of the lower indeed housing. With the bed plate inspection door removed, a clear view of the bed plate and its relationship to the blades can be seen. Use a flashlight for better viewing if necessary.
  • Page 57 TF46 PRO Operator’s Manual 5. Loosen the three (3) M10 X 25 mm hex bolts securing the bed plate to the lower flywheel housing so the bed plate is free to slide in and out. This movement will increase or decrease the gap between the bed plate and the cutting edge of the blade.
...
  • Page 58 TF46 PRO Operator’s Manual ADJUSTING THE BELTS’ TENSION HYDRAULIC PUMP BELT The hydraulic pump belt is the belt closest to the tractor. Check the condition and tension of the belt after every 30 hours of operation. It is self-tensioning via an extension spring. The amount of tension can be adjusted by following these steps: 1.
  • Page 59 TF46 PRO Operator’s Manual PADDLE FLYWHEEL BELT The paddle flywheel belt is the belt farthest from the tractor. Check the condition and tension of the belt after every 30 hours of operation. It is self-tensioning via an extension spring. The amount of tension can be adjusted by following these steps: 1.
  • Page 60 TF46 PRO Operator’s Manual REPLACING THE BELTS Check the condition and tension of both belts after every 30 hours of operation. If the infeed roller is not rotating—or rotating slowly—the hydraulic pump belt could be slipping. A squealing noise may also be heard. In either case, these conditions can occur due to a worn belt or improper belt tension (see the previous section, ADJUSTING THE BELT TENSION).
  • Page 61 TF46 PRO Operator’s Manual 3. Leave the upper hitch attached to the belt guard. Pull the belt guard away from the lower flywheel housing to expose the belts and then set it aside. 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 62 TF46 PRO Operator’s Manual 4. Loosen the two (2) jam nuts on both of the belt tensioner eyebolts until the tension on the extension springs is completely released. 1. Loosen A nuts first. 2. Loosen B nuts to release belt tension. 5.
  • Page 63 TF46 PRO Operator’s Manual 6. Loosen—do not remove—the two (2) M8 set screws on the rear bearing’s collar. Loosen bearing set screws but do not remove them 7. Remove the four (4) M12 X 40 mm hex bolts and lock nuts used to mount the bearing and slide it off the flywheel shaft.
  • Page 64 TF46 PRO Operator’s Manual 8. Unhook both belts from the lower pulleys and pull them up to the flywheel shaft as shown below-left. Remove the hydraulic pump belt (front) first. Pinch the bottom of the belt inward and squeeze it through the opening between the flywheel shaft and housing as shown below-right.
  • Page 65 TF46 PRO Operator’s Manual ADJUSTING THE CONTROL ARM If the movement of the red control arm feels too stiff or too loose, or if it falls into neutral or reverse unexpectedly, it can be adjusted via the directional control valve. Unscrew the plastic cap from the back of the directional control valve (located under the infeed chute), exposing the jam nut and set screw.
  • Page 66 TF46 PRO Operator’s Manual GREASING BEARINGS & OUTPUT SHAFT The wood chipper has five (5) grease points with Zerk fittings: two (2) flywheel shaft bearings, one (1) infeed roller bearing, and two (2) pump shaft bearings. Check each grease point prior to use and add grease as needed.
  • Page 67 TF46 PRO Operator’s Manual PTO SHAFT The PTO shaft has seven (7) grease points that are accessible from the outside: one (1) on each of the inner and outer guards, two (2) on the tractor yoke, and three (3) on the shear pin yoke.
  • Page 68 TF46 PRO Operator’s Manual STORAGE When the wood chipper is not in use, it can be stored to utilize a smaller footprint to save space. Follow these steps to put the wood chipper in its storage state: 1. Disconnect the control bar linkage from the directional control valve and reconnect it to the tab on the underside of the infeed chute bottom panel.
  • Page 69 Excessive noise 1. Bearings not sufficiently 1. Grease bearings. Refer to page 64. coming from lubricated. 2. Replace bearings. Please contact Woodland Mills for flywheel bearings 2. Bearings are worn. bearing replacement instructions. Red control arm 1. Directional control valve not 1.
  • Page 70 Record the part number (e.g. 0001071, HHB-MBM080FCJ, etc.) in the “Part No.” column. Contact Woodland Mills through the website or via phone/email. If possible, include the invoice or sales number from the purchased product so an associated account can be located. If the account has multiple addresses on file, please indicate to which address the replacement...
  • Page 71 TF46 PRO Operator’s Manual EXPLODED ASSEMBLY VIEWS COMPLETE ASSEMBLY
 105 106 169 4X 158 2X 185 2X 169 2X 170 4X 188 4X 145 2X 170 4X 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 72 TF46 PRO Operator’s Manual BASE
 156 4X 133 2X 184 2X 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 73 TF46 PRO Operator’s Manual LOWER FLYWHEEL HOUSING BELT GUARD
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 74 TF46 PRO Operator’s Manual LOWER FLYWHEEL HOUSING
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 75 TF46 PRO Operator’s Manual FLYWHEELS
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 76 TF46 PRO Operator’s Manual INFEED CHUTE
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 77 TF46 PRO Operator’s Manual DISCHARGE CHUTE
 166 6X 184 6X 163 4X 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 78 TF46 PRO Operator’s Manual HYDRAULIC LINES
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 79 TF46 PRO Operator’s Manual CONTROL VALVES
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 80 TF46 PRO Operator’s Manual PTO SHAFT
 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 81 TF46 PRO Operator’s Manual PARTS LIST Item Part No. Description 0007102 BASE 0002957 HYDRAULIC TANK, 12 L [3 Gal] 0005188 OIL SCREEN, 50 mm DIA X 120 mm LG SCREEN 0005186 GASKET, OIL SCREEN CAP, 48 mm ID 0005183 OIL SCREEN CAP, 85 mm DIA, M48 X 2 THD 0005185 RETAINING RING, INTERNAL, 46 mm BORE (48.5 mm GROOVE) 0005187...
  • Page 82 TF46 PRO Operator’s Manual Item Part No. Description 0005561 IDLER PIVOT PIN, 16 mm DIA, 111.5 mm LG, M16 X 2 THD 0010338 SWINGARM 0001717 INFEED ROLLER 0001179 HYDRAULIC MOTOR ADAPTER PLATE, 6205-2RS BEARING 0006493 SWINGARM PIVOT BUSHING, 10 mm SHOULDER 0001729 INFEED ROLLER COVER PLATE 0011001...
  • Page 83 0003302 HYDRAULIC HOSE ASSEMBLY, STR FITTINGS, 1850 mm LG 0003303 HYDRAULIC HOSE ASSEMBLY, STR AND ELB FITTINGS, 1450 mm LG 0009634 LABEL, PRO SERIES, 80 X 45 mm 0009632 LABEL, HIGH VELOCITY DISCHARGE 0009633 LABEL, HIGH VELOCITY DISCHARGE [REVERSE] 0009635...
  • Page 84 TF46 PRO Operator’s Manual Item Part No. Description 6203-2RS BALL BEARING, SEALED, 17 mm SFT, 40 mm HSG, 12 mm WD 6205-2RS BALL BEARING, SEALED, 25 mm SFT, 52 mm HSG, 15 mm WD 6908-2RS BALL BEARING, SEALED, 40 mm SFT, 62 mm HSG, 12 mm WD HHB-MBE059FCJ HEX HEAD BOLT, CLS 8.8, M6 X 1, 10 mm LG, FULL HHB-MBE075FCJ...
  • Page 85 TF46 PRO Operator’s Manual Item Part No. Description FTW-MBJ000AJ FLAT WASHER, M8 FTW-MBM165AJ FLAT WASHER, DIN7349, M10, 4 mm THK FTW-MBR000AJ FLAT WASHER, M12 FTW-MBR000NA FLAT WASHER, M12, NYLON FTW-MCA000AJ FLAT WASHER, M16 FDW-MBJ073000AJ FENDER WASHER, M8, 24 mm OD FDW-MBJ079000AJ FENDER WASHER, M8, 30 mm OD FDW-MBM075000AJ FENDER WASHER, M10, 26 mm OD...
  • Page 86 TF46 PRO Operator’s Manual NOTES 0010340-M-EN: Rev C Page 12-Jun-2024...
  • Page 87
 This page intentionally left blank.

This manual is also suitable for:

Tf46 pro
