Comfort Angel User Manual

Standing wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R
Angel
STANDING WHEELCHAIR
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Angel and is the answer not in the manual?

Questions and answers

Related Manuals for Comfort Angel

Summary of Contents for Comfort Angel

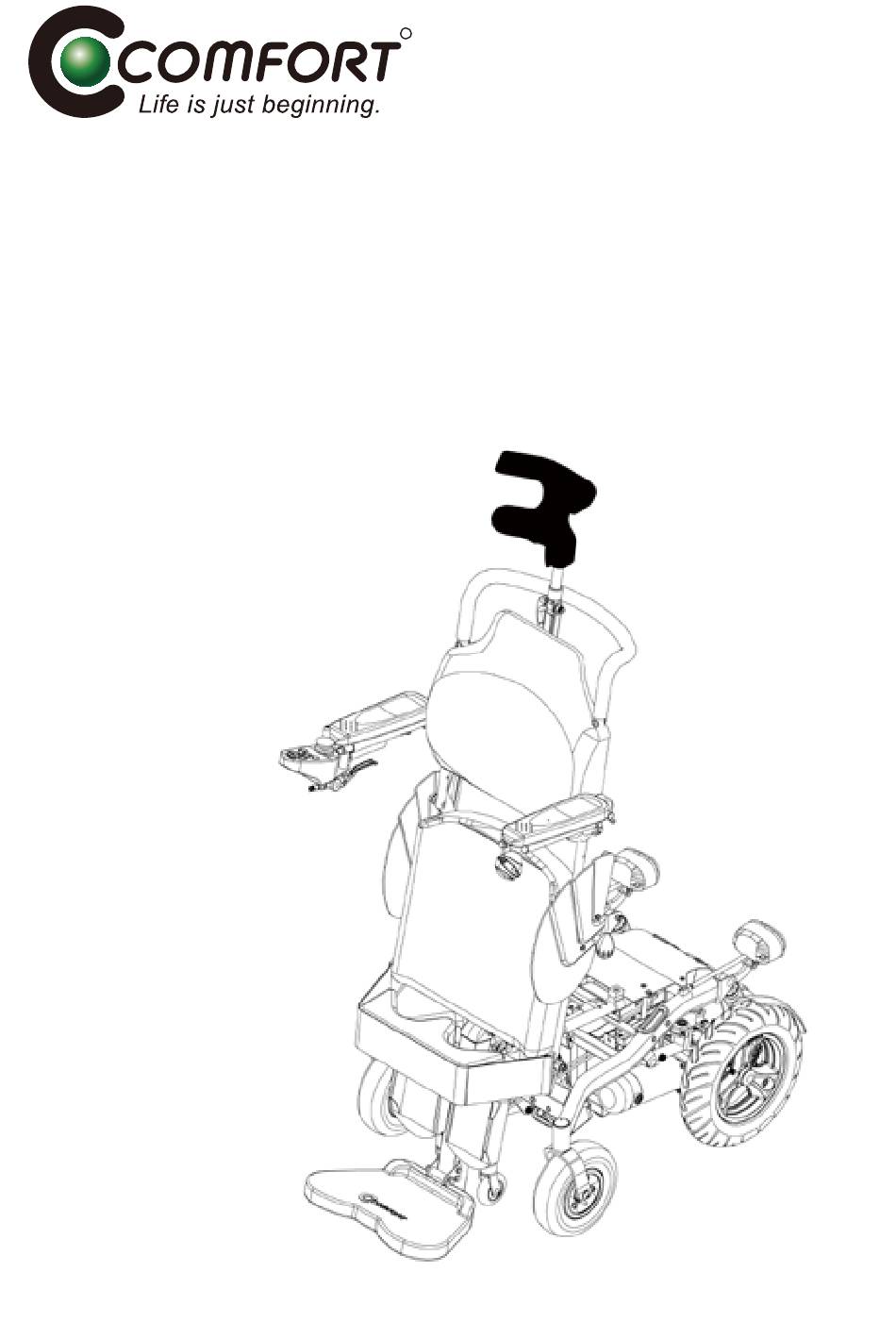

  • Page 1 Angel STANDING WHEELCHAIR USER’S MANUAL...
  • Page 2 Comfort standing wheelchair will add convenience to your daily living and ensure complete satisfaction. At Comfort, your safety is important for us. Please read and follow all of the instructions in this manual before you attempt to operate your Angel for the first time.

  • Page 3: Table Of Contents

    Failure to heed the cautions in this user’s manual may result in damage to your Angel . SUGGESTION To enhance user’s driving experience and to maximize comfort and convenience we suggest you to follow. The batteries have to disconnect the red wire (the positive(+)terminal) to conserve batteries power during transportation.

  • Page 4: Introduction

    The Angel is a manual wheelchair with power standing technology for indoor and outdoor use. The Angel is designed for people who will benefit from the ability to stand up at will. The Angel offers comfortable sitting and standing on every stage in its operation.
  • Page 5 The user’s manual is one part of your Angel. If you want to sell your Angel don’t forget to give the user’s manual. Please take the user’s manual when driving.If you are experienced in any problem with your Angel that you are...

  • Page 6: Safety

    Comfort is not liable for damage to property or personal injury arising out of the unsafe use of a Comfort Angel. Comfort is also not liable for any property damage or personal injury arising out of the failure notice of the instructions and recommendations set forth in this manual or affixed on the product by Comfort.
  • Page 7 On the Angel you find the following symbols attached: The serial number of the Angel: it is the ID number; located on the left side frame of Angel. Information for the Angel: please read user’s manual! Warning, risk of pinching! Make sure no parts of the body, clothing or other items get jammed.
  • Page 8 The Angel is designed for outdoor and indoor use. Angel doesn’t being recommended driving on uneven, soft or steeply slopping ground. Using the Angel outdoors, switch on the lights at dawn and dusk and in the dark of course. Don’t let children drive with the Angel without supervision.

  • Page 9: Stand-Up-Function

    Depending on the floor surface and the constitution of the person which is pushing the Angel, it can be helpful to have a second person around to help pushing the Angel if necessary.
  • Page 10 It is not used to be a protection device at collisions and/or accidents. If you require a positioning belt to safely operate your Angel, make sure it is fastened securely.(The way to fix safety belt, please see page 37) SAFETY...

  • Page 11: Preparing The Wheelchair For Use And Operation

    Incorrect programming could result in an unsafe setting of a wheelchair for the user. Angel accepts no liability for losses of any kind if the drive or stability characteristics of the Angel are altered without prior notification and discussion with the manufacturer.
  • Page 12 COMFORT recommends that users NOT be transported in any kind of vehicle while in their wheelchair. The only safe alternative...
  • Page 13 COMFORT positioning belts are designed to position the user only and will not protect you in an accident. You may even receive further injury from the belts.When transporting the wheelchair in a vehicle, ensure that the wheelchair is properly secured.
  • Page 14 SAFETY Transportation To have a bit smaller dimensions of the chair, when you like to transport it, there are two things you can do: Flip up the footrest Fold down the backrest (The way to fold down the backrest, please see pag 35 ) Transportation in a vehicle without the person in the wheelchair When transporting the wheelchair in a motor vehicle,...
  • Page 15 Delivery Because of the complex nature of this wheelchair it will be delivered and demonstrated to you by your local agent. The wheelchair comprises the following components: Component Quantity Wheelchair base Seat unit Backrest unit Knee support Chest and leg safety belt Joystick unit Joystick Module Set of batteries...
  • Page 16 + 60° Centigrade (between -30° and+140° Fahrenheit). The humidity should not be above 90%.Please take care to guarantee these mentioned conditions to provide a long life time for the Angel . We also recommend charging the batteries at least every 1 month if the chair is not used.
  • Page 17 Checking list before using the Angel Getting on and off of your Angel requires a good sense of balance. Please observe the following safety tips when getting on and off of your Angel. Before Getting On Your Angel Fully charge the batteries Push the manual freewheel lever to the drive position.

  • Page 18: Circuit Breaker

    Angel and to get to know the controls. When first learning to drive your Angel, practice in an area you know well. We suggest a large flat smooth area such as your living room or the driveway to your home.
  • Page 19 10 degree. When driving up or down steeper slopes than this or over uneven ground, braking and steering response will be limited due to reduced traction. When on a slope don’t lean out of the Angel down the slope.

  • Page 20: Cornering Information

    When driving down a ramp, keep your Angel’s speed adjustment set to the lowest speed setting and driving in the forward direction only. On any sort of an incline or decline, never place your Angel in freewheel mode while sitting in it or standing next to it.

  • Page 21: Charging The Batteries

    Public streets and roadway It may be difficult for traffic to see you when you are seated in your Angel. You should not operate your Angel on public streets and roadways. Never use your Angel to negotiate steps or escalators.
  • Page 22 SAFETY Doors Determine if the door opens toward or away from you. Drive your Angel gently and slowly forward / backward to push / pull the door open. Keep a watch for pedestrians, obstacle, and pothole particularly when reversing. Reaching and Bending Do not bend, lean, or reach for objects .If you have to pick them up from the...
  • Page 23 Angel. Do not attempt to lift the Angel by any removable parts. Lifting by means of any removable parts of a Angel may result in injury to the user or damage to the Angel.

  • Page 24: Feature

    FEATURE CHARACTERISTIC OF Angel Prevents joint contracture of lower extremities. Improves bowel & bladder’s function. Helps prevent pressure sores from prolonged sitting. Slackens osteoporosis and calcium loss in bone. Increase personal confidence and overcome the physiological obstacle. Effective on the leg to weight bearing adaptation、mechanism of body weight support training.
  • Page 25 Seating and Standing Assessment Correct Too long Too short Knee support attachment Knee support attachment Knee support attachment screw even with center screw beyond center of screw short of center of of knee knee knee Ankle/Knee/Hip Knee joint hyper Incomplete knee joint straight extended extension...
  • Page 26 FEATURE Correct position Seat cushion Back too too high deep/thick Cushion for pressure Backrest cushion or relief in seated position solid back for more comfort or stability Backrest cushion Hyper Hyper extended Lordosis spine Spine Incomplete physiological Seat cushion hip extens-...
  • Page 27 FEATURE GUIDE Headrest Headrest adjust knob Safety belt Hand grip Flip-backward Backrest armrest cushion Front light Guard Seat base Rear Knee protector Wheel Leg support Motor Anti-tip wheel Foot plate Caster Front tie-downs for safe transport FEATURE...
  • Page 28 FEATURE Joystick Charging inlet Hand brake Rear light Assist light Mud guard Rear tie-downs for safe transport Shock abosorber Release Anti-tip wheel FEATURE...

  • Page 29: Specifications

    SPECIFICATIONS Item Angel LY-ESB240 Motor Output 450W*DC24V*2PCS Battery 50AH*12V*2PCS 31kgs Batteries Weight (15.5kg*2PCS) Charger DC24V*8AMP N.W.(all size) 62.7Kgs Brakes Magnetic brake L：160kg Max loading A：135 kg D/S：120KG About 25 km Range (on the flat road, 160kg loading) 9”(2.80/2.50-4) Front Wheels pneumatic castor 14”(3.00-8)

  • Page 30: Operation Adjustment

    OPERATION ADJUSTMENT CONTROLLER AND OPERATION VR2-control On the control unit you can find a joystick, buttons and symbols where we take a closer look as follows. On-/ Off-button On-/ Off-button is for switched on or off. Don’t use this button to stop the wheelchair unless there is an emergency Battery gauge The battery gauge shows the wheelchair is on...
  • Page 31 If the LED’s are ripple up and down, it means the chair is locked. CAUTION We recommend to set speed to the lowest setting at the first few times operations until you become familiar with your Angel . OPERATION ADJUSTMENT...
  • Page 32 OPERATION ADJUSTMENT Horn Key The horn key activates the horn. Hazard Button & LED This button activates/inactivates the wheelchairs hazards lights. this function is used when the wheelchair is positioned in a way making it a obstruction for others. The button to activate the hazard lights and push it again to inactivate them.
  • Page 33 LED will flash in sync with the wheel- chair’s indicator. Locking / Unlocking the wheelchair The VR2 has a feature that enables you to lock your Angel to prevent unauthorized use. The locking method is via a sequence of key presses and joystick movements, as detailed below:...
  • Page 34 OPERATION ADJUSTMENT To Lock the VR2（Please follow the steps） With the VR2 powered on, press and hold the on / off key. After 1 second,the VR2 should beep. Release the on / off key. Push the joystick to the full forward position until the VR2 beep.
  • Page 35 VR2 is designed to maximize the user’s safety under all normal conditions. The table below identifies the individual error codes. Error codes are displayed as a rapid flashing. If you get one of these error codes, contact your Comfort Specialist.
  • Page 36 The right motor has a bad connection. Check the right motor connection. The right motor has a short circuit to a battery connection. Contact your Comfort Specialist. The power chair is being inhibited by the battery charger. Unplug the battery charger.

  • Page 37: Individual Adjustment

    INDIVIDUAL ADJUSTMENT Adjustable Headrest Adjust 1 Turn the back button of headrest anti- clockwise. Adjust the height and turn the button clockwise for locking. Adjust 2 Move the A lock upwards (as left photo), then you can adjust the headrest forwards and backwards. (Please see the middle and right photos) Move the B lock upwards (as left photo), then you can adjust the headrest forwards and backwards as show on the middle and right...
  • Page 38 Adjustable Footplate- A As the photo, please adjust the part A, you can choose the correct hole to fix Angel’s footplate to make you feel comfortable to put your foot on it. Adjustable PU Shank Support-B As the photo, please adjust the part B, you can choose the correct hole to fix Angel’s shank’s support to make you...

  • Page 39: Operation

    Adjustable SPONGE Knee Protector Release the knee protector belt to adjust the belt to be tight or loose. OPERATION A：Footplate-upwards B：Footplate-downward You can use your hand to move the footrest upwards A or downward B. OPERATION ADJUSTMENT...

  • Page 40: Indicator Light

    Flip-backward Armrest Turn the armrest release lever A Counterclockwise and move the armrest upwards. Safety Belt Indicator light Angel’s indicator light. Remove the safety belt. Put yourself comfortable on the seat, and adjust the safety belt to a proper position.

  • Page 41: Warranty Information

    3. Make certain that freewheel lever is in the drive position. 4. Please switch the AC power input “O”(power off) and plug into the round hub, on the charging socket of Angel another plug into the wall outlet. 5. Check the input voltage,and then switch 115V/230V to the voltage correctly.
  • Page 42 WARRANTY INFORMATION THE CHARGER OPTION2 - 8A Introduction: HP2480B SA V E T H E EA R T H p ow er cha rge H IG H P O W ER Front View Rear View Operation Instruction (Please Follow The Steps) 1.

  • Page 43: Troubles Shooting

    Check if the connectors of the charger are correctly connected. Check the voltage output of socket exists, if the voltage output appeared to be in normal condition, please contact Comfort supplier for repair. If the above are correct, please send the material back for repair.

  • Page 44: Caution

    Charging in a well ventilated place. Avoid electric shock, do not touch power with wet hub or hands. It may result in personal injury and/or damage to your Angel, when you use the charger which is not recommended by Comfort.

  • Page 45: Malfunction And Trouble Shooting

    Malfunction And Trouble Shooting 1. No voltage indication when power is on. Check if the input wires connector works. Check if the input socket connector works. Check if the fuse works. 2. Red/yellow light loom, fan stays still when powered on. Check if the output line is short circuit.

  • Page 46: The Batteries

    WARRANTY INFORMATION THE BATTERIES 1. Only use deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid and gel cell are deep-cycle batteries that are similar in performance in your power chair. Do not use wet-cell batteries which have removable caps as used for car. 2.

  • Page 47: Battery Wiring Loom

    BATTERY WIRING LOOM VR2 CONTROLLER Battery wiring diagram To Controller Circuit Breaker Black White White Battery White Black Battery White WARRANTY INFORMATION...
  • Page 48 CAUTION Wrong connection would damage the batteries, and your Angel would not turn on. If your Angel ’s batteries become frozen, do not attempt to charge them. Cold or frozen batteries should be allowed to warm up for several days prior to recharging.
  • Page 49 The strength of the radio waves. The construction of your particular Angel. The location of your Angel（whether it is on level ground or on an incline） Whether or not your Angel is in motion. The motion of any Angel affected by EMI/RFI can be erratic.
  • Page 50 EMI/RFI and about the actions they can take to minimize the risk of EMI/RFI. While there is no exact way to tell if your Angel is totally safe, an immunity level of 20 V/m is generally achievable and useful. This product has been tested and passed at an immunity level of 20 V/m.
  • Page 51 What can I do to find out if my Angel is likely to be affected by EMI/RFI? If you have had your Angel for some time and have not experiences any unintended motion, it is not likely that you will have a problem in the future.

  • Page 52: Maintenance

    Daily Care Please charge after prolong driving. Keep your Angel in a dry place or put a waterproof over it to prevent moisture ingress when it is not being used. Please wipe your Angel with dry clean cloth as often as possible. Using water may damage the electronic assembly.

  • Page 53: Warranty

    When pneumatic tyre punctures happens, please stop driving Angel immediately, and call your Comfort provider to help you. Recycling If you would like to recycle the used battery or any part of the Angel, please connect with the Comfort provider. WARRANTY This warranty is extended only to the original purchaser/user of our products.

  • Page 54: Limitations And Exclusions

    1. If it is not inspected regularly according to the stipulations of Comfort. 2. If it is incorrectly maintained. 3. If the Angel is not operated according to user’s manual or exceeding the limitation or capacity stated in the user’s manual (with respect to rider or weight).

  • Page 55: Trouble Shooting

    The forgoing warranty is exclusive and in lieu of other express and implied warranties. COMFORT shall not be liable for any consequential or incidental damages whatsoever. TROUBLE SHOOTING 1. Wheelchair will not travel in a straight line or doesn’t sit square on the ground Solution: Pump up or repair the tire.
  • Page 56 COMFORT MOBILITY CORP. No.120,Nan Shiang Tsuen, Shoei Shang Shiang,Chia-yi,Taiwan,R.O.C.608 TEL：886-5-2892093 FAX：886-5-2890070 E-Mail：info@comfort.com.tw www.comfort-mobility.com UM201207-A...
