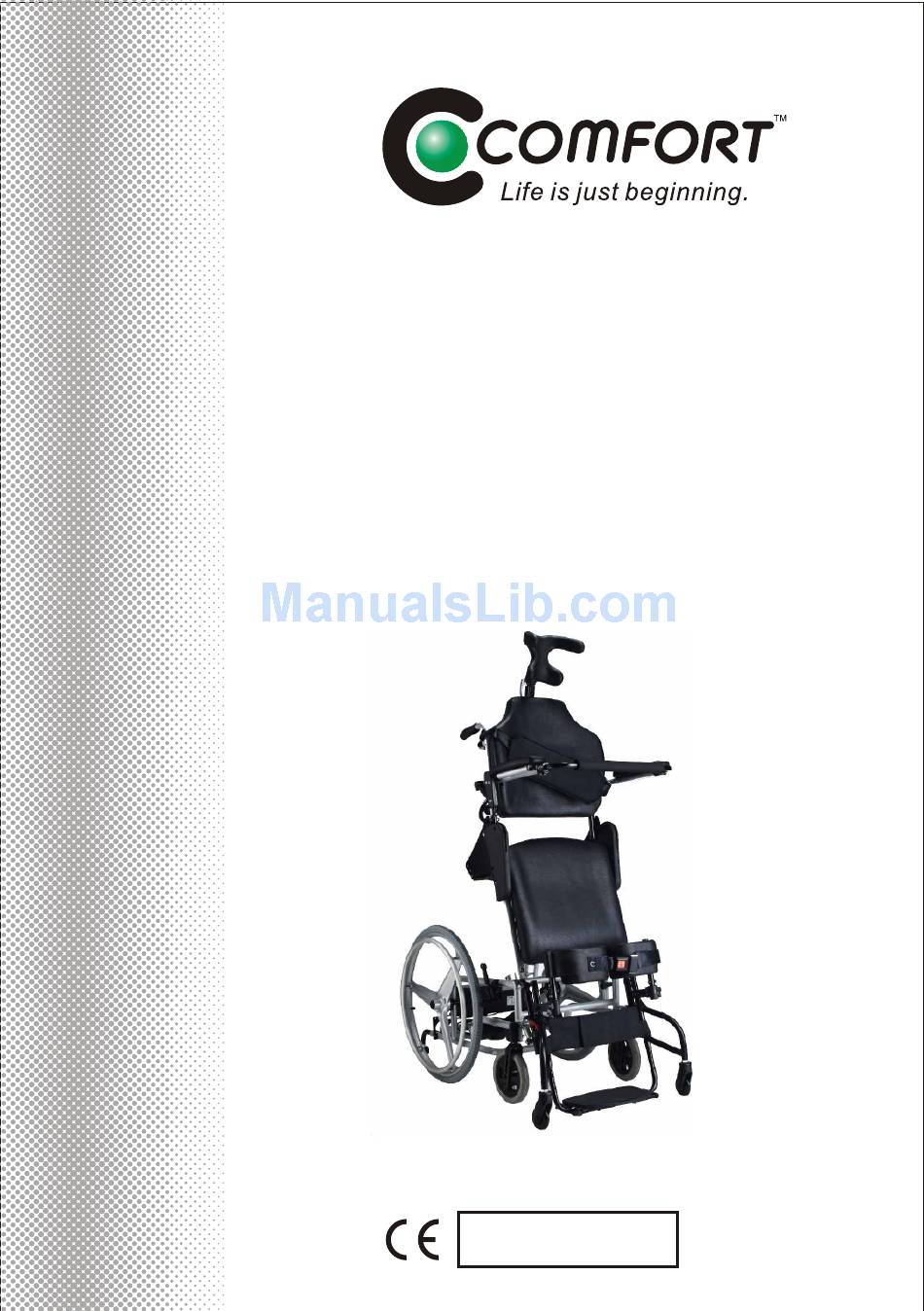

Page 1: User Manual

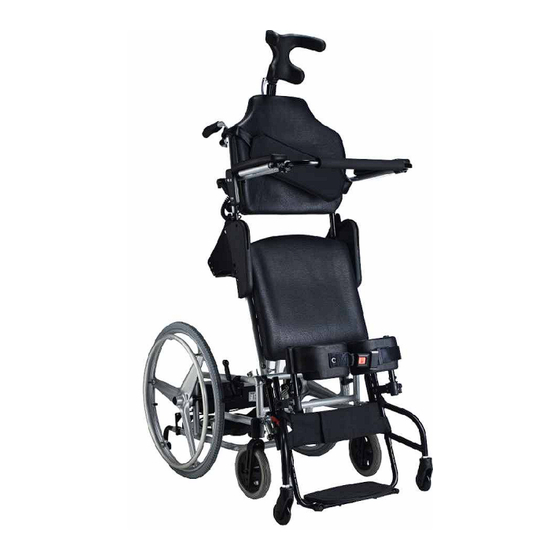

HERO SERIES STANDING WHEELCHAIR User Manual LY-ESA120(HERO3) LY-ESA120-N(HERO3-N) LY-ESB140(HERO4) "Caution: Federal law restricts this device to sale by or on the order of a practitioner licensed by the law of the State in which he/she practices."... -
Page 3: Table Of Contents
Failure to heed the cautions in this user's manual may result in damage to your HERO. To enhance user's driving experience and to maximize comfort and convenience that we suggest you would follow. The Battery will disconnect the red wire, the positive (+) terminal to conserve battery power during transportation. -
Page 4: Introduction
Comfort is not liable for damage to property or personal injury arising out of the unsafe use of a Comfort Power Chair. Comfort is also not liable for any property damage or personal injury arising out of the failure of any person... -
Page 5: Characteristic Of Hero
CHARACTERISTIC of HERO Prevents joint contracture of lower extremities. Improves bowel & bladder's function. Helps prevent pressure sores from prolonged sitting Slackens osteoporosis and calcium loss in bone. Increase personal confidence and overcome the physiological obstacle. Effective on the leg to weight bearing adaptation mechanism of body weight support training. -
Page 6: Safety
Do not operate your HERO for the first time without completely reading and understanding this user's manual. The first time operating the HERO , you should be attended by a family member or a friend. Practice more As you begin using your HERO during daily activities, you will probably encounter situations in which you will need some practice. - Page 7 Do not attempt to have your HERO proceed backwards down any step, curb, or other obstacle. Comfort recommends that you do not operate your HERO in icy or slippery conditions or on salted surface. Such use may result in an accident, personal injury, or adversely affect the performance and safety of your HERO.
- Page 8 Follow these instructions for moving the HERO between floors when an elevator is not available: 1.Remove the occupant from the HERO. 2.Remove batteries from HERO. Refer to installing / removing batteries. 3.Bend your knees and keep your back straight. 4.Using non-removable parts of the HERO, lift the HERO off of the ground and transfer the HERO up or down the stairs.
-
Page 9: Feature Guide
The HERO3 Front View HERO3 1.Headrest 2.Headrest adjust knob 3.Hand grip 4.Backrest 5.Armrest 6.Safety belt 7.Controller 8.Seat base 9.Knee protector 10.Knee protector's safety clasp 11.Foot plate 12.Anti-tipper wheel 13.Castor 14.Rear wheel HERO3-N HERO4 (different headrest and rear wheel) ( made by rigid steel frame. ) - 6 - - 6 -... -
Page 10: Specifications
SPECIFICATIONS SPECIFICATIONS Hero3 Hero3-N Hero4 - 7 - - 7 -... -
Page 11: Controller And Operation
CONTROLLER AND OPERATION CONTROLLER AND OPERATION (HERO3 HERO3-N HERO4) Operation 1 Power PressUp-key or Down-key power signal will be bright. 2 Press, standing wheelchair will be up. 3 Press, standing wheelchair will be down. 4 Power volume signal Operation up and down power volume signal will be bright showing the power volume situation There are green, orange and red, total 3 colors. -
Page 12: Headrest Adjustment
HEADREST ADJUSTMENT HEADREST ADJUSTMENT (HERO3 HERO3-N HERO4) Adjustable Headrest Adjust 1 Turn the back button of headrest by anti-clockwise. Adjust the height and turn the button by clockwise for locked. Adjust 2 Turn the back button of headrest by anti-clockwise. Adjust the height and turn the button by clockwisve for locked. -
Page 13: Headrest Adjustment
HEADREST ADJUSTMENT HEADREST ADJUSTMENT (HERO3 HERO3-N HERO4) Adjustable Headrest Adjust 4 And then to adjust the headrest angles to a proper position and then lock the screw tight on the position as picture A. - 1 0 - - 1 0 -... -
Page 14: Operation
OPERATION OPERATION (HERO3 HERO3-N) Detachable footrest A.Unlock the switch (as left image), and footrest can be moved outside (as right image). Or unlock both sides switches of knee protectors to lift the knee protectors. B.Release the knee protector belt to adjust the belt to be tight or loose. - Page 15 OPERATION OPERATION (HERO3 HERO3-N) C. Release the leg belt. C1. Move upward the footrest. C2.Unlock the footrest (as left image), and footrest can be moved outside (as right image). C3. Move upward and take C4. Take off screws off the footrest. back the footrest, and adjust the height of footplate.
- Page 16 OPERATION OPERATION (HERO3 HERO3-N) Push handle set A. Flip the backrest could be taken off the cushion (Optional). B. The height of armrest could be adjusted by the screw hole on the tube. C. Armrest can be flipped back C1. Armrest can be added with directly.
- Page 17 OPERATION OPERATION (HERO3 HERO3-N) Push handle set D. Guard rail can be moved aside and fixed at 90 angle. E. Release the two knobs behind the backrest and pull up the backrest to separate from framework. A. Fasten the foot safety belt. A1.
- Page 18 OPERATION OPERATION (HERO3 HERO3-N) Brake set A. Push hand brake forward A1. Pull hand brake backward to be stopped. to be released. Rear wheel set A1. Pull directly, and the rear A. Push still the wheel cover. wheel can be taken off. - 1 5 - - 1 5 -...
- Page 19 OPERATION OPERATION (HERO4) A Push the button of knee protector, and then release the belt. B Unlock both side of knee protectors (as above left image). Move away the knee protectors (as middle image). Or lift the knee protectors (as right image). C1 Take off screws of fixed slice on both sides of knee protector, and move up and down to adjust height of knee protectors.
- Page 20 OPERATION OPERATION (HERO4) C Release the foot part belt. D Move upward the footrest. E Unlock the footrest (as left image), and footrest can be moved outside (as right image). - 1 7 - - 1 7 -...
- Page 21 OPERATION OPERATION (HERO4) F Take off screws back the footrest, and adjust the height of footplate. Push handle set A Adjustable height positions provided by several screws unlocked on the push handle. B Armrest can be flipped back directly. C Image1-Armrest can be added with guard rail.
- Page 22 OPERATION OPERATION (HERO4) E. Guard rail can be moved aside and fixed at 90 angle. F Push handle are with 2 knobs on the right down back (as left image). Unlock the knobs, lift the push handle, and the push handle can be separated from the wheelchair.
-
Page 23: The Charger
(HERO3 HERO3-N HERO4) Instruction HIWIN Picture a Picture b 1. To open the black bag behind the frame (as picture a), and to put the plug into the switch to be charged (as picture b). 2. While charging, the power indicating light on the controller will be bright showing the power situation. -
Page 24: The Batteries
THE BATTERIES THE BATTERIES 1.We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid and gel cell are deep-cycle batteries that are similar in performance in your HERO. Do not use wet-cell batteries, which have removable caps. 3.Following rules will keep the batteries work longer: Avoid charging after the batteries use out, charging after all day HERO use on a daily basis. -
Page 25: Emi/Rfi
EMI/RFI EMI/RFI EMI/RFI Warnings Laboratory tests performed by the Food and Drug Administration FDA have shown that radio waves can cause unintended motion of electric HERO. Radio waves are a form of electromagnetic energy EM .When electromagnetic energy adversely affects the operation of an electrical device, that adverse effect is called Electromagnetic Interference EMI or Radio Frequency Interference RFI . - Page 26 EMI/RFI EMI/RFI Is there any way to know for certain whether or not radio waves are the cause of any unintended motion of my HERO? Unfortunately, EMI/RFI may be difficult to recognize, since the signals from radio sources are invisible and may be intermittent. However, the FDA recommends that you report all incidents of unintended motion or unintended brake release of your electric HERO to the HERO's manufacturer and, if possible, determine whether or not there was a...
-
Page 27: Emi/Rfi
EMI/RFI EMI/RFI The FDA has also requested or recommended that: Electric HERO manufacturers clearly label new products with that product's resistance level or state that the resistance level is not known. The labeling or informational material supplied with new electric HERO must explain what the resistance level means and warn users about the possibility of EMI/RFI and hoe to avoid it. -
Page 28: Maintenance
Charge at least every three months to maintain high efficiency of battery. Half year Maintenance Check front/rear wheel bearing if there is abnormal sound in axles. Annual Maintenance Please get your annual maintenance by the authorized Comfort provider. - 2 5 - - 2 5 -... -
Page 29: Warranty
WARRANTY REGISTRATION CARD WITHIN 30 DAYS OF YOUR PURCHASE. COMFORT warrants products sold thru authorized dealer/distributor only. COMFORT warrants your products to be free from defects in material and workmanship under normal use for the following time periods. Main Frame: 3 years... -
Page 30: Limitations And Exclusions
The forgoing warranty shall not be applied to the following: 1.If it is not inspected regularly according to the stipulations of Comfort. 2.If it is incorrectly maintained. 3.If the HERO is not operated according to user's manual or exceeding the limitation or capacity stated in the user's manual (with respect to rider or weight). - Page 32 0911500...
