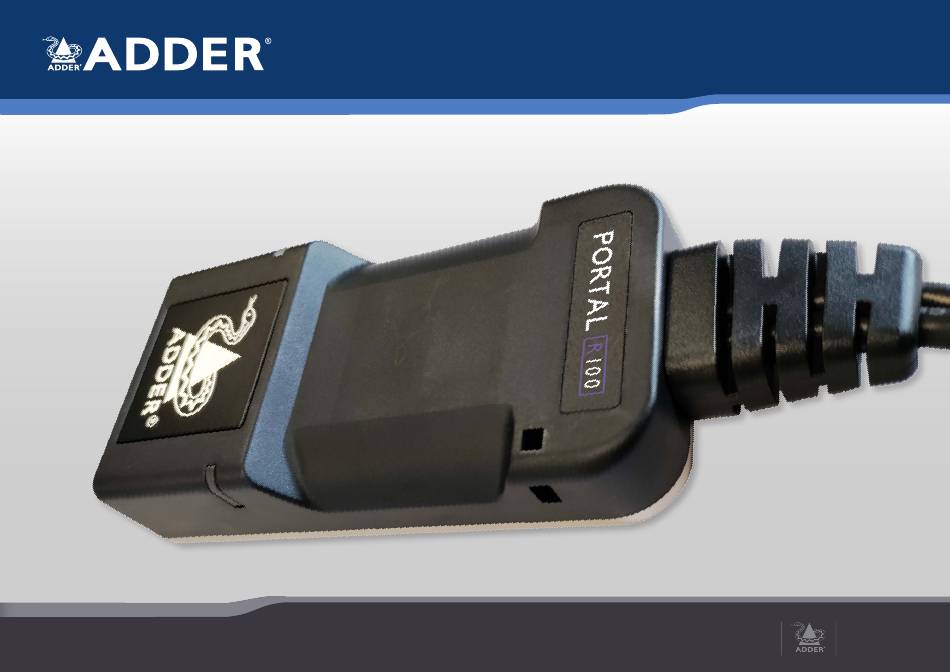

- Page 1 ADDERLink Portal R100 Series ™ User Guide Experts in Remote Connectivity Solutions Solutions...
- Page 2 Contents Introduction Operation Welcome ........................2 Indicators .......................9 Supplied items .......................3 Further information Optional extras .....................3 Getting assistance ....................10 Installation Open source licenses ..................11 Connections ......................4 Index Video link ......................5 Link connection ....................5 USB and power connections ...............6 Configuration Performing a flash upgrade.................7 Restoring a backup firmware image ..............7 Resetting.........................7 Default settings .....................8...
- Page 3 Introduction WELCOME Thank you for choosing the ADDERLink Portal R100 series a compact ZeroU™ Seamless User Experience device powered by the latest ARDx™ remote access technology from Adder. It provides Inherently low latency provides precision control as though you are operating the secure, low-latency keyboard, video, mouse and audio connectivity via the Internet or a host PC directly.
- Page 4 SUPPLIED ITEMS OPTIONAL EXTRAS ADDERLink Portal dongle with DisplayPort video ™ Part number: ALPR110T-DP 12.5W power adapter Part number: PSU-IEC-5VDC-2.5A Country-specific power cords CAB-IEC-AUS (Australia) CAB-IEC-EURO (Europe) CAB-IEC-UK (United Kingdom) CAB-IEC-USA (United States) ADDERLink Portal dongle with HDMI video ® Part number: ALPR110T-HM Information wallet containing:...
- Page 5 Installation ‘Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. CONNECTIONS Peut être installé dans des salles de matériel de Installation involves linking the ADDERLink Portal dongle to various ports on the host traitement de l’information conformément à...
- Page 6 Video link Link connection The ADDERLink Portal dongle is supplied with a single video connector; either Use the network port to join the ADDERLink Portal dongle to a suitable network DisplayPort or HDMI depending on the chosen variant. switch. It is also possible to connect a computer (using a cross-over cable or adapter) ™...
- Page 7 USB and power connections The ADDERLink Portal dongle is designed to be as flexible as possible. It can either Black USB plug provides operate using an optional external power adapter (see page 3) or derive all of its USB signals (plus power if power from its two USB plugs.
- Page 8 Flash upgrades are performed fully under control of the Adder ARDx™ Viewer. For The recessed reset button provides a way to take control of the ADDERLink Portal details about how to perform a flash upgrade, please refer to the Adder ARDx™ Viewer dongle if normal operation is affected.
- Page 9 DEFAULT SETTINGS Factory configured units are supplied with the following default settings: • Default IP address: 192.168.1.42 • Default username: admin • Default password: Admin00! Note: You will be prompted to change the password the first time that you log in.
- Page 10 Operation INDICATORS The ADDERLink Portal dongle contains various indicators to provide you with status information. Status indicators The two top panel indicators on the unit provide a useful guide to operation: Main status indicators Network specific indicators Main status indicators •...
- Page 11 Further information GETTING ASSISTANCE If you are still experiencing problems after checking the information contained within this guide, then please refer to the Support section of our website: www.adder.com SCAN FOR PRODUCT PAGE...
- Page 12 This product includes binaries that are derived from the open source community by The software included in this product contains copyrighted software that is licensed Adder under the GNU General Public License v2. Please follow the link below to view under the GNU General Public License (GPL). You may obtain the complete...
- Page 13 © 2024 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-000036 • Release 1.0...
- Page 14 Index Backup image 7 HDMI 5 Status indicators 4,9 Connections Indicators 9 Upgrade link 5 firmware 7 overview 4 Licenses connections 6 open source 11 plugs 4 DisplayPort 5 Link connection 5 Video connection 5 Ethernet port 4 Power adapter 3 Video link 5 External power input 4 Power connections 6...
