Installation, Operation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install
this product. Equipment damage, injury to personnel or death could result from improper instal-
lation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to
equipment, injury or death to personnel that may result from improper installation or operation
of this product.
WARNING:
HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-
proof as defined in 46CFR 110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.
4 3 4 [121]
R RIT N
3 1 4 [82]
LUSH
4 7
R RIT N
16
www.raritaneng.com
[113]
Programming is not required. This panel
has been factory paired with the included
control board.
NOTE!! Wall panel becomes inoperable
when control board is connected to the
APP. Wall panel will automatically
reconnect once APP is disconnected.
L381 0824 jlc

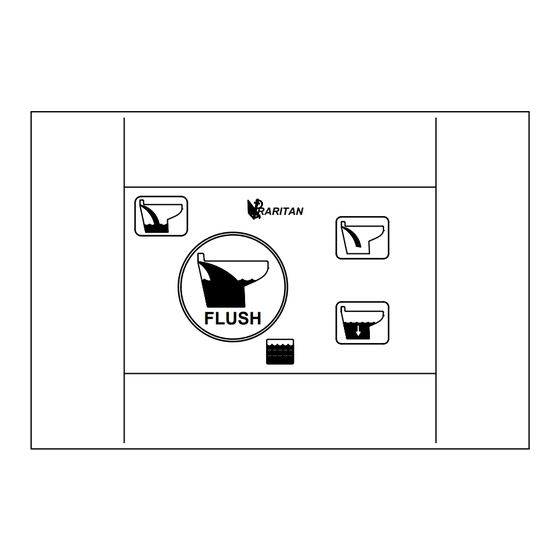

FLUSH CONTROL
Part# STCBL
Panel
7
[11]
16
Control box
6 3
16
[157]
Toilet Flush Control
STCBL
1 5
[41]
DEPTH
8
1 [25]
Description:
Flush Control is a controller for flushing toilet to
optimize water use without compromising the quality
of flush.
Control consists of a controller and panel (batteries
included).
Flush Control is designed to start a flushing
cycle if NORMAL FLUSH
SAVER
WATER ONLY
the bowl when pressed and EMPTY ONLY
button evacuates the bowl.
LUSH
Flush timing is preset from the factory for
Sequential Flushing. Flush settings can be changed
by downloading the Raritan App to your Smart-
phone. See "Changing Flush Settings Instructions"
on page 8.
Flush Control has a Holding Tank Full
dicator. Optional Holding Tank Full Sensors are sold
seperatly. Part # STCTSA (see page 7).
Flush Control is reverse polarity protected. In
case of reverse polarity motors and solenoid will
activate as soon as power is connected. After reverse
polarity is corrected (within 10 minutes), unit will
work as normal.
1
buttons are pressed.
R RIT N
R RIT N
button brings inlet water to
LUSH
or WATER
in-
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Raritan Flush Control
Summary of Contents for Raritan Flush Control
- Page 1 Equipment damage, injury to personnel or death could result from improper instal- lation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death to personnel that may result from improper installation or operation of this product.
- Page 2 LOW FLUSH CONTROL PANEL BATTERIES R RIT N Holding Tank Full Indicator will blink for 30 seconds when the Flush Control Panel's batteries need to be replaced. See page 3, FIG 2 for batteries location. 3 AAA batteries required. LUSH Download the free Raritan App to change flush modes or timings.
- Page 3 Installing the Flush Control Panel FIG 1 1. Cut out cross-hatched area per FIG 1. Mark 5/64 mounting holes using wall plate as guide. (2mm) 2. Remove cover and install three AAA batteries (included). See FIG 2. 3. Secure control using mounting screws.
- Page 4 Recommended Wire and Fuse/Circuit Breaker Sizes ATLANTES FREEDOM VORTEX VAC AND MARINE ELEGANCE Table 1-Sea Water Model (sizes based on both remote intake and discharge pumps amp added together) Circuit Toilet Remote Units Breaker/ Discharge Intake Pump 10 feet 15 feet 20 feet 30 feet 40 feet...
- Page 5 • To start/flush toilet by activating the Select proper wire and fuse/circuit breaker size Electroscan or Purasan EX, wire per Fig 7. from Specifications on Table 1. For Lectra/San MC, EC or Purasan call Raritan Install fuse/circuit breaker in positive line at Customer Service source.
- Page 6 FIG 4 WIRING FOR FLUSH CONTROL, REMOTE PUMP MODELS CIRCUIT BREAKER/FUSE See Table 1 for Atlantes Freedom Vortex Vac and Marine Elegance Table 3 for SeaEra QC STCBL RECOMMENDED WIRE SIZE See Table 1 for Atlantes Freedom Vortex Vac and Marine...
- Page 7 FIG 7 FIG 6 WIRING FOR FLUSH CONTROL WITH MSD WIRING FOR FLUSH CONTROL WITH MSD PURASAN EX PURASAN EX BATT + BATT + WHITE DISCH + RED WHITE DISCH - BLACK DISCH + RED INLET+ BLUE DISCH - BLACK...
- Page 8 4. Open the Raritan App on Smart Phone. For complete instructions regarding the App, go to Press OK. www.raritaneng.com. FIG 12 1. Download the Raritan App to your smart phone. (Available in iOS and Android phones) FIG 10 2. Remove cover from the flush control. FIG 11...
- Page 9 Diagnostic Status (LED3) will flash one time FIG 16 quickly. The pairing (LED1) and the BLE Status (LED2) will flash together 1 flash per second. FIG 13 Diagnostic Status Flush Control BLE Status DIAGNOSTIC Pairing STATUS (LED3) BLE STATUS STCBL...
- Page 10 TO MSD LED light will flash on for one second at & 3) should be OFF. beginning of flush cycle. Flush cycle will either be sequential or continuous FIG 19 depending on the setting. Diagnostic Flush Control Factory setting is sequential. DIAGNOSTIC Status BLE Status STATUS BLE STATUS...
- Page 11 OPERATING DIAGNOSTICS SCREEN Diagnostics Screen can be helpful in determining The Diagnostics will record up to 250 consecutive the cause of a problem. It is also useful for cycles. The data it records are: evaluationg the performance of pumps. Inlet Amps Dischrge Amps Inlet Motor ON/OFF Discharge Motor ON/OFF...
- Page 12 DIAGNOSTIC (SMARTPHONE) TROUBLE SHOOTING (SEE FIG 24) Inlet Discharge Inlet On/ Discharge To MSD Holding Tank Problem Corrective Action Amps Amps On/Off On/Off Full/Empty Open circuit to inlet. Check wiring or No inlet water >2 inlet pump/valve. Correct wiring or (or less) replace defective pump/valve.
