- Page 1 JetLogger Product model/type: V0-V0 HD-V2-V3 JETLOGGER SAFETY, INSTALLATION AND OPERATIONS MANUAL...
- Page 2 For permission requests, write to the publisher, addressed ”Attention: Permissions Coordinator,” at the address below. Jetting AB, Murgatan 1, 522 30 Tidaholm, Sweden jetting.se...

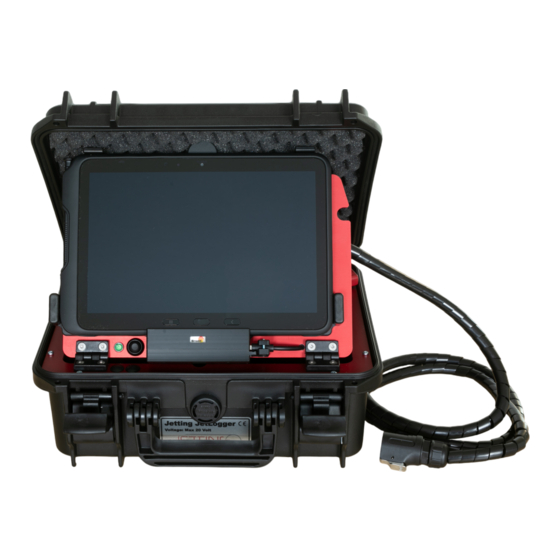

- Page 3 Tablet 2. Display 3. Led Lamp 4. Power button 5. V2/V3 Jetlogger cable 6. Tablet power button Battery level 8. Battery...
- Page 4 Important Safety Notice Read and understand all procedures and safety instructions before using the Jetting JetLogger. Please note all safety information on this page and take note of specific safety requirements outlined in the procedures of this manual. Failure to follow these instructions may result in serious personal injury or death.
- Page 5 Table of contents Section Page General Information Technical specifications Safety regulations Unpacking the Case Setup (LogBox) Setup ((V0/V0HD JLP)) How to start the JetLogger App Set up tablet for crash test protocol Set up tablet for new session New session with last used data Old session Add a new pipe to tablet Add a new cable to tablet...
- Page 6 F. Connection of this unit to machines and/or parts not produced or authorized in writing by the manufacturer. G. JetLogger should not be used for anything other than measuring pressure in the duct. Jetting AB is not responsible for injuries incurred as a result of improper use of the Jetlogger.
- Page 7 2. Technical specifications 2.1. Condition of use Temperature from -15° C to +40° C (5°F to 104°F). 2. Humidity from 20 % to 90 % 3. Weather conditions relevant to working conditions 4. Natural and/or artificial lighting of the work site, >200 lux 2.2.
- Page 8 3. Safety Regulations Read and understand all procedures and safety instructions before using the Jetlogger. Please note all safety information on this page and take note of specific safety requirements explained by procedures outlined in this manual. Failure to follow these instructions may result in serious personal injury, proper- ty damage, or death.
- Page 9 Never expose the charger to rain, moisture or damp. If you suspect any of thes have occurred then do not use the charger. • Only charge your battery using the compatible Jetting charger provided with your battery. Never discharge your battery other than in normal use on the Jetlogger. •...
- Page 10 5. Setup (LogBox) The JetLogger system for model V2, V3 and JetPressure is a stand alone system (Log Box) connected with the machine by the supplied cable. The following steps should be done after you have prepared your fiber blowing machine with duct clamp and mounted duct, connected the air hose from the com- pressor, and mounted the cable guide and cable in the machine.
- Page 11 6. Setup (V0/V0HD JLP) The JetLogger system V0/V0 HD is integrated in the transport box of the machine. The following steps should be done after you have prepared your fiber blowing machine with duct clamp and mounted duct, connected the air hose from the compressor, and mounted the cable guide and cable in the machine.
- Page 12 7. How to start the JetLogger App When you open the Jet Logger App you’ll se the main Log menu, in the top you can: • Change the language by pushing the flag. • See the software version. • See time, and battery status of the tablet. •...
- Page 13 5. Ställ in för kabelkraschtest/testprotokoll 8. Set up tablet for crash test protocol • Du bör alltid börja med att göra ett krocktest för den speciella kabeln och röret du ska använda för jobbet. • You should always start with doing a crash test for that special cable and pipe you will be using for the job.
- Page 14 6. Ställ in surfplattan för ny session 9. Set up tablet for new session • Börja med fliken "Ny session" i huvudmenyn och den här skärmen kommer att visas: • Start with pressing on ’New Session’ in the main menu. This menu should appear: Fill out the items in the protocol (the yellow boxes must be filled in).
- Page 15 16. Information about the humidity and temperature will automatically be transfered from the BlueSen- sor. 17. When all information is filled in the ’Start session box’ turns green. Press it and the system is ready to use. 18. Reset the meter counter on the machine. 19.
- Page 16 • Start with tab on ’New session with last used data’ in the main menu and this menu appears: Jetting Micro Lube JETAIR 140700 FIll in all besic information as you did in the former session. You only must fill in boxes that are yellow (address and pipe-cable temperature).
- Page 17 8. Öppna en tidigare session 11. Old session • Om du vill öppna en gammal session, klicka på "Gammal session" i huvudmenyn och den här menyn • If you want to open an old session, press ’Old Session’ in the main menu and this visas: menu appears: •...
- Page 18 10. Lägg till en kabel 13. Add a new cable to tablet • Om du vill lägga till en ny kabel till JetLogger, klicka på "Lägg till kabel" i huvudmenyn och den här • If you want to add a new cable to the JetLogger, press ’Add cable’ in the main menu and this menu menyn visas: appears: •...
- Page 19 GPS/Google maps Via GPS the JetLogger can identify the exact location. If you press the text ’Location GPS’ on the Pro- tocol screen you will start Google maps and see the location on a map. How to find the serial number on the tablet Start the tablet and go to settings, look for ’About Tablet’.
- Page 20 16. Documentation and disposal Ordering documentation Documentation, user instructions and technical information can be ordered by contacting Jetting AB by phone +46 502-65 90 10 Disposal Please follow the regulations for your country regarding how to recycle parts and dispose products.
- Page 21 Revision 9062-2-Risk assessment_JetLogger.ced EC DECLARATION OF CONFORMITY OF THE MACHINERY Original Directive 2006/42/EC, Annex II 1A Manufacturer (and where appropriate his authorised representative): Company: Jetting AB Address: Murgatan 1 522 35 TIDAHOLM SWEDEN Hereby declares that: Type of machinery: JetLogger No.
- Page 22 18. Warranty Information Warranty Period This product is covered by a warranty for 12 months from the date of purchase. A valid receipt must be presented to claim the warranty. Warranty Conditions Damage and defects, which have occurred by improper use, unauthorized modifications or unauthorized repairs, are not covered by the warranty.
- Page 23 19. Notes...
- Page 24 JETLOGGER SAFETY, INSTALLATION AND OPERATIONS MANUAL...
