- Page 1 EN 50131-1 EN 50131-10 EN 50136-1 EN 50136-2 EN 50130-4 EN 50130-5 Sol-2G/3G/4G 2G/3G/4G communicator Installation and programming manual...
- Page 2 Table of contents 1. Description of Sol-2G/3G/4G 1.1 Sol-2G/3G/4G - technical specifications 1.2 ATS Categories 2. Installing internal modules 3. Programming the Sol-2G/3G/4G 3.1 SMS Commands 3.2 Caller ID commands 3.3 Text for SMS messages 3.4 Parameters of the Sol-2G/3G/4G communicator 3.5 GPRS connection parameters 4. General information 4.1 About this manual 4.2 Manufacturer's details 4.3 Simplified EU Declaration of Conformity 4.4 Warranty 4.5 Limited warranty 4.6 Processing of personal data 4.7 Documents for the users 4.8 Disposal of the product Installation and programming manual - 100...
- Page 3 Sol-3G 2G, GPRS, 3G 3G (UMTS/HSPA): World wide (800/850/900/1900/2100 MHz) 2G: Dual band B3 (1800 MHz ), B8 (900MHz) 3G: Dual Band B1 (2100 MHz), B8 (900MHz) Sol-4G 2G, GPRS, 3G, 4G 4G: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz), B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz) The functions made available to Sol control panels equipped with this device are: voice calls via the SmartLogos30M voice board installed on the control panel digital calls via CONTACT-ID protocols transmission of SIA-IP events sending of SMS texts for each event using alternatively: the description provided by the events log a customizable description commands sent by the user via SMS commands using recognition of user's telephone number (CALLER-ID) answerphone function connection to the Inim Cloud service (3G and 4G only) Sol © 2022 Inim Electronics S.r.l.

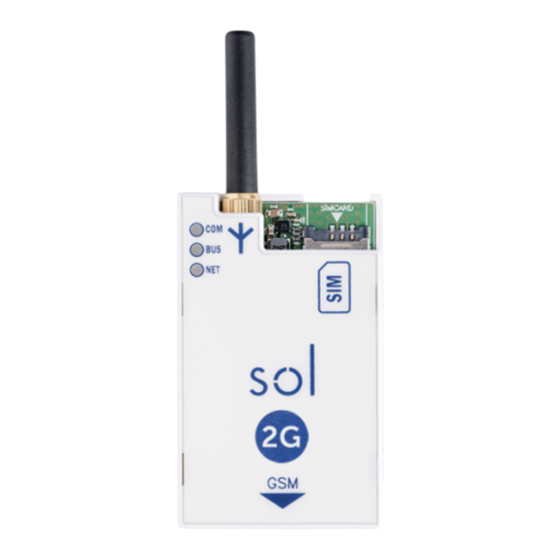

- Page 4 1. Description of Sol-2G/3G/4G Description of parts [A] Antenna [B] SIM card housing (non included) GSM communication [C] LED (red) BUS communication [D] LED (yellow) Connection LED [E] (green) [F] Control panel connector (on the under side) LED signalling function This LED lights during ongoing GSM com- Indicates an GSM Com- munications (voice calls, ARC calls, emer- Not com- ongoing GSM munications gency calls, sending of SIA-IP data municating communication packets, sending of SMS texts) Indicates com- Communication ...
- Page 5 1.1 Sol-2G/3G/4G - technical specifications 1.1 Sol-2G/3G/4G - technical specifications Model Sol-2G Sol-3G Sol-4G Antenna dipole GSM-UMTS, SMA-Male connector (impedance 50Ohm) 850/900, 850/900, 1800/1900 Dual band B3 (1800 MHz ), B8 (900MHz) 1800/1900 MHz 800/850/900, Dual band B1 (2100 MHz), B8 (900MHz) 1900/2100 MHz Band fre- B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A quency (700 MHz), B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz) Maximum RF output 2W, 1W 2W (33 dBm) for 2G and 200mW (23dBm) for 4G power Temperature from -10° to +40° C Maximum humidity 75% (without condensation)
- Page 6 1. Description of Sol-2G/3G/4G SPT Configurations ATS categories SPT primary network inter- Sol control pan- Sol- Sol- Sol- Sol- Single Path Dual Path face PSTN LAN/S WIFI 2G/3G/4G (SP) (DP) Internet Internet or GSM/GPRS Internet or GSM/GPRS Internet or GSM/GPRS ATS parameters Transmission time Time rela-...
- Page 7 2. Installing internal modules The installation of Sol-PSTN, Sol-2G/3G/4G and Sol-LAN/S optional connectivity modules can be achieved using the connectors integrated into the PCB board and hooks on the back of the control panel enclosure. This operation can be carried out while the control panel is powered (<hot=), without disconnecting the mains power supply or battery. 1. Open the control panel enclosure. 2. Locate the relative connector and placement for the module concerned. [A] Securing hooks for Sol-LAN/S module [B] Terminals for Sol-LAN/S module [C] Securing hooks for Sol-PSTN module [D] Terminals for Sol-PSTN module [E] Securing hooks for Sol-2G/3G/4G module [F] Terminals for Sol-2G/3G/4G module [G] Blocking hooks 3. Position the rear side of the module on the appropriate hooks on the back of the enclosure, then push the module downwards until it clicks into place. Sol © 2022 Inim Electronics S.r.l.
- Page 8 2. Installing internal modules 4. For hot installation, push the SERV-FACT / CLOUD REG button on the main board. 5. Close the control panel. Installation and programming manual - 100...
- Page 9 =) to add or remove the mod- ule from the configuration. Note Inim Electronics does not guarantee the total availability of all the GSM/GPRS functions described in this manual, due to the various combinations of GSM/GPRS service providers, SIM types and telephone models that may be in use.
- Page 10 3. Programming the Sol-2G/3G/4G Parameter Software section Shortcut 2 Selection menu for the shortcut which is to be activated after the one selected above. Shortcut 2 As per 8Shortcut parameter9 but valid for the 8Shortcut 29 command. parameter Identifies the type of command feedback: SMS - feedback will be provided by an SMS text to the phone number of the caller (command dispatcher). Ring - feedback will be provided on the phone of the caller (command dispatcher). Positive out- come will be indicated by a 8ring9; negative outcome by 8silence9. Confirmation via SMS text or feedback ring will occur only when the phone number that sent the com- mand is not hidden. Buzzer - feedback is provided by an audible signal on the Sol-2G/3G/4G buzzer. Positive out- come is indicated by three short audible signals; negative outcome is indicated by five long audible signals. Confirm Command via SMS message Users who wish to activate a command via SMS text must enter the command details as follows: <xxxxxx> <SMS Text>...
- Page 11 Caller ID commands Name This is the identification string of the command. Telephone This is the telephone number which, during a call to the Sol-2G/3G/4G, will activate the command. number This field is for the association of a user code (from 1 to 255) to the telephone number. Access Codes The code determines which partitions the phone-number user can operate on. This is the number that identifies the command option selected from the 30 commands programmed in Actions the SMS Commands section. If this option is enabled, when the phone number calls, the Sol-2G/3G/4G will reject the call after gen- erating the requested command. If this option is disabled, when the phone number calls, the Sol-2G/3G/4G will not reject the call but will allow it to proceed in such a way that the control panel can activate (if duly programmed) the dialer after Reject call the programmed number of rings. If this option is enabled the selected number will be able to receive SMS messages diverted from the Receive communicator which do not comply with the command-activation format. diverted If the SMS message is a 8command9, it cannot be diverted. Sol © 2022 Inim Electronics S.r.l.
- Page 12 3. Programming the Sol-2G/3G/4G 3.3 Text for SMS messages In the <Texts for SMS messages= section you can edit and program up to 50 SMS messages with 80 alpha- numeric characters each. These SMS texts can be associated with the events via the 8SMS number9 option, included in the pro- gramming menu of single events. This section, where the SMS messages are listed in a column, contains the following parameters for each message: N°, identifies the number of the SMS message. Text, editable field for the SMS text message. The number of characters available is also indicated. 3.4 Parameters of the Sol-2G/3G/4G communicator In the 8General parameters9 section, it is possible to program some functions relating to the management of the Sol-2G/3G/4G device, such as: low/remaining credit, input and output volume, disablement of tamper protection and the emergency signalling delay. General parameters of [[[Undefined variable Product/Dispositivi.Modulo GSM_GPRS]]] Installer Parameter Software section menu sec- tion If this option is enabled, you must also program the interrogation method the General para- Sol-2G/3G/4G will use to make residual-credit enquiries to the GSM provider.
- Page 13 The remaining credit control feature is subject to temporary or even permanent unavailability caused by changes in the implementation of the methods used by the GSM/GPRS service provider. Inim Electronics provides device programming functions which may be capable of restoring this feature, by means of manual changes to the respective parameter settings.
- Page 14 3. Programming the Sol-2G/3G/4G Vodafone WindTRE Iliad Installation and programming manual - 100...
- Page 15 Production plant: Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP), Italy Tel.: +39 0735 705007 Fax: +39 0735 734912 E-mail info@inim.biz Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system have authorization to work only on devices marketed under the brand Inim Electronics. 4.3 Simplified EU Declaration of Conformity Hereby, Inim Electronics S.r.l. declares that the radio equipment type Sol-2G/3G/4G is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.inim.biz. 4.4 Warranty Inim Electronics S.r.l.. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As Inim Electronics does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us;Inim Electronics does not warrant against loss of quality, degradation of performance of this product or actual damage that results from the use of products, parts or other replace- able items (such as consumables) that are neither made nor recommended by Inim Electronics. Seller oblig- ation and liability under this warranty is expressly limited to repairing or replacing, at Seller's option, any product not meeting the specifications. In no event shall Inim Electronics be liable to the purchaser or any other person for any loss or damage whether direct of indirect or consequential or incidental, including without limitation, any damages for lost profits, stolen goods, or claims by any other party caused by defect- ive products or otherwise arising from the incorrect or otherwise improper installation or use of this product. This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover dam- age arising from improper maintenance or negligence, damage caused by fire, flood, wind or lightning, van- dalism, fair wear and tear. Sol © 2022 Inim Electronics S.r.l.
- Page 16 4. General information Inim Electronics S.r.l. shall, at its option, repair or replace any defective products. Improper use, that is, use for purposes other than those mentioned in this manual will void the warranty. Contact Our authorized dealer, or visit our website for further information regarding this warranty. 4.5 Limited warranty Inim Electronics S.r.l. shall not be liable to the purchaser or any other person for damage arising from improper storage, handling or use of this product. Installation of this Product must be carried out by qualified persons appointed by Inim Electronics. Install- ation of this Product must be carried out in accordance with Our instructions in the product manual. 4.6 Processing of personal data Sol control panels, by attributing them to installers and users registered with the Inim Cloud service, can be managed through dedicated web pages and/or apps available to both the installer and the end user. In order to allow management of the control panel via Inim Cloud an explicit request is required from the users to whom the control panel is to be associated. As soon as a control panel is connected to a LAN or a GSM/LTE network, it will be available on the Inim Cloud, however, until the association is explicitly requested by a user the data exchanged are: purely technical (in order to allow an association to a user in the future) and do not include any per- sonal data always encrypted free from any correlation with personal data that may already be present in the Inim Cloud The control panel events log becomes available only after associating the control panel with the users and can be viewed chronologically from the moment of such an association. If you do not want to manage the control panel via Inim Cloud and/or do not want to allow any type of con- nection to Inim Cloud in advance, simply disable the connection with the service via programming. 4.7 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics ...
- Page 17 4.8 Disposal of the product hand over the equipment you wish to dispose of to a dealer when purchasing new equipment of the same type. You are also entitled to convey for disposal small electronic-waste products with dimensions of less than 25cm to the premises of electronic retail outlets with sales areas of at least 400m2, free of charge and without any obligation to buy. Appropriate differentiated waste collection for the subsequent recycling of the discarded equipment, its treatment and its environmentally compatible disposal helps to avoid possible neg- ative effects on the environment and on health and favours the re-use and/or recycling of the materials it is made of. Sol © 2022 Inim Electronics S.r.l.
- Page 18 4. General information Installation and programming manual - 100...
- Page 19 4.8 Disposal of the product Sol © 2022 Inim Electronics S.r.l.
- Page 20 Inim Electronics S.r.l. Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) I TALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0SOLXG-100-20220701...
