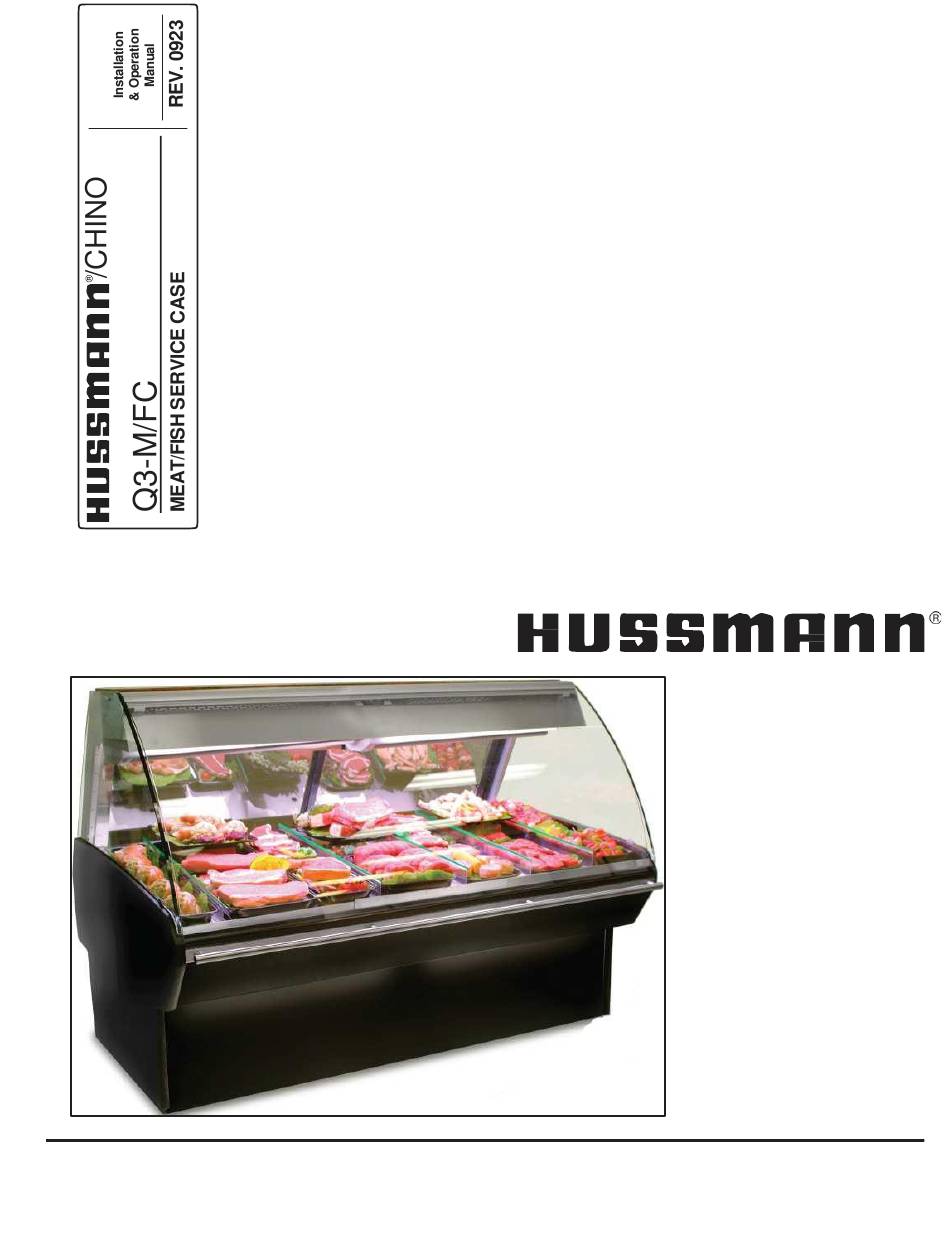

- Page 1 Q 3 - M / F C Q 3 - M - F S - E P Q 3 - M - F C - E P MEAT/FISH SERVICE CASE I N S T A L L A T I O N & O P E R A T I O N G U I D E...
-
Page 2: Table Of Contents
The carrier will supply inspection Defrost Data................15 Physical Data................15 report and required claim forms. Q3-MC Standard Piping Diagram ......16 Shortages Q3 - Meat Coil Close-off Configuration ....20 Check your shipment for any possible shortages of Electrical.............. -
Page 3: Cut And Plan Views
10 1/8" 29 1/2" 5 3/4" 10 1/8" 29 1/2" 5 3/4" 45 3/8" 45 3/8" Q3-MC Q3-F C Service Meat - Curved Glass Service Fish- Curved Glass with Adjustable Slanted Deck Scale = 1/2" Scale = 1/2" 8" 5"... -
Page 4: Installation
Installation Location 1. Using case blueprints, measure off and mark on the floor the exact dimensions of where the cases will The refrigerated merchandisers have been designed for use only in air conditioned stores where temperature sit. Snap chalk line for front and back positions of and humidity are maintained at or below 75°F and 55% base rail or pedestal. -
Page 5: Q Glass Adjustment
Installation (Cont'd) 10. Use finger to smooth silicone as thin as possible at 7. To compress butyl at joint, use two Jurgenson wood clamps. Make sure case is level from front to back masking tape on inside and outside of rear mullion and side to side on inside bulkheads at joint. - Page 6 Installation (Cont'd) Some cases have wrapping boards installed, the wrapping boards need to be removed to be able to remove the small rear covers. Unhook at K-99 bracket. Remove the small rear covers under each rear canopy arm to access the arm adjusters. Step 4: Adjuster screw...
- Page 7 Installation (Cont'd) After all the glass height has been adjusted, go back and tighten all the lock screws. Glass Height should be centered on “V” glass seal Glass must be parallel to ledge when viewed from front. IMPORTANT: Attempting to compensate for poor installation practices by manipulating the canopy hardware will result in unsatisfactory workmanship and possibly cause hardware failure and/or injury.
- Page 8 Installation (Cont'd) To adjust glass to glass gaps see the following. To properly adjust the glass gaps requires that both hinge arms of each section of glass be loosened before attempting to change the glass position. To shift the glass side to side or front to back at the glass clamp open the glass and loosen the TORX T-15 screw. To shift the glass side to side # 2 Loosen the #10 MM bolt on both or front to back at the glass...
- Page 9 Installation (Cont'd) Torque Specs: IMPORTANT: Attempting to change the glass position by loosening only one side or by forcing the clamp sideways will result in damaging the hardware and its eventual failure. Loosening the hinge arms requires loosening the attachment screws and setscrews on both hinge arms on the section of glass. IMPORTANT: It is critical to use the proper size Torx or Hex wrench for the fasteners to avoid stripping the fasteners.
- Page 10 Installation (Cont'd) Loosen the fasteners only as needed to allow the glass clamp to slip to the desired position. Reposition the glass and glass clamp assembly as needed and verify its position by carefully closing the glass to check clearances. Once the glass is in the desired position, retighten the fasteners at the hinge arms with the proper wrench.
-
Page 11: Bumper Installation Instructions
Installation (Cont'd) Bumper Installation Instructions Step 2: Use silicone lubricant to help the Step 1: Make sure the aluminum channel and end caps bumper slide into the channel. are installed. Step 3: Starting on one end: while inserting the bumper, Step 4: As you insert the bumper into the channel with push it up against the end cap to prevent one hand, pull the bumper toward you with... - Page 12 Installation (Cont'd) Boston Series 2000 Boston 2000 Eco Series NOTE: Flexible top: Over cut vinyl 1/8" for every 4' section for the flexible top to ensure a proper fit. NOTE: Rigid Top: Do not over cut. 1. Attach the base and end/corner cap to the desired surface by inserting #8 pan head screws through the pre-slotted holes in both the end cap and the base.
- Page 13 Installation (Cont'd) Boston 1000 Series 2b. Rigid Top: Snap the Rigid Top over the Rigid Base. NOTE: Flexible top: Over cut vinyl 1/8" for every 4' section for the flexible top to ensure a proper fit. NOTE: Rigid Top: Do not over cut. Installation 3.
-
Page 14: Plumbing
Plumbing 3. Always provide as much down hill slope (“fall”) as Waste Outlet and P-TRAP possible; 1/8” per foot is the preferred minimum. The waste outlet is located off the center of the case on one side allowing drip piping to be run lengthwise under PVC pipe, when used, must be supported to the fixture. -
Page 15: Defrost Data
Refrigeration Expansion Valve Adjustment Expansion valves must be adjusted to fully feed the evaporator. Before attempting any adjustments, make sure the evaporator is either clear or very lightly covered with frost, and that the fixture is within 10°F of its expected operating temperature. -
Page 16: Q3-Mc Standard Piping Diagram
Q3-MC Standard Piping Diagram... -
Page 20: Q3 - Meat Coil Close-Off Configuration
Q3 - Meat Coil Close-off Configuration... -
Page 21: Electrical
Electrical Wiring Color Code Field Wiring and Serial Plate Amperage Field Wiring must be sized for component amperes printed on the serial plate. Actual ampere draw may be less than specified. Field wiring from the refrigeration control panel to the merchandisers is required for refrigeration thermostats. Case amperes are listed on the wiring diagram, but always check the serial plate. -
Page 22: Finishing Touches
Finishing Touches Bumper Installation Tips Installing Splashguard 1. Start to attach the bumper at one end of the lineup, After merchandisers have been leveled and joined, and preferably on a straight case. all drip piping, electrical and refrigeration work has been completed, install the splashguards. -
Page 23: User Information
User Information Stocking Improper temperature and lighting will cause serious Important Steps product loss. Discoloration, dehydration and spoilage 1. Do not set temperature too cold, as this causes can be controlled with proper use of the equipment and product dehydration. handling of product. -
Page 24: Cleaning Glass And Mirrors
User Information (Cont'd) buffing motions can generate static cling attracting dust to Cleaning Glass and Mirrors Only use a soft cloth and water for cleaning any glass the surface. Incorrect cleaning agents or cleaning cloths or mirrored components. Be sure to rinse and/or dry can cause micro scratching of the surface, causing the plastic to haze over time. -
Page 25: Maintenance
Maintenance CAUTION CLEANING PRECAUTIONS When cleaning: • Do not use high pressure water hoses • Do not introduce water faster then waste outlet can drain Have case Model and Serial Number • NEVER INTRODUCE WATER ON SELF CONTAINED UNIT ready! This information is located on the WITH AN EVPORATOR PAN •... - Page 26 Maintenance (Cont'd) plastic scouring pads will NOT harm the steel’s properly maintained water softener are your friends. passive layer. Stainless steel pads can also be If you are not sure of the proper water treatment, call used but the scrubbing motion must be in the same a treatment specialist.
- Page 27 Maintenance (Cont'd)
- Page 28 Maintenance (Cont'd)
- Page 29 Maintenance (Cont'd)
- Page 30 Maintenance (Cont'd)
- Page 31 Maintenance (Cont'd)
-
Page 32: Electrical Wiring Diagrams
Q3-M/FSFC-EP-8R HO LEDS 3051277 Q3-M/FSFC-EP-10R HO LEDS 3051278 Q3-M/FSFC-EP-12R HO LEDS 3051279 Q3-M/FSFC-EP-4R 2H10774 Q3-M/FSFC-EP-6R 2H10113 Q3-M/FSFC-EP-8R 2H10543 Q3-M/FSFC-EP-10R 2H16995 Q3-M/FSFC-EP-12R 2H10114 Q3-MC/FC-4-R W/WATER FLUSH 3106595 Q3-MC/FC-6-R 3083524 Q3-MC/FC-8-R 3074877 Q3-MC/FC-12-R 3087991 Q3-MS-22O-R 3070193 Q3-MS-22O-R 3070194 Q3-MC-45°O REM W1760004 Q3-MC/MS-22.5°O REM 1H63052 Q3-MC/MS-22.5°I REM... -
Page 53: Specification Sheets
Specification Sheet... - Page 54 Specification Sheet (Cont'd)
-
Page 55: Appendices
Appendices should be insulated according to Hussmann’s Appendix A. - Temperature Guidelines - Refrigerated recommendations. The refrigerators should be operated according to the manufacturer’s published engineering specifications for A clogged waste outlet blocks refrigeration. The entering air temperatures for specific equipment applications. installer is responsible for the proper installation Table 1 shows the typical temperature of the air entering the of the system which dispenses condensate waste... -
Page 56: Appendix D. - Recommendations To User - Refrigerated
Appendices (Cont'd) 6. Are spotlights or other high intensity The following recommendations are made lighting directed onto the product? for the purpose of arriving at easily taken and understood data which, coupled with other 7. Are there unusual draft conditions (from observations, may be used to determine whether heating/air-conditioning ducts, open a display refrigerator is working as intended:... - Page 57 Food store refrigerators are not food chillers nor can they reclaim quality lost through previous mishandling. For further technical information, please log on to http://www.hussmann.com/products/Q3-MC.htm...
- Page 58 August 31, 2018 This warning does not mean that Hussmann products will cause cancer or reproductive harm, or is in violation of any product-safety standards or requirements. As clarified by the California State government, Proposition 65 can be considered more of a ‘right to know’...
-
Page 59: Service Record
Service Record Last service date: /Chino The MODEL NAME and SERIAL NUMBER is required in order to provide you with the correct parts and information for your Additional copies of this publication may be obtained by contacting: particular unit. Hussmann® Chino They can be found on a small metal plate on the 13770 Ramona Avenue •...
