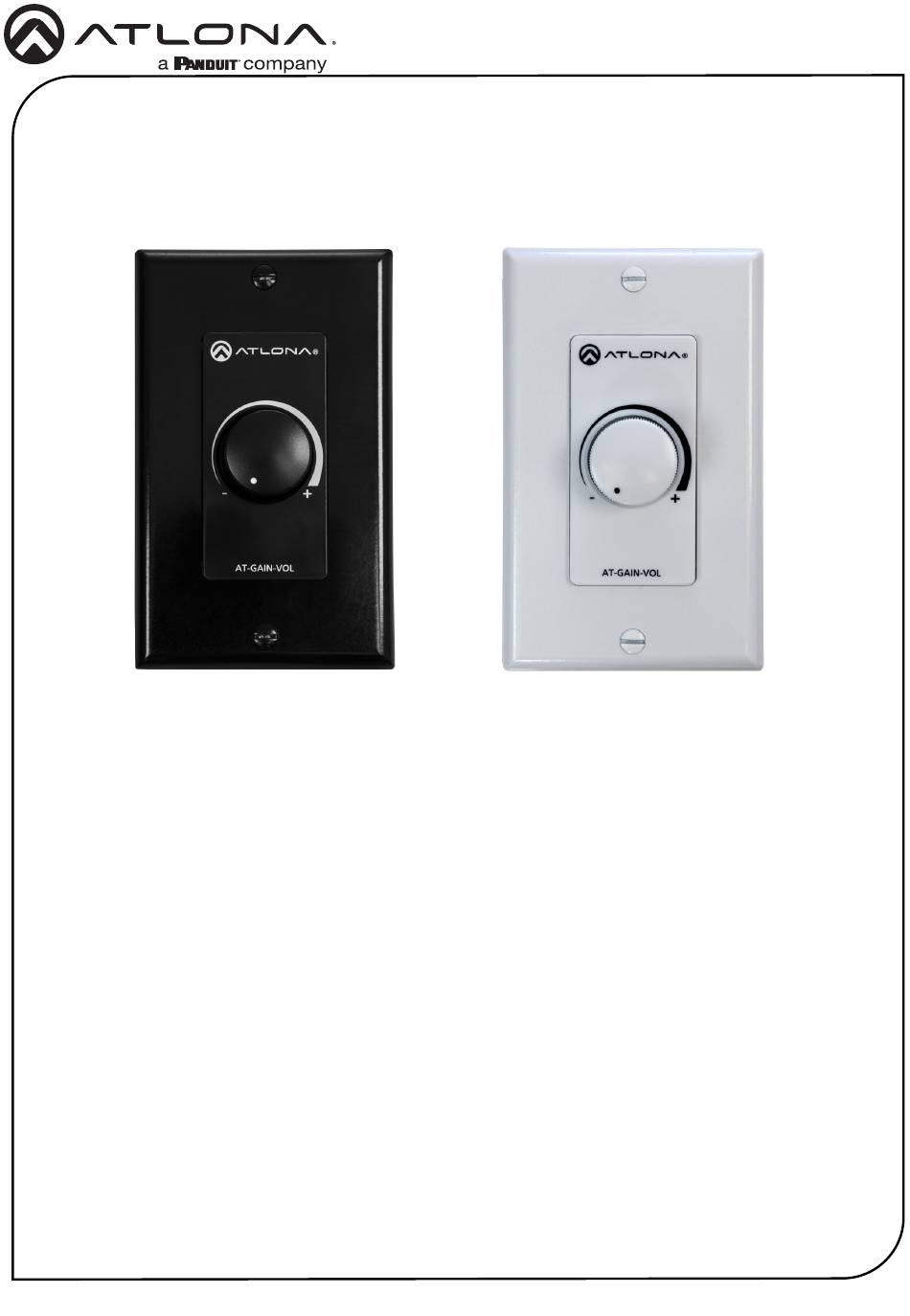

Installation Guide
AT-GAIN-VOL
GAIN Volume Control Wallplate
AT-GAIN-VOL

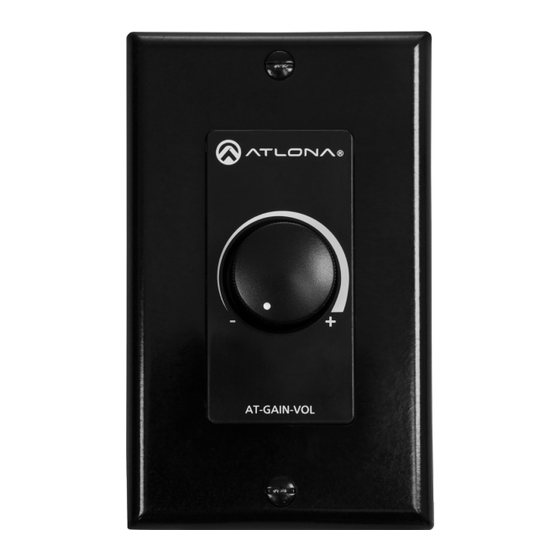

The Atlona AT-GAIN-VOL is a volume control wallplate for use with the AT-GAIN-M50-LZ mixer
amplifier. It provides a convenient, easy-to-use manual interface for controlling audio levels
of the amplifier. Volume control range is from no audio (mute) to maximum output level. The
GAIN-VOL is housed in a US one-gang enclosure intended for wallplate openings and includes
interchangeable black or white trim kits.
Package Contents
1 x AT-GAIN-VOL
1 x White faceplate
1 x White Decora
wallplate
®
1 x Black faceplate
1 x Black Decora
wallplate
®
1 x 3-pin captive screw connector
1 x Insert w/ QR code
1
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA GAIN AT-GAIN-VOL
Summary of Contents for Panduit ATLONA GAIN AT-GAIN-VOL
- Page 1 Installation Guide AT-GAIN-VOL GAIN Volume Control Wallplate AT-GAIN-VOL The Atlona AT-GAIN-VOL is a volume control wallplate for use with the AT-GAIN-M50-LZ mixer amplifier. It provides a convenient, easy-to-use manual interface for controlling audio levels of the amplifier. Volume control range is from no audio (mute) to maximum output level. The GAIN-VOL is housed in a US one-gang enclosure intended for wallplate openings and includes interchangeable black or white trim kits.
-
Page 2: Panel Descriptions
Installation Guide AT-GAIN-VOL Panel Descriptions Front Back AT-GAIN-VOL Volume Knob Control Rotate this knob clockwise to increase This port connects to the top port of the the output volume. Rotate clockwise to CTRL / RS-232 port on the AT-GAIN-M50- decrease the output volume. -
Page 3: Installation
Installation Guide AT-GAIN-VOL Installation AT-GAIN-M50-LZ Connect the included 3-pin captive screw connector from the Control port to the top port of the CTRL / RS-232 port on the AT-GAIN-M50-LZ. Install the AT-GAIN-VOL into the electrical box or mud ring. Attach the wallplate. IN 1 IN 1 IN 2... - Page 4 Installation Guide AT-GAIN-VOL Faceplate Removal and Assembly Removal of the faceplate requires that the AT-GAIN-VOL be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown: I N - - G A Gently remove the faceplate by pulling it toward you.
-
Page 5: Warranty
Installation Guide AT-GAIN-VOL Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-gain-vol/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. International atlona.com 41.43.508.4321...
