These instructions and all accompanying documents contain important information to protect you from injury and prevent damage to the appliance.
Assembly, installation and commissioning must always occur in line with national laws, regulations and standards. The work must be performed by qualified specialists who know and comply with the additional regulations of the local energy supply companies. All safety and warning information as well as the handling instructions in the accompanying documents must be observed. Please keep these instructions in a safe place and pass them on to the next owner where applicable.
Safety and warning information
|
Type and source of danger Results of non-compliance
|
Please note:
Warning symbol | Signal word | Risk |
| Danger | Indicates an immediate, hazardous situation which causes death or serious injury if not respected. |
| Warning | Indicates a potentially hazardous situation which can cause death or serious injury if not respected. |
| Caution | Indicates a potentially hazardous situation which can cause minor injury if not respected. |
| Note | Indicates a potentially hazardous situation which can cause property damage if not respected. |
Tab. 1.1 Meaning of the warning symbols and signal words
The appliance complies with the stipulated safety requirements. The user is responsible for the safe use of the appliance, cleaning and maintenance. Improper use can lead to personal injury and damage to property.
The appliance is solely intended for preparing food in private households.
The appliance may only be operated in frostproof rooms.
This appliance is not intended for:
Any other use or any use that goes beyond that which is described here is classed as unintended.
BORA does not assume any liability for damages caused by incorrect installation, improper use or incorrect operation.
|
Risk of injury or damage due to incorrect components or unauthorised modifications Incorrect components can lead to personal injury or damage to the appliance. Modifications, additions or alterations to the appliance can lead to safety risks.
|
All misuse is prohibited!
Children
The appliance can be used by children aged 8 and over if they are supervised or have been instructed how to use the appliance safely and understand the resultant risks. Children must not play with the appliance.
Any work involving cleaning and maintenance must not be carried out by children unless they are supervised at all times while doing so.
People with reduced physical, sensory or mental capacities
The appliance can be used by people with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or have been instructed how to use the appliance safely and understand the resultant risks. Operation can be restricted using the child lock.
Packaging components are a choking hazard
Packaging components (e.g. film, polystyrene) can be life-threatening for children.
Risk of electric shock or injury from damaged surfaces
The underlying electronics can be exposed or damaged due to fissures, fractures or cracks in appliance surfaces (e.g. damaged glass), particularly in the vicinity of the operating unit. This can cause an electrical shock. Furthermore, a damaged surface can cause injuries.
Risk of injury from overloading the open door
The maximum load capacity of the open door is 22.5 kg.
Risk of injury due to mechanical damage on the appliance
Mechanical damage (e.g. cracks, deformation, separation of adhesive seals, etc.) to the appliance, as well as to cables and accessories can cause injuries.
PLEASE NOTE
Faults and errors
In the event of faults or incorrect use, error messages will be displayed.
PLEASE NOTE
Appliance damage due to covered temperature sensor
If the temperature sensor in the oven chamber is covered and therefore obstructed, e.g. by a food support that has been inserted too high up, the appliance may overheat and become damaged.
PLEASE NOTE
Appliance damage caused by pets
Pets may damage the appliance or injure themselves.
Appliance components can cause injury if dropped
Appliance components can cause injury if you drop them.
Risk of injury from heavy lifting
If not handled correctly, carrying and installing appliances can cause injury to the limbs or torso.
Damage from improper use
The appliance surfaces must not be used as work or storage surfaces. This can damage the appliances (particularly in the case of hard and sharp objects).
Risk of injury from incorrect assembly
Failure to observe the installation instructions can lead to injury.
PLEASE NOTE
Appliance damage caused by incorrect wiring
The electrical safety of the appliance is only guaranteed if it is connected to a protective conductor system that has been installed in line with regulations.
Risk of electric shock from incorrect mains connection
Connecting the appliance to the mains incorrectly poses a risk of electric shock.
Risk of electric shock from damaged power supply cable
If the power supply cable is damaged (e.g. during installation), this can cause an (lethal) electric shock.
Risk of electric shock from damaged appliance
A damaged appliance can cause an electric shock.
Special safety instructions for using the fresh water connection
Risk to health from unpurified water
The use of unpurified water poses a risk to health
Damage caused by dirt in the water
Dirt in the water pipe can be deposited in the appliance valve. If this affects the functioning of the valve, water can leak out.
Risk of fire from overheated oil or fat
Oil or fat in the pot can quickly heat up and ignite.
Risk of fire from overdrying
When food is overdried there is a risk of fire.
Risk of burns or explosion caused by flammable liquids
Flammable liquids (alcohol fumes) can be ignited in the hot oven chamber or explode and cause serious injuries.
Risk of burns from hot surfaces
The appliance and exposed parts (oven chamber, door, heating elements, food thermometer, accessories) become hot during use. Touching hot surfaces can cause serious burns.
Risk of injury from the food thermometer if not used carefully
Failure to take care when inserting the food thermometer in the food can lead to puncture wounds.
Risk of injury from moving appliance parts
There is a risk of injury when opening and closing the door or operating unit.
Risk of injury from open door
When the door is open there is a risk of tripping or crushing.
Risk of burns or explosion caused by closed preserve jars
Heating closed preserve jars leads to excessive pressure which can cause the jars to explode and cause serious injuries.
Risk of corrosion
Rusting materials (e.g. platters, cutlery) can cause corrosion in the oven chamber.
Risk of burns from hot food
Food may spill over when inserting or removing the food support. Touching hot food can cause serious burns.
Risk of burns due to power cut
During or after a power cut a cooktop that was previously in operation may still be hot.
Risk of injury from hot steam
Hot steam can escape when the door is opened if the steam has not been extracted beforehand. Depending on the temperature, steam may be invisible. After opening, hot water may drip from the door.
PLEASE NOTE
Appliance damage
Incorrect use may cause damage to the appliance.
PLEASE NOTE
Increased humidity
During cooking and cleaning, moisture is released into the ambient air.
Risk of fire from overheated oil or fat
Oil or fat in the pot can quickly heat up and ignite.
Risk of burns from hot surfaces
The appliance and exposed parts (oven chamber, door, heating elements, food thermometer, accessories) become hot during cleaning. Touching hot surfaces can cause serious burns.
Risk of corrosion
Food or liquid containing cooking salt which becomes stuck to the stainless steel walls of the oven chamber can cause corrosion.
Risk of injury from hot steam
Hot steam can escape when the door is opened if the steam has not been extracted beforehand. Depending on the temperature, steam may be invisible. After opening, hot water may drip from the door.
Risk of injury from hot water and cleaning agents
Opening the door during the cleaning programme may cause burns or eye irritation.
Eye irritation from cleaning agent residues
Cleaning agent residues in the oven chamber and the empty cleaning cartridge can cause irritation if it comes into contact with the eyes.
PLEASE NOTE
Appliance damage due to soiled appliances
Dirt can lead to damage, restriction of functions, or bothersome odours. In the worst case scenario, this can become a hazard.
Risk of injury when carrying out repairs
Insufficient expertise can lead to injury when carrying out repairs.
Risk of electric shock from residual charge
Electrical components in the appliance can contain residual charge and cause an electric shock.
Risk of injury or damage from improper repairs
Incorrect components can lead to personal injury or damage to the appliance. Modifications, additions or alterations to the appliance can lead to safety risks.
Risk of injury during disassembly
Insufficient expertise can lead to injury when disassembling the appliance.
Risk of electric shock from incorrect disconnection
Incorrectly disconnecting the appliance from the mains results in a risk of electric shock.
Risk of electric shock from residual charge
Electrical components in the appliance can contain residual charge and cause an electric shock.
Parameter | Value |
Multiphase supply voltage | 380–415 V 2N |
Supply voltage 1-phase | 220–240 V |
Frequency | 50 Hz |
Maximum power consumption | 6100 W |
2-phase fuse protection/power supply | 2 x 16 A |
1-phase fuse protection/power supply | 1 x 16 A |
Dimensions (width × height × depth) | 598 × 599 × 580 mm |
Oven chamber dimensions (width × height × depth) | 480 × 308 × 405 mm |
Cooking chamber volume | 53 L |
Number of shelf levels | 3 |
Weight (incl. accessories/ packaging) | 62 kg |
Weight (net) | 47 kg |
Surface material | Glass and plastic |
Temperature control range | 30–230°C |
Power management | seamless |
Length of water inlet pipe | 2.5 m |
Water inlet pipe connection | 3/4" (spanner size 30) |
Internal/external diameter of water drainage pipe | 19 mm/27 mm |
Odour filter material | Activated charcoal with ion exchanger |
Maximum filter service life | 1 year |
Guaranteed availability period for software updates (from product discontinuation date) | 5 years |
Tab. 3.1 X BO technical data
Appliance dimensions
Fig. 3.2 XBO top view
Fig. 3.4 XBO glass front view
The appliance is controlled using a touch display. To make it easier to use, the operating unit and touch display can be seamlessly raised or closed.
Pointed or sharp objects can scratch the surface of the touch display.
No water or dirt must get behind the touch display.
General symbols
Symbol/function | Meaning |
![]() | Meets BORA nutrition guidelines |
![]() | User action necessary |
![]() | Add function |
![]() | Confirmation |
![]() | Go to |
![]() | Cancel |
![]() | Starting the function |
![]() | Pause function |
![]() | Cook for a set time |
![]() | Cook with food thermometer |
![]() | No core temperature selected |
![]() | Change to scroll wheel view |
![]() | Change to slider view |
![]() | Stop steam extraction, open door immediately |
![]() | Add burst of steam |
![]() | Not possible to add burst of steam |
![]() | Temperature settings |
![]() | Humidity settings |
![]() | Create copy in "Own programmes" |
![]() | Automatic programme with changed cooking parameters |
![]() | Preferred programme |
![]() | Programme for frozen food |
Tab. 4.1 General symbols
BORA Smart Open
Once the pre-opening system has been activated, the steam is extracted from the oven chamber. The door will then open. (BORA Clear View – prevents steam from escaping when the door is opened). The steam extraction duration can be set (10–20 seconds). The door can also be opened manually without steam extraction.
Thanks to the four-point food thermometer, you can reliably determine the core temperature of the food. It is located at the top of the oven chamber and is connected to the appliance by a cable. The food thermometer is inserted into the food. The four measuring points detect the coldest part of the food at all times. Once the food has reached the target temperature, the cooking process is ended automatically.
All food supports can be used on all shelf levels. The food supports required for a programme are indicated as accessories in the presets, pro tips and special programmes.
Universal tray
Deep universal tray
Perforated stainless steel tray
The perforated stainless steel tray is not suitable for frozen foods and can only be used for temperature settings up to 120°C.
Oven rack
When running the cleaning programme, the oven rack is used as a support for the cleaning cartridge.
There are three demo modes to choose from with limited functions:
The sensor button reacts to finger contact. You switch the appliance on and off with this button.
When the appliance is operated, the drain filter must be fitted. Large food residues can block the water drainage pipe and the pump.
Opening the door
If you do not do this within 10 seconds of the door opening, it will close again automatically.
Closing the door
When the door is fully open:
When the door has been pre-opened:
do not push the door closed when pre-opened; this may damage the appliance.
Inserting/removing food supports
The food supports have a protection mechanism that prevents them from sliding out of the front of the shelf guide.
How to use food supports carefully and correctly
The touch display reacts to finger contact. It recognises different touch commands:
Touch command | Contact | Duration |
Touch | Brief touch | 0.5 s |
Long press | Longer contact | 1–8 s |
Swipe | Swiping motion (vertical + horizontal) | 0.1–8 s |
Number scroll wheel | Vertical swiping motion over the number scroll wheel (until the desired value is in the centre) |
Tab. 5.1 Touch commands
A scroll bar on the bottom edge of the display shows the area that is currently visible in the menu.
How it works
Operation | Command |
Touch | Select a function, button or menu item |
Long press | Activate additional options |
Swipe | Set value, navigation |
Tab. 5.2 Operating principle
The menu item "First steps" contains helpful videos on how to operate and handle the X BO steam oven.
Information and tips
The programmes provide practical information and tips:
Instructions
When you press the "Instructions" button, an animation will explain how to do certain things (e.g. inserting the BORA cleaning cartridge).
Status messages
Shown on the top edge of the display.
Standard functions are available on every menu level and are shown at the edge of the display.
Symbol/function | Meaning |
![]() | The next menu up is displayed |
![]() | The main menu is displayed |
![]() | The door is opened automatically |
![]() | Oven chamber lighting on/off |
Time | Hour: minute |
Tab. 5.3 Standard functions
Global functions can be used at any time.
Symbol/function | Meaning |
![]() | Countdown in seconds, acoustic and visual signal when the time lapses; the time will then continue to run in minus figures |
![]() | Acoustic signal at a certain time; the time will then continue to run in minus figures |
![]() | Free text search with suggestion function |
![]() | Information for other people, message on the display (e.g. Do not stop the cooking session) |
![]() | Prevents unintentional or unauthorised operation |
![]() | The display is locked for 10 seconds |
Tab. 5.4 Global functions
Accessing global functions
Closing global functions
The different functions and settings are selected from the main menu. Other options are displayed under some of the menu points or settings can be made.
Symbol/function | Meaning |
![]() | Manual cooking |
![]() | Automatic programmes |
![]() | Learn how to use the oven (can be hidden under "Settings") |
![]() | Other useful programmes |
![]() | Favourite automatic programmes |
![]() | Classic cooking |
![]() | BORA multi-drawer control (only if a multi-drawer is connected) |
![]() | Maintenance programmes and filter changes |
![]() | Appliance settings |
![]() | Simple automatic programmes (function only found in guest mode – see "Settings") |
Tab. 5.5 Main menu
Manual
The target humidity and temperature as well as the cooking time can be precisely preset using two selectable views (slider or scroll wheel). The optional manual burst of steam can also be activated separately.
Temperature specifications that refer to conventional oven functions (e.g. top/bottom heat, grill) and are not available on the appliance can be adapted according to the following rules of thumb:
Temperature range of conventional ovens | Manual cooking setting |
120–140°C | 5°C lower |
140–160°C | 10°C lower |
160–180°C | 15°C lower |
180–230°C | 20°C lower |
Tab. 5.6 Conversion table
Presets
Under the "Manual" and "Classic" menu items, presets have been saved with cooking parameters that can be changed manually if necessary.
A range of presets is available such as "Crisp up rolls", "Steam vegetables", "Braise joint", etc. There is practical info on each preset.
Selecting presets
Automatic
In the case of automatic programmes, the optimal temperature, cooking time and addition of steam are preset. To guarantee the desired cooking results, starting conditions are displayed for many programmes (e.g. temperature or nature of the food). In some programmes, the suggested values for the degree of browning and done level (e.g. firm, al dente, soft) can be adjusted. Automatic programmes can be changed separately and saved under new names. Pro tips give useful advice on how to prepare the dish.
Place the food in the steam oven at room temperature. Allow frozen foods to defrost first.
High temperatures are used for some automatic programmes (up to 230°C). Unsuitable fats or oils can cause smoke to form. We therefore recommend using fats and oils with a high smoke point.
Changing automatic programmes
The values of individual cooking steps can be changed in the cooking step display.
The modified automatic programme can be saved when the programme ends.
Starting an automatic programme from a certain cooking step
Starting automatic cooking programmes later
In programmes that can be started later, the start and end time can be changed (see "First steps").
Automatic programme layout in terms of quantity (guide values)
First steps
Helpful videos with simple explanations on how to operate and handle the appliance.
End the video early:
Special
Menu item with useful special programmes such as "Keep warm", "Defrost", "Sous-vide cooking", "Drying", etc.
Favourites
Favourite automatic programmes can be saved under this menu item.
Add favourites
Go to the desired automatic programme.
Classic
With the Classic function, all conventional cooking methods can be used: roasting, baking, steaming and hot air grilling. These work by simply combining hot air and steam.
Where temperatures and times are given on food packaging, use the lowest values.
Symbol/ operating mode | Function |
![]() Hot air | The intense flow of hot air evenly browns dishes. |
![]() Bake with humidity | Water is added to the hot airflow to create a humid environment in the oven chamber; dishes do not dry out as much and remain moist |
![]() Steam | Temperature up to 100°C, maximum humidity, a particularly gentle cooking method; cooking at a lower temperature retains the natural flavourings, nutrients and vitamins |
![]() Hot air grill | Targeted removal of moist air from the oven chamber and the addition of fresh air intensively browns the food and favours the formation of cooking residues |
![]() Eco mode | Less power, therefore reduced energy consumption, only hot air, no addition of steam, longer heating-up times |
Tab. 5.7 Classic operating modes
Operating mode | Particularly suitable for... |
Hot air | Baked goods (cakes, bread, biscuits), ready meals |
Bake with humidity | Casseroles, meat and fish dishes, cheesecakes, dry cakes |
Steam | Vegetables, fish, tender meat, dumplings |
Hot air grill | Grilled meat, grilled sausages, grilled vegetables, cooking dishes au gratin |
Tab. 5.8 How to use the classic operating modes
Multi-drawer
If the appliance is installed along with a BORA multi-drawer, the latter can be controlled and operated using the X BO touch display.
Maintenance
The appliance has programmes for cleaning and drying and for changing the odour filter (see "Cleaning and maintenance").
Settings
Individual settings can be made on the appliance under this menu item.
Standard code for deactivating guest mode and the child lock: 2021
The Cooldown function quickly cools the oven chamber with water and brings it back to the desired target temperature. A Cooldown is automatically suggested when the temperature in the oven chamber is higher than the set target temperature. When setting a programme, you can choose from dry or wet Cooldown options according to the next cooking step.
The symbols in the following menus can be rearranged according to personal requirements:
How to move symbols
Using a USB stick
The latest software is available on the BORA website free of charge (www.bora.com).
A USB stick with FAT32 formatting is needed to save the update file.
Via Wi-Fi
When a new software version is available, the status message "Update available" appears in the display.
To perform an update via Wi-Fi, the appliance must be connected to the Internet.
Call up information about the Wi-Fi update
Activating the demo mode.
Deactivating the demo mode
Before deactivating demo mode, the fresh water supply must be connected and the water supply checked.
Deactivating the video sequence
The BORA JOY app is free to download from the Google Play Store™ or Apple App Store®. uInstall the BORA JOY app on your smartphone.
How to enable connectivity on the X BO
How to connect to the BORA JOY app
Connection with the BORA JOY app provides access to additional features and information. The BORA JOY app contains the exact recipes for the automatic programmes on the BORA X BO. The latter can also be conveniently controlled via the app.
Direct link to the corresponding recipe
The corresponding recipe is opened in the BORA JOY app.
Direct link to the corresponding automatic programme
Regular cleaning and maintenance ensures long service life of the product and optimal function.
Component | Cleaning interval |
Oven chamber | Quick clean/manual cleaning: as required Intensive cleaning: as required or after a certain period of use (indicator on the appliance) Drying: when there is moisture in the oven chamber |
Food thermometer | Immediately after every soiling |
Appliance front | Immediately after every soiling |
Inner door glass | Immediately after every soiling |
Food supports | After every use |
Drain filter | Immediately after every soiling |
Oven chamber seal | As required, after preparing poultry |
Odour filter | Replace yearly (indicator on appliance) |
Tab. 7.1 Cleaning intervals
The appliance should be cleaned before long periods of absence (e.g. holiday).
If the cleaning intervals are not observed, functions may be restricted.
Manual cleaning
Water must not be poured inside the oven chamber.
Maintenance programmes
The appliance is equipped with automatic cleaning programmes and a drying programme.
Quick clean
This short cleaning programme is above all suitable for a quick clean when the appliance is only slightly soiled, limescale is present or after cooking highly aromatic dishes.
Intensive cleaning
This automatic cleaning programme thoroughly cleans and descales the oven chamber with hot water and the environmentally friendly active ingredients in the X BO cleaning cartridge. When using the intensive cleaning function, the cleaning cartridge is placed in the centre of the oven rack.
Intensive cleaning should be carried out every two to four weeks, depending on how often the oven is used. A bar underneath the "Intensive cleaning" symbol shows the time remaining until the next clean is to be carried out.
An intensive cleaning cycle can only be started when the appliance has cooled to below 40°C. Wait for the oven to cool before inserting the cleaning cartridge.
The cleaning time may vary due to a number of factors (e.g. fresh water temperature, power supply).
If the power goes off during an intensive clean, an automatic rinse will be required when the appliance is restarted and the cleaning cartridge must be removed.
How to start the cleaning programme
After cleaning, the oven chamber will be dried automatically.
How to finish an intensive cleaning cycle:
Smoke and odours may be evident when heating up the appliance for the first time after cleaning.
Drying
If the oven chamber is not soiled, but merely damp from steam, the drying programme will suffice. This uses warm, dry air to remove residual moisture from the oven chamber.
X BO cleaning cartridge
The X BO cleaning cartridge with its environmentally friendly active ingredients is required for the intensive cleaning and quick clean functions on the X BO. Its dual chamber system enables the oven to be cleaned and descaled in a single cycle. The cartridge is made from a recyclate, which can be disposed of as plastic waste after use and recycled.
Detailed instructions for use are provided with the X BO cleaning cartridge upon delivery.
You can obtain the X BO cleaning cartridge XBORK from your specialist retailer or from the BORA shop via the website www.mybora.com.
Manual cleaning
Automatic cleaning
The food thermometer is also cleaned during an intensive cleaning cycle and quick clean.
Manual cleaning
Cleaning in the dishwasher
Manual cleaning
Cleaning in the dishwasher
A soiled oven chamber seal can cause leaks.
So that odours are effectively reduced, the filter must be replaced on a regular basis. A bar underneath the filter change symbol shows the time remaining until the odour filter is to be changed.
You can obtain the X BO odour filter XBOGF from your specialist retailer or the BORA shop via the website www.mybora.com.
Filter change
Activating the odour filter
After changing the filter, the new odour filter must be activated.
You can often remedy faults and errors yourself. This saves time and money as you don't need to call out customer services.
In the event of a fault, the appliance informs users via its display. Further assistance and suggested solutions can be accessed via a QR code. You can also find them at www.bora.com under "Service". This enables you to resolve most issues promptly.
Operating situation | Cause | Remedy |
Appliance cannot be switched on | Fuse/automatic circuit breaker defective | Replace the fuse; Switch the automatic circuit breaker back on |
The fuse/automatic circuit breaker trips several times | BORA Contact the Service Team. | |
The power supply is disconnected | Have a specialist electrician inspect the power supply | |
There is no water supply to the appliance | The dirt filter in the water inlet pipe is blocked | Clean the dirt filter in the water inlet pipe |
Steam escapes during use | The oven chamber seal is not in the correct place | Check that the oven chamber seal is in the correct place |
The oven chamber seal is heavily soiled | Clean the oven chamber seal | |
The oven chamber seal is damaged | Contact the BORA Service Team | |
During use, a noise (gurgling) can be heard coming from the trap | The trap is not correctly ventilated | Clean the drainage pipe, contact the pipe cleaning service |
The oven chamber lighting is not working | The oven chamber lighting is faulty | Contact the BORA Service Team |
Water is leaking from the appliance | The oven chamber seal is not in the correct place | Check that the oven chamber seal is in the correct place |
The water inlet pipe or water drainage pipe is faulty | Switch off the appliance, close the fresh water supply stop cock, turn the appliance off at the fuse box, contact the BORA Service Team | |
The pipe connection on the appliance is faulty | ||
Water is dripping into the oven chamber | Particles have caused the valve to leak | Do not disconnect the appliance from the power grid, close the fresh water supply stop cock, contact the BORA Service Team |
Tab. 8.1 Troubleshooting
Faults and errors not covered:
Fitted unit
Additional installation instructions for Australia and New Zealand (AU/NZ)
Fresh water connection
Inlet water pressure
The water inlet pressure must be at least 200 kPa (2 bar). The appliance is designed to withstand a maximum water inlet pressure of 600 kPa (6 bar). If the pressure is greater than 600 kPa (6 bar), a pressure regulator must be installed to ensure seamless operation.
Waste water connection
Scope of delivery | Quantity |

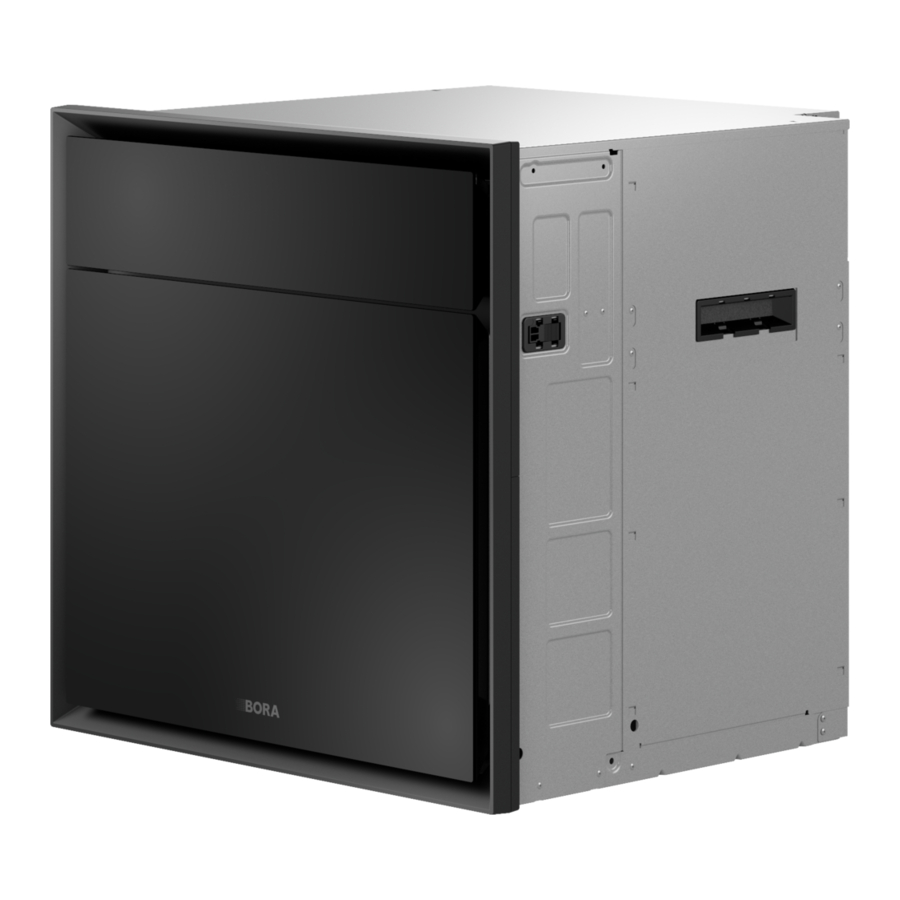

X BO steam oven | 1 |
X BO oven rack | 1 |
X BO perforated stainless steel tray | 1 |
X BO universal tray | 1 |
X BO deep universal tray | 1 |
X BO cleaning cartridge | 1 |
X BO odour filter | 1 |
X BO frame spacer (fitted) | 1 |
Water supply hose | 1 |
Water outlet hose | 1 |
Drain filter | 1 |
Hose clip | 2 |
Unit mounting plate | 2 |
Installation templates | 1 |
Operating and installation instructions | 1 |
Tab. 9.1 Scope of delivery
Checking the scope of delivery
The following tools are required to correctly install the appliance, among others:
All installation work must be carried out using hand tools. If machine tools are used, there is a risk of exceeding the tightening torque.
The minimum appliance installation depth is 565 mm. When using a 560-mm-deep standard unit, you should allow for clearance from the wall. This generally depends on the specific installation and/or the number of X BO frame spacers used.
The frame spacers can be used to vary the appliance installation depth. One frame spacer is pre-fitted upon delivery. Depending on the installation situation, it can be removed or an additional frame spacer can be fitted (available as an accessory).
For greater accessibility, the frame spacer should be fitted or removed before installing the appliance.
Installation depth without frame spacer
Installation depth with one frame spacer
Fig. 9.4 Installation dimensions with 1 frame spacer
Installation depth with 2 frame spacers
Fig. 9.5 Installation dimensions with 2 frame spacers
Removing the frame spacer
Fitting additional frame spacers
Fitting unit mounting plates
Appliance connections
Water drainage
If the waste water trap cannot be installed at least 100 mm below the waste water connection, the water drainage pipe must be installed above the hook on back of the appliance. In doing so, it must be ensured that the waste water trap is installed at least 100 mm below the water drainage pipe in the hook.
Fresh and waste water connection
Power supply
The appliances may only be connected to the mains power supply by certified specialists. The specialist also assumes responsibility for the proper installation and commissioning.
Connections via plug-in contacts (Schuko plugs) are not permitted.
Single-phase connection: the appliance complies with the requirements of IEC 61000-3-12.
This appliance is intended to be operated on a supply network with an impedance Zmax at the transfer point (mains connection) of 0.0416 ohms maximum. The user is to ensure that the appliance is only operated on a power supply network which meets this requirement. If necessary, ask the local energy supply company about the system impedance.
2-phase connection | Single-phase connection | |
Fuse protection | 2 x 16 A | 1 x 16 A |
Maximum power consumption | 6100 W | 3600 W |
Minimum cross-section | 2.5 mm2 | 2.5 mm2 |
Tab. 9.2 Fuse protection and minimum cross-section
Do not use the bridges provided.
How to connect the BORA multidrawer (optional)
If the BORA X BO is installed in conjunction with a BORA multidrawer, the two appliances can be connected.
Positioning the operating unit
Installing and securing the appliance
The oven chamber seal must not be removed; instead, it should be simply folded down at the top corners.
Fitting the odour filter
Installation must not take place without return flow apertures of ≥160 cm² in the plinth area and trim.
When the appliance is switched on for the first time, the following settings can be made:
When heating up the appliance for the first time, light smoke and odours may be evident.
Once installation is complete:
Decommissioning refers to ultimate decommissioning and disassembly. Following decommissioning, the appliance can either be installed in another unit, sold on privately or disposed of.
The electricity connection may only be disconnected and cut off by certified specialists.
To be removed, the appliance must be accessible for disassembly and disconnected from the power supply.
Disposal of transport packaging
The packaging protects the appliance from damage during transport. The packaging materials have been selected taking into account the environment and their disposal and are therefore recyclable.
Recycling the packaging saves raw materials and reduces waste. Your specialist retailer will take the packaging back.
Disposal of accessories
Dispose of unnecessary or used accessories (activated charcoal filters, etc.) accordingly taking into account the regional regulations.
The manufacturer's warranty starts as soon as the BORA product is handed over to the end customer and is valid for 2 years. Registering on www.mybora.com enables the manufacturer's warranty to be extended to 3 years.
You can contact us at:
BORA Vertriebs GmbH & Co KG, Innstraße 1, 6342 Niederndorf, Austria
BORA Service:
You can find both details on the nameplate on the warranty sheet and in the main "Settings" menu under "System and updates".
Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided.
Product information according to Commission Delegated Regulation (EU) No. 65/2014 and Regulation (EU) No. 66/2014.
Manufacturer | BORA | ||
Model identification | X BO | ||
Type of oven | Steam oven | ||
Number of oven chambers | 1 | ||
Heat source of each oven chamber | Electricity | ||
Symbol | Value | Unit | |
Appliance mass | M | 47.0 | kg |
Volume of each oven chamber | V | 53 | l |
Energy consumption | |||
Energy consumption in conventional mode | ECelectric cavity | * | kWh/cycle |
Energy consumption in fan mode | ECelectric cavity | 0.74 | kWh/cycle |
Energy efficiency index of each oven chamber | EEIcavity | 94.8 | – |
Energy efficiency class | – | A | – |
Tab. 12.1 Energy labelling
* Does not apply to this product.
Product standard | Temperature | Humidity | Time*/core temperature | Food support | Shelf guide |
Broccoli | 98°C | 100% | 9 min | Perforated stainless steel tray | Middle |
Frozen peas | 100°C | 100% | 85°C | Perforated stainless steel tray | Middle |
Tab. 13.1 Test food acc. to EN 60350-1
Product standard | Temperature | Humidity | Time*/core temperature | Food support | Shelf guide |
Apple tart (partial load) | 150°C | 40% | 90°C | Oven rack | Middle |
Apple tart (full load) | 160°C | 40% | 90°C | Oven rack | Middle and bottom |
Sponge cake | 150°C | 20% | 35 min | Oven rack | Middle |
Small cake (full load) | 150°C | 0% | 25 min. | Universal tray/deep universal tray | Middle |
Spritz cookies | 150°C | 20% | 20 min. | Universal tray | Middle |
Tab. 13.2 Test food acc. to EN 50304/EN 60350-1
* All times include the preheating time.
BORA Lüftungstechnik GmbH
Rosenheimer Str. 33
83064 Raubling
Deutschland
T +49 (0) 8035 / 9840-0
F +49 (0) 8035 / 9840-300
support@bora.com
bora.com
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Österreich
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
support@bora.com
bora.com
BORA Holding GmbH
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
support@bora.com
bora.com
BORA APAC Pty Ltd
100 Victoria Road
Drummoyne NSW 2047
Australia
T +61 2 9719 2350
F +61 2 8076 3514
info@boraapac.com.au
bora-australia.com.au
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the X BO and is the answer not in the manual?
Questions and answers
