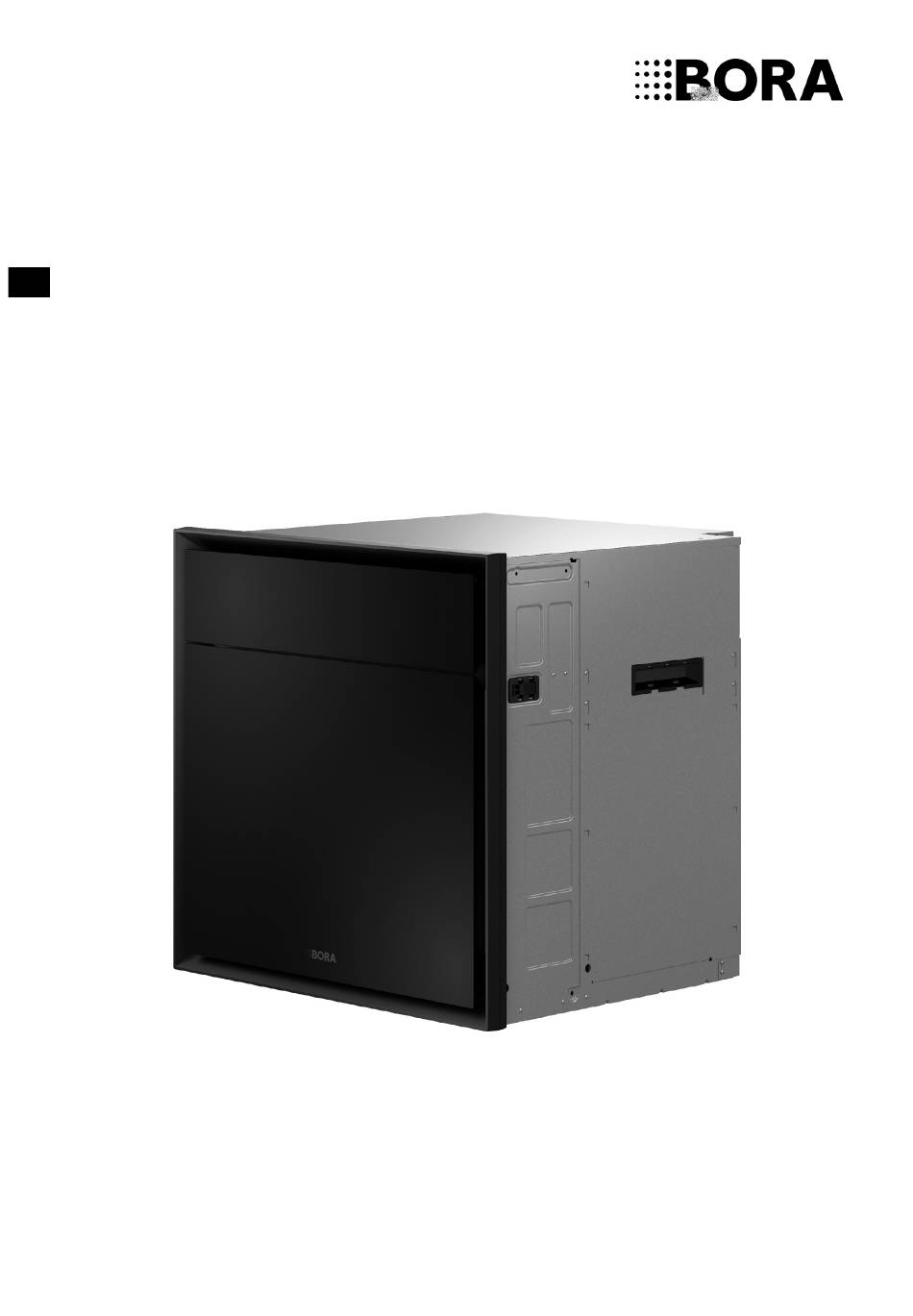

Operating and installation instructions XBO
EN
XBOUMIMEN-10006-01
bora.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X BO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for bora X BO

  • Page 1 Operating and installation instructions XBO XBOUMIMEN-10006-01 bora.com...
  • Page 2: Table Of Contents

    9.6.4 Fresh and waste water connection ......28 4.3.1 General symbols ............13 9.6.5 Power supply ............28 Opening the door .............14 9.6.6 How to connect the BORA multi-drawer (optional) ... 29 Food thermometer ...........14 9.6.7 Positioning the operating unit........29 Food supports ............14 9.6.8 Installing and securing the appliance......
  • Page 3: General Information

    The signal word indicates the severity of that risk. . BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as...
  • Page 4: Safety

    Furthermore, a damaged here is classed as unintended. surface can cause injuries. BORA does not assume any liability for damages caused by Do not touch the damaged surface. incorrect installation, improper use or incorrect operation. If there are any cracks, fissures or fractures, switch the appliance off immediately.
  • Page 5: Safety Information For Installation

    In the event of any faults or errors that are not Do not try to repair or replace damaged mentioned, switch the appliance off and contact components yourself. BORA Service. Contact the BORA Service Team. PLEASE NOTE CAUTION Appliance damage caused by pets Appliance components can cause injury if dropped Pets may damage the appliance or injure Appliance components can cause injury if you drop them.
  • Page 6: Special Safety Instructions For Using The Fresh Water Connection

    Check the information on the identification plate Do not open the door until the smoke has gone. and in the event of deviations, do not connect the appliance. Only use the connection cables supplied. bora.com...
  • Page 7 Do not touch hot surfaces. Please use suitable accessories when needed (pot holders, oven gloves). Keep children under 8 years of age away from the appliance or ensure they are supervised at all times. bora.com...
  • Page 8: Safety Instructions - Cleaning And Maintenance

    Risk of injury from hot water and cleaning Remove any oil or fat residues from the oven agents chamber before use. Opening the door during the cleaning programme may cause burns or eye irritation. Do not open the door during the cleaning programme. bora.com...
  • Page 9: Safety Instructions - Repairs, Servicing And Spare Parts

    Risk of injury or damage from improper repairs the glass. Incorrect components can lead to personal injury or Use only original BORA cleaning cartridges, as damage to the appliance. Modifications, additions or cartridges from other manufacturers can cause alterations to the appliance can lead to safety risks.
  • Page 10: Safety Instructions - Disassembly And Disposal

    ö DANGER Risk of electric shock from residual charge Electrical components in the appliance can contain residual charge and cause an electric shock. Do not touch any exposed contacts. Use the discharge adapter before starting work on the appliance. bora.com...
  • Page 11: Technical Data

    Technical data Technical data 3.1.1 Appliance dimensions X BO steam oven Parameter Value Multiphase supply voltage 380–415 V 2N Supply voltage 1-phase 220–240 V Frequency 50 Hz Maximum power consumption 6100 W 2-phase fuse protection/power 2 x 16 A supply 1-phase fuse protection/power 1 x 16 A supply Dimensions (width ×...
  • Page 12 Technical data Fig. 3.3 XBO side view Fig. 3.4 XBO glass front view bora.com...
  • Page 13: Appliance Description

    Oven chamber (made entirely of stainless steel) 4.3.1 General symbols Fan wheel [10] Oven chamber seal [11] Oven chamber temperature sensor Symbol/function Meaning [12] Food thermometer Meets BORA nutrition guidelines BORA Choice User action necessary Action Add function Plus Confirmation Tick Go to...
  • Page 14: Opening The Door

    Once the pre-opening system has been activated, the steam is Fig. 4.4 Deep universal tray extracted from the oven chamber. The door will then open. (BORA Clear View – prevents steam from escaping when the door is Perforated stainless steel tray opened).
  • Page 15: Demo Mode

    When running the cleaning programme, the oven rack is used as a support for the cleaning cartridge. Demo mode There are three demo modes to choose from with limited functions: No heat or water Water but no heat Video sequence – oven cannot be operated bora.com...
  • Page 16: Functions And Operation

    Use both hands to open the door as far as it will go. measures below can be taken to prevent warping: If you do not do this within 10 seconds of the door opening, it Preheat the X BO without the food supports. Load the food supports evenly. will close again automatically.
  • Page 17: How It Works

    BORA multi-drawer control Multi-drawer When you press the “Instructions” button, an animation will explain (only if a multi-drawer is connected) how to do certain things (e.g. inserting the BORA cleaning cartridge). Maintenance programmes and filter changes Maintenance Status messages Appliance settings Settings Shown on the top edge of the display.
  • Page 18: Automatic

    Touch “First steps” 5.8.8 Multi-drawer Touch the video. End the video early: If the appliance is installed along with a BORA multi-drawer, the latter Long press on the display. can be controlled and operated using the X BO touch display. 5.8.5 Special 5.8.9...
  • Page 19: 5.8.10 Settings

    5.12 Updating the appliance software Using a USB stick The latest software is available on the BORA website free of charge (www.bora.com). A USB stick with FAT32 formatting is needed to save the update file. Load the update file onto the USB stick.
  • Page 20: Connect

    Connect Connect Installing the app The BORA JOY app is free to download from the Google Play Store™ or Apple App Store®. Install the BORA JOY app on your smartphone. Pairing How to enable connectivity on the X BO Touch “Settings”...
  • Page 21: Cleaning And Maintenance

    Touch “Intensive cleaning” or “Quick clean” Do not use dishwasher tabs to replace the X BO cleaning cartridge. Proceed as shown when you press the “Instructions” button. Touch “Start” The appliance should be cleaned before long periods of After cleaning, the oven chamber will be dried automatically.
  • Page 22: Cleaning The Food Thermometer

    You can obtain the X BO odour filter XBOGF from your You can obtain the X BO cleaning cartridge XBORK from your specialist retailer or the BORA shop via the website specialist retailer or from the BORA shop via the website www.mybora.com.
  • Page 23: Troubleshooting

    In the event of a fault, the appliance informs users via its display. Further assistance and suggested solutions can be accessed via a QR code. You can also find them at www.bora.com under “Service”. This enables you to resolve most issues promptly.
  • Page 24: Installation

    600 kPa (6 bar). If the pressure is greater than 600 kPa (6 bar), a clearance from the wall. This generally depends on the pressure regulator must be installed to ensure seamless operation. specific installation and/or the number of X BO frame spacers used. 9.1.3...
  • Page 25: Bora X Bo Frame Spacer

    Unobstructed ventilation cross-section ≥ 160 mm² Minimum distance of 30 mm No unit back panel behind the appliance BORA X BO frame spacer The frame spacers can be used to vary the appliance installation depth. One frame spacer is pre-fitted upon delivery. Depending on the installation situation, it can be removed or an additional frame spacer can be fitted (available as an accessory).
  • Page 26: Removing The Frame Spacer

    2 frame spacers Fit the frame spacers to the inlay frame. Fig. 9.5 Installation dimensions with 2 frame spacers 9.5.1 Removing the frame spacer Remove the 4 parts of the frame spacer from the corners of the inlay frame by hand. bora.com...
  • Page 27: Installation

    Fig. 9.8 Fitting 2 frame spacers Power supply Installation Hook for water drainage pipe RJ45 connection for BORA multi-drawer (no mains connection) 9.6.1 Fitting unit mounting plates Waste water connection Fresh water connection Using the installation template and the screws provided, screw the unit mounting plates hand-tight to the inside of the installation 9.6.3...
  • Page 28: Fresh And Waste Water Connection

    The angled end must be facing downwards. If the pre-assembled hook on the back of the appliance is used, the angled end of the pipe must face upwards. The hose clip must only be attached hand-tight. Check that the hose clip is firmly in place. bora.com...
  • Page 29: How To Connect The Bora Multi-Drawer (Optional)

    Carefully push the corners of the oven chamber seal back into position. If the BORA X BO is installed in conjunction with a BORA multi- Check that the oven chamber seal is positioned correctly all the drawer, the two appliances can be connected.
  • Page 30: Ventilation

    In rare cases, there may be residues from production in the oven chamber. Clean the oven chamber by hand or using a cleaning programme without a cleaning cartridge. When heating up the appliance for the first time, light smoke and odours may be evident. bora.com...
  • Page 31: Decommissioning, Disassembly And Disposal

    Give the packaging to your specialist retailer dispose of the packaging correctly observing regional regulations. 10.3.2 Disposal of accessories Dispose of unnecessary or used accessories (activated charcoal filters, etc.) accordingly taking into account the regional regulations. bora.com...
  • Page 32: Warranty, Technical Service, Spare Parts, Accessories

    The manufacturer’s warranty applies to the BORA products listed Telephone: 00800 7890 0987 here, which are sold by authorised BORA retailers or by BORA trained Monday to Thursday from 08:00-18:00 and Friday from salespersons and are installed within the European Union (overseas...
  • Page 33: 12 Product Datasheet

    Product datasheet 12 Product datasheet Product information according to Commission Delegated Regulation (EU) No. 65/2014 and Regulation (EU) No. 66/2014. Manufacturer BORA Model identification X BO Type of oven Steam oven Number of oven chambers Heat source of each oven chamber...
  • Page 34: 13 Information For Testing Institutes

    20 % 35 min Oven rack Middle Small cake 150 °C 0 % 25 min. Universal tray/deep Middle (full load) universal tray Spritz cookies 150 °C 20 % 20 min. Universal tray Middle Tab. 13.2 Test food acc. to EN 50304/EN 60350-1 All times include the preheating time. bora.com...
  • Page 35 Notes Notes bora.com...
