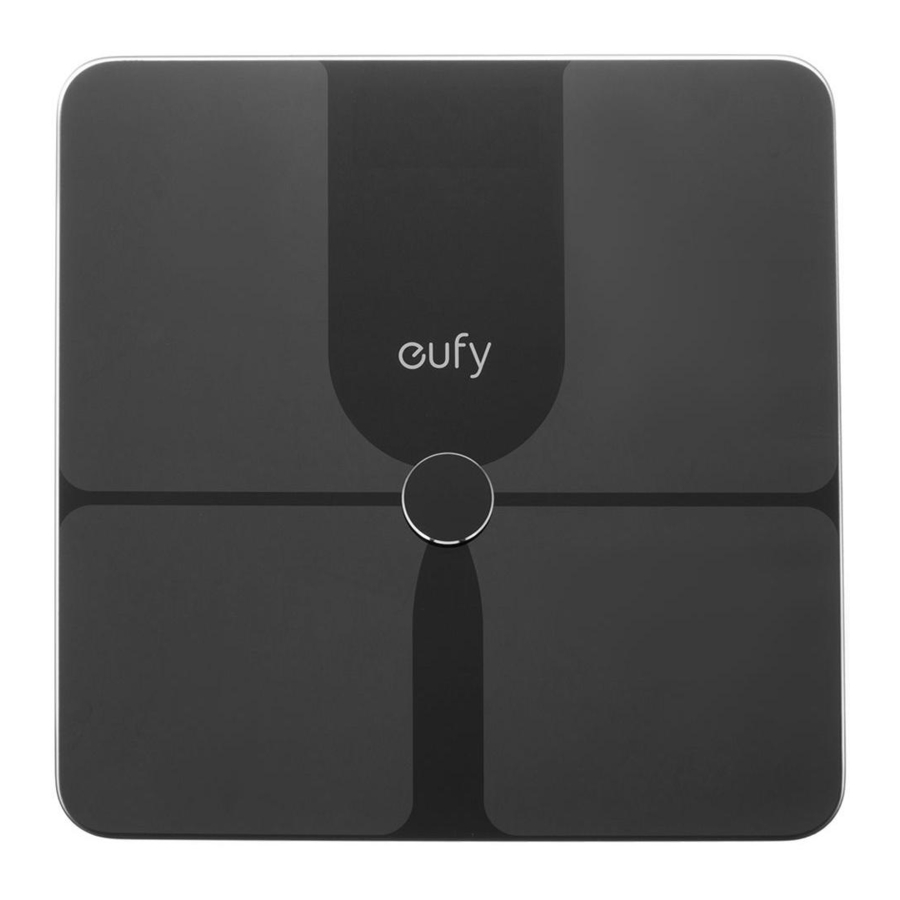

EUFY P1 (AK-848061058444) Manual

What's In the Box

Inserting the Batteries

Turn the scale over and place it on a flat surface.
Open the battery door and insert three AAA batteries. Make sure the positive and negative ends are facing the correct polarity directions marked in the battery compartment. - The digits "will show on the LED display.
Close the battery door and wait until the digits are shown on the LED display

will appear on the LED display when the batteries are low. Replace all three batteries at the same time. Do not mix new and used batteries.

Selecting the Measuring Unit

Press the UNIT button at the bottom of the scale to cycle through and select the measuring unit: lb (Pound) / kg (Kilogram). The measuring unit can be selected from within the EufyLife app as well.

Installing the EufyLife App and Pairing

Download the EufyLife app from the App Store (iOS devices)or Google Play (Android devices).
Enable Bluetooth on your smartphone or tablet.
Open the EufyLife app and follow the on-screen instructions to pair the scale with your device.

Once paired, the app and scale will automatically connect the next time

	Status Icon	Indicates
	Flashing	Pairing
	Solid	Connected

This scale is compatible with devices running iOS 9.0 and above or Android 4.4 and above.
Do not pair the scale from your smartphone's Bluetooth menu. Use the EufyLife app to pair the scale with your smartphone.

Starting a Measurement

Before taking your first measurement, you will need to create and set up a user ID in the EufyLife app.

Place the scale on a hard and flat surface.
Open the EufyLife app and select Smart Scale on the device homepage.
Step barefoot onto the scale. An analysis of your body's composition will begin automatically.

Step barefoot onto the center of the scale. Stand still and keep full contact with the electrodes until the measurements complete.

Weight-Only Measurement

This scale can also be used as a conventional weight-reading scale.

To measure your current weight, you can

step on the scale wearing your shoes; or
select the weight-only measuring mode in the EufyLife app.

Maintenance

Regularly clean the scale with a dry or slightly dampened soft cloth.

warning

Do not wash the scale with water or immerse it in water.
Never use detergents to clean the scale as this may cause it to malfunction or discolor.

Troubleshooting

Error Message

Error Display	Description	Solution
	Overload. The device will power off.	Stop using this scale or measurement.
	Low battery. The device will power off.	Replace all three batteries at the same time.
	Measurement failure.	Step barefoot and keep full contact with the electrodes. Stand still until the measurement on he LED display locks.

When Measuring

Issue	Cause	Solution
Abnormal measurement results: Too high Too low Huge difference between two recent measurements	Incorrect posture. Device is placed on soft carpeting or uneven surface.	Step onto the scale barefoot and stand still. Place the device on a hard and flat surface.
LED display does not turn on after stepping onto the scale.	Batteries not installed. Worn batteries.	Install three batteries Replace all three batteries at the same time.
Scale does not proceed to analyse body composition.	Taking a measurement while wearing shoes or socks.	Stand barefoot on the scale and keep feet in full contact with the electrodes when taking a measurement.
Scale does not proceed to analyse body composition.	Using the weight-only measuring mode in the EufyLife app.	Change the measuring mode in the EufyLife app.

Specifications

Power Source	4.5V (3xAAA batteries)
LED Display	2.6 x 1.2 in/ 67 x 29 mm
Measurement Units	Pound/ Kilogram
Unit Increments	0.1 lb/ 0.1 kg
Body Fat Unit Increments	0.1 %
Body Water Unit Increments	0.1 %
Muscle Mass Unit Increments	0.1 %
Measurement Range	11-397 lb / 5-180 kg
Working Environment	Temperature: 5 - 40C Humidity: 20-90%RH
Storage Environment	Temperature: -20 - 50C Humidity: 90% RH
Operating Frequency Range	2402 - 2480 MHz
Radio-frequency Power	4 dBm
Dimension	11.0 x 11.0 x 0.9 in/280 x 280 x 24 mm
Net Weight	3.31 lb/ 1. 5 kg
