eMeet Meeting Capsule Manual
![]()

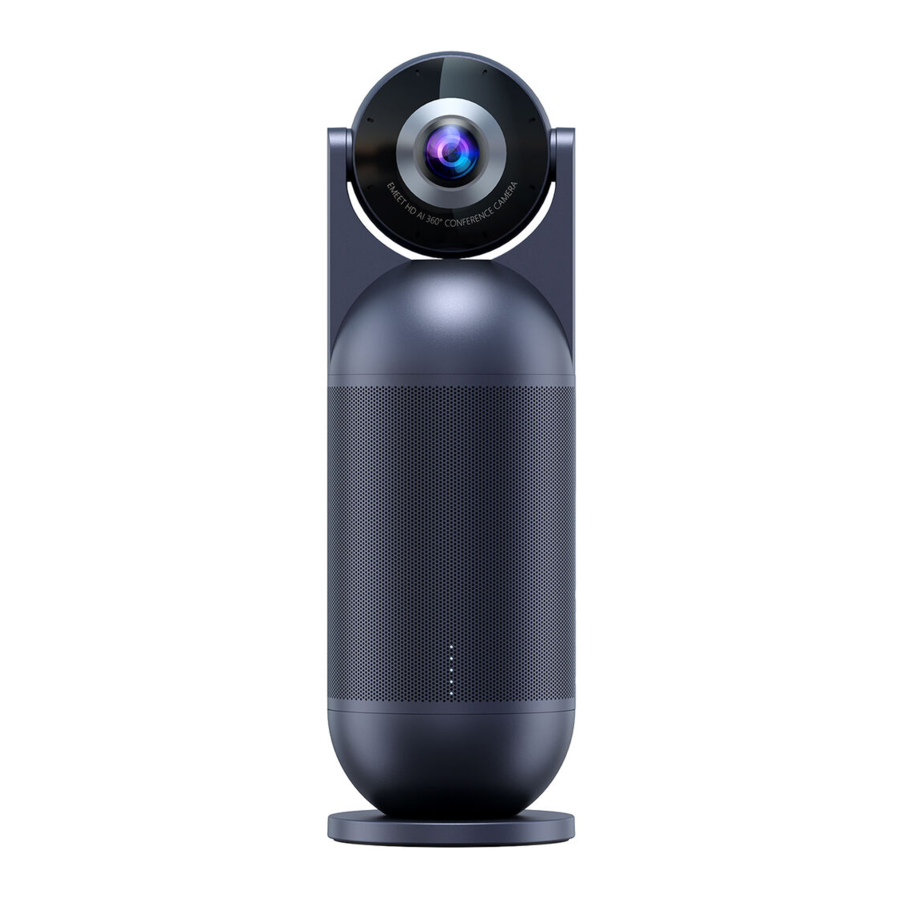

Product Description
![eMeet - Meeting Capsule - Product Description Product Description]()
- HD lens
- 8 Mics array
- 5 x LED indicators
- 1/4 Tapped hole
![eMeet - Meeting Capsule - Buttons - Part 1 Buttons - Part 1]()
- Mode button
- InPrivate button
- Mic mute button
- USB Out
- 3.5mm Link port
- 12V DC power input
- LOCK port
![eMeet - Meeting Capsule - Buttons - Part 2 Buttons - Part 2]()
Fast connection
- Connect the host to the power adapter. The host will automatically start after it is energized.
- Connect the USB cable to the computer and the host (USB Out).
- When you use this product for the first time, you can select the microphone, speakerand webcam named EMEET Meeting Capsule from the video conferencing software, without having to install any drivers.
- After the meeting, the host can enter the InPrivate mode and standby state.
Indicators
Startup | 5 indicators on from bottom to top | ![]() |
Full working status | 5 indicators on, steady blue | ![]() |
InPrivate status | 5 indicators on, steady red | ![]() |
MIC Mute | 5 indicators on, steady red | ![]() |
Volume change | flashing blue | ![]() |
Functions of remote control
Introduction
![]()
- Indicators
- MIC mute button
- Up, down, left, right
- Mode button
- Sensitivity adjusting button
- InPrivate button
- Camera on/off button
- Zoom button
- Close the Panorama frame button
Remote control pairing
Remote Control has completed the bluetooth pairing before shipment, no need to pair again.
Repairing process: Long press the Zoom and Microphone Mute buttons of Remote Control at the same time, LED indicators on the top of Remote Control turns to flash red and blue alternately, meaning it is ready for automatical bluetooth pairing. And the pairing is succeeded once LED indicator stops flashing.
![eMeet - Meeting Capsule - Functions of remote control - Remote control pairing Functions of remote control - Remote control pairing]()
Note:
- During remote control pairing, turn off the non-target device if there are multiple hosts.
- After being paired with the host, the remote-control indicator will be off and the host will generate a prompt sound.
- The remote control will be disconnected when the host enters sleep mode.
- The remote control requires two AAA batteries.
- If the remote control does not work properly, replace both batteries with new ones. Don't use a new battery together with an original one.
Screen adjustment
- Screen adjustment takes effect only after zooming in Classic mode.
![eMeet - Meeting Capsule - Screen adjustment - Step 1 Screen adjustment - Step 1]()
After zooming, the direction buttons can adjust the display position
![eMeet - Meeting Capsule - Screen adjustment - Step 2 Screen adjustment - Step 2]()
- In Speech mode, you can press the left and right buttons to adjust the display position.
Precautions
- Please read these instructions before using and operating the device. Please pay attention to all warnings.
- Do not use this device in a dusty, wet or dirty place. Otherwise, a circuit failure may be caused.
- Do not use this device near heat sources such as radiators, electric heaters, and furnaces.
- Do not disassemble the device or modify accessories without permission. All repair works should be carried out by qualified personnel. When the device is damaged in any form, professional repair is required.
- This product is not a toy, and you are solely responsible for compliance with all local laws, regulations and restrictions.
- Do not use EMEET Meeting Capsule for unauthorized surveillance, surreptitious filming, or in any manner that violates personal privacy regulations. Under general circumstances, it is strictly forbidden to use the webcam for these purposes. The operator could bear heavy responsibilities and face criminal prosecution.
Security Statement
![]()
For safety reasons, EMEET Meeting Capsule should only be used with genuine EMEET accessories that are included or purchased separately. The use of any other parts, accessories or adapters not recommended by EMEET may result in fire, electric shock, personal injury, or death. Damages caused by the use of unauthorized accessories are not covered by the warranty.
For more detailed instructions, please visit the following URL:
![]()
https://emeet.com/pages/meeting-capsule-faq
