Cisco Meraki Z3 Manual

Z3 Installation Guide

Please note that this document has been deprecated in favor of the following replacement document: https://documentation.meraki.com/Mer...allation_Guide

Overview

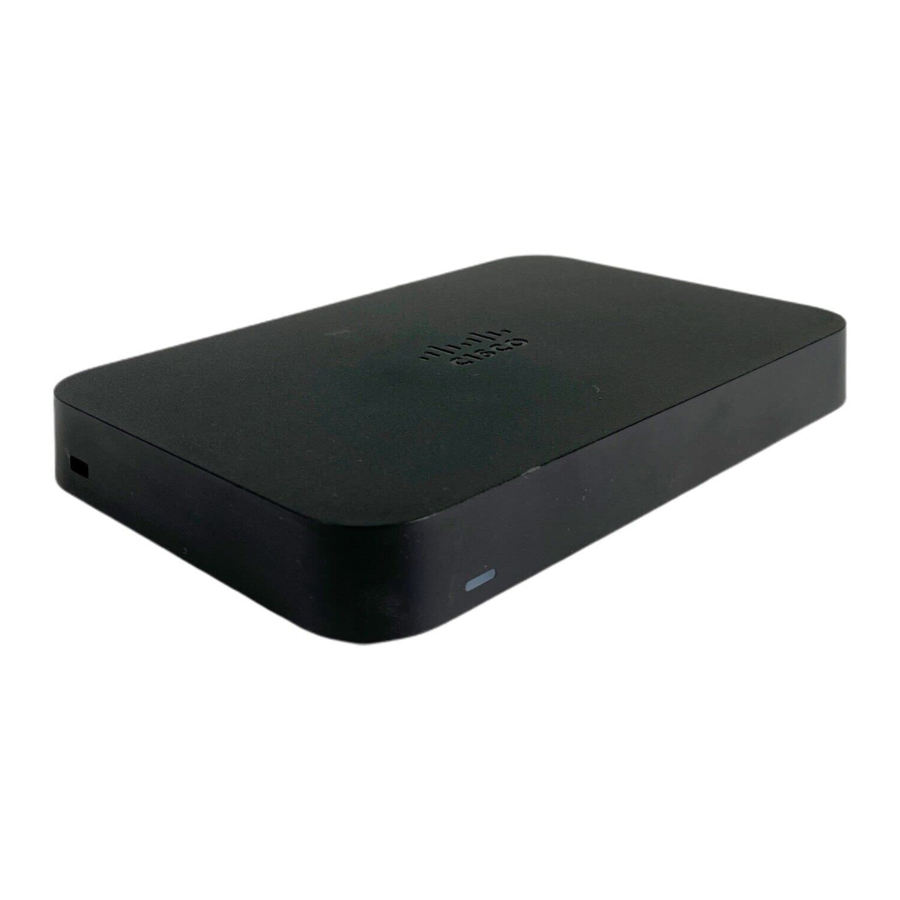

The Meraki Z3 is 802.11a/b/g/n/ac Wireless Security Appliance designed for telecommuting employees and IT staff. It is also a great all-in-one device to test the capabilities of Meraki's cloud-managed networking. This gateway provides the following features:

• Support for four LAN connections
• Dual-concurrent 802.11ac radios for wireless connections
• Wall screws and anchors for mounting to a drywall surface, either vertically or horizontally

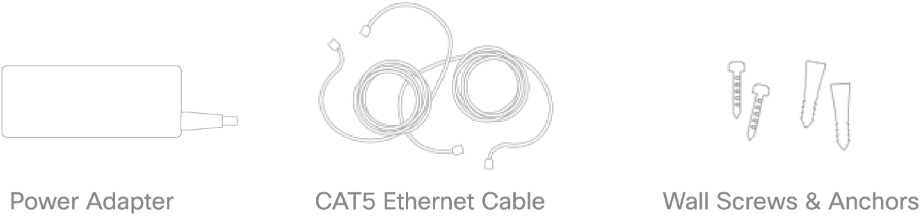

Package contents

In addition to the Z3, the following are provided:

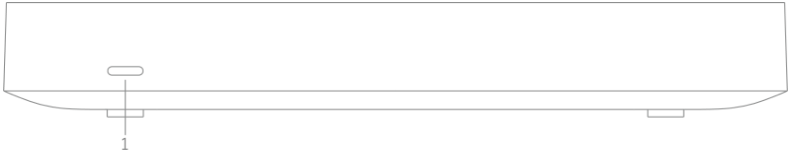

The Z3 Front Panel

1. Single LED Indicator

Status Indicator

The Z3 uses a single LED to inform the user of the device's status.

The Z3 Back Panel

Additional functions on the back panel are described below, from left to right.

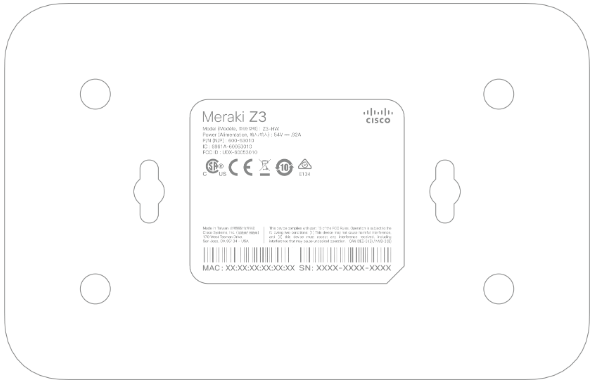

The Z3 Bottom Panel

Please note that the serial number is located on the product label on the bottom panel of the Z3

Mounting Hardware

The supplied wall screws and anchors allow you to mount the gateway on a drywall surface, either vertically or horizontally.

• For mounting on drywall, use a ¼-in drill bit, then insert the plastic and screw assemblies.
• For mounting on wood or a similar surface, use only the screws.
• Allow the heads of the screws to stick out far enough to be inserted securely into the back of the gateway.

Connecting to WAN

Note: Z3 has One dedicated WAN/Internet port and does not support a secondary WAN port by toggling a LAN port.

All Meraki Z3 devices must have an IP address. This section describes how to configure your local area network before you deploy it. A local management web service, running on the gateway, is accessed through a browser running on a client PC. This web service is used for configuring and monitoring basic ISP/WAN connectivity.

Setting up a Static IP Address

Note: To ensure that the client PC is redirected to the local web service in the following step, you must disable all other network services (ex: Wi-Fi) on your client machine.

Do the following to configure basic connectivity and other networking parameters:

1. Using a client machine such as a laptop, connect to one of the four LAN ports of the Z3.
2. Using a browser on the client machine, access the gateway's built-in web service by browsing to http://setup.meraki.com. (You do not have to be connected to the Internet to reach this address)
3. Click Uplink configuration under the Local status tab. The default credentials use the device serial number as the username, with a blank password field.
4. Choose Static for the IP Assignment option.
5. Enter the IP address, subnet mask, default gateway IP and DNS server information.

Setting up a DHCP IP Address

By default, all Z3 devices are configured to DHCP from upstream WAN / ISP servers. Simply plug the Z3's WAN / Internet port to your upstream circuit and wait a few minutes for the unit to negotiate a DHCP address. If your Z3 device was configured to have a static address (and not attempt to negotiate DHCP), you can hold the reset button while the device is powered until the lights on the device turn off. Doing so will return the Z3 device to its default DHCP settings.

Note: When the WAN connection is fully enabled, the device's front LED will be solid white.

Additional Settings

Setting VLANs

If your WAN uplink is on a trunk port, choose VLAN tagging > Use VLAN tagging and enter the appropriate value for VLAN ID for your network.

Setting PPPoE

PPPoE authentication may be required if you are connecting Z3 device to a DSL circuit. You need to know your authentication option and credentials (supplied by your ISP) in order to complete these steps.

• Choose Connection Type > PPPoE.
• Select your Authentication option.
• If you select Use authentication, enter appropriate values for Username and Password.

Web Proxy Settings

These settings take effect if the Z3 device has to fall back to using HTTP to contact the Cloud Controller. By default, web proxy is disabled. To enable web proxy, do the following:

• Choose Web proxy > Yes.
• Enter values as appropriate for Hostname or IP and Port.
• If you require authentication, choose Authentication > Use authentication, and enter appropriate values for Username and Password.

To apply all configuration settings to the gateway, be sure to click Save Settings at the bottom of the page.

Configuring Physical Link Settings

To configure physical link settings on the Ethernet ports, click Local status > Ethernet configuration. You can enable half duplex, full duplex, and autonegotiation, as well as set 10- or 100-Mbps data rates.

Power Efficiency Modes

The Meraki Z3 Teleworker Appliance has an off mode and a networked standby or efficient idle mode, both with power consumption less than 12W.
In off mode, the power consumption is a measured 0.3W. In the networked standby or efficient idle mode, the power consumption is under that of full operation mode, which is a measured 6.6W. This mode is initiated after treating the last payload packets.
To activate and/or deactivate wireless network ports, you may use the physical on/off switch or deactivate through the Meraki Dashboard.
