VITO VS, VM, VL Manual

Product

Product description

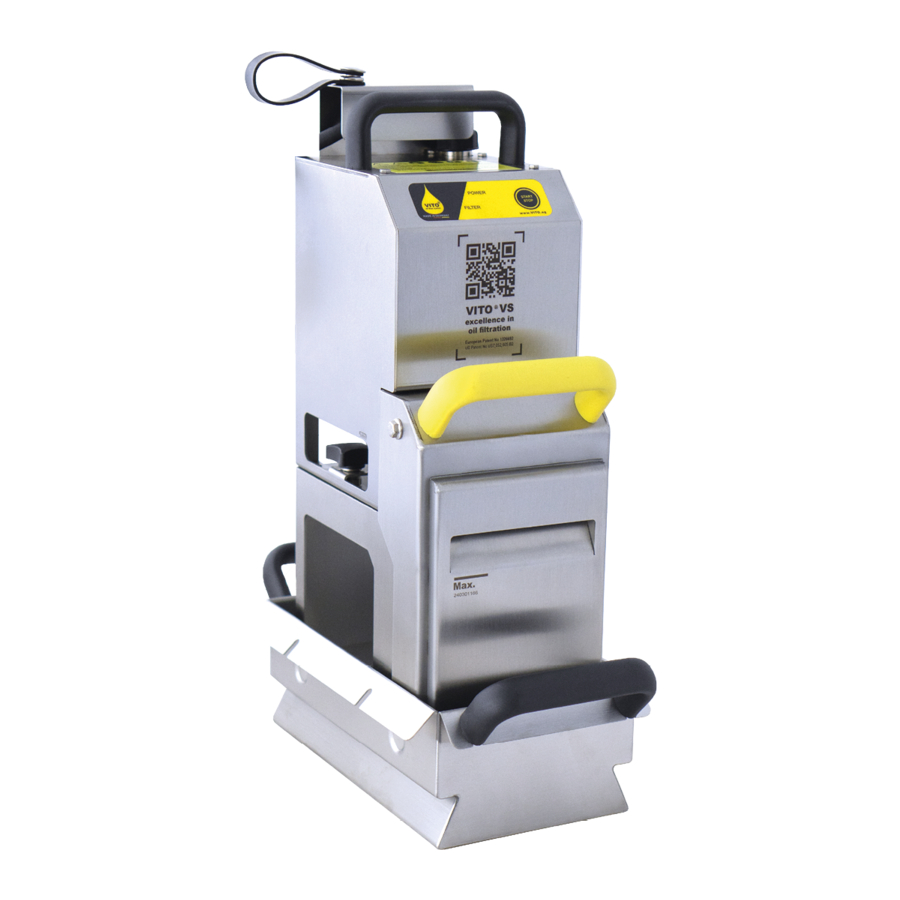

1. Power indicator (red LED)
2. Filter indicator (green LED)
3. WiFi indicator (pink LED) (only VL)
4. BT indicator (blue LED) (only VL)
5. Start / Stop button
6. Drip pan
7. Star handles (2 pcs.)
8. Control unit
9. Handle
10. Power cord
11. Pump-filter unit
12. Ventilation slots (only VM & VL)
13. Cable protection
14. Cable holder
15. Control panel foil
16. Type label

Scope of delivery

• VITO oil filter system
• User manual
• Short instruction
• Particle filter (11 pcs.)
  (one is already inserted)
• Drip pan

Safety functions

Tilt and vibration protection

(only VM & VL)
If VITO is placed inclined more than 17°, tilts or vibrates too much due to a defect or incorrect placement, VITO will immediately stops off the filtration. The power indicator (1) and the filter indicator (2) flash and a repeating acoustic signal sounds.

Acoustic signal

(only VM & VL)
After the boot-up, a short acoustic signal sounds. VITO is then ready for operation. At the end of each filtration cycle, an acoustic signal sounds for 5 seconds. The acoustic signal can be deactivated (see chapter Getting started).

Overtemperature

In case of overheating (control unit >75°C / 167°F), VITO stops the filtration process.
The power indicator (1) flashes and VITO emits an acoustic signal.
Remove VITO from the fryer and store it (see chapter Storage / cooling time).

Getting started

Filtration time

The factory setting of the filtration time is 4 min. 30 sec.
VM & VL: Up to 16 filtration cycles are possible directly one after the other.
VS: Up to 3 filtration cycles are possible directly one after the other.

Active cooling

(only VM & VL)
VITO has active cooling. The active cooling is temperature-dependent and switches itself on automatically. After the boot-up, a function check is carried out.

Checking the factory settings

1. Press and hold the Start / Stop button (5).
2. Plug in the power cord (10). Meanwhile, hold the Start / Stop button (5).
3. Hold the Start / Stop button (5) for 5 seconds.
4. Release the Start /Stop button (5).
5. The programmed filtration cycle time is indicated by the flashing of the LEDs.
6. The power indicator (1) shows 1 minute per flash.
7. The filter indicator (2) shows 30 seconds per flash.
   e.g.: 4x red = 4 min.
   1x green = 30 sec.
   = filtration time: 4 min. 30 sec.

Offline programming

Adjusting the filtration time

To set the filtration time, follow the steps in chapter Checking the factory settings, then:

1. Press Start / Stop button (5) immediately after the filtration time is displayed.
2. Press Start / Stop button (5) to extend the filtration time by 30 seconds (starts at 0 sec.). (e.g. press 3x for 1 min 30 sec. etc.)
3. When the desired filtration cycle time has been set, wait until the filter indicator (2) lights up briefly and an acoustic signal sounds.
4. Unplug the power cord (10).

Turning the acoustic signal on/off

To adjust the volume of the signal, follow the instructions in chapter Checking the factory settings, then:

1. Wait until the filter indicator (2) lights up briefly and a short acoustic signal sounds.
2. Press Start / Stop button (5) to adjust the signal.
3. The LEDs show the status:
   Power indicator (1) = Sound off
   Power indicator (1) + filter indicator (2) = Sound on
4. When the desired setting has been made, wait until the filter indicator (2) lights up briefly and a acoustic signal is audible.
5. Unplug the power cord (10).

Online programming

(only VM & VL)
VITO offers the option to set the filtration time, the acoustic signal and the network connection online, using a smartphone, tablet or PC.

1. Plug in the VITO.
2. Open the WiFi settings of your device (tablet, smartphone or PC).
3. Search for the network "VITO Config + Serial number". The serial number (SN) of the VITO can be found on the type label (16).
4. Connect to the network.
5. Enter password: 12345789. WiFi indicator (3) flashes (only VL).
6. Open the web browser.
7. Enter IP address 10.10.10.10
8. Tap on VITO drop.
9. Log in with:
   User name: user
   Password: Vito2k18
10. If necessary, change language by clicking on EN, DE, etc.

Adjusting the filtration time

To adjust the filtration time, follow the instructions of chapter Online programming, then:

1. Select the desired filtration duration.
2. Click on "Save". Filter indicator (2) lights up briefly and an acoustic signal sounds.

Turning the acoustic signal on/off

To set the volume of the signal, follow the instructions in Chapter Online programming, then:

1. Select under the menu "Buzzer", whether the acoustic signal should be activated or deactivated. Filter indicator (2) lights up briefly and an acoustic signal sounds.

Internet connection

(only VM & VL)
To use VITO connect to the full extent, VITO requires an internet connection. You need a sufficiently strong 2.4GHz WiFi.
To connect VITO to your network, follow the instructions in chapter Online programming, then:

1. Click on "WiFi configuration".
2. Select network.
3. Enter the network password. (If you do not have set a network password, leave this field blank).
4. Check network password by clicking on "Show password".
5. Click on "Save". VITO will now check the network and internet connection.


VITO only collects and sends machine usage data. No personal data is collected or sent.
On https://connect.vito.ag you get an online overview of your machine usage data, services and updates.

QR-Code

Scan the QR code on the control unit (8) to easily access a website with useful information and numerous tips about your VITO.

Filtration process

Preparing for filtration

1. Lift VITO out of the drip pan (6).
2. Insert the filter paper into the pump-filter unit (11) (see chapter Changing the filter paper).
3. Close the filter cover. Snap the filter cover into the bottom of the pump-filter unit (11).
4. Place the control unit (8) on the pump-filter unit (11).
5. Make sure that there is no gap between the control unit (8) and the pump-filter unit (11). This indicates that the filter cover has not been closed properly and snapped.
6. Tighten the star handles (7).

There must be no gap between the control unit (8) and the pump-filter unit (11).

Starting the filtration

1. Place the VITO in the deep fryer.
2. Ensure that VITO stands firmly.
3. Check the frying oil level (take care of MIN and MAX levels).
4. Plug in the power cord (10).
   Power indicator (1) lights up.
5. Press Start / Stop button (5).
   The filter indicator (2) lights up during filtration.

Stopping filtration prematurely

1. Press the Start / Stop button (5).
   The filter indicator (2) shuts off.
2. Lift VITO and let residual oil flow into the fryer.
3. Store VITO in the drip pan (6) (see chapter Storage / cooling time).

Storage / cooling time

• Place VITO in the drip pan (6) after use or for transport.
• Permissible storage temperature +10°C to +30°C / +50°F to +86°F.

Cooling phases:

• VL, VM & VS: Up to 2.5 hours when power cord (10) is unplugged.
• VL & VM: Approx. 15min. when power cord (10) is plugged in (see chapter Active cooling)

Changing the filter paper

Change the filter paper as needed. The change depend on the use of VITO and the degree of contamination of the frying oil.
Up to max. 10 filtrations can be achieved with one particle filter.

Cleaning

Notes

• Clean the pump-filter unit (11) every time the filter paper is changed.
• Clean VITO only when it is cooled down.
• DO NOT use abrasive cleaners.
• DO NOT use a wire brush or similar.

Preparing for cleaning

1. Make sure that VITO has cooled down.
2. Loosen the star handles (7) (on both sides).
3. Detach the control unit (8) from the pump-filter unit (11).
4. Open the pump-filter unit (11).
5. Remove and dispose of the filter paper (see chapter Filter disposal).
6. Manual cleaning or cleaning with the dishwasher

Manual Cleaning

1. Clean the control unit (8) with a damp cloth!
   DO NOT use running water! This will damage the control unit!
2. Wash the pump-filter unit (11) and the drip tray (6).
3. Dry VITO.

Cleaning with the dishwasher

1. Clean the control unit (8) only with a damp cloth!
   NEVER put the control unit (8) in the dishwasher! This will damage the unit.
2. Put the pump-filter unit (11) and the drip tray (6) into the dishwasher.
   Hint: Do not open the filter cover completely. This allows the water to circulate better.
3. Start the cleaning program.

Do not open the filter cover completely.

Only put the pump-filter unit (11) and the drip tray (6) in the dishwasher.

Boil out

If the pump-filter unit (11) is heavily soiled, deep clean it with water and soap or deep fryer cleaner. Regular boil outs are recommended for optimal cleaning and maintenance results.

Trouble shooting

If you find any faults not listed here, please contact the VITO customer service or your dealer! Contact details can be found at the end of this manual.

Technical data

Safety instructions

Explanation of symbols

Incorrect operation of the VITO can lead to danger and injury. The following should be observed. Possible dangers are marked with these symbols:

	Warning Risk of injury if not observed		Risk of electric shock due to incorrect handling or opening of the housing
	Risk of slipping Contamination on the floor possible		Caution Important safety instruction
	Danger of burnings due to incorrect operation of VITO		Operation instructions Information on the operation of VITO

Safety instructions

• VITO is NOT approved for filtration of liquids other than frying oil.
• DO NOT use or store VITO outdoors! Damage due to rain or moisture.
• VITO is NOT designed for continuous operation! (Risk of overheating/fire).
• Children are strictly prohibited from using VITO!
• DO not cover the ventilation slots (12)!
• DO NOT touch the power cord (10) and control unit (8) with wet hands!
• DO NOT pinch or bend the power cord (10)!
• Avoid the power cord (10) to come into contact with hot oil or other hot objects.
• Operate VITO only on protection class I connections (with protective earth contact).
• Clean VITO before initial use (see chapter Cleaning).
• The local voltage must match the voltage on the type plate (16).
• The maximum operating temperature is 200°C / 392°F (recommended frying temperature 175°C / 347°F).
• DO NOT run the pump-filter unit (11) while dry!
• Pay attention to heating elements, grids or thermal sensors of the deep fryer!
• Carry VITO only using the black handles (9)!
• DO NOT operate the VITO in an inclined position!
• DO NOT move VITO during filtration!

Intended use

• VITO is designed for commercial use in the hospitality industry.
• Observe the safety instructions. Filtration is only possible when the oil is liquid.
• VITO should only be used by appropriately trained personnel.
• VITO is only designed for intermittent operation.

No liability will be accepted for improper use!

VITO AG
Eltastrasse 6
78532 Tuttlingen (Germany)
Phone: +49 (0) 7461 / 96289-0
Fax: +49 (0) 7461 / 96289-12
info@vito.ag
www.vito.ag
