HMD 110 Manual

About this user guide

For important information on the safe use of your device and baery, read "Product and safety information" before you take the device into use. To find out how to get started with your new device, read the user guide.

Get started

KEYS AND PARTS

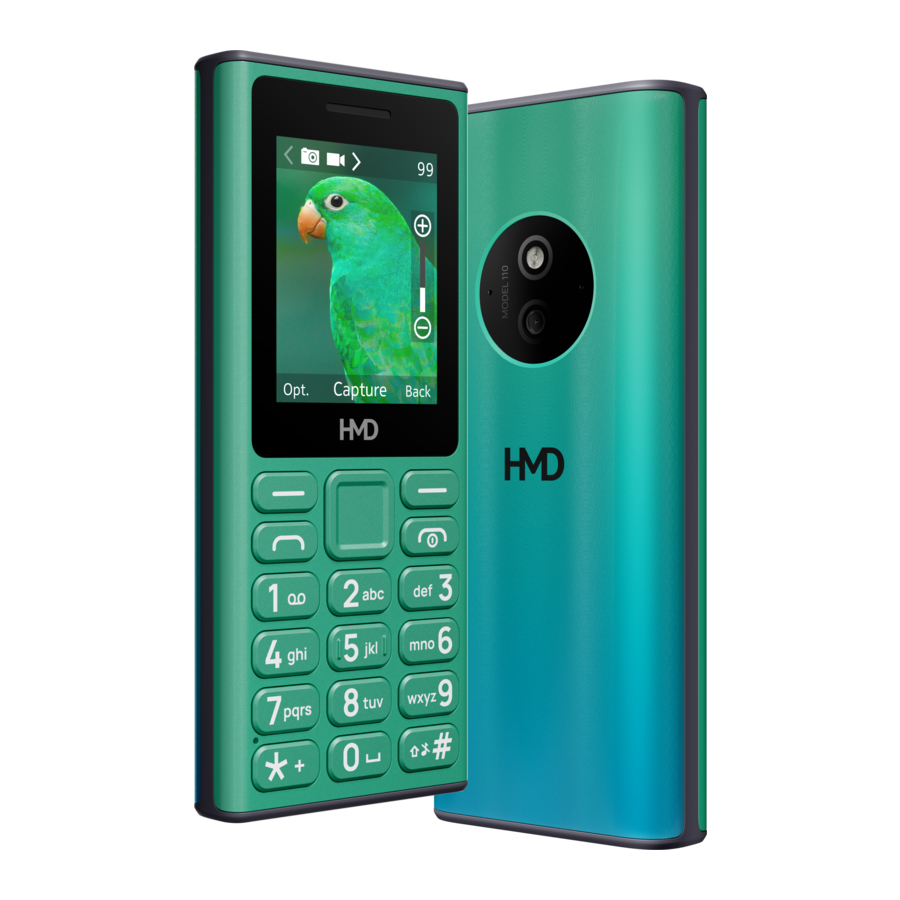

Your phone

This user guide applies to the following models: TA-1634 and TA-1639.

1. Scroll key
2. Call key
3. Left selection key
4. Earpiece/Loudspeaker
5. Right selection key
6. Power/End key

Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.
Note: You can set the phone to ask for a security code to protect your privacy and personal data. Select Menu > > Security > Keyguard > Security code. Make up a code with 5-8 digits, and select OK > On. Note, however, that you need to remember the code, as HMD Global is not able to open or bypass it.

Parts and connectors, magnetism
Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special aention to volume levels.
Parts of the device are magnetic. Metallic materials may be aracted to the device. Do not place credit cards or other magnetic stripe cards near the device for extended periods of time, since the cards may be damaged.

SETUP AND SWITCH ON YOUR PHONE
Note: Pre-installed system software and apps use a significant part of memory space.

Mini SIM


This device is designed to be used with a mini SIM card only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card.
Note: Switch the device o and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers aached.

Open the back cover

1. Put your fingernail in the small slot on the side of the phone, lift and remove the cover.
2. If the baery is in the phone, lift it out.

Insert the SIM card

1. Put your fingernail in the small slot on the side of the phone, lift and remove the cover.
2. If the battery is in the phone, lift it out.
3. Slide the SIM card in the SIM card slot with the contact area face down.

Tip: To find out if your phone can use 2 SIM cards, see the label on the sales box. If there are 2 IMEI codes on the label, you have a dual-SIM phone.

Insert the memory card

1. Slide the memory card in the memory card slot.
2. Put back the baery.
3. Put back the back cover.

Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.

Do not remove the memory card when an app is using it. Doing so may damage the memory card and the device and corrupt data stored on the card.
Tip: Use a fast, up to 32 GB microSD memory card from a well-known manufacturer.
Note: Pre-installed system software and apps use a significant part of memory space.

Switch on your phone
Press and hold .

CHARGE YOUR PHONE
Your baery has been partially charged at the factory, but you may need to recharge it before you can use your phone.

Charge the battery

1. Plug the charger into a wall outlet.
2. Connect the charger to the phone. When done, unplug the charger from the phone, then from the wall outlet.
   If the baery is completely discharged, it may take several minutes before the charging indicator is displayed.
   Tip: You can use USB charging when a wall outlet is not available. The eiciency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning.

KEYPAD
Use the phone keys

• To see the apps and features of your phone, on the home screen, select Menu.
• To go to an app or feature, press the scroll key up, down, left, or right. To open the app or feature, press the scroll key.
• To go back to the home screen, press the end key.
• To change the volume of your phone during a call or when listening to the radio, scroll left or right.

Lock the keypad
To avoid accidentally pressing the keys, lock the keypad: select Go to > Lock keypad. To unlock the keypad, press the end key and select Unlock.

Write with the keypad
Press a key repeatedly until the leer is shown.
To type in a space press the 0 key.
To type in a special character or punctuation mark, press the asterisk key, or if you are using predictive text, press and hold the # key.
To switch between character cases or type in a number, press the # key repeatedly.

Calls, contacts, and messages

CALLS
Make a call
Learn how to make a call with your new phone.

1. Type in the phone number. To type in the + character, used for international calls, press * twice.
2. Press the call key. If asked, select which SIM to use.
3. To end the call, press the end key.

Answer a call
Press .

CONTACTS
Add a contact

1. Select Menu > > Add contact.
2. Select where to save the contact.
3. Write the name, and type in the number.
4. Select OK.

Save a contact from call log

1. Select Menu > > Missed calls, Received calls, or Dialled numbers, depending on from where you want to save the contact.
2. Scroll to the number you want to save, select Opt. > Save, and select where you want to save the contact.
3. Add the contact's name, check that the phone number is correct, and select OK.

Call a contact
You can call a contact directly from the contacts list.

1. Select Menu > .
2. Select Names and scroll to the contact you want to call.
3. Press the call key.

SEND MESSAGES
Write and send messages

1. Select Menu > > Create message.
2. Write your message.
3. Select Opt. > Send. If asked, select which SIM to use.
4. Type in a phone number, or select Search and a recipient from your contacts list.

Personalize your phone

CHANGE TONES
Set new tones

1. Select Menu > > Tone seings.
2. Select which tone you want to change and select for which SIM card you want to change it, if asked.
3. Scroll to the tone that you want and select OK.

CHANGE THE LOOKOF YOUR HOME SCREEN
Choose a new wallpaper
You can change the background of your home screen.

1. Select Menu > > Display seings > Wallpaper.
2. Select the wallpaper you want.
3. Select how you want to position the wallpaper on the home screen.

Show date and time
You can select to see date and time on the home screen of your phone.
Select Menu > > Time seings > Display of time and date > Show clock.
If you want your phone to update the time automatically, set Auto-update of date and time on. You may need to restart your phone for this seing to work.
Tip: You can also set your phone to show the time even in the idle mode. Select Menu > > Display seings > Standby screen > On.

PROFILES
Personalize profiles
There are several profiles that you can use in dierent situations. There is, for example, a silent profile for when you cannot have sounds on, and a loud profile for noisy environments. You can personalize profiles further.

1. Select Menu > > Profiles.
2. Select a profile and Personalise.
   For each profile you can set a specific ringtone, ringtone volume, message sounds and so on.

ADD SHORTCUTS
You can add shortcuts to dierent apps and seings on your home screen.

Edit Go to seings
On the boom left of your home screen is Go to, which contains shortcuts to various apps and seings. Select the shortcuts that are the handiest for you.

1. Select Menu > > Go to seings > Select options.
2. Scroll to each shortcut you want to have on the Go to list and select Mark.
3. Select Done > Yes to save the changes.

You can also reorganize your Go to list.

1. Select Organise.
2. Scroll to the item you want to move, select Move and where you want to move it.
3. Select Back > OK to save the changes.

Camera

PHOTOS AND VIDEOS
Take a photo

1. Select Menu > Camera.
2. To zoom in or out, scroll up or down.
3. To take a photo, press the scroll key.

To see the photo you just took, select New > Opt. > View photos > Captured photos.
To view all photos, on the home screen, select Menu > Photos.
Keep a safe distance when using the flash. Do not use the flash on people or animals at close range. Do not cover the flash while taking a photo.

Record a video

1. To switch the video camera on, select Menu > Camera > Opt. > Video camera.
2. To start recording, press the scroll key.
3. To zoom in or out, scroll right or left.
4. To stop recording, press the scroll key.

To see the video you just recorded, on the home screen, select Menu > Videos.

Clock, calendar, and calculator

SET THE TIME AND DATE MANUALLY
Change the time and date

1. Select Menu > Seings > Time seings.
2. Select Auto-update of date and time > O.
3. Select Clock > Set the time, enter the time > Ok.
4. Select Date seing, enter the date > Ok.

ALARM CLOCK
Set an alarm

1. Select Menu > > Set alarms.
2. Select an alarm and use the scroll key to set the time.
3. Select OK.

If you want the alarm to repeat on certain days, select the alarm, then select Repeat alarm > Repeat alarm, scroll to each day you want the alarm to sound on, and select Mark. Then select Done > Yes.

CALENDAR
Add a calendar event

1. Select Menu > .
2. Scroll to a date, and select Opt. > Add reminder.
3. Enter the event name, and select OK.
4. Select whether to add an alarm to the event, and select OK.

CALCULATOR
Learn how to add, subtract, multiply and divide with your phone calculator.

How to calculate

1. Select Menu > .
2. Enter the first factor of your calculation, use the scroll key to select the operation, and enter the second factor.
3. Select Equals to get the result of the calculation.
   Select Clear to empty the number fields.

Empty your phone

RESTORE FACTORYSETTINGS
Reset your phone
You can restore the original factory seings, but be careful, since this reset removes all data you have saved in the phone memory and all your personalization.
If you are disposing your phone, note that you are responsible of removing all private content.
To reset your phone to its original seings and to remove all your data, on the home screen, type in *#7370#. If asked, enter your security code.

Product and safety information

FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or against local laws and regulations. For further info, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device o when mobile device use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could aect performance.

AUTHORIZED SERVICE

Only authorized personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Use only baeries, chargers, and other accessories approved by HMD Global Oy for use with this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

If your device is water-resistant, see its IP rating in the device's technical specifications for more detailed guidance.

PROTECTYOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

EMERGENCY CALLS

Connections in all conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical emergencies.
Before making the call:

• Switch the phone on.
• If the phone screen and keys are locked, unlock them.
• Move to a place with adequate signal strength.

1. Press the end key repeatedly, until the home screen is shown.
2. Type in the oicial emergency number for your present location. Emergency call numbers vary by location.
3. Press the call key.
4. Give the necessary info as accurately as possible. Do not end the call until given permission to do so.

You may also need to do the following:

• Put a SIM card in the phone.
• If your phone asks for a PIN code, type in the oicial emergency number for your present location, and press the call key.
• Switch the call restrictions o in your phone, such as call barring, fixed dialling, or closed user group.

TAKE CARE OF YOUR DEVICE
Handle your device, baery, charger and accessories with care. The following suggestions help you keep your device operational.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits.
• Do not use or store the device in dusty or dirty areas.
• Do not store the device in high temperatures. High temperatures may damage the device or baery.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside the device and damage it.
• Do not open the device other than as instructed in the user guide.
• Unauthorized modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device or the baery. Rough handling can break it.
• Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not paint the device. Paint can prevent proper operation.
• Keep the device away from magnets or magnetic fields.
• To keep your important data safe, store it in at least two separate places, such as your device, memory card, or computer, or write down important info.

During extended operation, the device may feel warm. In most cases, this is normal. To avoid geing too warm, the device may automatically slow down, close apps, switch o charging, and if necessary, switch itself o. If the device is not working properly, take it to the nearest authorized service facility.

SMALL CHILDREN
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.

NICKEL
The surface of this device is nickel-free.

MEDICAL DEVICES
Operation of radio transmiing equipment, including wireless phones, may interfere with inadequately shielded medical devices' function. Consult a physician or the medical device's manufacturer to determine if it is adequately shielded from external radio energy.

IMPLANTED MEDICALDEVICES
To avoid potential interference, manufacturers of implanted medical devices (such as cardiac pacemakers, insulin pumps, and neurostimulators) recommend a minimum separation of 15.3 centimeters (6 inches) between a wireless device and the medical device. Persons who have such devices should:

• Always keep the wireless device more site the medical device. than 15.3 centimeters (6 inches) from the medical device.
• Switch the wireless device o if there is any reason to suspect that interference is
• Not carry the wireless device in a breast taking place. pocket.
• Follow the manufacturer directions for the
• Hold the wireless device to the ear oppo- implanted medical device.
  If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.

HEARING

When you use the headset, your ability to hear outside sounds may be aected.
Do not use the headset where it can endanger your safety.
Some wireless devices may interfere with some hearing aids.

PROTECT YOUR DEVICE FROM HARMFUL CONTENT
Your device may be exposed to viruses and other harmful content. Take the following precautions:

• Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or computer.
• Be cautious when accepting connectivity requests or browsing the internet. Do not accept Bluetooth® connections from sources you do not trust.
• Install antivirus and other security software on any connected computer.
• If you access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. HMD Global does not endorse or assume liability for such sites.

VEHICLES
Radio signals may aect improperly installed or inadequately shielded electronic systems in vehicles. For more info, check with the manufacturer of your vehicle or its equipment. Only authorized personnel should install the device in a vehicle. Faulty installation may be dangerous and invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry flammable or explosive materials in the same compartment as the device, its parts, or accessories. Do not place your device or accessories in the air bag deployment area.

POTENTIALLY EXPLOSIVE ENVIRONMENTS
Switch your device o in potentially explosive environments, such as near gasoline pumps. Sparks may cause an explosion or fire resulting in injury or death. Note restrictions in areas with fuel; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive environment may not be clearly marked. These usually are areas where you are advised to switch your engine o, below deck on boats, chemical transfer or storage facilities, and where the air contains chemicals or particles. Check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) if this device can be safely used in their vicinity.
