Samsung HW-J450 Manual

FEATURES

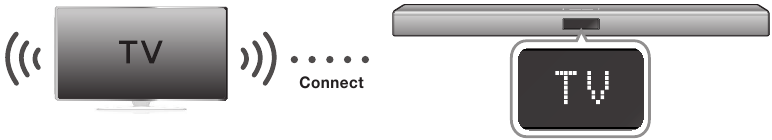

TV SoundConnect
TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the sound.

HDMI
HDMI transmits video and audio signals simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function which lets you listen to sound from your TV through the Soundbar via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV.

SURROUND SOUND
The SURROUND SOUND feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer
Samsung's wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound Effects
You can select different Sound Effects - STANDARD (Original Sound)/MUSIC / VOICE / SPORTS / CINEMA / NIGHT MODE - depending on the type of content you want to enjoy.

Multi-function Remote Control
You can use the supplied remote control to control various operations with the simple press of a button.

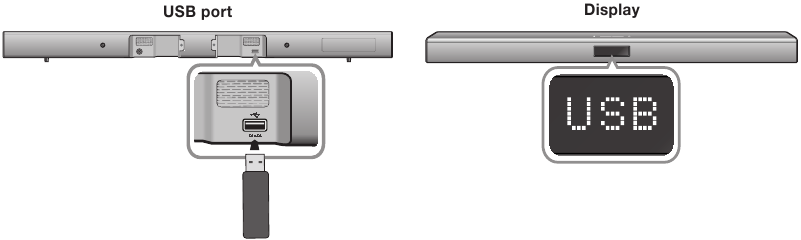

USB Host Support
You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function
You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

Using Samsung Audio Remote App
To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through Google Play store.

GETTING STARTED

BEFORE READING THE USER'S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon	Term	Definition
	Caution	Indicates a situation where a function does not operate or settings may be canceled.
	Note	Indicates tips or instructions on the page that help you operate a function.

Safety Instructions and Troubleshooting

1. Be sure to familiarise yourself with the Safety Instructions before using this product.
2. If a problem occurs, check Troubleshooting.

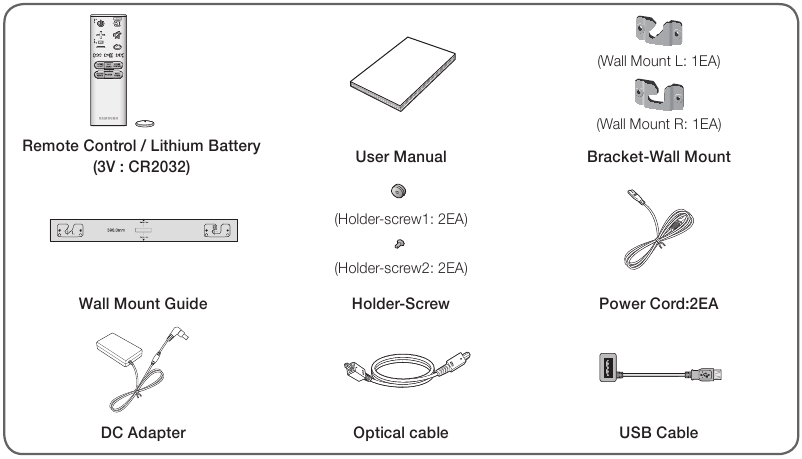

WHAT'S INCLUDED

Check for the supplied accessories shown below.

• The appearance of the accessories may differ slightly from the illustrations above.
• Use the dedicated USB cable to connect external USB devices to the unit.

DESCRIPTIONS

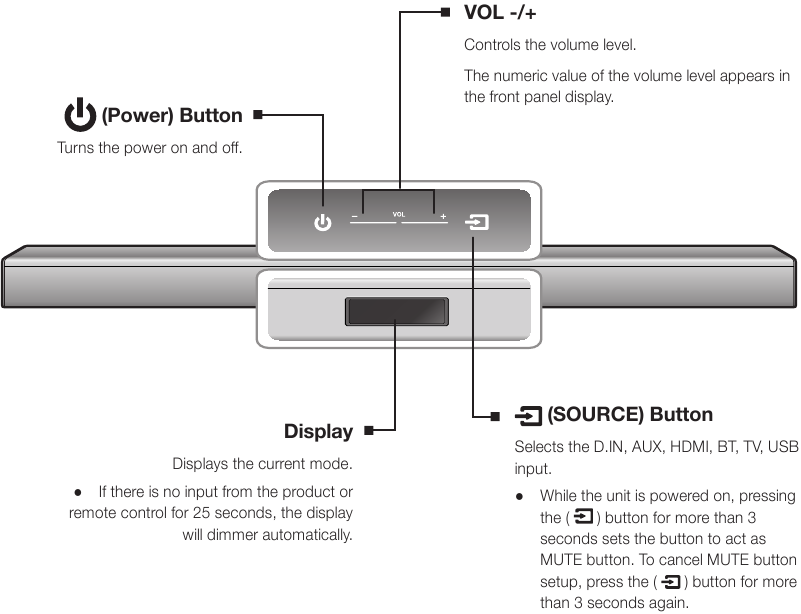

TOP/FRONT PANEL

• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

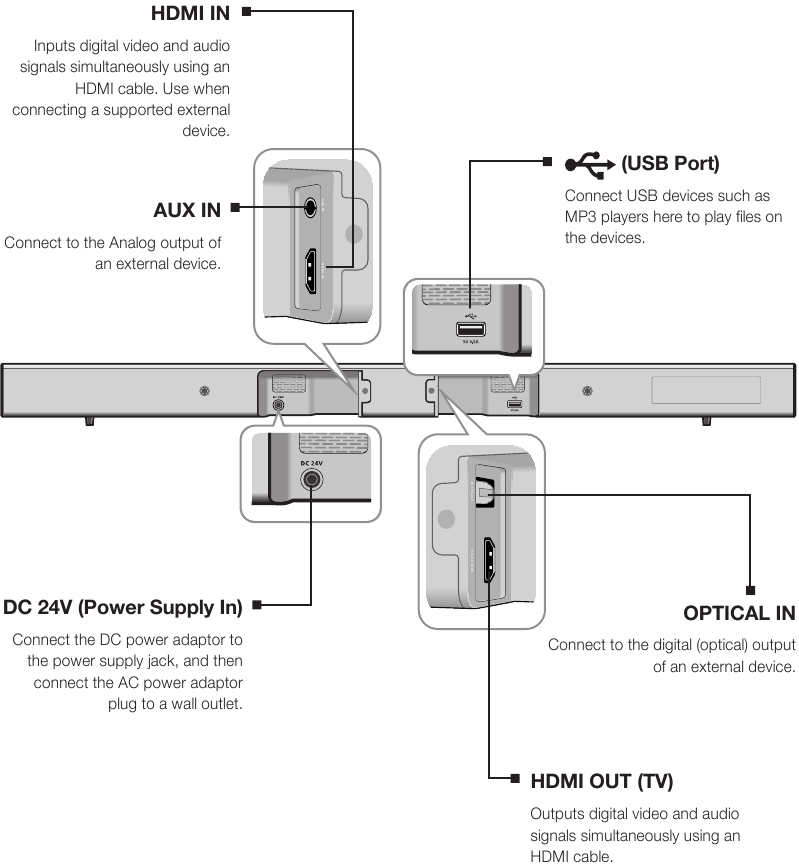

REAR PANEL

• When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

REMOTE CONTROL

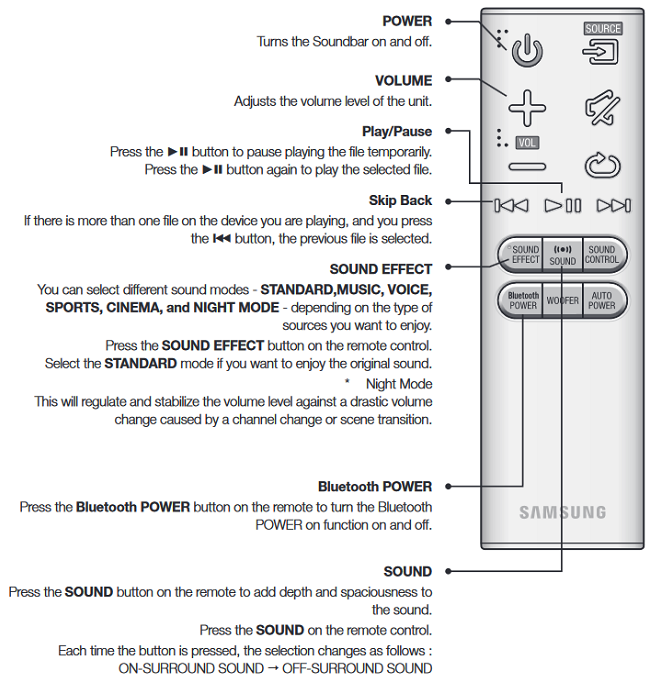

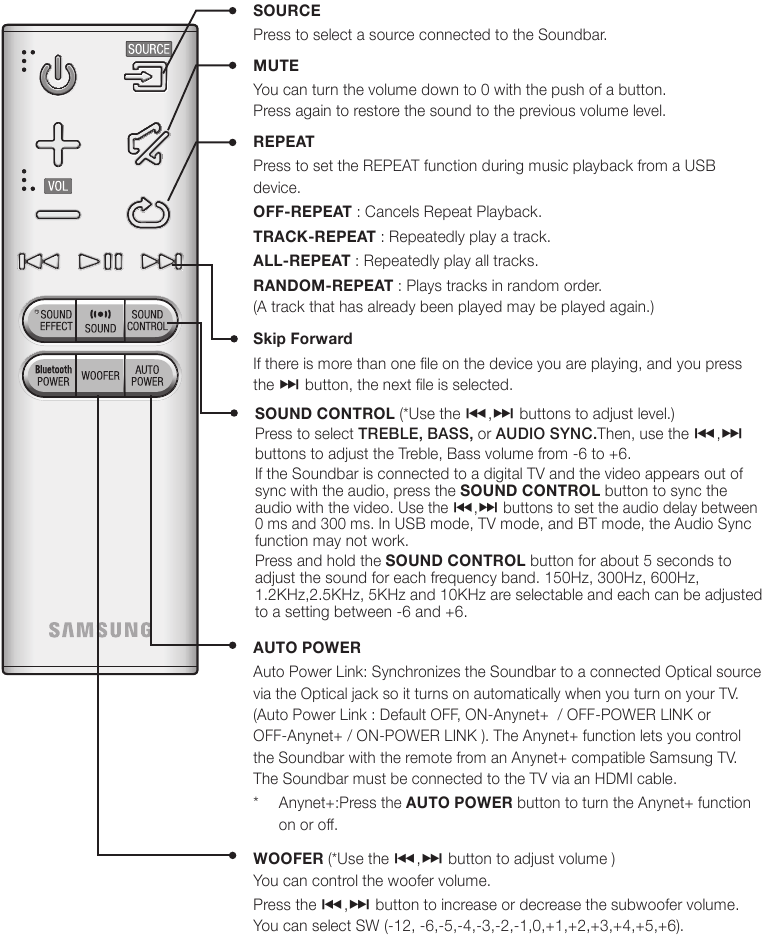

REMOTE CONTROL BUTTONS AND FUNCTIONS

• Soundbar is a Samsung proprietary name.
• Operate the TV using the TV's remote control.

Installing the Battery in the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '●' marks side by side as shown in the figure above.

3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.


CONNECTIONS

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

Installation Precautions

• Install on a vertical wall only.
• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
  • Diameter: M5
  • Length: L 35 mm or longer recommended
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

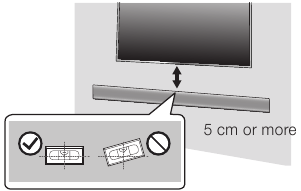

1. Place the installation guide against the wall surface.
   • The installation guide must be level.
   • Install at least 5 cm below the TV, if the TV is mounted on the wall.

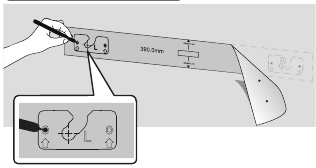

2. Mark the location where the screws will go through on the wall using a pen, and then remove the installation guide.

3. Fasten the wall mounts and screws to the marked locations.
   • The left and right mounts are different shapes.

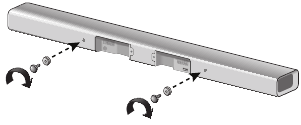

4. Secure the two holder screws to the screw holes on the back of the Soundbar's main body, one on the left and one on the right.

5. Insert the USB cable into the back of the Soundbar before installing it on the wall.

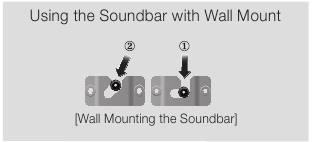

6. Set the holder screws on the back of the Soundbar into the grooves of the wall mount. For safe installation, make sure to push the holder screws all the way to the bottom of the grooves.

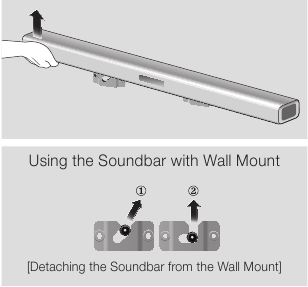

DETACHING THE WALL MOUNT

1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mount.


• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

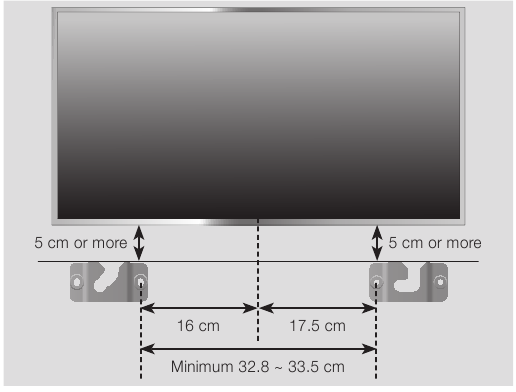

INSTALLING THE BRACKET WITHOUT REFERRING TO THE WALL-MOUNT INSTALLATION GUIDE

1. Place the "Wall Mount L" on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its right end.
2. Place the "Wall Mount R" on the desired wall surface while paralleled to the floor as shown above, and fix a screw through the hole on its left end.
   • If Wall Mount L/R are to be mounted beneath the TV, check their fixing hole positions in steps 1 and 2, so that they are aligned appropriately to the center of the TV's bottom.
3. Fix screws through the rest of holes.

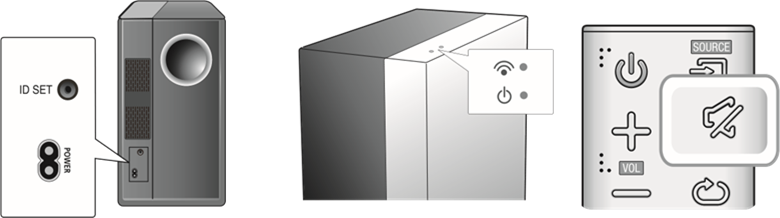

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator ( ) does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
   • The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the MUTE ( ) on the remote control for 5 seconds.
4. The ID SET message appears on the Soundbar's display.
5. To finalize the link, turn the main unit's power on while the subwoofer's Blue LED blinks.
   • The main unit and the subwoofer should now be linked (connected).
   • The Link indicator (Blue LED) on the subwoofer should be on.
   • If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.
   • You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.

• Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
• If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.
• If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The transmission distance of the wireless signal between the main unit and subwoofer is about 10 m, but may vary depending on your operating environment.
  If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.
• If the main unit doesn't make a wireless connection, follow steps 1-5 to re-set the connection between the main unit and wireless subwoofer.

• The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

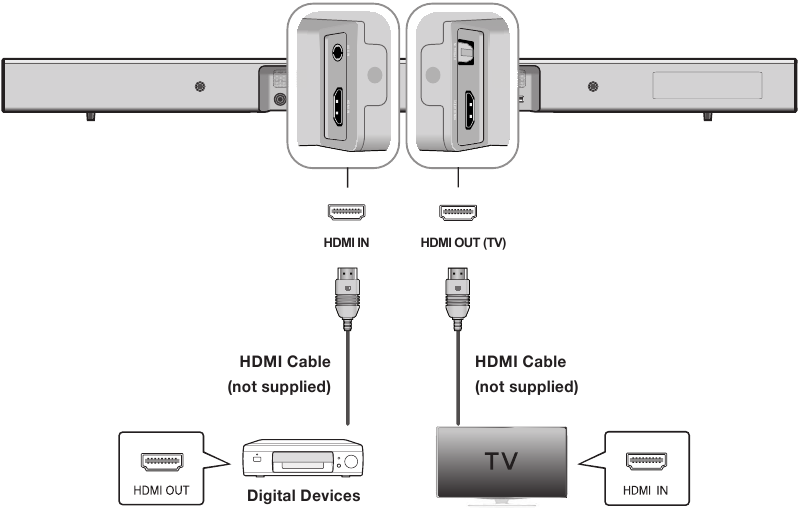

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to such TVs, projectors, DVD players, Blu-ray players, set top boxes, and more.

Because HDMI transmits the highest quality digital signal, you can enjoy superior video and audio - as it was originally created at the digital source.

HDMI IN
Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.

and,

HDMI OUT (TV)
Connect an HDMI cable (not supplied) from the HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

ARC (HDMI OUT)
The ARC function allows digital audio to output via the HDMI OUT (ARC) port.

It can be enabled only when the Soundbar is connected to a TV that supports the ARC function.

• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

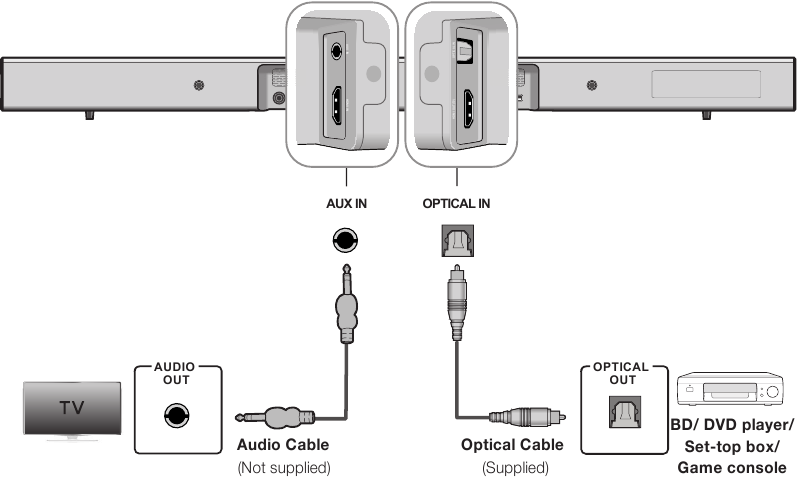

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOGUE) CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical in digital jack and one audio Analogue in jack, giving you two ways to connect it to a TV.

AUX IN
Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device. Change the function to AUX.

or,

OPTICAL IN
Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device. Change the function to D.IN.

• Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

FUNCTIONS

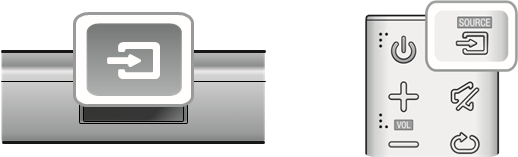

INPUT MODE

Press the ( ) button on the main unit's top panel or the (SOURCE) button on the remote control to select the mode you want.

Input mode	Display
Optical Digital input	D.IN
AUX input	AUX
HDMI input	HDMI
BLUETOOTH mode	BT
TV SoundConnect	TV
USB mode	USB

The unit turns off automatically in the following situations.

• D.IN/HDMI/BT/TV/USB Mode
  • If there is no audio signal for 25 minutes.
• AUX Mode
  • If the AUX cable is disconnected for 25 minutes.
  • In Auto Power Down ON mode, if there is no KEY input for 8 hours when the AUX cable is connected.
  • To turn the Auto Power Down function ON or OFF, press and hold the p button for 5 seconds. OFF/ ON-AUTO POWER DOWN appears on the display.

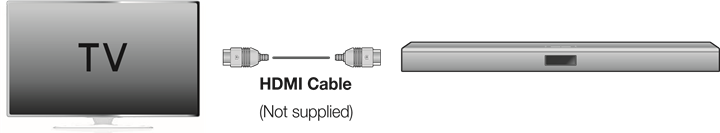

ARC (HDMI OUT)

ARC (Audio Return Channel) transfers digital audio signal to the HDMI OUT (ARC) port."

1. Connect the TV supporting ARC to the Soundbar with an HDMI cable.
2. Turn on the TV, and turn on the Soundbar's Anynet+.
3. Press the ( ) button on the main unit's top panel or the (SOURCE) button on the remote control to select the D.IN mode.

• If the HDMI cable does not support ARC feature, ARC may not work properly.
• To turn off the ARC function, turn Anynet+ off.

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

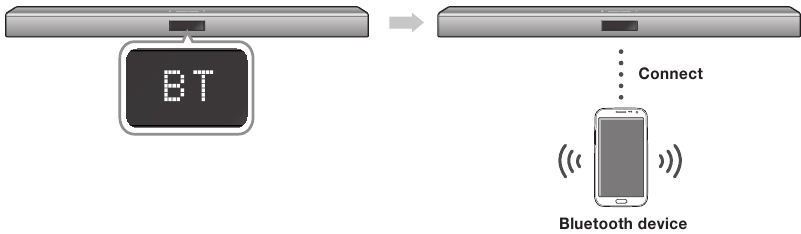

To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

1. Press the ( ) button on the main unit's top panel or the (SOURCE) button on the remote control to select the BT mode.
   • You will see BT READY on the front display of the Soundbar.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
3. Select the Stereo headset menu on the Bluetooth device.
   • You will see a list of scanned devices.
4. Select "[Samsung] Soundbar J-Series" from the list.
   • When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name] → BT on the front display.
   • The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.
   • If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar J-Series" found by the Bluetooth device and have it search for the Soundbar again.
5. Play music on the connected device.
   • You can listen to the music playing on the connected Bluetooth device over the Soundbar.
   • In BT mode, the Play/Pause/Next/Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.

• If asked for PIN code when connecting a Bluetooth device, enter <0000>.
• Only one Bluetooth device can be paired at a time.
• The Bluetooth connection will be terminated when you turn the Soundbar off.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
  • If there is a strong electrical field around the Soundbar.
  • If several Bluetooth devices are simultaneously paired with the Soundbar.
  • If the Bluetooth device is turned off, not in place, or malfunctions.
  • Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.
• The Soundbar supports SBC data (44.1kHz, 48kHz).
• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once paired the device, on D.IN/AUX/ HDMI/ USB mode, select "[Samsung] Soundbar J-Series" from the list will automatically change to BT mode.

Bluetooth POWER on (Bluetooth POWER)

When the Bluetooth Power On function is on and the Soundbar is turned off, if a previously paired Bluetooth device tries to pair with the Soundbar, the Soundbar turns on automatically.

1. Press the Bluetooth POWER on the remote while the Soundbar is turned on.
2. ON-Bluetooth POWER appears on the Soundbar's display.

• Available only if the Soundbar is listed among the Bluetooth device's paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)
• Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying [BT READY].
• In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.

To disconnect the Soundbar from the Bluetooth device

Press the (SOURCE) button on the remote control or the ( ) button on the product's top panel to switch from BT to another mode or turn off the Soundbar.

• The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 5m.
• The Soundbar automatically turns off after 25 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, when:
  • A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
  • It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
  • It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

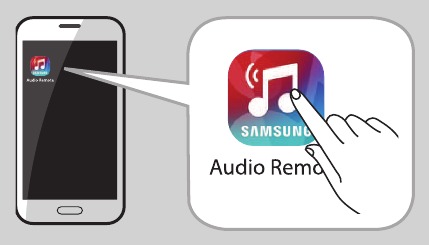

USING SAMSUNG AUDIO REMOTE APP

Install Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio Remote App by accessing the app through Google Play store.

Market search: Samsung Audio Remote

Accessing the Samsung Audio Remote App

After you install the Samsung Audio Remote app, follow the instructions in the app.

The APP function only supports Android mobile phone devices running Android OS 3.0 or later.

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

Connecting a TV to the Soundbar

1. Turn on the TV and Soundbar.
   • Turn on the menu of the TV.
   • Move to Speaker Settings on "Sound" tab.
   • Set the "Add New Device" menu to "On".
2. Press the ( ) button on the main unit's top panel or the (SOURCE) button on the remote control to select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function. "[Samsung] Soundbar" is displayed on the TV screen.
4. Select <Yes> to finish connecting the TV and Soundbar by TV remote control.

• Switching the Soundbar's mode from TV to another mode automatically terminates TV SoundConnect.
• To connect the Soundbar to another TV, the existing connection must be terminated.
• Terminate the connection to the existing TV, and then press the button on the remote control for 5 seconds to connect to another TV.

• The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV's user manual.)
• If your Samsung TV was released before 2014, check the SoundShare setting menu.
• If the distance between the TV and Soundbar exceeds 5 m, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

• TV SoundConnect Operational Ranges:
  • Recommended pairing range: within 50 cm
  • Recommended operational range: within 5 m
• The Play/Pause, Next, Prev buttons are not operable in TV SoundConnect mode.

Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar's power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.
2. Press the Bluetooth POWER button on the Soundbar remote. "ON/OFF-BLUETOOTH POWER" appears on the Soundbar's display.
   • ON-BLUETOOTH POWER: The Soundbar turns on and off when you turn the TV on or off.
   • OFF-BLUETOOTH POWER: The Soundbar only turns off when you turn the TV off.

This function is supported by some Samsung TVs released from 2013 on.

USB

You can play music files located on USB storage devices through the Soundbar.

1. Connect the USB device to the USB port of the product.
2. Press the () button on the main unit's top panel or the (SOURCE) button on the remote control to select the USB mode.
3. USB appears on the display screen.
   • The Soundbar connection to the USB device is complete.
   • The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 25 minutes.

Before you connect a USB device

Be aware of the following:

• If the file name of a folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar's display.
• This product may not be compatible with certain types of USB storage media.
• The Soundbar supports the FAT16 and FAT32 file systems.
  • The NTFS file system is not supported.
• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.
• External HDDs are not supported.
• Mobile phone devices are not supported.
• File Format Type Compatibility list:

Format	Codec	Sampling Rate	Bitrate
*.mp3	MPEG 1 Layer2	16KHz ~ 48KHz	80kbps~320kbps
	MPEG 1 Layer3
	MPEG 2 Layer3
	MPEG 2.5 Layer3
*.wma	Wave_Format_MSAudio1		56kbps~128kbps
	Wave_Format_MSAudio2
*.aac	AAC	16KHz ~ 96KHz	48kbps~320kbps
	AAC-LC		128kbps~192kbps
	HE-AAC	24KHz ~ 96KHz	48kbps~64kbps
*.wav	-	16KHz ~ 48KHz	up to 3000kbps
*.ogg	OGG 1.1.0		50kbps~500kbps
*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

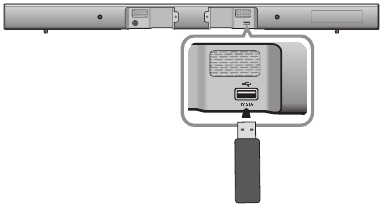

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit Samsung.com or contact the Samsung call center to receive more information about downloading updates files.

• The product has the DUAL BOOT function, if the firmware fails to update, you can update the firmware again.
• Insert a USB device containing the firmware update into the USB port on the main unit.
• Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
• After reset, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets subwoofer connection too. If connection to the subwoofer is not established automatically after resetting. If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.
• Once the software update is completed, turn off the product and then press and hold the ( ) button on the remote control for more than 5 seconds. "INIT" appears on the display and the unit is powered off. The update is complete.
• Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.
• Depending on the manufacturer, some USB devices may not be supported.

TROUBLESHOOTING

Before requesting service, please check the following.

The unit will not turn on.
Is the power cord plugged into the outlet?	Connect the power plug to the outlet.
A function does not work when the button is pressed.
Is there static electricity in the air?	Disconnect the power plug and connect it again.
Sound is not produced.
Is the Mute function on? Is the volume set to minimum?	Press the Mute button to cancel the function. Adjust the Volume.
The remote control does not work.
Are the batteries drained? Is the distance between the remote control and main unit too far?	Replace with new batteries. Move closer to the unit.
The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect? Is your TV firmware the latest version? Does an error occur when connecting? Reset the TV MODE and connect again.	TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect. Update your TV with the latest firmware. Contact the Samsung call center. Press and hold the button for 5 seconds to reset the TV SoundConnect connection.
The red LED on the subwoofer blinks and the subwoofer is not producing sound.
Your subwoofer may not be connected to the main body of the product.	Try to connect your subwoofer again.
The subwoofer drones and vibrates noticeably.
Try to adjust the vibration of your subwoofer.	Press the WOOFER button on your remote control to adjust its value (between SW-12 and SW+6).

SPECIFICATIONS

Model name	HW-J450
GENERAL	USB		5V/0.5A
	Weight	Main Unit	1.62 kg
		Subwoofer	4.6 kg
	Dimensions (W x H x D)	Main Unit	957.5 x 59.5 x 66.5 mm
		Subwoofer	179 x 361 x 299.5 mm
	Operating Temperature Range		+5°C to +35°C
	Operating Humidity Range		10% to 75%
AMPLIFIER	Rated Output Power	Main Unit	80W/CH, 3 OHM, THD = 10%, 1kHz
		Subwoofer	140W, 3 OHM, THD = 10%, 70Hz
	S/N Ratio (Analogue Input)		65 dB
	Separation (1kHz)		65 dB

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering Society) guidelines.

* Nominal specification

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
• For the power supply and Power Consumption, refer to the label attached to the product.

Contact SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

U.K
Contact Centre: 0330 SAMSUNG (7267864)
www.samsung.com/uk/support

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation 7~10 cm.

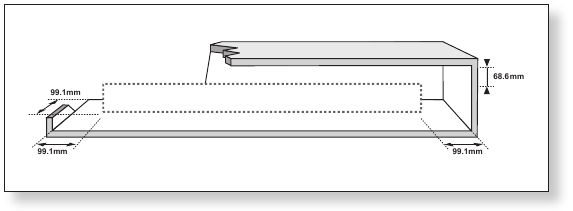

Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only.
Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. A warning that batteries (battery pack or batteries installed)shall not be exposed to excessive heat such as sunshine, fire or the like. Do not short circuit, disassemble, or overheat the batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Documents / Resources

References

• Google Play
• Samsung US | Mobile | TV | Home Electronics | Home Appliances | Samsung US
• Product Help & Support | Samsung UK

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Samsung HW-J450 Manual
