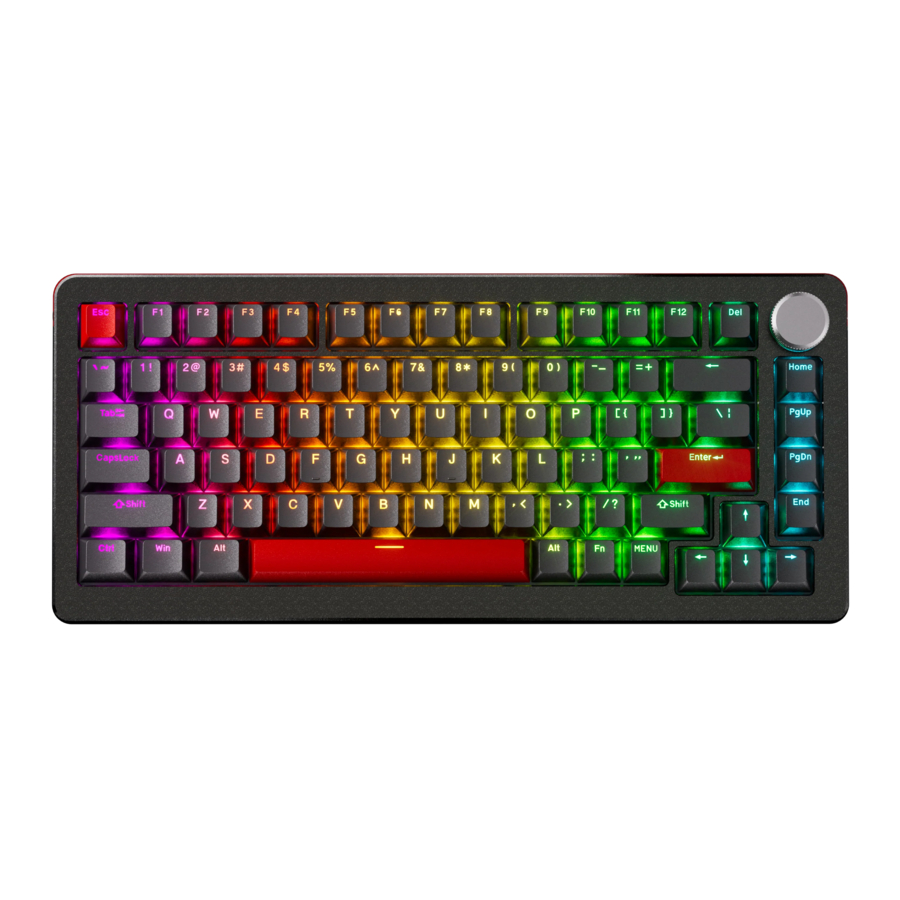

DrunkDeer A75 Manual

Package content

How to connect to the web driver

1. Website link: https://drunkdeer-antler.cn
2. Click on the "connect" button

3. Click to match the model

4. Then click on the connect bottom

How to set up the rapid trigger

3. Enable the Rapid trigger Mode

   If RT mode is enabled, then the AP value means the press extent for starting RT calculation.
   For example, if the AP is set to 0.5mm and RT is 0.1mm and 0.2mm, then the shortest trigger distance will be AP+Press Sensitivity(RT)=0.5+0.1=0.6mm
4. Key sensitivity setting
   (We Recommend that You Set the Sensitivity of the RT to 0.2MM)
5. Remember to click "save to keyboard"


About Magnetic Switches

Each key on the keyboard has a magnet, and each magnet has a corresponding Hall sensor. When a key is pressed, the Hall sensor senses an increase in magnetic field and outputs a signal when a certain value is reached.

With the customization trigger point function, you can set the activation position of the keys from 0.2 mm to 3.8 mm; so everyone can enjoy a personalized typing experience from a light touch to a strong press.

Whether you want to shorten the activation distance for faster response to actions and commands, or increase the activation distance for improved typing accuracy, you can decide the output method.

Magnetic switches do not rely on physical contact, which prevents key abrasion over time. These switches can be pressed hundreds of millions of times.

This is far superior to the metal contacts of traditional switches.

How To Control The Backlight Effect

The backlight effect can be changed by key combination as follow:

Fn2 Menu + Tab (Menu)= Change the backlight color (Only for certain effects)Previous

Fn2 Menu + ← = backlight effect

Fn2 Menu +→ = Next backlight effect

Fn2 Menu + ↑ = Increase the backlight brightness

Fn2 Menu + ↓= Decrease the backlight brightness

How To Switch The Operating Layout

The operating layout of the A75 can be changed by key combination as follow:

Fn2(Menu)+ M : Switch to the Mac OS
Under the macOS layout, the function keys on F1 to F12 are available without other driver program.

Fn2(Menu)+ W : Switch to the WindowsUnder the Windows layout, the function keys would retain original key value.

Control The Volume With The Knob

Whether it's MacOS or Windows layout, volume of the computer can be controlleddirectly by turning the knob.

You can also play or pause music/videoby pressing the knob.

Specification

Keyboard Model A75

Keyboard Size 335mm*150mm*45mm

Keyboard Weight 715g ± 20g

Layout ANSI 75%; ISO-DE; ISO-FR; ISO-UK

Main Material: ABS Keycaps; PBT Keycaps (optional)

Switch type: RAESHA switch

System available: Windows & macOS

• Do not place the keyboard in a high temperature or strong magnetic field environment. Please be careful not to allow liquids to enter the keyboard, as this may cause permanent damage.
• We do not recommend disassembling or modifying this keyboard.
• Due to the characteristics of magnetic switches, the keyboard may be damaged by severe shock, high temperature, strong magnetic fields, or other abnormal environments.

The switches are hot-swappable (RAESHA switches replacement only) and can be disassembled or interchanged, lubricated or replaced. Each keyboard is individually calibrated for accuracy before it leaves the factory. These actions may have a slight effect on the accuracy of the individual keys. (Normal use is not affected)

If you have more questions, please contact us through hello@drunkdeer.com or visit our official website any time for more info and support. If you are a Chinese user, we recommend visiting www.drunkdeer.cn
