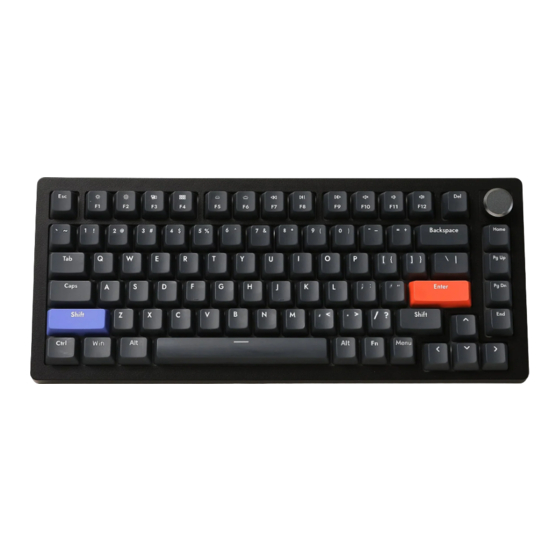

DrunkDeer A75 User Manual

DrunkDeer A75 User Manual

Gaming magnetic switch keyboard expert
Hide thumbs Also See for A75:

Advertisement

Quick Links

Gaming
Magnetic Switch
Keyboard Expert
A75

Advertisement

loading
Need help?

Need help?

Do you have a question about the A75 and is the answer not in the manual?

Questions and answers

Summary of Contents for DrunkDeer A75

  • Page 1 Gaming Magnetic Switch Keyboard Expert...
  • Page 2 (Menu) (Menu)
  • Page 3: Package Content

    Package content A75 MS Keyboard USB Type-C Cable Dustproof Cover Keycap Puller Quick Guide...
  • Page 4 A75 MS Keyboard Quick Guide (Menu) Keycap Puller USB Type-C Cable Dustproof Cover...
  • Page 5: Wired Connection

    Wired Connection (Menu) For the devices with Type-C ports(Laptop, for example), (Menu) you can connect the keyboard to the device with the Type-C cable directly.
  • Page 6 How to restore the keyboard to default settings (Menu) You can restore the keyboard by key combination 'Fn2(Menu) + Esc' for 5 seconds The backlight will blink red for 3 seconds and the keyboard will return to its default state.
  • Page 7 How to connect to the web driver 1. Website link : https://drunkdeer-antler.cn 2. Click on the “connect” button 3. Click to match the model 4. Then click on the connect bottom...
  • Page 8 How to adjust the actuation sensitivity Set the value as 0.3mm 1. select the keys (for example WASD)
  • Page 9 How to set up the rapid trigger 3. Enable the Rapid trigger Mode If RT mode is enabled, then the AP value means the press extent for starting RT calculation. For example, if the AP is set to 0.5mm and RT is 0.1mm and 0.2mm, then the shortest trigger distance will be AP+Press Sensitivity(RT)=0.5+0.1=0.6mm 4.
  • Page 10 About Magnetic Switches Each key on the keyboard has a magnet, and each magnet has a corresponding Hall sensor. When a key is pressed, the Hall sensor senses an increase in magnetic field and outputs a signal when a certain value is reached. With the customization trigger point function, you can set the activation position of the keys from 0.2 mm to 3.8 mm;so everyone can enjoy a personalized typing experience from a light touch to a strong press.
  • Page 11 How To Control The Backlight Effect (Menu) The backlight effect can be changed by key combination as follow: (Menu) Change the backlight color (Only for certain effects)Previous Fn2(Menu)+ Tab (Menu) Fn2(Menu)+ ← backlight effect (Menu) Fn2(Menu)+ → Next backlight effect Increase the backlight brightness Fn2(Menu)+ ↑...
  • Page 12 How To Switch The Operating Layout (Menu) The operating layout of the A75 can be changed by key combination as follow: Fn2(Menu)+ M : Switch to the Mac OS (Menu) Under the MacOS layout, the function keys on F1 to F12 are available without other driver program.
  • Page 13 Control The Volume With The Knob (Menu) Whether it's MacOS or Windows You can also play or pause layout,volume of the computer can be music/videoby pressing the knob. controlleddirectly by turning the knob. anticlockwise Clockwise...
  • Page 14: Specification

    Specification Keyboard Model:A75 Keyboard Size:335mm*150mm*45mm Keyboard Weight:715g ± 20g Layout:ANSI 75% ; ISO-DE ; ISO-FR ; ISO-UK Main Material:ABS Keycaps PBT Keycaps(opional) Switch type:RAESHA switch System available:Windows & Mac OS...
  • Page 15 Caution Do not place the keyboard in a high temperature or strong magnetic field environment. Please be careful not to allow liquids to enter the keyboard, as this may cause permanent damage. We do not recommend disassembling or modifying this keyboard. Due to the characteristics of magnetic switches, the keyboard may be damaged by severe shock, high temperature, strong magnetic fields, or other abnormal environments.
  • Page 16 If you are a Chinese user, we recommend visiting www.drunkdeer.cn In the future, DrunkDeer will be committed to developing "faster and stronger keyboards". Through continuous innovation and the pursuit of...
